Description
For heating, water cooling, and domestic hot water in a compatible installation. Daikin Altherma 3 R combines EHVX08S23EA6V + ERGA08EAV3A with a 230-liter DHW tank. It is not a wall-mounted split: it requires emitters and a hydraulic installation sized for the home. Installation and emitters are separate.
Comfort also depends on the emitters that accompany the equipment: underfloor heating, radiators, or fan coils must be suitable for the installation. Cooling requires emitters designed for that purpose; not all radiators can provide it.
What does Daikin Altherma 3 R · 230 L include?
Hydraulic tower combination with domestic hot water and outdoor unit documented by Daikin.
| Model | Component | Supply scope |
|---|---|---|

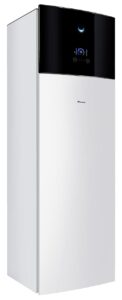

| EHVX08S23EA6V | Interior tower with 230 L domestic hot water tank and integrated interface | 1 included |
| ERGA08EAV3A | Outdoor unit | 1 included |
| Installation and emitters | Installation, hydraulic materials, underfloor heating, radiators or fan coils | Not included |
The control shown is integrated into the tower. The emitters, installation materials, and commissioning are budgeted separately.
Illustration of the set based on catalog photographs. Official individual images of the family, without scale.
What to check before installing Daikin Altherma 3 R · 230 L
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Calculate the thermal load of the house and the domestic hot water requirements.
- Check the compatibility and working temperature of underfloor heating, radiators, or fan coils.
- Check access for the tower of 1,850 mm, drainage, hydraulic diagram, supply, and maintenance space.
Technical sheet: Daikin Altherma 3 R · 230 L
- Brand
- Daikin
- Model and composition
- Daikin Altherma 3 R · 230 L
- Supply scope
- EHVX08S23EA6V + ERGA08EAV3A
- Installation
- Not included
- Availability and transport
- Check the price, availability, and supply of this configuration.
Installation at a glance
- Interior
- 595 × 1,850 × 625 mm width × height × depth
- Exterior
- 884 × 740 × 388 mm width × height × depth
- Indoor unit
- EHVX08S23EA6V
- Maximum slope
- 20 m
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Indoor unit
- EHVX08S23EA6V
Composition and accumulation - Outdoor unit
- ERGA08EAV3A
Composition and accumulation - Domestic hot water tank
- 230 liters
Composition and accumulation - Control
- Integrated interface in the tower
Composition and accumulation - Refrigerant
- R32
Composition and accumulation - Nominal heat · air 7 °C / water 35 °C
- 7.50 kW
Nominal capacity and consumption - Nominal heat · air 7 °C / water 45 °C
- 7.80 kW
Nominal capacity and consumption - Nominal cooling of the unit
- 6.25 kW
Nominal capacity and consumption · Outdoor air 35 °C / water 18 °C (A35/W18). - REFRIGERATION/h · water 18 °C
- 5.375 Kcal/h
Nominal capacity and consumption · Approximate conversion: kW × 860. - Nominal cooling · air 35 °C / water 7 °C
- 5.44 kW
Nominal capacity and consumption - Nominal consumption in heating · A7/W35
- 1.63 kW
Nominal capacity and consumption - Nominal consumption in cooling · A35/W18
- 1.16 kW
Nominal capacity and consumption - COP · A7/W35
- 4,60
Nominal capacity and consumption - EER · A35/W18
- 5,40
Nominal capacity and consumption - Heating class · water 35 °C
- A+++
Seasonal efficiency - Heating class · water 55 °C
- A++
Seasonal efficiency - SCOP · 35 °C · average climate
- 4,61
Seasonal efficiency - SCOP · 55 °C · average climate
- 3,30
Seasonal efficiency - ACS class
- A+
Seasonal efficiency - Domestic hot water load profile
- XL
Seasonal efficiency - Interior · width × height × depth
- 595 × 1,850 × 625 mm
Dimensions, weight and sound · Tower with 230 L domestic hot water tank. - Weight of the tower
- 128 kg
Dimensions, weight, and sound - Exterior · width × height × depth
- 884 × 740 × 388 mm
Dimensions, weight, and sound - External weight
- 58.5 kg
Dimensions, weight, and sound - Interior sound pressure
- 28 dB(A)
Dimensions, weight, and sound - External sound pressure · cold / heat
- 50 / 49 dB(A)
Dimensions, weight, and sound - External power supply
- Single-phase · 230 V · 50 Hz
Installation - Factory charge R32
- 1.50 kg
Installation - Maximum slope
- 20 m
Installation - Emitters and hydraulic network
- Not included
Installation · Select according to project and supply temperatures. - Installation and commissioning
- Not included
Installation - Residential use
- 3 years
Daikin warranty · According to the manufacturer's conditions. - Other uses
- 2 years of material replacement
Daikin warranty · Check the scope and exclusions in the Daikin terms and conditions.
Before purchasing
- Source: Daikin EHVX-E6V / ERGA04-08EVA tables for EHVX08S23EA6V + ERGA08EAV3A. Maintain the testing conditions indicated when comparing capacities.
Documentation
Questions about Daikin Altherma 3 R · 230 L
Is it a 1x1 air conditioning unit for a room?
No. EHVX08S23EA6V + ERGA08EAV3A is a water-based aerothermal system with a 230-liter domestic hot water storage. It requires a hydraulic installation and compatible emitters; it does not include a wall-mounted split that directly blows air into the room.
How much cold can it provide and why are there two power ratings?
The technical sheet states 6.25 kW of cooling with outside air at 35 °C and water at 18 °C, and 5.44 kW with water at 7 °C. These are different conditions; one cannot choose a figure without knowing what water temperature the installation requires.
Is it suitable for replacing a boiler and providing hot water?
It can be an option: this Altherma combines water heating and a 230-liter hot water tank. Before changing the boiler, we need to know what your home is like, what radiators or underfloor heating you have, and how many of you use hot water. This way, we can guide you on the equipment and the necessary adaptations. The installation is quoted separately.
Does it include a hot water tank?
Yes. The indoor unit EHVX08S23EA6V integrates a 230-liter domestic hot water tank.
Where is the remote control?
The control interface is integrated into the front of the internal tower.
Does it include emitters and installation?
No. The installation and the emitters are sized and budgeted according to the project.
What warranty does it have?
3 years for residential equipment for private use, according to Daikin's conditions; 2 years for replacement of materials in other uses.
