Daikin ADEAS60A ducted air conditioning · single-phase
To distribute air through a duct system: 4,902 frigories/h (5.7 kW) nominal of the Daikin ADEAS60A · single-phase unit.
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Optional
- kcal/h
- ≈ 4.902
- Refrigerant
- R32
Description
To distribute air through a duct installation: 4,902 frigories/h (5.7 kW) nominal of the Daikin ADEAS60A unit · single-phase. A concealed indoor unit feeds the grille network; the distribution among rooms depends on the duct design, not on having a split in each one. Installation and adaptation of the network are separate.
The duct network and the position of the grilles must be adapted to the layout of the property. Having multiple grilles does not imply independent control by room: if you need this, a compatible zoning system must be studied.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What does Daikin ADEAS60A · single-phase include?
Indoor unit, outdoor unit, and control of the indicated set.
| Model | Component | Supply scope |
|---|---|---|
| ADEA60A | Indoor unit | 1 included |
| ARXM60A | Outdoor unit | 1 included |
| BRC1E53A | Wired remote control included | 1 included |
Ducted system with wired control BRC1E53A. Ducts, grilles, and installation are quoted separately.

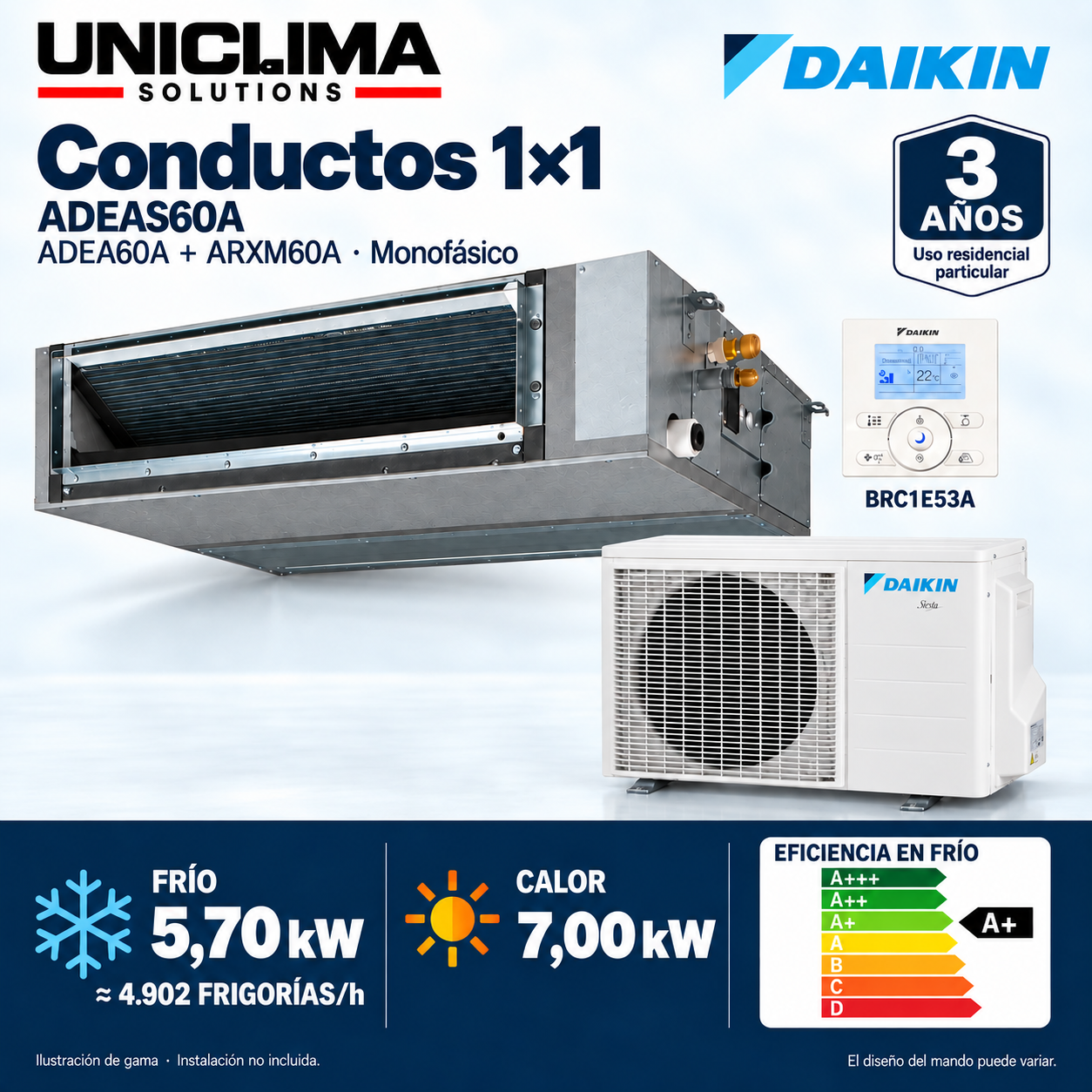

Illustrative cover of the range, without scale. Individual images of the family with visual adjustment of color and lighting. The design of the control may vary due to catalog updates.
What to check before installing Daikin ADEAS60A · single-phase
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Reserve an interior space of 1,000 × 245 × 800 mm plus maintenance access. Adjust the duct network for the available pressure of 30 / 150 Pa.
- Refrigerant line 1/4″ / 1/2″, published length 30 m and height difference up to 20 m. Check the manual for the external inspection.
- The tariff control is BRC1E53A. Please confirm the supplied set; ductwork and installation are budgeted separately.
Daikin ADEAS60A · single-phase
- Brand
- Daikin
- Model and composition
- Daikin ADEAS60A · single-phase
- Supply scope
- ADEA60A + ARXM60A + BRC1E53A
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 1,000 × 245 × 800 mm width × height × depth
- Exterior
- 954 × 734 × 401 mm width × height × depth
- Indoor unit
- ADEA60A
- Pipe · liquid / gas
- 1/4″ / 1/2″
- Maximum published length
- 30 m
- Maximum slope
- 20 m
- Factory published load
- 1.15 kg
- Length covered by precharge
- 10 m
- Additional load
- 20 g/m above 10 m
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- ADEAS60A
Identification and control - Indoor unit
- ADEA60A
Identification and control - Outdoor unit published
- ARXM60A
Identification and control · The exact review is confirmed upon delivery. - Wired tariff control
- BRC1E53A
Identification and control - External power supply
- single-phase · 220–240 V
Identification and control - Connectivity
- Wi-Fi control with the Onecta app optional · adapter BRP069C81.
Identification and control · Daikin Spain · tariff update 2025 · PDF page 51. - Nominal power in cold conditions
- 5.70 kW
Power - Nominal heat output
- 7.00 kW
Power - approximate nominal cooling capacity
- 4,902 Kcal/h
Power · Approximate conversion: kW × 860. - SEER
- 5,74
Efficiency of the system - SCOP · average climate
- 4,00
Efficiency of the system - Annual consumption in cold
- 347 kWh/year
Efficiency of the system - Annual heat consumption · average climate
- 1,610 kWh/year
Efficiency of the system - Energy class in cold
- A+
Efficiency of the system - Energy class in heating · average climate
- A+
Efficiency of the system - Interior · width × height × depth
- 1,000 × 245 × 800 mm
Dimensions and air - Internal weight
- 35 kg
Dimensions and air · ADEA60A2VEB, according to the current Daikin table. - External static pressure · nominal / high
- 30 / 150 Pa
Dimensions and air - Height of the body
- 245 mm
Dimensions and air - Exterior · width × height × depth
- 954 × 734 × 401 mm
Dimensions and air · ARXM-A series. - Cold internal flow · low / medium / high
- 12.5 / 15.0 / 18.0 m³/min
Dimensions and air - Interior sound pressure in cold · low / medium / high
- 25 / 28 / 30 dB(A)
Dimensions and air - External weight
- 49 kg
Dimensions and air · External table ARXM-A or AZAS-MV/MY. - Pipe · liquid / gas
- 1/4″ / 1/2″
Piping and installation - Maximum published length
- 30 m
Piping and installation - Maximum slope
- 20 m
Piping and installation - Refrigerant
- R32
Piping and installation - Installation
- Not included
Piping and installation - Factory published load
- 1.15 kg
Piping and installation - Length covered by precharge
- 10 m
Piping and installation - Additional load
- 20 g/m above 10 m
Piping and installation - Residential use
- 3 years
Daikin warranty · According to the manufacturer's conditions. - Other uses
- 2 years of material replacement
Daikin warranty · Check the scope and exclusions in the Daikin terms and conditions.
Before purchasing
- Daikin combination data and components indicated in Documentation. Dimensions in width × height × depth; annual consumption under standardized conditions.
Documentation
Questions about Daikin ADEAS60A · single-phase
How many frigories does this ducted unit have?
The Daikin ADEAS60A set · single-phase declares 4,902 frigories/h (5.7 kW) nominal cooling capacity. This is the total capacity that must be distributed through the duct network; it does not correspond to each grille or room.
Can it cool the living room and the bedrooms?
It can be part of an installation that serves multiple rooms, as long as the total load and duct design match its 5.7 kW nominal capacity. It has a single indoor unit (ADEA60A), not a separate split in each room. It is necessary to check flow rates, pressure losses, and air return for each room.
What happens if some rooms get colder than others?
Before choosing a more powerful unit, it is advisable to check the air distribution through the grilles and ensure that the ducts reach each room properly. If the entire home requires more power, compare the Daikin ADEAS71AIt goes from about 4,902 to 5,848 frigories/h. Tell us which rooms you want to cool; the installer will also need to check that the ducts can accommodate the chosen unit.
Can I replace my old unit with this one without making any changes?
It is not confirmed just by matching the cooling capacity. Before replacing it with Daikin ADEAS60A · single-phase, check the dimensions and access of the false ceiling, power supply, refrigerant and acceptable pipes, drainage, flow rate, and available pressure. The technical sheet and a review of the installation determine what can be reused.
What does the Daikin ADEAS60A single-phase unit include?
The documented combination is interior ADEA60A, exterior ARXM60A, and control BRC1E53A from the price list. The external revision is confirmed upon supply.
What height does the equipment require in the false ceiling?
The inner body measures 245 mm in height. Connections, drainage, and maintenance clearances must be provided according to the manual.
What pressure is required for the ducts?
The internal sheet indicates 30 / 150 Pa of nominal/high external static pressure. The network is sized using loss calculation.
Does it include ducts and installation?
No. Ducts, grilles, installation, materials, and commissioning are budgeted separately.
