Daikin Perfera 3MXM52A8 multisplit air conditioning 3×1
To air condition 3 rooms with a single outdoor unit.
- Pipe
- 1/4″ / 3/8″
- Connectivity
- See specification
- kcal/h
- ≈ 4.472
- Refrigerant
- R32
Out of stock · check availability
Description
To climate control 3 rooms with a single outdoor unit. This 3x1 Daikin combines 2 × FTXM20A + 1 × FTXM35A and has a nominal capacity of 4,472 frigories/h (5.2 kW) for the entire system, shared when operating simultaneously. It includes different indoor units: it is advisable to assign them according to the heat that needs to be removed from each room. Installation not included.
The capacity of the system is shared when multiple units operate simultaneously. Therefore, it is advisable to choose the combination based on the simultaneous use of the rooms, their size and orientation, as well as the layout of the pipes.
What does Daikin Perfera 3×1 3MXM52A8 include?
Configuration compared with the manufacturer's tables; references and quantities detailed below.
| Model | Component | Supply scope |
|---|---|---|
| FTXM20A | Perfera wall-mounted indoor unit | 2 included |
| FTXM35A | Perfera wall-mounted indoor unit | 1 included |
| 3MXM52A8 | Multisplit outdoor unit | 1 included |
| ARC466A86 | Wireless remote control | 3 included |
| Installation | Pipes, wiring, supports, and commissioning | Not included |
Daikin component configuration; it is not presented as a unique manufacturer kit reference. Installation and mounting materials are separate.

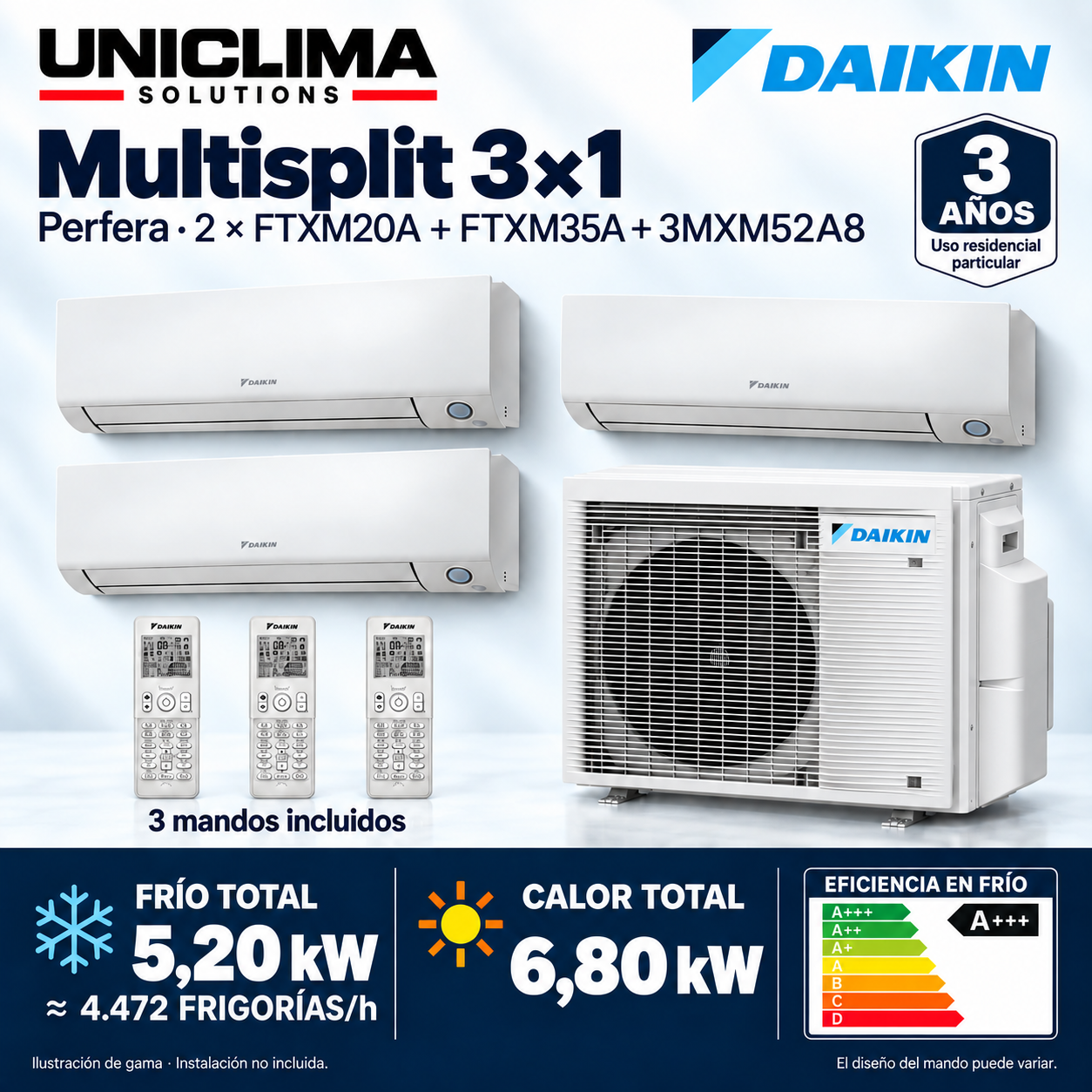

Illustrative cover of the range, without scale. Individual images of the family with visual adjustment of color and lighting. The design of the control may vary due to catalog updates.
What to check before installing Daikin Perfera 3×1 3MXM52A8
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Size each room according to insulation, orientation, glazing, and use.
- Check lengths, slopes, drainage, electrical section, and adapters with the supplied maintenance manual.
- Installation and commissioning by a qualified professional, with materials budgeted separately.
Daikin Perfera 3×1 3MXM52A8
- Brand
- Daikin
- Model and composition
- Daikin Perfera 3×1 3MXM52A8
- Supply scope
- 2 × FTXM20A + FTXM35A + 3MXM52A8 + 3 × ARC466A86
- Installation
- Not included
- Availability and transport
- Check the price, availability, and supply of this configuration.
Installation at a glance
- Interior
- 804 × 298 × 252 mm width × height × depth
- Exterior
- 974 × 734 × 408 mm width × height × depth
- Pipe · liquid / gas
- 1/4″ / 3/8″ Per indoor unit. See adapters for the outdoor unit and installation manual.
- Length covered by precharge
- 30 m
- Additional load
- 20 g/m Regarding the length covered by precharge; follow the manual.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Indoor units
- 2 × FTXM20A + FTXM35A
Composition of the set - Outdoor unit
- 3MXM52A8
Composition of the set - Control board
- 3 × ARC466A86
Composition of the set - Room control
- Independent control; same mode for cooling or heating
Composition of the set - Connectivity
- Control via Onecta app
Composition of the set · Functions published by Daikin for FTXM-A. - Nominal cooling of the unit
- 5.20 kW
Nominal capacity - approximate kcal/h
- 4,472 frigories/h
Nominal capacity · Approximate conversion: kW × 860. - Nominal heat of the assembly
- 6.80 kW
Nominal capacity - SEER
- 8,51
Efficiency and consumption - SCOP · average climate
- 5,10
Efficiency and consumption - Energy class in cold
- A+++
Efficiency and consumption - Energy class in heating · average climate
- A+++
Efficiency and consumption - Annual consumption in cold
- 214 kWh/year
Efficiency and consumption · Normalized value, not actual consumption of a household. - Annual heat consumption · average climate
- 1,373 kWh/year
Efficiency and consumption · Normalized value. - nominal EER
- 4,76
Efficiency and consumption - nominal COP
- 4,88
Efficiency and consumption - Interior · width × height × depth
- 804 × 298 × 252 mm
Dimensions, weight and sound · Each unit FTXM20A/35A. - Weight per indoor unit
- 11.5 kg
Dimensions, weight, and sound - Exterior · width × height × depth
- 974 × 734 × 408 mm
Dimensions, weight, and sound - External weight
- 57 kg
Dimensions, weight, and sound - Interior sound pressure · silent mode in cold
- 19 dB(A)
Dimensions, weight and sound · Does not equate to sound power. - External sound pressure · cold / heat
- 46 / 47 dB(A)
Dimensions, weight, and sound - External power supply
- Single-phase · 220–240 V · 50 Hz
Refrigeration and power supply - Pipe · liquid / gas
- 1/4″ / 3/8″
Refrigeration installation and power supply · By indoor unit. See adapters for the outdoor unit and installation manual. - Maximum length per branch
- 25 m
Refrigeration and power supply - Maximum total length
- 50 m
Refrigeration and power supply - External / internal slope
- 15 m
Refrigeration and power supply - Difference in height between interiors
- 7.5 m
Refrigeration and power supply - Refrigerant
- R32
Refrigeration and power supply - Factory load
- 1.80 kg
Refrigeration and power supply - Length covered by precharge
- 30 m
Refrigeration and power supply - Additional load
- 20 g/m
Refrigeration installation and supply · Regarding the length covered by pre-charge; follow the manual. - Residential use
- 3 years
Daikin warranty · According to the manufacturer's conditions. - Other uses
- 2 years of material replacement
Daikin warranty · Check the scope and exclusions in the Daikin terms and conditions.
Before purchasing
- Nominal power ratings documented for the indicated combination; these are not electrical consumptions nor do they guarantee a surface area. Official documentation linked in this sheet. Nominal conditions in cold: indoor 27 °C dry bulb / 19 °C wet bulb; outdoor 35 °C dry bulb.
Documentation
Questions about Daikin Perfera 3×1 3MXM52A8
How many frigories does this 3x1 air conditioning unit have?
It has a nominal capacity of 4,472 frigories/h (5.2 kW) for the entire unit. It is not 4,472 frigories for each room nor the free sum of the powers of the splits. The available capacity is distributed among the indoor units that are operating; it changes with demand and usage conditions.
Is it suitable for 3 rooms with a single outdoor unit?
Yes: the set includes 2 × FTXM20A + 1 × FTXM35A and one outdoor unit. There are 3 indoor climate control points. To determine if it covers the specific rooms, it is necessary to check the load of each one and the simultaneous demand against the 5.2 kW nominal of the set; counting rooms is not enough.
Does it fit if the living room needs to be cooler than the bedrooms?
This set combines splits of different models. We can help you see which one fits in each room according to its size and the heat it accumulates. Tell us the square meters of each room, where it gets the most sun, and which ones you will use at the same time. With that information, we can guide you on the combination, without assuming that the living room always needs more power.
Can I add the cooling capacities of the splits to choose it?
No. In Daikin Perfera 3×1 3MXM52A8, the reference for the published shared capacity is 4,472 frigories/h (5.2 kW) nominal for the set. The class figure or the indoor model number does not directly correspond to the delivered frigories. Without the distribution table for the combination, an independent figure per room is not guaranteed.
What does this Daikin 3×1 multisplit include?
The configuration includes 2 × FTXM20A + FTXM35A + 3MXM52A8 and 3 ARC466A86 controllers. Installation and materials are budgeted separately.
Can it heat one room while cooling another?
No. Each indoor unit allows you to adjust its setpoint, but the indoor units connected to this outdoor unit operate within the same heating or cooling mode.
Does it include installation?
No. The sizing, installation, connections, and commissioning are budgeted according to the dwelling.
What warranty does it have?
Daikin provides a 3-year warranty for residential equipment for private use and a 2-year warranty for replacement materials for other uses, according to their terms and conditions.
