Daikin Perfera 5MXM90A multisplit air conditioning 5×1
To air condition 5 rooms with a single outdoor unit.
- Pipe
- 1/4″ / 3/8″
- Connectivity
- See specification
- kcal/h
- ≈ 7.310
- Refrigerant
- R32
Out of stock · check availability
Description
To climate control 5 rooms with a single outdoor unit. This 5x1 Daikin combines 5 × FTXM20A and has a nominal capacity of 7,310 frigories/h (8.5 kW) for the entire system, shared when operating simultaneously. It includes indoor units of the same model: an option to compare for rooms with similar needs. Installation not included.
The capacity of the system is shared when multiple units operate simultaneously. Therefore, it is advisable to choose the combination based on the simultaneous use of the rooms, their size and orientation, as well as the layout of the pipes.
What does Daikin Perfera 5×1 5MXM90A include?
Configuration compared with the manufacturer's tables; references and quantities detailed below.
| Model | Component | Supply scope |
|---|---|---|
| FTXM20A | Perfera wall-mounted indoor unit | 5 included |
| 5MXM90A | Multisplit outdoor unit | 1 included |
| ARC466A86 | Wireless remote control | 5 included |
| Installation | Pipes, wiring, supports, and commissioning | Not included |
Daikin component configuration; it is not presented as a unique manufacturer kit reference. Installation and mounting materials are separate.

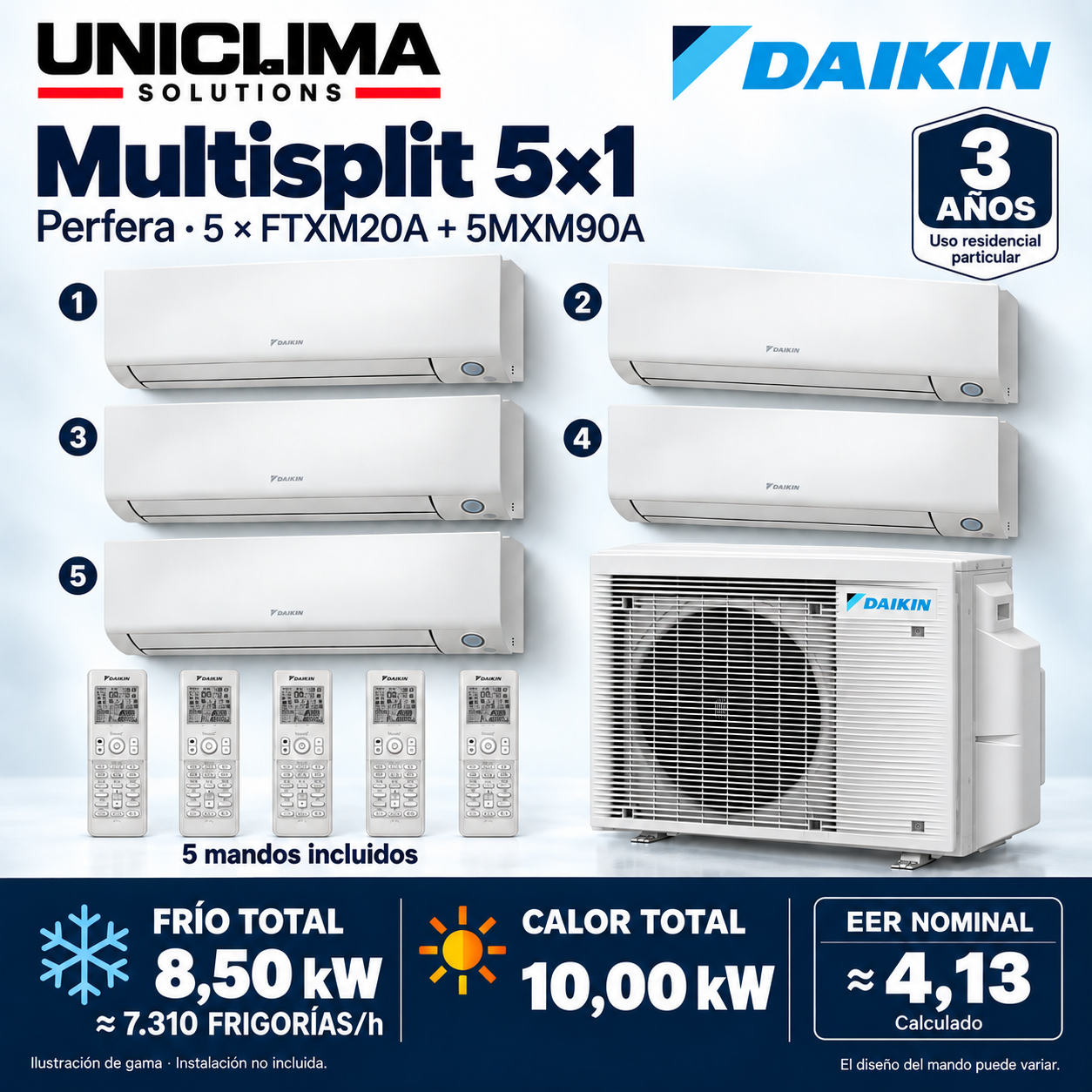

Illustrative cover of the range, without scale. Individual images of the family with visual adjustment of color and lighting. The design of the control may vary due to catalog updates.
What to check before installing Daikin Perfera 5×1 5MXM90A
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Size each room according to insulation, orientation, glazing, and use.
- Check lengths, slopes, drainage, electrical section, and adapters with the supplied maintenance manual.
- Installation and commissioning by a qualified professional, with materials budgeted separately.
Daikin Perfera 5×1 5MXM90A
- Brand
- Daikin
- Model and composition
- Daikin Perfera 5×1 5MXM90A
- Supply scope
- 5 × FTXM20A + 5MXM90A + 5 × ARC466A86
- Installation
- Not included
- Availability and transport
- Check the price, availability, and supply of this configuration.
Installation at a glance
- Interior
- 804 × 298 × 252 mm width × height × depth
- Exterior
- 974 × 734 × 408 mm width × height × depth
- Pipe · liquid / gas
- 1/4″ / 3/8″ Per indoor unit. See adapters for the outdoor unit and installation manual.
- Length covered by precharge
- 30 m
- Additional load
- 20 g/m Regarding the length covered by precharge; follow the manual.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Indoor units
- 5 × FTXM20A
Composition of the set - Outdoor unit
- 5MXM90A
Composition of the set - Control board
- 5 × ARC466A86
Composition of the set - Room control
- Independent control; same mode for cooling or heating
Composition of the set - Connectivity
- Control via Onecta app
Composition of the set · Functions published by Daikin for FTXM-A. - Nominal cooling of the unit
- 8.50 kW
Nominal capacity - approximate kcal/h
- 7,310 Frigories/h
Nominal capacity · Approximate conversion: kW × 860. - Nominal heat of the assembly
- 10.00 kW
Nominal capacity - Cold inside with everything working.
- 1.70 kW
Nominal capacity · Nominal conditions of the row 2.0+2.0+2.0+2.0+2.0. - Heat through the interior with everything working.
- 2.00 kW
Nominal capacity - Nominal electrical power in cold conditions
- 2.06 kW
Efficiency and consumption - Nominal electric power in heat
- 2.05 kW
Efficiency and consumption - calculated nominal EER
- 4,13
Efficiency and consumption · Capacity/nominal consumption ratio; it is not the SEER. - calculated nominal COP
- 4,88
Efficiency and consumption · Capacity/nominal consumption ratio; it is not the SCOP. - Seasonal efficiency
- Check the label for this combination.
Efficiency and consumption · A class is not assigned based solely on the outdoor unit. - Interior · width × height × depth
- 804 × 298 × 252 mm
Dimensions, weight and sound · Each unit FTXM20A/35A. - Weight per indoor unit
- 11.5 kg
Dimensions, weight, and sound - Exterior · width × height × depth
- 974 × 734 × 408 mm
Dimensions, weight, and sound - External weight
- 68 kg
Dimensions, weight, and sound - Interior sound pressure · silent mode in cold
- 19 dB(A)
Dimensions, weight and sound · Does not equate to sound power. - External sound pressure · cold / heat
- 52 / 52 dB(A)
Dimensions, weight, and sound - External power supply
- Single-phase · 220–240 V · 50 Hz
Refrigeration and power supply - Pipe · liquid / gas
- 1/4″ / 3/8″
Refrigeration installation and power supply · By indoor unit. See adapters for the outdoor unit and installation manual. - Maximum length per branch
- 25 m
Refrigeration and power supply - Maximum total length
- 75 m
Refrigeration and power supply - External / internal slope
- 15 m
Refrigeration and power supply - Difference in height between interiors
- 7.5 m
Refrigeration and power supply - Refrigerant
- R32
Refrigeration and power supply - Factory load
- 2.40 kg
Refrigeration and power supply - Length covered by precharge
- 30 m
Refrigeration and power supply - Additional load
- 20 g/m
Refrigeration installation and supply · Regarding the length covered by pre-charge; follow the manual. - Residential use
- 3 years
Daikin warranty · According to the manufacturer's conditions. - Other uses
- 2 years of material replacement
Daikin warranty · Check the scope and exclusions in the Daikin terms and conditions.
Before purchasing
- Nominal power ratings documented for the indicated combination; these are not electrical consumptions nor do they guarantee a surface area. Official documentation linked in this sheet. Nominal conditions in cold: indoor 27 °C dry bulb / 19 °C wet bulb; outdoor 35 °C dry bulb.
Documentation
Questions about Daikin Perfera 5×1 5MXM90A
How many frigories does this 5x1 air conditioning unit have?
It has a nominal capacity of 7,310 frigories/h (8.5 kW) for the entire system. It is not 7,310 frigories for each room nor the free sum of the capacities of the splits. The available capacity is distributed among the indoor units that are operating; it changes with demand and usage conditions.
Is it suitable for 5 rooms with a single outdoor unit?
Yes: the set includes 5 × FTXM20A and one outdoor unit. There are 5 indoor climate control points. To determine if it covers the specific rooms, it is necessary to check the load of each one and the simultaneous demand against the 8.5 kW nominal of the set; counting rooms is not enough.
Does it fit if the living room needs to be cooler than the bedrooms?
This set includes splits of the same model. If one room heats up much more than the others, it is advisable to check if it needs a different split. Tell us the square meters of each room, where the sun hits the most, and which ones you will use at the same time. With that information, we can guide you on the combination, without assuming that the living room always requires more power.
How much cold does each room receive with all the splits turned on?
The table for this combination states 1.70 kW: approximately 1,462 frigories/h per indoor unit. This is the distribution under nominal testing conditions, not a guaranteed constant power at home. That is why this offer is not advertised as the sum of the classes of its indoor units.
Are those frigories what it consumes in electricity?
No. 7,310 frigories/h (8.5 kW) describe cooling capacity, while the technical sheet states 2.06 kW of nominal electric power in cooling for this combination. Actual consumption varies with load, temperature, settings, and operating hours; that figure is not a fixed monthly bill.
What does this Daikin 5×1 multisplit include?
The configuration includes 5 × FTXM20A + 5MXM90A and 5 ARC466A86 controllers. Installation and materials are budgeted separately.
Can it heat one room while cooling another?
No. Each indoor unit allows you to adjust its setpoint, but the indoor units connected to this outdoor unit operate within the same heating or cooling mode.
Does it include installation?
No. The sizing, installation, connections, and commissioning are budgeted according to the dwelling.
What warranty does it have?
Daikin provides a 3-year warranty for residential equipment for private use and a 2-year warranty for replacement materials for other uses, according to their terms and conditions.
