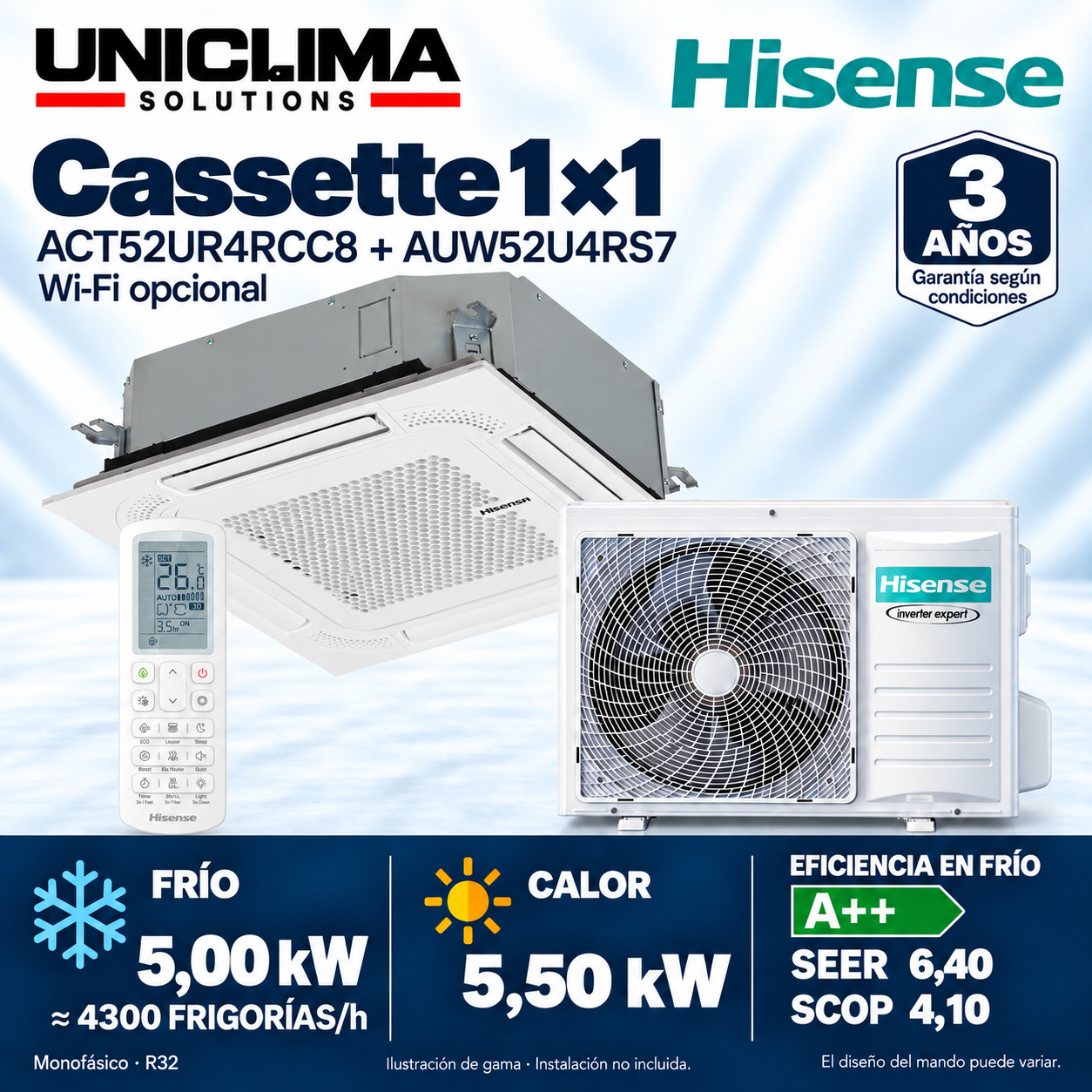

Hisense cassette air conditioning ACT52UR4RCC8 + AUW52U4RS7 · Single-phase
To air condition an open area from the ceiling: Hisense cassette ACT52UR4RCC8 + AUW52U4RS7 with a nominal cooling capacity of 4,300 frigories/h (5 kW).
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Optional
- kcal/h
- ≈ 4.300
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: Hisense cassette ACT52UR4RCC8 + AUW52U4RS7 with a nominal cooling capacity of 4,300 frigories/h (5 kW). It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace multiple splits for closed rooms. Check height, mounting space, and air distribution. Installation not included.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What is included in Hisense ACT52UR4RCC8 + AUW52U4RS7?
Exact combination documented by Hisense: ACT52UR4RCC8 + AUW52U4RS7.
| Model | Component | Supply scope |
|---|---|---|
| ACT52UR4RCC8 | Cassette indoor unit 570 × 215 × 570 mm | 1 included |
| AUW52U4RS7 | Outdoor unit 810 × 580 × 280 mm | 1 included |
| PE-QEA-LD | Decorative panel 620 × 40 × 620 mm | 1 included |
| Wireless remote control | Equipment control The image shows the control of the range. The design may vary due to catalog updates. | 1 included |
Installation, pipes, supports, and construction materials not included.
Illustrative composition of the range, not to scale. The design of the control may vary due to catalog updates.
What to check before installing Hisense ACT52UR4RCC8 + AUW52U4RS7
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the dimensions and leave access for connections, filter cleaning, and condensate pump maintenance.
- The installer must calculate the thermal load and check the air distribution and drainage.
- Check the 1/4″ / 1/2″ pipes, the slope, and the single-phase power supply before installation.
Technical sheet: Hisense ACT52UR4RCC8 + AUW52U4RS7
- Brand
- Hisense
- Model and composition
- Hisense ACT52UR4RCC8 + AUW52U4RS7
- Supply scope
- Indoor unit, outdoor unit, panel, and wireless remote control.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 570 × 215 × 570 mm width × height × depth
- Exterior
- 810 × 580 × 280 mm width × height × depth
- Factory published load
- 1.08 kg Hisense Spain catalog
- Pipe · liquid / gas
- 1/4″ / 1/2″
- Maximum length
- 40 m
- Maximum slope
- 30 m
- Length covered by precharge
- 5 m
- Additional load
- 15 g/m Based on the preloaded length
- Power supply
- Single-phase · 220–240 V · 50/60 Hz
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 5.00 kW
Power and efficiency of the system - Nominal heat of the assembly
- 5.50 kW
Power and efficiency of the system - kcal/h
- ≈ 4.300
Power and efficiency of the system · Conversion of nominal capacity in cooling: kW × 860 - SEER / SCOP
- 6,40 / 4,10
Power and efficiency of the system · SCOP in moderate climate - Cold efficiency
- A++
Power and efficiency of the system - Nominal consumption in cold / heat
- 1.47 / 1.48 kW
Power and efficiency of the system · Absorbed electrical power - Interior · width × height × depth
- 570 × 215 × 570 mm
Dimensions, sound and flow · Body without panel - Exterior · width × height × depth
- 810 × 580 × 280 mm
Dimensions, sound and flow rate - Panel · width × height × depth
- 620 × 40 × 620 mm
Dimensions, sound and flow rate · PE-QEA-LD - Net weight indoor unit
- 15.5 kg
Dimensions, sound and flow · Without panel - Interior sound pressure
- 42 / 38 / 34 dB(A)
Dimensions, sound and flow · High / medium / low - Indoor air flow
- 700 / 600 / 510 m³/h
Dimensions, sound and flow · High / medium / low - Refrigerant
- R32
Installation and refrigerant - Factory published load
- 1.08 kg
Installation and refrigerant · Hisense Spain Catalog - Pipe · liquid / gas
- 1/4″ / 1/2″
Installation and refrigerant - Maximum length
- 40 m
Installation and refrigerant - Maximum slope
- 30 m
Installation and refrigerant - Length covered by precharge
- 5 m
Installation and refrigerant - Additional load
- 15 g/m
Installation and refrigerant · Based on the pre-charged length - Power supply
- Single-phase · 220–240 V · 50/60 Hz
Installation and refrigerant - Wi-Fi
- Optional
Installation and refrigerant · Adapter not included - Condensate pump
- Included
Installation and refrigerant - Warranty
- 3 years
Installation and refrigerant · According to Hisense conditions and applicable use
Before purchasing
- Exact combination data in the Hisense documentation. Please refer to the installation manual of the supplied revision.
Documentation
Questions about Hisense ACT52UR4RCC8 + AUW52U4RS7
How many frigories does this cassette have?
The Hisense ACT52UR4RCC8 + AUW52U4RS7 set has a nominal cooling capacity of 4,300 frigories/h (5 kW). The power refers to the complete set, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of ACT52UR4RCC8 and proper air distribution. It offers 5 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, the position of people, and the installation cost.
Does it cool several closed rooms?
It should not be chosen for that purpose just because it has 4,300 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Take into account the square meters of the space, the windows, and the hours of sunlight. This cassette has about 4,300 frigories/h; to determine if it is sufficient, we need to understand the characteristics of the space. Before making a decision, we will review the power and the available space in the false ceiling with you.
What units are included?
ACT52UR4RCC8 + AUW52U4RS7. Indoor unit, outdoor unit, panel, and wireless remote control.
Does it include Wi-Fi and installation?
No. The Wi-Fi requires an optional adapter and the installation is quoted separately.
What power supply does it need?
This combination is single-phase. The external reference is AUW52U4RS7.
