Hisense AUC125UR4RKC8 + AUW125U4RW8 cassette air conditioning · Single-phase
To air condition an open area from the ceiling: Hisense cassette AUC125UR4RKC8 + AUW125U4RW8 with 10,406 frigories/h (12.1 kW) nominal cooling capacity.
- Pipe
- 3/8″ / 5/8″
- Wi-Fi
- Optional
- kcal/h
- ≈ 10.406
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: Hisense cassette AUC125UR4RKC8 + AUW125U4RW8 with a nominal cooling capacity of 10,406 frigories/h (12.1 kW). It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace multiple splits for closed rooms. Check height, mounting space, and air distribution. Installation not included.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What is included in Hisense AUC125UR4RKC8 + AUW125U4RW8?
Exact combination documented by Hisense: AUC125UR4RKC8 + AUW125U4RW8.
| Model | Component | Supply scope |
|---|---|---|
| AUC125UR4RKC8 | Cassette indoor unit 840 × 272 × 840 mm | 1 included |
| AUW125U4RW8 | Outdoor unit 1100 × 875 × 450 mm | 1 included |
| PE-QFA-CD | Decorative panel 950 × 50 × 950 mm | 1 included |
| Wireless remote control | Equipment control The image shows the control of the range. The design may vary due to catalog updates. | 1 included |
Installation, pipes, supports, and construction materials not included.

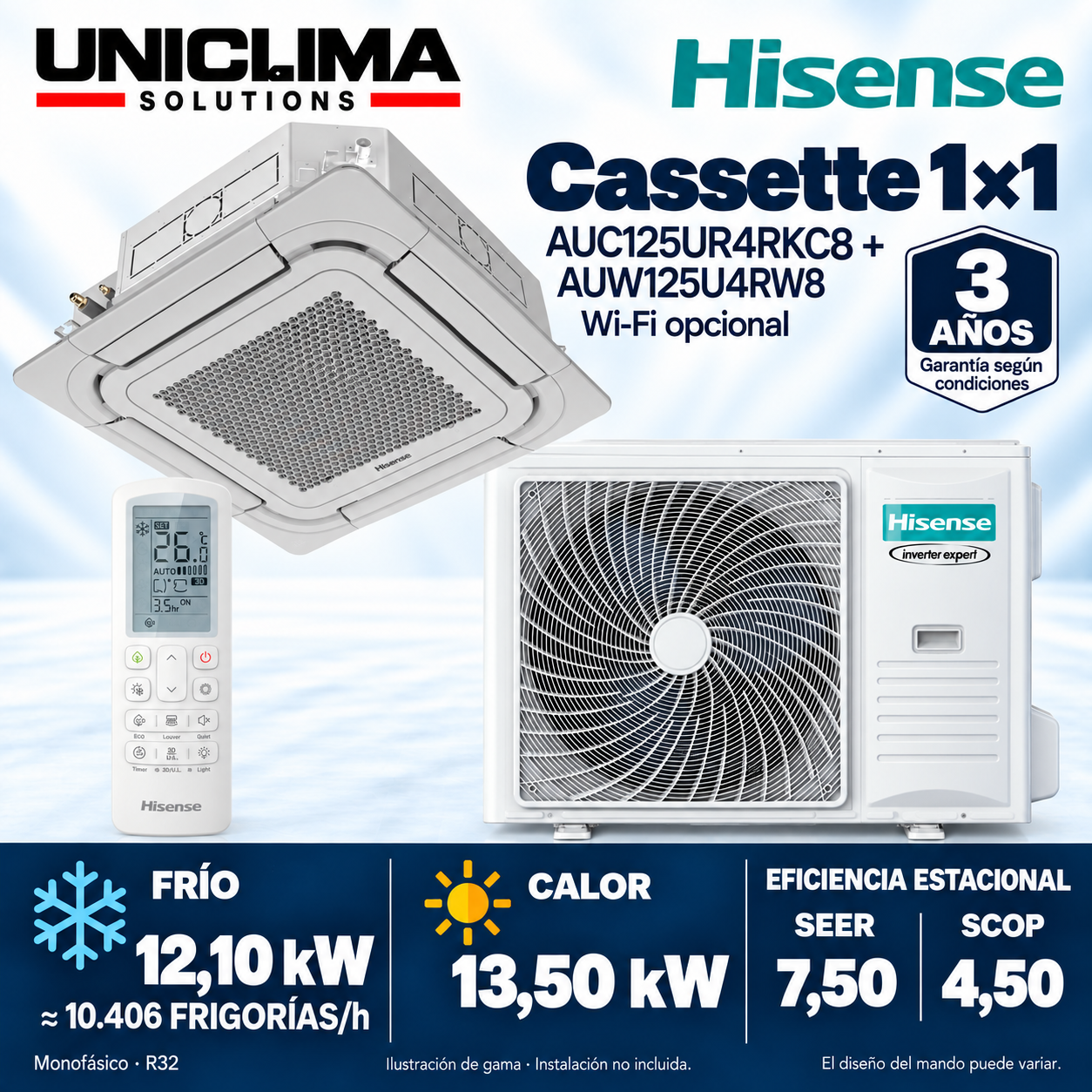

Illustrative composition of the range, not to scale. The design of the control may vary due to catalog updates.
What to check before installing Hisense AUC125UR4RKC8 + AUW125U4RW8
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the dimensions and leave access for connections, filter cleaning, and condensate pump maintenance.
- The installer must calculate the thermal load and check the air distribution and drainage.
- Check the 3/8″ / 5/8″ pipes, the slope, and the single-phase power supply before installation.
Technical sheet: Hisense AUC125UR4RKC8 + AUW125U4RW8
- Brand
- Hisense
- Model and composition
- Hisense AUC125UR4RKC8 + AUW125U4RW8
- Supply scope
- Indoor unit, outdoor unit, panel, and wireless remote control.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 840 × 272 × 840 mm width × height × depth
- Exterior
- 1100 × 875 × 450 mm width × height × depth
- Factory published load
- 3.20 kg Hisense Spain catalog
- Pipe · liquid / gas
- 3/8″ / 5/8″
- Maximum length
- 60 m
- Maximum slope
- 30 m
- Length covered by precharge
- 7.5 m
- Additional load
- 35 g/m Based on the preloaded length
- Power supply
- Single-phase · 220–240 V · 50/60 Hz
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 12.10 kW
Power and efficiency of the system - Nominal heat of the assembly
- 13.50 kW
Power and efficiency of the system - kcal/h
- ≈ 10.406
Power and efficiency of the system · Conversion of nominal capacity in cooling: kW × 860 - SEER / SCOP
- 7,50 / 4,50
Power and efficiency of the system · SCOP in moderate climate - Nominal consumption in cold / heat
- 3.02 / 3.60 kW
Power and efficiency of the system · Absorbed electrical power - Interior · width × height × depth
- 840 × 272 × 840 mm
Dimensions, sound and flow · Body without panel - Exterior · width × height × depth
- 1100 × 875 × 450 mm
Dimensions, sound and flow rate - Panel · width × height × depth
- 950 × 50 × 950 mm
Dimensions, sound and flow rate · PE-QFA-CD - Net weight indoor unit
- 26 kg
Dimensions, sound and flow · Without panel - Interior sound pressure
- 52 / 49 / 46 dB(A)
Dimensions, sound and flow · High / medium / low - Indoor air flow
- 2000 / 1750 / 1550 m³/h
Dimensions, sound and flow · High / medium / low - Refrigerant
- R32
Installation and refrigerant - Factory published load
- 3.20 kg
Installation and refrigerant · Hisense Spain Catalog - Pipe · liquid / gas
- 3/8″ / 5/8″
Installation and refrigerant - Maximum length
- 60 m
Installation and refrigerant - Maximum slope
- 30 m
Installation and refrigerant - Length covered by precharge
- 7.5 m
Installation and refrigerant - Additional load
- 35 g/m
Installation and refrigerant · Based on the pre-charged length - Power supply
- Single-phase · 220–240 V · 50/60 Hz
Installation and refrigerant - Wi-Fi
- Optional
Installation and refrigerant · Adapter not included - Condensate pump
- Included
Installation and refrigerant - Warranty
- 3 years
Installation and refrigerant · According to Hisense conditions and applicable use
- Exact combination data in the Hisense documentation. Please refer to the installation manual of the supplied revision.
Documentation
Questions about Hisense AUC125UR4RKC8 + AUW125U4RW8
How many frigories does this cassette have?
Is a cassette better than a wall-mounted split for my living room or premises?
Does it cool several closed rooms?
What should I check if the space receives a lot of sunlight?
What units are included?
Does it include Wi-Fi and installation?
What power supply does it need?
