The design of the remote control may vary due to catalog updates.
Hisense ducted air conditioning ADT52UX4RCL8 + AUW52U4RS7 · Single-phase
To distribute air through a duct installation: 4,300 frigories/h (5 kW) nominal of the Hisense ADT52UX4RCL8 + AUW52U4RS7 unit.
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Optional
- kcal/h
- ≈ 4.300
- Refrigerant
- R32
Description
To distribute air through a duct system: 4,300 frigories/h (5 kW) nominal of the Hisense ADT52UX4RCL8 + AUW52U4RS7 unit. A concealed indoor unit feeds the grille network; the distribution between rooms depends on the duct design, not on having a split in each one. Installation and adaptation of the network aside.
The duct network and the position of the grilles must be adapted to the layout of the property. Having multiple grilles does not imply independent control by room: if you need this, a compatible zoning system must be studied.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What is included in Hisense ADT52UX4RCL8 + AUW52U4RS7?
Exact combination documented by Hisense: ADT52UX4RCL8 + AUW52U4RS7.
| Model | Component | Supply scope |
|---|---|---|
| ADT52UX4RCL8 | Ducted indoor unit 1180 × 190 × 447 mm | 1 included |
| AUW52U4RS7 | Outdoor unit 810 × 580 × 280 mm | 1 included |
| Wired and wireless control | Equipment control The image shows the control of the range. The design may vary due to catalog updates. | 1 included |
Installation, pipes, supports, and construction materials not included. The duct network is sized separately.

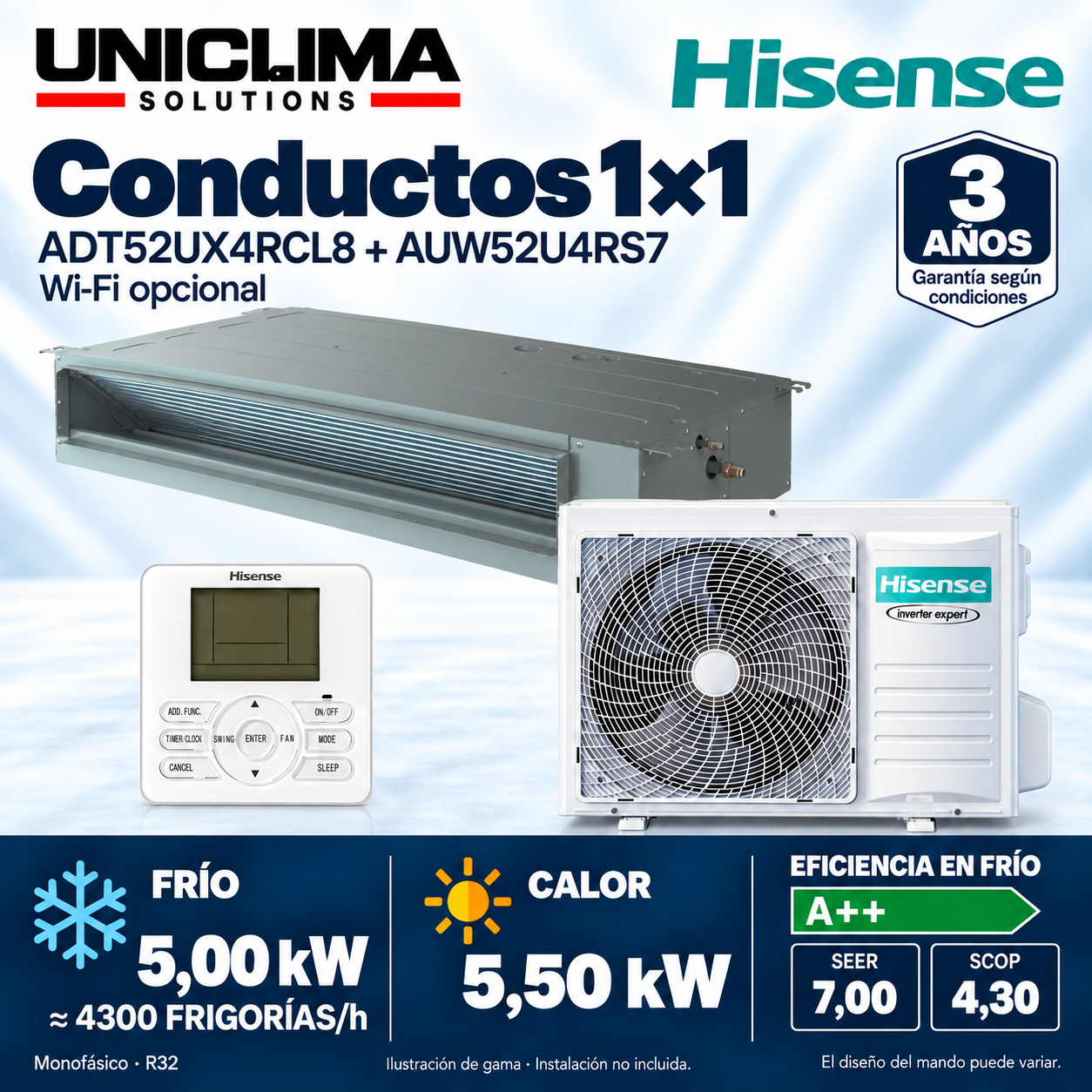

Illustrative composition of the range, not to scale. The design of the control may vary due to catalog updates.
What to check before installing Hisense ADT52UX4RCL8 + AUW52U4RS7
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the dimensions and leave access for connections, filter cleaning, and condensate pump maintenance.
- The installer must calculate the thermal load and check the air distribution and drainage.
- Check the 1/4″ / 1/2″ pipes, the slope, and the single-phase power supply before installation.
Technical sheet: Hisense ADT52UX4RCL8 + AUW52U4RS7
- Brand
- Hisense
- Model and composition
- Hisense ADT52UX4RCL8 + AUW52U4RS7
- Supply scope
- Indoor unit, outdoor unit, wired and wireless control.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 1180 × 190 × 447 mm width × height × depth
- Exterior
- 810 × 580 × 280 mm width × height × depth
- Factory published load
- 1.08 kg Hisense Spain catalog
- Pipe · liquid / gas
- 1/4″ / 1/2″
- Maximum length
- 40 m
- Maximum slope
- 30 m
- Length covered by precharge
- 5 m
- Additional load
- 15 g/m Based on the preloaded length
- Power supply
- Single-phase · 220–240 V · 50/60 Hz
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 5.00 kW
Power and efficiency of the system - Nominal heat of the assembly
- 5.50 kW
Power and efficiency of the system - kcal/h
- ≈ 4.300
Power and efficiency of the system · Conversion of nominal capacity in cooling: kW × 860 - SEER / SCOP
- 7,00 / 4,30
Power and efficiency of the system · SCOP in moderate climate - Cold efficiency
- A++
Power and efficiency of the system - Efficiency in heat
- A+
Power and efficiency of the system · Average climate - Nominal consumption in cold / heat
- 1.43 / 1.45 kW
Power and efficiency of the system · Absorbed electrical power - Interior · width × height × depth
- 1180 × 190 × 447 mm
Dimensions, sound and flow rate - Exterior · width × height × depth
- 810 × 580 × 280 mm
Dimensions, sound and flow rate - Net weight indoor unit
- 24.5 kg
Dimensions, sound and flow rate - Interior sound pressure
- 41 / 37 / 33 dB(A)
Dimensions, sound and flow · High / medium / low - Indoor air flow
- 900 / 840 / 780 m³/h
Dimensions, sound and flow · High / medium / low - Static pressure
- 35 Pa
Dimensions, sound and flow · Adjustable from 0 to 50 Pa - Refrigerant
- R32
Installation and refrigerant - Factory published load
- 1.08 kg
Installation and refrigerant · Hisense Spain Catalog - Pipe · liquid / gas
- 1/4″ / 1/2″
Installation and refrigerant - Maximum length
- 40 m
Installation and refrigerant - Maximum slope
- 30 m
Installation and refrigerant - Length covered by precharge
- 5 m
Installation and refrigerant - Additional load
- 15 g/m
Installation and refrigerant · Based on the pre-charged length - Power supply
- Single-phase · 220–240 V · 50/60 Hz
Installation and refrigerant - Wi-Fi
- Optional
Installation and refrigerant · Adapter not included - Condensate pump
- Included
Installation and refrigerant - Warranty
- 3 years
Installation and refrigerant · According to Hisense conditions and applicable use
Before purchasing
- Exact combination data in the Hisense documentation. Please refer to the installation manual of the supplied revision.
Documentation
Questions about Hisense ADT52UX4RCL8 + AUW52U4RS7
How many frigories does this ducted unit have?
The Hisense ADT52UX4RCL8 + AUW52U4RS7 unit declares a nominal cooling capacity of 4,300 frigories/h (5 kW). This is the total capacity that must be distributed through the duct network; it does not correspond to each grille or room.
Can it cool the living room and the bedrooms?
It can be part of an installation that serves multiple rooms, as long as the total load and duct design match its 5 kW nominal capacity. It has a single indoor unit (ADT52UX4RCL8), not an independent split in each room. It is necessary to check flow rates, pressure losses, and air return for each room.
What happens if some rooms get colder than others?
Before choosing a more powerful unit, it is advisable to check the air distribution through the grilles and ensure that the ducts reach each room properly. This unit offers about 4,300 frigorías/h. Let us know which rooms you want to cool; the installer will also need to verify that the ducts can accommodate the chosen unit.
Can I replace my old unit with this one without making any changes?
It is not confirmed just by matching the cooling capacity. Before replacing it with Hisense ADT52UX4RCL8 + AUW52U4RS7, check the dimensions and access of the false ceiling, power supply, refrigerant and acceptable pipes, drainage, flow rate, and available pressure. The technical sheet and a review of the installation determine what can be reused.
What units are included?
ADT52UX4RCL8 + AUW52U4RS7. Indoor unit, outdoor unit, wired and wireless control.
Does it include Wi-Fi and installation?
No. The Wi-Fi requires an optional adapter and the installation is quoted separately.
What power supply does it need?
This combination is single-phase. The external reference is AUW52U4RS7.
