Hisense AUD140UX4REH8 + AUW140U6RW8 ducted air conditioning · Three-phase
To distribute air through a duct system: 11,610 frigories/h (13.5 kW) nominal of the Hisense AUD140UX4REH8 + AUW140U6RW8 unit.
- Pipe
- 3/8″ / 5/8″
- Wi-Fi
- Optional
- kcal/h
- ≈ 11.610
- Refrigerant
- R32
Description
To distribute air through a duct installation: 11,610 frigories/h (13.5 kW) nominal of the Hisense AUD140UX4REH8 + AUW140U6RW8 unit. A concealed indoor unit feeds the grille network; the distribution between rooms depends on the duct design, not on having a split in each one. Installation and adaptation of the network aside.
The duct network and the position of the grilles must be adapted to the layout of the property. Having multiple grilles does not imply independent control by room: if you need this, a compatible zoning system must be studied.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What is included in Hisense AUD140UX4REH8 + AUW140U6RW8?
1×1 pair documented in the Hisense catalog and official price list: AUD140UX4REH8 + AUW140U6RW8.
| Model | Component | Supply scope |
|---|---|---|
| AUD140UX4REH8 | Ducted indoor unit 1400 × 300 × 800 mm | 1 included |
| AUW140U6RW8 | Outdoor unit 1100 × 875 × 450 mm | 1 included |
| Wired and wireless control | Control knobs Controls of the range according to Hisense tariff. The photograph shows the wired remote control of the range; the review may vary. | 1 included |
Installation, duct network, pipes, supports, and construction materials not included.

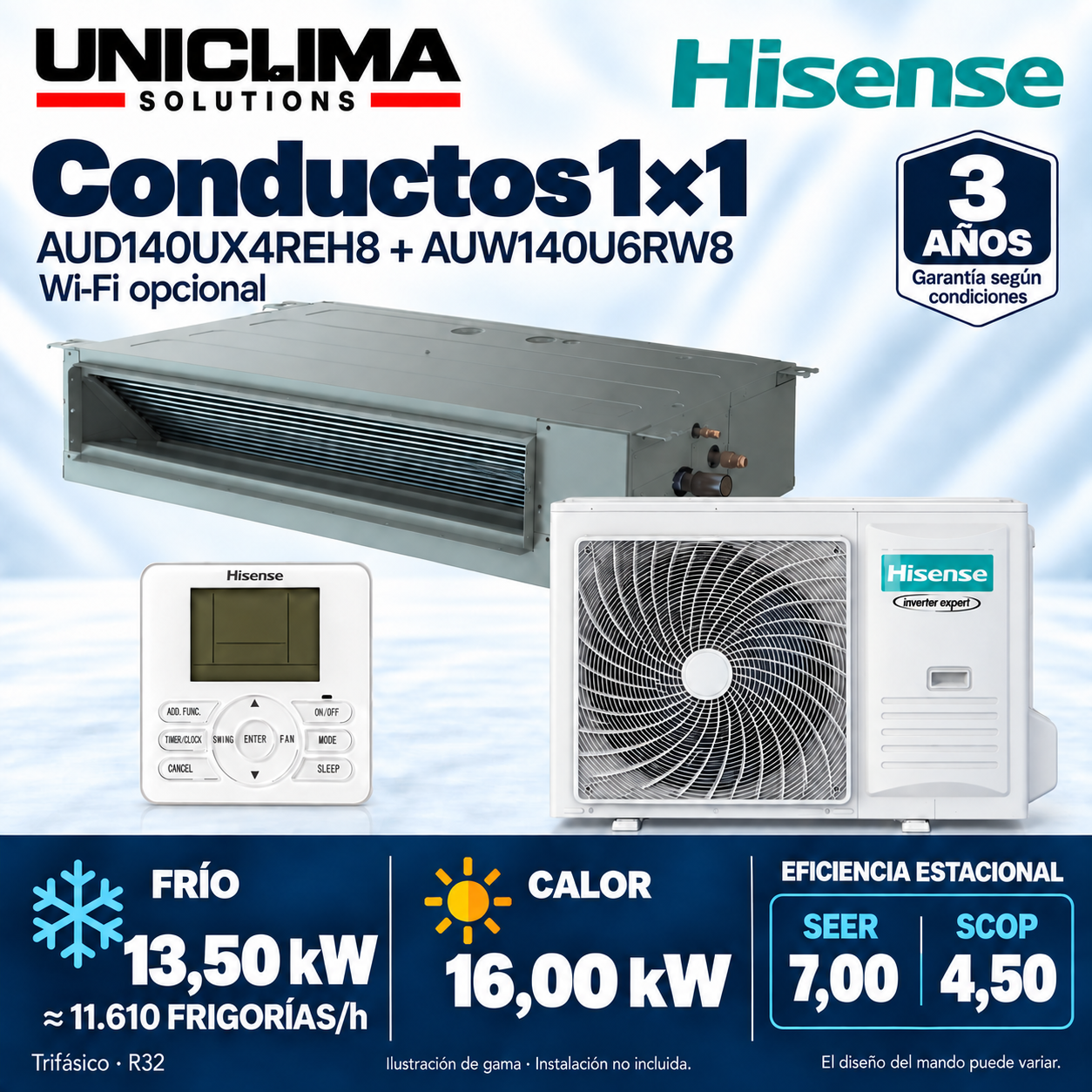

Illustrative composition of the range, not to scale. The design of the control may vary due to catalog updates.
What to check before installing Hisense AUD140UX4REH8 + AUW140U6RW8
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the dimensions of the two units and allow space for access to the filter, connections, and condensate pump.
- The installer must calculate the thermal load and the pressure losses of the ducts; the selection does not depend solely on the square meters.
- Check the 3/8″ / 5/8″ line, the drain, the slope, and the three-phase power supply before installation.
Hisense AUD140UX4REH8 + AUW140U6RW8
- Brand
- Hisense
- Model and composition
- Hisense AUD140UX4REH8 + AUW140U6RW8
- Supply scope
- Indoor unit, outdoor unit, and controls according to the manufacturer's documentation.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 1400 × 300 × 800 mm width × height × depth
- Exterior
- 1100 × 875 × 450 mm width × height × depth
- Factory published load
- 3.20 kg According to the Hisense Spain catalog
- Maximum length
- 60 m
- Length covered by precharge
- 7.5 m
- Additional load
- 35 g/m Based on the preloaded length
- Pipe · liquid / gas
- 3/8″ / 5/8″
- Maximum slope
- 30 m
- Power supply
- Three-phase · 380–415 V · 50/60 Hz
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 13.50 kW
Power and efficiency of the system - Nominal heat of the assembly
- 16.00 kW
Power and efficiency of the system - kcal/h
- ≈ 11.610
Power and efficiency of the system · Conversion of the nominal cooling capacity: kW × 860 - SEER / SCOP
- 7,00 / 4,50
Power and efficiency of the system · SCOP in moderate climate - Nominal consumption in cold / heat
- 3.85 / 4.30 kW
Power and efficiency of the system · Absorbed electrical power - Interior · width × height × depth
- 1400 × 300 × 800 mm
Dimensions, sound and flow rate - Exterior · width × height × depth
- 1100 × 875 × 450 mm
Dimensions, sound and flow rate - Net weight indoor unit
- 51 kg
Dimensions, sound and flow rate - Interior sound pressure
- 43 / 40 / 37 dB(A)
Measurements, sound and flow · High / medium / low speeds - Indoor air flow
- 2400 / 2200 / 1900 m³/h
Measurements, sound and flow · High / medium / low - Static pressure
- 100 Pa
Measurements, sound and flow · Adjustable from 0 to 200 Pa - Refrigerant
- R32
Installation and refrigerant - Factory published load
- 3.20 kg
Installation and refrigerant · According to Hisense Spain catalog - Maximum length
- 60 m
Installation and refrigerant - Length covered by precharge
- 7.5 m
Installation and refrigerant - Additional load
- 35 g/m
Installation and refrigerant · Based on the pre-charged length - Pipe · liquid / gas
- 3/8″ / 5/8″
Installation and refrigerant - Maximum slope
- 30 m
Installation and refrigerant - Power supply
- Three-phase · 380–415 V · 50/60 Hz
Installation and refrigerant - Wi-Fi
- Optional
Installation and refrigerant · Adapter not included - Condensate pump
- Included
Installation and refrigerant - Warranty
- 3 years
Installation and refrigerant · According to Hisense conditions and applicable use
Before purchasing
- Values from the Hisense Spain catalog 2026 for the exact combination. Please refer to the installation manual of the supplied unit.
Documentation
Questions about Hisense AUD140UX4REH8 + AUW140U6RW8
How many frigories does this ducted unit have?
The Hisense AUD140UX4REH8 + AUW140U6RW8 unit declares 11,610 frigories/h (13.5 kW) nominal cooling capacity. This is the total capacity that must be distributed through the duct network; it does not correspond to each grille or room.
Can it cool the living room and the bedrooms?
It can be part of an installation that serves multiple rooms, as long as the total load and duct design match its nominal 13.5 kW. It has a single indoor unit (AUD140UX4REH8), not a separate split in each room. It is necessary to check flow rates, pressure losses, and air return for each room.
What happens if some rooms get colder than others?
Before choosing a more powerful unit, it is advisable to check the air distribution through the grilles and ensure that the ducts reach each room properly. This unit offers about 11,610 frigorías/h. Let us know which rooms you want to cool; the installer will also need to verify that the ducts can accommodate the chosen unit.
Can I replace my old unit with this one without making any changes?
It is not confirmed just by matching the cooling capacity. Before replacing it with Hisense AUD140UX4REH8 + AUW140U6RW8, check the dimensions and access of the false ceiling, power supply, refrigerant and acceptable pipes, drainage, flow rate, and available pressure. The technical sheet and a review of the installation determine what can be reused.
What does this set include?
AUD140UX4REH8 + AUW140U6RW8. One ducted indoor unit, one outdoor unit, and the controls indicated for the range. The installation and duct network are not included.
Is it single-phase or three-phase?
This combination is three-phase. The exact external reference is AUW140U6RW8.
Does it include Wi-Fi?
Wi-Fi is optional and requires an adapter, not included in this price.
