Hisense Brissa CA70BT2B split air conditioning

To air condition a room with a wall-mounted split: 5,418 frigories/h (6.3 kW) nominal in cooling.

Pipe: 3/8″ / 5/8″
Wi-Fi: Optional
kcal/h: ≈ 5.418
Refrigerant: R32

Description

To climate control a room with a wall-mounted split: 5,418 frigories/h (6.3 kW) nominal cooling capacity. Hisense Brissa CA70BT2B includes an indoor and an outdoor unit; it is not a system for distributing cold independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation not included.

The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.

Wi-Fi control is optional and requires an accessory that is purchased separately.

Components and supply

What does Hisense Brissa CA70BT2B include?

1×1 composition documented by Hisense: CA70BT2BG + CA70BT2BW.

Model	Component	Supply scope
CA70BT2BG	Wall-mounted indoor unit 998 × 325 × 225 mm	1 included
CA70BT2BW	Outdoor unit 860 × 667 × 310 mm	1 included
R2-01	Brissa wireless remote control The design of the remote control may vary due to catalog updates.	1 included

Installation, pipes, supports, and Wi-Fi kit not included.

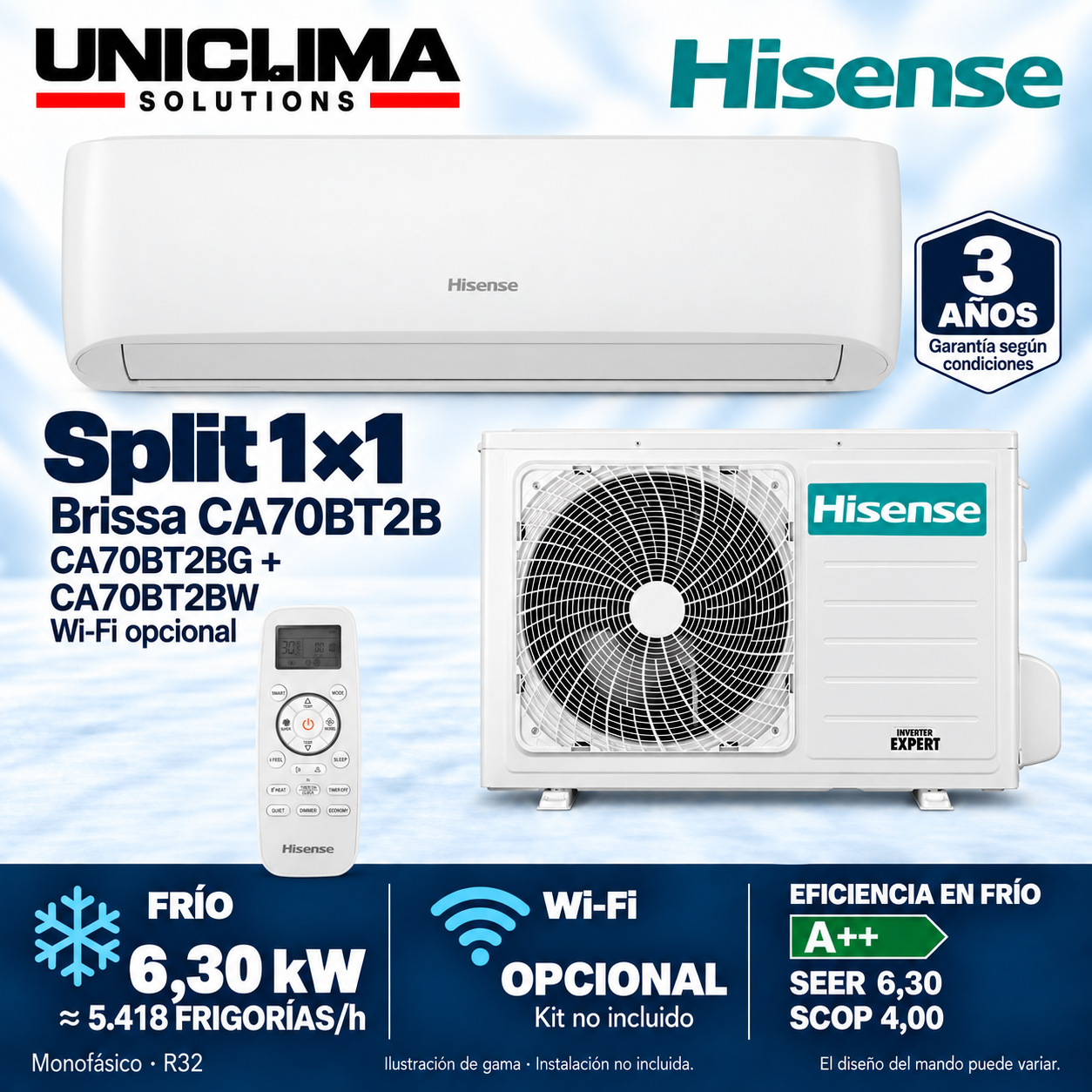

Illustrative images of the Brissa range, not to scale. The indicated measurements correspond to the references of this set.

Guide

What to check before installing Hisense Brissa CA70BT2B?

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Consult the installer about the required power based on the area, orientation, and insulation.
Check the space of both units and the refrigeration line 3/8″ / 5/8″.
The installation and the Wi-Fi kit are contracted separately.

Technical data

Hisense Brissa CA70BT2B

Brand: Hisense
Model and composition: Hisense Brissa CA70BT2B
Supply scope: Indoor unit, outdoor unit, and wireless control. Optional Wi-Fi kit.
Installation: Not included
Availability and transport: Price including VAT. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.

Installation at a glance

Interior: 998 × 325 × 225 mm width × height × depth
Exterior: 860 × 667 × 310 mm width × height × depth
Pipe · liquid / gas: 3/8″ / 5/8″
Maximum length: 20 m
Maximum slope: 15 m
Power supply: Single-phase · 220–240 V · 50 Hz

Manufacturer's documentation

Specifications and dimensions of the model

Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.

Nominal cooling of the unit: 6.30 kW
Power and efficiency of the system
kcal/h: ≈ 5.418
Power and efficiency of the system · Nominal capacity in cold × 860
SEER / SCOP: 6,30 / 4,00
Power and efficiency of the system · SCOP in moderate climate
Cold efficiency: A++
Power and efficiency of the system
Efficiency in heat: A+
Power and efficiency of the system · Average climate
Interior · width × height × depth: 998 × 325 × 225 mm
Dimensions of the units
Exterior · width × height × depth: 860 × 667 × 310 mm
Dimensions of the units
Refrigerant: R32
Installation and equipment
Pipe · liquid / gas: 3/8″ / 5/8″
Installation and equipment
Maximum length: 20 m
Installation and equipment
Maximum slope: 15 m
Installation and equipment
Power supply: Single-phase · 220–240 V · 50 Hz
Installation and equipment
Wi-Fi: Optional
Installation and equipment · Requires AEH-W41H1 kit not included
Remote control from the range: R2-01
Installation and equipment · Design subject to catalog update
Warranty: 3 years
Installation and equipment · According to Hisense conditions and applicable use

Before purchasing

References and verified data in the Hisense documentation 2026. Please consult the installation manual of the supplied revision.

Documentation

Frequently asked questions

Questions about Hisense Brissa CA70BT2B

How many frigories does it have and how many rooms is it suitable for?

This unit has a nominal cooling capacity of 5,418 frigories/h (6.3 kW) and a single indoor unit (CA70BT2BG). It is designed for a room or an open space that has been sized as such. It does not equate to a 2x1 for two closed rooms.

Is it an option if I am looking for an air conditioning unit with 5,000 frigories?

The exact figure for this combination is approximately 5,418 kcal/h nominal (6.3 kW), above 5,000. If the calculation for your room requires at least 5,000 kcal/h, also compare the capacity at the expected outdoor temperature and the margin indicated by the installer.

Is it suitable for a bedroom with a lot of sunlight?

It can be useful, but it's important to know how much your bedroom heats up, especially if it gets afternoon sun or is under the roof. This unit offers about 5,418 frigories/h. Tell us the square meters and if the ceiling is insulated: we can help you choose the power and check the noise level of the split for sleeping.

How do I know if it has enough power for my living room?

To choose the power, you need to consider the size of the living room, how much sunlight it receives, and the insulation. This unit has about 5,418 frigorías/h; before increasing the power, it's advisable to check if it's insufficient for your living room. Tell us the square meters and how much sunlight it receives, and we will help you choose.

What does this Hisense Brissa set include?

CA70BT2BG + CA70BT2BW. Includes wireless remote control from the range. Installation and Wi-Fi kit not included.

Does it include Wi-Fi?

No. The range is prepared for the optional Wi-Fi accessory AEH-W41H1, sold separately.

Is Brisas the official name?

The official name of Hisense is Brissa. If you have arrived looking for Hisense Brisas, always check the exact reference of the set: CA70BT2B.

Does it include installation?

No. The price corresponds to the equipment and includes VAT; the installation is quoted separately.
