The design of the remote control may vary due to catalog updates.
Hisense split air conditioning HC70FW00G + AC70FW00W
To air condition a room with a wall-mounted split: 5,590 frigories/h (6.5 kW) nominal in cooling.
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 5.590
- Refrigerant
- R32
Description
To climatize a room with a wall-mounted split: 5,590 frigories/h (6.5 kW) nominal in cooling. Hisense HC70FW00G + AC70FW00W includes one indoor and one outdoor unit; it is not a system for distributing cooling independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation is separate.
The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does Hisense HC70FW00G + AC70FW00W include?
1×1 pair documented by Hisense: HC70FW00G + AC70FW00W.
| Model | Component | Supply scope |
|---|---|---|
| HC70FW00G | Wall-mounted indoor unit 1086 × 320 × 232 mm | 1 included |
| AC70FW00W | Outdoor unit 860 × 649 × 310 mm | 1 included |
| RZY1 | Wireless remote control from the range The design may vary due to catalog updates. | 1 included |
Installation, pipes, supports, and construction materials not included.

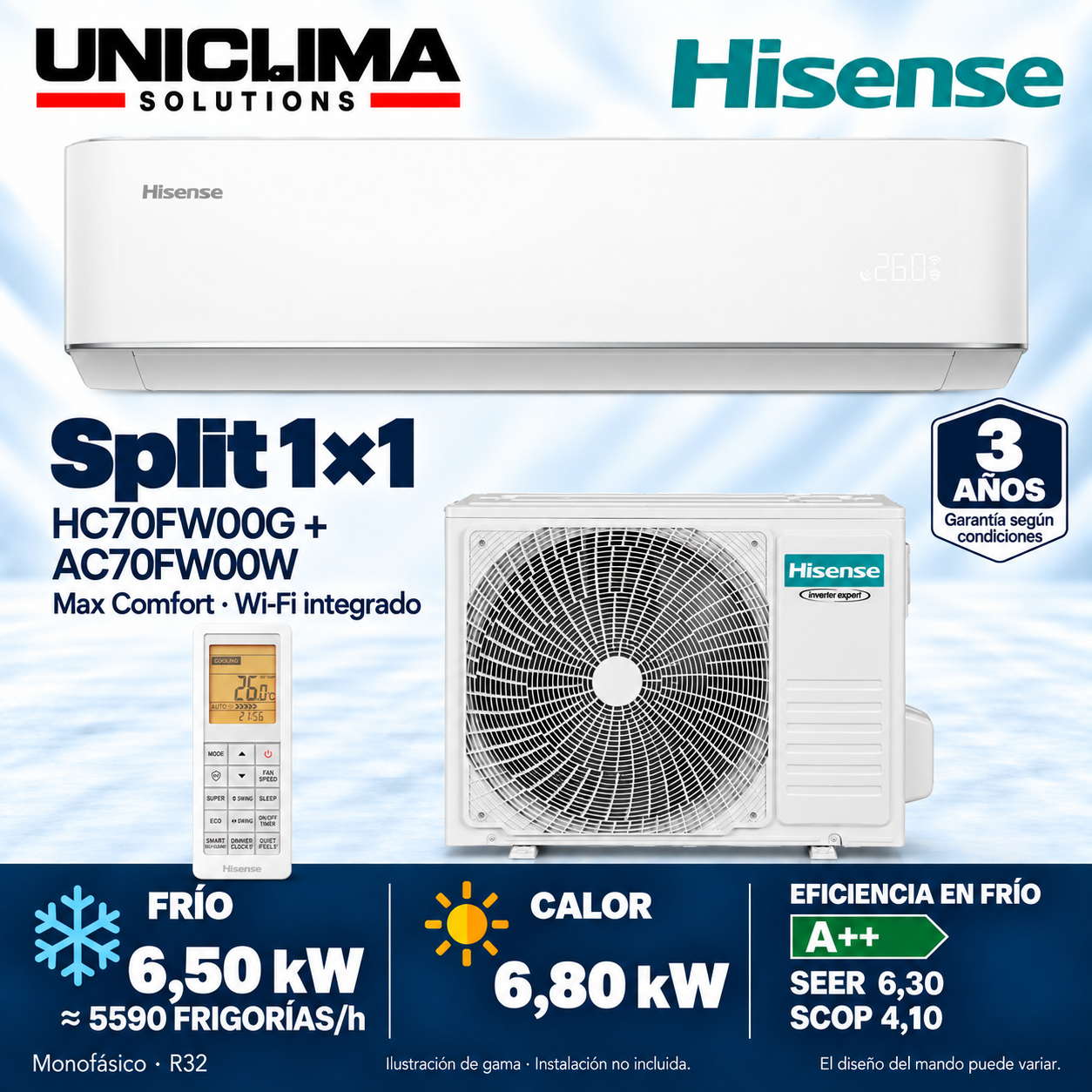

Illustrative composition of the range, not to scale. The design of the control may vary due to catalog updates.
What to check before installing Hisense HC70FW00G + AC70FW00W
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the thermal load of the room with the installer before choosing the power.
- Leave access to clean the filter and maintain both units.
- Check 1/4″ / 1/2″ pipes, drainage, distance, and single-phase power supply.
Technical sheet: Hisense HC70FW00G + AC70FW00W
- Brand
- Hisense
- Model and composition
- Hisense HC70FW00G + AC70FW00W
- Supply scope
- Indoor unit, outdoor unit, and wireless remote control. Integrated Wi-Fi.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 1086 × 320 × 232 mm width × height × depth
- Exterior
- 860 × 649 × 310 mm width × height × depth
- Factory published load
- 1.10 kg Confirmed in the official technical sheet of the outdoor unit.
- Pipe · liquid / gas
- 1/4″ / 1/2″
- Maximum length
- 20 m
- Maximum slope
- 15 m
- Length covered by precharge
- 5 m
- Additional load
- 30 g/m Beyond the preloaded length
- Power supply
- Single-phase · 220–240 V · 50 Hz
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 6.50 kW
Power and efficiency of the system - Nominal heat of the assembly
- 6.80 kW
Power and efficiency of the system - kcal/h
- ≈ 5.590
Power and efficiency of the system · Nominal capacity in cold × 860 - SEER / SCOP
- 6,30 / 4,10
Power and efficiency of the system · SCOP in moderate climate - Cold efficiency
- A++
Power and efficiency of the system - Efficiency in heat
- A+ / A+++
Power and efficiency of the system · Medium / warm climate - Nominal consumption in cold / heat
- 2.07 / 1.89 kW
Power and efficiency of the system · Absorbed electrical power - Interior · width × height × depth
- 1086 × 320 × 232 mm
Dimensions and sound - Exterior · width × height × depth
- 860 × 649 × 310 mm
Dimensions and sound - Interior sound pressure
- 47 / 44 / 41 / 39 / 36 / 32 dB(A)
Dimensions and sound · High / medium-high / medium / medium-low / low / silent - Refrigerant
- R32
Installation and refrigerant - Factory published load
- 1.10 kg
Installation and refrigerant · Confirmed in the official sheet of the outdoor unit - Pipe · liquid / gas
- 1/4″ / 1/2″
Installation and refrigerant - Maximum length
- 20 m
Installation and refrigerant - Maximum slope
- 15 m
Installation and refrigerant - Length covered by precharge
- 5 m
Installation and refrigerant - Additional load
- 30 g/m
Installation and refrigerant · Beyond the pre-charged length - Power supply
- Single-phase · 220–240 V · 50 Hz
Installation and refrigerant - Wi-Fi
- Included
Installation and refrigerant · Control from compatible application - Warranty
- 3 years
Installation and refrigerant · According to Hisense conditions and applicable use
Before purchasing
- Exact combination data in the Hisense catalog 2026. Please refer to the supplied revision manual for the startup procedure.
Documentation
Questions about Hisense HC70FW00G + AC70FW00W
How many frigories does it have and how many rooms is it suitable for?
This unit has a nominal cooling capacity of 5,590 frigories/h (6.5 kW) and a single indoor unit (HC70FW00G). It is designed for a room or an open space that has been sized as such. It is not equivalent to a 2x1 for two closed rooms.
Is it an option if I am looking for an air conditioning unit of 6,000 frigories?
The exact figure for this combination is approximately 5,590 frigories/h nominal (6.5 kW), below 6,000. If the calculation for your space requires at least 6,000 frigories/h, do not choose it just because it belongs to a similar range: you need a unit that meets that load under the conditions of use.
Is it suitable for a bedroom with a lot of sunlight?
It can be useful, but it's important to know how much your bedroom heats up, especially if it gets afternoon sun or is under the roof. This unit offers about 5,590 frigories/h. Tell us the square meters and if the ceiling is insulated: we can help you choose the power and check the noise level of the split for sleeping.
How do I know if it has enough power for my living room?
To choose the power, you need to consider the size of the living room, how much sunlight it receives, and the insulation. This unit has about 5,590 frigorías/h; before increasing the power, it's advisable to check if it is insufficient for your living room. Tell us the square meters and how much sunlight it receives, and we will help you choose.
What units are included?
HC70FW00G + AC70FW00W. Wireless remote control and integrated Wi-Fi.
Does it include installation?
No. The price corresponds to the equipment; the installation is quoted separately.
Does it have Wi-Fi?
Yes, this range incorporates Wi-Fi for control via a compatible app.
