LG CT18F.NQ0 + UUA1.UL0 cassette air conditioning · Single-phase
To air condition an open area from the ceiling: LG cassette CT18F.NQ0 + UUA1.UL0 with a nominal cooling capacity of 4,300 frigories/h (5 kW).
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Optional
- kcal/h
- ≈ 4.300
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: LG cassette CT18F.NQ0 + UUA1.UL0 with a nominal cooling capacity of 4,300 frigories/h (5 kW). It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace multiple splits for closed rooms. Check height, installation space, and air distribution. Installation is separate.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What is included in LG CT18F.NQ0 + UUA1.UL0?
1×1 set documented by LG: CT18F.NQ0 + UUA1.UL0.
| Model | Component | Supply scope |
|---|---|---|
| CT18F.NQ0 | Cassette indoor unit 570 × 256 × 570 mm | 1 included |
| UUA1.UL0 | Outdoor unit 770 × 545 × 288 mm | 1 included |
| PREMTB001 | Wired remote control The design may vary due to catalog updates. | 1 included |
| PT-QAGW0 | Decorative panel 620 × 35 × 620 mm | 1 included |
Installation, pipes, supports, and construction materials not included.

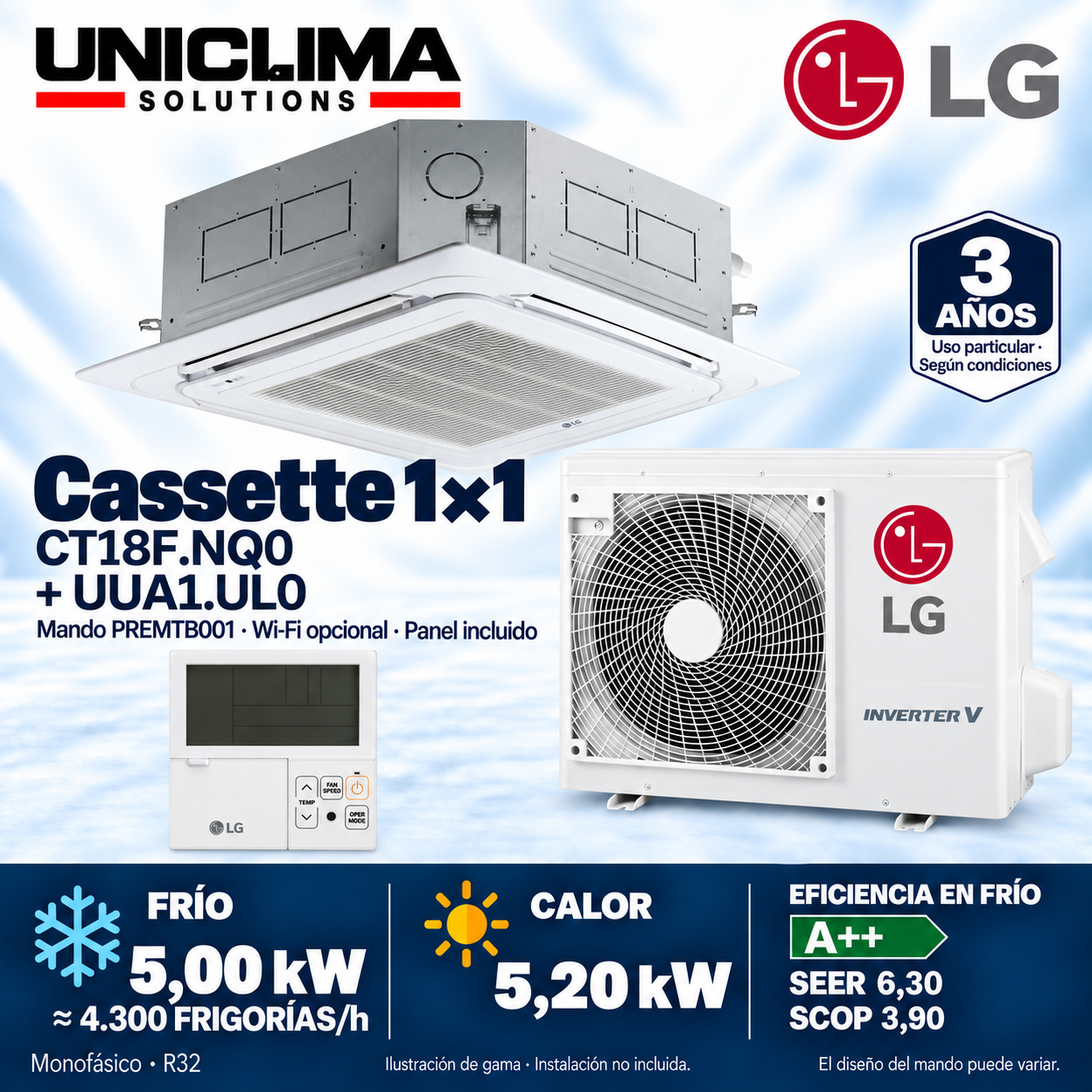

Illustrative composition of the range, not to scale. The design of the control may vary due to catalog updates.
What to check before installing LG CT18F.NQ0 + UUA1.UL0
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Select the power according to the thermal load calculated for the room or premises.
- Leave the maintenance and drainage spaces indicated by LG.
- Check 1/4″ / 1/2″ pipes, maximum distance 30 m and single-phase power supply.
- Check the space of the false ceiling and the dimensions of the body and the panel separately.
Technical sheet: LG CT18F.NQ0 + UUA1.UL0
- Brand
- LG
- Model and composition
- LG CT18F.NQ0 + UUA1.UL0
- Supply scope
- Indoor unit, outdoor unit, and wired control PREMTB001. Decorative panel PT-QAGW0 included.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Request the availability notice if it is out of stock. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 570 × 256 × 570 mm width × height × depth
- Exterior
- 770 × 545 × 288 mm width × height × depth
- Pipe · liquid / gas
- 1/4″ / 1/2″ Connection of the indoor unit; follow the manufacturer's instructions
- Length covered by precharge
- 10 m
- Additional load
- 20 g/m Beyond the preloaded length
- Maximum length
- 30 m
- Maximum slope
- 30 m
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 5.00 kW
Power and efficiency of the system - Nominal heat of the assembly
- 5.20 kW
Power and efficiency of the system - kcal/h
- ≈ 4.300
Power and efficiency of the system · Nominal capacity in cold × 860 - SEER / SCOP
- 6,30 / 3,90
Power and efficiency of the system · SCOP in moderate climate - Cold efficiency
- A++
Power and efficiency of the system - Nominal consumption in cold / heat
- 1.76 / 1.45 kW
Power and efficiency of the system · Absorbed electrical power - Interior · width × height × depth
- 570 × 256 × 570 mm
Dimensions and sound · Body without panel - Panel · width × height × depth
- 620 × 35 × 620 mm
Dimensions and sound · PT-QAGW0 - Exterior · width × height × depth
- 770 × 545 × 288 mm
Dimensions and sound - Interior sound pressure in cold
- 41 / 39 / 37 dB(A)
Dimensions and sound · Published speed levels by LG - Refrigerant
- R32
Installation and refrigerant - Factory load
- 1.00 kg
Installation and refrigerant - Pipe · liquid / gas
- 1/4″ / 1/2″
Installation and refrigerant · Connection of the indoor unit; follow the manufacturer's instructions - Length covered by precharge
- 10 m
Installation and refrigerant - Additional load
- 20 g/m
Installation and refrigerant · Beyond the pre-charged length - Maximum length
- 30 m
Installation and refrigerant - Maximum slope
- 30 m
Installation and refrigerant - External power supply
- Single-phase · 220–240 V · 50 Hz
Installation and refrigerant - Wi-Fi
- Optional · PWFMDD202
Installation and refrigerant - Control board
- PREMTB001
Installation and refrigerant · Included - Consumer warranty
- 3 years
Installation and refrigerant · Private use; according to LG Spain conditions
Before purchasing
- Data of the identified combination. Refer to the LG documents and the supplied revision manual for installation.
Documentation
Questions about LG CT18F.NQ0 + UUA1.UL0
How many frigories does this cassette have?
The LG CT18F.NQ0 + UUA1.UL0 set has a nominal cooling capacity of 4,300 frigories/h (5 kW). The power refers to the complete set, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of CT18F.NQ0 and proper air distribution. It offers 5 kW of nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of the people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that purpose just because it has 4,300 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Look at the square meters of the space, the large windows, and the hours of sunlight. If the premises or living room overheats and more capacity is needed, compare the LG CT24F.NB0 + UUB1.U20It goes from about 4,300 to 5,848 frigories/h. Before making a decision, we will review the power and the available space in the false ceiling with you.
What does the set include?
Indoor unit, outdoor unit, and wired control PREMTB001. Decorative panel PT-QAGW0 included. References: CT18F.NQ0 + UUA1.UL0.
Does it have Wi-Fi?
Optional Wi-Fi via PWFMDD202; module not included.
Does it include installation?
No. The price corresponds to the equipment; the installation is quoted separately.
Can you make a reservation when there is no stock?
Yes. Click Reserve and leave your email to request the availability notification. The form does not make a charge.
