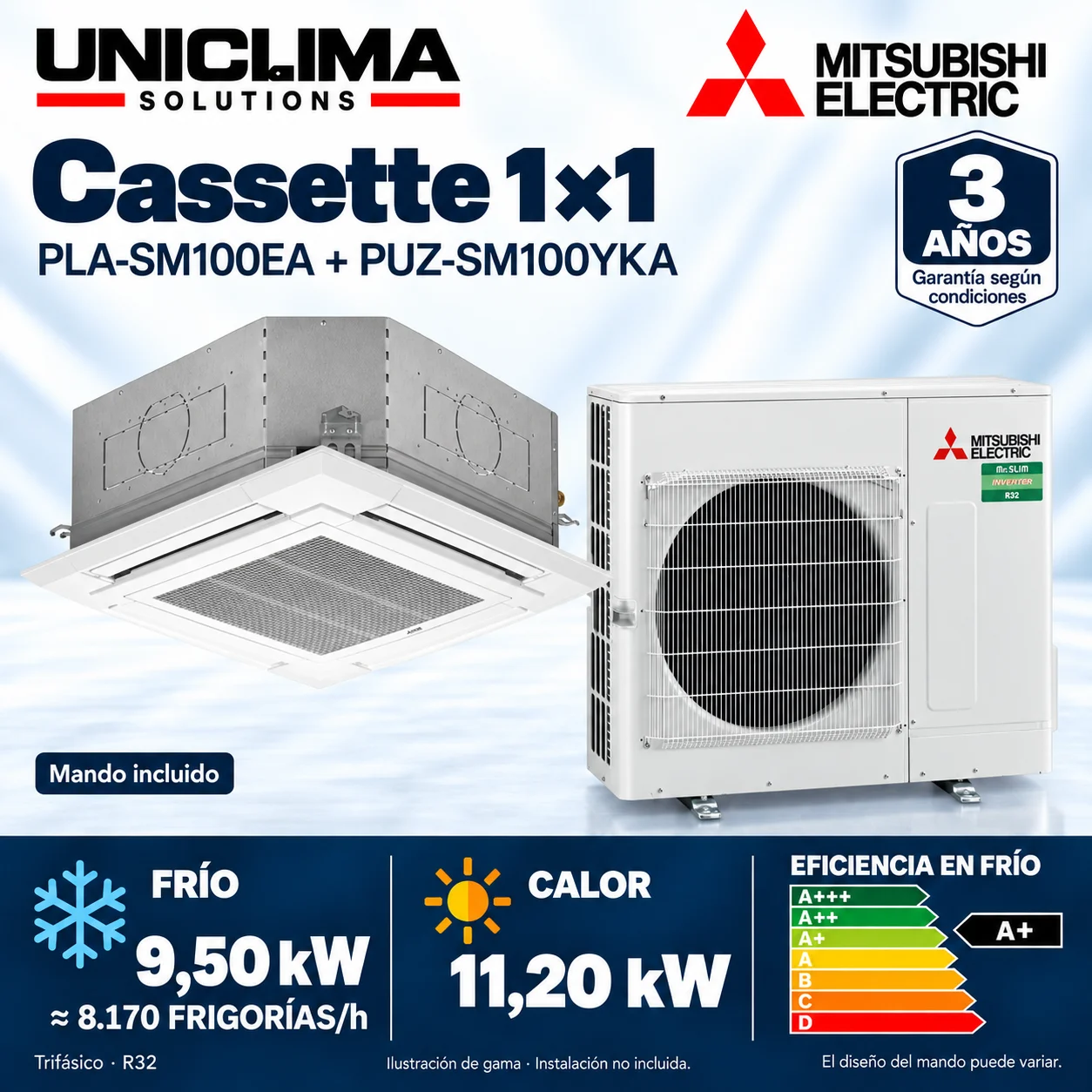

Mitsubishi Electric cassette air conditioning PLA-SM100EA + PUZ-SM100YKA
To air condition an open area from the ceiling: Mitsubishi Electric cassette PLA-SM100EA + PUZ-SM100YKA with 8,170 frigories/h (9.5 kW) nominal cooling capacity.
- Pipe
- 3/8″ / 5/8″
- Connectivity
- See specification
- kcal/h
- ≈ 8.170
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: Mitsubishi Electric cassette PLA-SM100EA + PUZ-SM100YKA with 8,170 frigories/h (9.5 kW) nominal cooling capacity. It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace multiple splits for closed rooms. Check height, installation space, and air distribution. Installation not included.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
What does PLA-SM100EA + PUZ-SM100YKA include?
The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.
| Model | Component | Supply scope |
|---|---|---|
| PLA-SM100EA | Indoor unit Four-way cassette for false ceiling. | 1 included |
| PUZ-SM100YKA | Outdoor unit Outdoor unit of the indicated pair, not interchangeable with a similar reference. | 1 included |
| Model to be confirmed | Control board Remote control included. A specific remote control model is not assigned without confirmation in the supply. | 1 included |
Installation and commissioning Refrigerant pipes, wiring, drainage, supports, and false ceiling work Wi-Fi adapter, 3D i-see sensor, and EasyClean panel Wind guide for cooling below −5 °C
The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.
What to check before installing PLA-SM100EA + PUZ-SM100YKA
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the references PLA-SM100EA + PUZ-SM100YKA and the revision of their labels before replacing units.
- Evaluate the thermal demand, distribution, insulation, and location before selecting cassette 1×1.
- Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
- The budget must separate equipment, materials, assembly, and commissioning.
Technical sheet: PLA-SM100EA + PUZ-SM100YKA
- Brand
- Mitsubishi Electric
- Model and composition
- PLA-SM100EA + PUZ-SM100YKA
- Supply scope
- 1 × PLA-SM100EA (indoor unit); 1 × PUZ-SM100YKA (outdoor unit); 1 × Model to be confirmed (remote control)
- Installation
- Not included
- Availability and transport
- New equipment available. VAT and shipping included to mainland Spain · delivery in 24–48 h. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 298 x 840 x 840 (40 x 950 x 950) mm height × width × depth · panel (in parentheses)
- Exterior
- 981 x 1,050 x 330 (+40) mm height × width × depth
- Pipe
- 3/8″ · 5/8″ liquid · gas
- Maximum range
- 30 m
- Maximum slope
- 30 m
- Precharge up to
- 30 m
- Factory charge · R32
- 3.10 kg
- Additional load
- Without extra up to the limit of 30 m
Load calculation and documentation
Outdoor unit: PUZ-SM100YKA. Check PCB and inspection.
No additional refrigerant for lengths up to 30 m; do not exceed this distance.
L is the actual one-way distance between interior and exterior, not the sum of the liquid and gas pipes. Outer diameters, in liquid / gas order. Refrigerant piping; not cable section or inner diameter.
Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Reference of the assembly in Mitsubishi
- MGPLZ-100YEA
Identity of the combination · Reference that identifies this pair in the Mitsubishi catalog. - Exact reference of the indoor unit
- PLA-SM100EA
Identity of the combination - Exact reference of the outdoor unit
- PUZ-SM100YKA
Identity of the combination - Catalog series
- PRO · Mr. Slim · Four-way cassette
Identity of the combination - Decorative casing/panel
- Included with the set
Identity of the combination · Included. The series catalog identifies the standard panel PLP-6EALM2; i-see and EasyClean are not advertised as included. - Capacity – Nominal Cooling (Min-Max)
- 9.5 (4.0-10.6) kW
Power and consumption - Capacity – Nominal Heat (Min-Max)
- 11.2 (2.8-12.5) kW
Power and consumption - Nominal Consumption – Cooling
- 2.79 kW
Power and consumption - Nominal Consumption – Heat
- 3.1 kW
Power and consumption - Energy coefficient – EER / COP
- 3,40 / 3,61
Power and consumption - Annual electricity consumption – Cooling
- 554 kWh/year
Power and consumption · Normalized reference value, not a prediction of the local consumption. - Energy efficiency ratio – SEER (Label)
- 6.0 (A+)
Power and consumption - Energy efficiency coefficient – SCOP (Label)*
- 4.5 (A+)
Power and consumption · Average climate zone. - Cold design load (Pdesign)
- 9.5 kW
Power and consumption - Design load in heat at −10 °C (Pdesign)
- 8.0 kW
Power and consumption · It should not be confused with the nominal capacity in heat measured under different conditions. - Indoor Unit – Air flow (B/M2/M1/A)
- 19 / 23 / 26 / 29 m³/min
Dimensions, weight, and noise - Indoor Unit – Sound level (B/M2/M1/A)
- 31 / 34 / 37 / 40 dB(A)
Dimensions, weight, and noise - Indoor Unit – Sound power
- 61 dB(A)
Dimensions, weight, and noise - Indoor Unit – Dimensions al x an x fon (Panel)
- 298 x 840 x 840 (40 x 950 x 950) mm
Dimensions, weight, and noise · The values in parentheses correspond to the standard panel of the catalog. They are measurements of the equipment, not of the opening or the installation clearances. - Indoor Unit – Weight (Panel)
- 24 (5) kg
Dimensions, weight, and noise · The values in parentheses correspond to the standard panel of the catalog. They are measurements of the equipment, not of the opening or the installation clearances. - Outdoor Unit – Air flow
- 79 m³/min
Dimensions, weight, and noise - Outdoor Unit – Sound level
- 51 dB(A)
Dimensions, weight, and noise - Outdoor Unit – Sound power
- 70 dB(A)
Dimensions, weight, and noise - Outdoor Unit – Dimensions l x w x h
- 981 x 1,050 x 330 (+40) mm
Dimensions, weight, and noise - Outdoor Unit – Weight
- 78 kg
Dimensions, weight, and noise - Outdoor Unit – Refrigerant R32
- 3.10 / 675 / 2.09 Pre-charge kg / PCA / TCO2 eq
Installation data - Voltage/Phases – Maximum Current
- 400/3 – 12.0 V/F – A
Installation data - Diameter of liquid/gas pipes
- 9.52 / 15.88 mm
Installation data - Max. drain/total pipe length.
- 30 / 30 m
Installation data - Operating range – Outdoor temperature for cooling
- -15 ~ +46 °C
Installation data · Below −5 °C in cooling mode, Mitsubishi requires an optional wind protection guide for these outdoor units SUZ and PUZ. It is not advertised as included. - Operating range – Outdoor temperature for heating
- -15 ~ +21 °C
Installation data - Drain pump
- Incorporated in the indoor unit
Installation data · The drainage must be carried out and checked during installation. - Nominal pipe length of the test
- 5 m
Installation data · Catalog reference condition; it is not an included installation length. - Maximum number of curves
- 15
Installation data · Catalog limit. The installer must also review the manual for the exact combination. - Dehumidification
- It does not work with the room below 13 °C.
Installation data · Condition indicated in the commercial catalog. - Remote control included
- Remote control included. A specific remote control model is not assigned without confirmation in the supply.
Remote control and connectivity - Wi-Fi
- Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.
Remote control and connectivity
Before purchasing
- The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.
Documentation
Questions about PLA-SM100EA + PUZ-SM100YKA
How many frigories does this cassette have?
The Mitsubishi Electric PLA-SM100EA + PUZ-SM100YKA unit has a nominal cooling capacity of 8,170 frigories/h (9.5 kW). The power refers to the complete unit, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of PLA-SM100EA and proper air distribution. It offers 9.5 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that reason alone just because it has 8,170 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Look at the square meters of the space, the large windows, and the hours of sunlight. If the premises or living room overheats and more capacity is needed, compare the Mitsubishi Electric PLA-SM125EA + PUZ-SM125YKAIt goes from about 8,170 to 10,406 frigories/h. Before making a decision, we will review the power and the available space in the false ceiling with you.
What does PLA-SM100EA + PUZ-SM100YKA include?
1 × PLA-SM100EA (indoor unit); 1 × PUZ-SM100YKA (outdoor unit); 1 × Model to be confirmed (remote control). The previous composition identifies the units and controls of this offer. The installation is contracted separately.
What measurements should I check before booking the equipment?
Indoor Unit – Dimensions width x height x depth (Panel): 298 x 840 x 840 (40 x 950 x 950) mm. Outdoor Unit – Dimensions width x height x depth: 981 x 1,050 x 330 (+40) mm. These are the measurements of the indicated components, not the minimum installation space. Also allow for the clearances, connections, and maintenance access required by the manual.
What efficiency does this combination have and what can I compare?
Energy efficiency rating – SEER (Label): 6.0 (A+). Energy efficiency rating – SCOP (Label)*: 4.5 (A+). Compare the same magnitude, combination, and test climate. This data does not certify the consumption of your home or the performance of another combination.
Is Wi-Fi included or is an accessory required?
Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.
What command does the equipment receive?
Remote control included. A specific remote control model is not assigned without confirmation in the supply.
Are the decibels in the technical sheet the noise I will hear at home?
Indoor Unit – Sound power: 61 dB(A). Outdoor Unit – Sound power: 70 dB(A). Maintain the indicated speed and mode when comparing. Pressure and sound power are different magnitudes; the perceived noise also depends on the room and the installation.
What advantage does this version have if my premises have three-phase power?
It allows you to choose the power supply that corresponds to the electrical project without increasing the cooling capacity. For this pair 100 YKA, Mitsubishi indicates 400 V three-phase and 12.0 A maximum current. Your installer must confirm the line and the protections; having three-phase does not require choosing a larger unit.
When would I compare this 100 with the 125 three-phase?
When the calculation of the space exceeds 9.5 kW of cooling for this unit: the 125 YKA offers 12.1 kW. The layout of the space and its occupancy determine whether that jump makes sense; for separate offices, it may be advisable to consider multiple zones instead of a single larger cassette.
What power supply does this version require?
The PLA-SM100EA + PUZ-SM100YKA pair requires 400 V three-phase. The official sheet indicates 400/3 – 12.0 V/F – A. Before ordering it, your installer must check the line, protections, and available power supply; the single-phase VKA variant is not electrically equivalent.
Can it air condition several closed rooms?
This 100 has a single internal cassette. It distributes air in the area where it is installed, but it does not allow for independent temperature selection for rooms separated by doors. If your premises have offices or private rooms, check with the installer if you need more units or a zoned distribution.
What should I consider for drainage and winter use?
PLA-SM100EA includes a drainage pump, but the installation requires a well-executed and tested drain. If you want to use it in cold conditions when the outside temperature drops below −5 °C, the documentation requires an optional wind protection guide; the published range does not mean that this accessory is included.
