Mitsubishi Electric cassette air conditioning PLA-SM140EA + PUZ-SM140YKA
To air condition an open area from the ceiling: Mitsubishi Electric cassette PLA-SM140EA + PUZ-SM140YKA with 11,524 frigories/h (13.4 kW) nominal cooling capacity.
- Pipe
- 3/8″ / 5/8″
- Connectivity
- See specification
- kcal/h
- ≈ 11.524
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: Mitsubishi Electric cassette PLA-SM140EA + PUZ-SM140YKA with a nominal cooling capacity of 11,524 frigories/h (13.4 kW). It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace multiple splits for closed rooms. Check height, mounting space, and air distribution. Installation not included.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
What does PLA-SM140EA + PUZ-SM140YKA include?
The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.
| Model | Component | Supply scope |
|---|---|---|
| PLA-SM140EA | Indoor unit Four-way cassette for false ceiling. | 1 included |
| PUZ-SM140YKA | Outdoor unit Outdoor unit of the indicated pair, not interchangeable with a similar reference. | 1 included |
| Model to be confirmed | Control board Remote control included. A specific remote control model is not assigned without confirmation in the supply. | 1 included |
Installation and commissioning Refrigerant pipes, wiring, drainage, supports, and false ceiling work Wi-Fi adapter, 3D i-see sensor, and EasyClean panel Wind guide for cooling below −5 °C

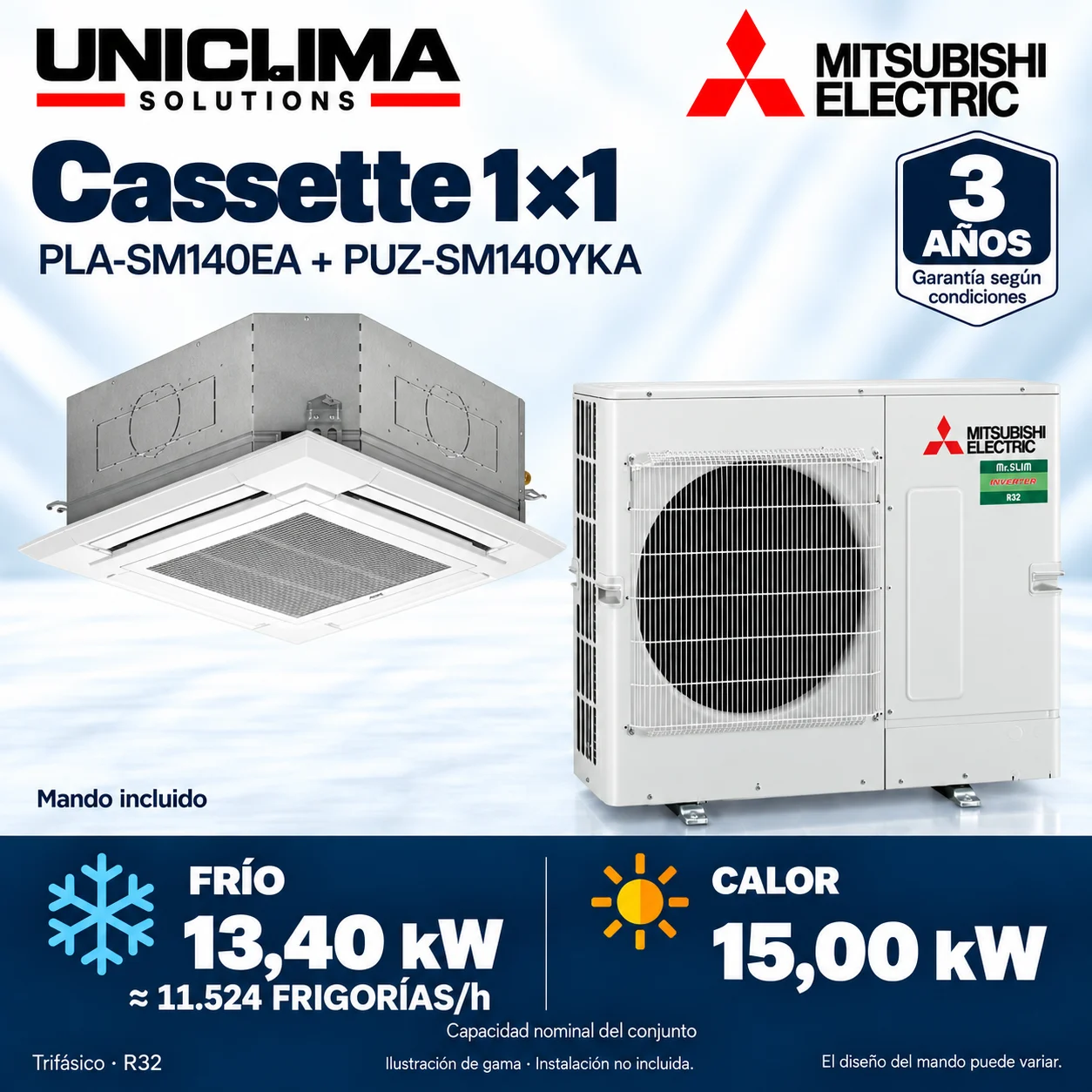

The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.
What to check before installing PLA-SM140EA + PUZ-SM140YKA
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the references PLA-SM140EA + PUZ-SM140YKA and the revision of their labels before replacing units.
- Evaluate the thermal demand, distribution, insulation, and location before selecting cassette 1×1.
- Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
- The budget must separate equipment, materials, assembly, and commissioning.
Technical sheet: PLA-SM140EA + PUZ-SM140YKA
- Brand
- Mitsubishi Electric
- Model and composition
- PLA-SM140EA + PUZ-SM140YKA
- Supply scope
- 1 × PLA-SM140EA (indoor unit); 1 × PUZ-SM140YKA (outdoor unit); 1 × Model to be confirmed (remote control)
- Installation
- Not included
- Availability and transport
- New equipment available. VAT and shipping included to mainland Spain · delivery in 24–48 h. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 298 x 840 x 840 (40 x 950 x 950) mm height × width × depth · panel (in parentheses)
- Exterior
- 981 x 1,050 x 330 (+40) mm height × width × depth
- Pipe
- 3/8″ · 5/8″ liquid · gas
- Maximum range
- 40 m
- Maximum slope
- 30 m
- Precharge up to
- 30 m
- Factory charge · R32
- 3.60 kg
- Additional load
- +400 g for distances of 31–40 m
Load calculation and documentation
Outdoor unit: PUZ-SM140YKA. Check PCB and inspection.
Up to 30 m: no additional load for length. From 31 to 40 m: add 0.4 kg according to the manufacturer's table; do not interpret as a rule of g/m.
L is the actual one-way distance between interior and exterior, not the sum of the liquid and gas pipes. Outer diameters, in liquid / gas order. Refrigerant piping; not cable section or inner diameter.
Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Reference of the assembly in Mitsubishi
- MGPLZ-140YEA
Identity of the combination · Reference that identifies this pair in the Mitsubishi catalog. - Exact reference of the indoor unit
- PLA-SM140EA
Identity of the combination - Exact reference of the outdoor unit
- PUZ-SM140YKA
Identity of the combination - Catalog series
- PRO · Mr. Slim · Four-way cassette
Identity of the combination - Decorative casing/panel
- Included with the set
Identity of the combination · Included. The series catalog identifies the standard panel PLP-6EALM2; i-see and EasyClean are not advertised as included. - Capacity – Nominal Cooling (Min-Max)
- 13.4 (5.8-14.1) kW
Power and consumption - Capacity – Nominal Heat (Min-Max)
- 15.0 (4.2-15.8) kW
Power and consumption - Nominal Consumption – Cooling
- 5.13 kW
Power and consumption - Nominal Consumption – Heat
- 4.54 kW
Power and consumption - Energy coefficient – EER / COP
- 2,61 / 3,30
Power and consumption - Cold design load (Pdesign)
- 13.4 kW
Power and consumption - Design load in heat at −10 °C (Pdesign)
- 9.4 kW
Power and consumption · It should not be confused with the nominal capacity in heat measured under different conditions. - Indoor Unit – Air flow (B/M2/M1/A)
- 24 / 26 / 29 / 32 m³/min
Dimensions, weight, and noise - Indoor Unit – Sound level (B/M2/M1/A)
- 36 / 39 / 42 / 44 dB(A)
Dimensions, weight, and noise - Indoor Unit – Sound power
- 65 dB(A)
Dimensions, weight, and noise - Indoor Unit – Dimensions al x an x fon (Panel)
- 298 x 840 x 840 (40 x 950 x 950) mm
Dimensions, weight, and noise · The values in parentheses correspond to the standard panel of the catalog. They are measurements of the equipment, not of the opening or the installation clearances. - Indoor Unit – Weight (Panel)
- 26 (5) kg
Dimensions, weight, and noise · The values in parentheses correspond to the standard panel of the catalog. They are measurements of the equipment, not of the opening or the installation clearances. - Outdoor Unit – Air flow
- 86 m³/min
Dimensions, weight, and noise - Outdoor Unit – Sound level
- 55 dB(A)
Dimensions, weight, and noise - Outdoor Unit – Sound power
- 73 dB(A)
Dimensions, weight, and noise - Outdoor Unit – Dimensions l x w x h
- 981 x 1,050 x 330 (+40) mm
Dimensions, weight, and noise - Outdoor Unit – Weight
- 85 kg
Dimensions, weight, and noise - Outdoor Unit – Refrigerant R32
- 3.60 / 675 / 2.43 Pre-charge kg / PCA / TCO2 eq
Installation data - Voltage/Phases – Maximum Current
- 400/3 – 12.2 V/F – A
Installation data - Diameter of liquid/gas pipes
- 9.52 / 15.88 mm
Installation data - Max. drain/total pipe length.
- 30 / 40 m
Installation data - Operating range – Outdoor temperature for cooling
- -15 ~ +46 °C
Installation data · Below −5 °C in cooling mode, Mitsubishi requires an optional wind protection guide for these outdoor units SUZ and PUZ. It is not advertised as included. - Operating range – Outdoor temperature for heating
- -15 ~ +21 °C
Installation data - Drain pump
- Incorporated in the indoor unit
Installation data · The drainage must be carried out and checked during installation. - Nominal pipe length of the test
- 5 m
Installation data · Catalog reference condition; it is not an included installation length. - Maximum number of curves
- 15
Installation data · Catalog limit. The installer must also review the manual for the exact combination. - Dehumidification
- It does not work with the room below 13 °C.
Installation data · Condition indicated in the commercial catalog. - Label for air conditioners up to 12 kW
- Not applicable to this nominal cooling capacity.
Energy information · Article 1 of Delegated Regulation (EU) 626/2011 limits its scope to equipment up to 12 kW. No class from that scale is assigned to this combination of 13.4 kW. - SEER of the set · catalog June 2025
- 5,5
Seasonal efficiency · June 2025 catalog · Index published in the exact column of the catalog, PDF 194 / printed page 192. It is not obtained by converting the percentages from the web table nor is it presented as an energy class. - SCOP of the set · average climate
- 3,9
Seasonal efficiency · June 2025 catalog · Heating index for intermediate climate zone according to the catalog note. It is not a constant efficiency at any temperature. - Normalized annual consumption in cold
- 852 kWh/year
Seasonal efficiency · June 2025 catalog · Annual reference consumption of this pair in the June 2025 catalog. Usage, temperature, and load of the premises affect actual expenditure. - Normalized annual consumption in heat · average climate
- 3366 kWh/year
Seasonal efficiency · June 2025 catalog · Annual reference value published for heating in the cited edition; it does not allow for calculating a bill or amortization without knowing the usage and installation. - Remote control included
- Remote control included. A specific remote control model is not assigned without confirmation in the supply.
Remote control and connectivity - Wi-Fi
- Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.
Remote control and connectivity
Before purchasing
- The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.
Documentation
Questions about PLA-SM140EA + PUZ-SM140YKA
How many frigories does this cassette have?
The Mitsubishi Electric PLA-SM140EA + PUZ-SM140YKA unit has a nominal cooling capacity of 11,524 frigories/h (13.4 kW). The power refers to the complete unit, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of PLA-SM140EA and proper air distribution. It offers 13.4 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that reason alone just because it has 11,524 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Take into account the square meters of the space, the windows, and the hours of sunlight. This cassette has about 11,524 frigories/h; to determine if it is sufficient, we need to know what the space is like. Before making a decision, we will review the power and the available gap in the false ceiling with you.
What does PLA-SM140EA + PUZ-SM140YKA include?
1 × PLA-SM140EA (indoor unit); 1 × PUZ-SM140YKA (outdoor unit); 1 × Model to be confirmed (remote control). The previous composition identifies the units and controls of this offer. The installation is contracted separately.
What measurements should I check before booking the equipment?
Indoor Unit – Dimensions width x height x depth (Panel): 298 x 840 x 840 (40 x 950 x 950) mm. Outdoor Unit – Dimensions width x height x depth: 981 x 1,050 x 330 (+40) mm. These are the measurements of the indicated components, not the minimum installation space. Also allow for the clearances, connections, and maintenance access required by the manual.
What efficiency does this combination have and what can I compare?
SEER of the set · catalog June 2025: 5.5. SCOP of the set · average climate: 3.9. Compare the same magnitude, combination, and test climate. This data does not certify the consumption of your home nor the performance of another combination.
Is Wi-Fi included or is an accessory required?
Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.
What command does the equipment receive?
Remote control included. A specific remote control model is not assigned without confirmation in the supply.
Are the decibels in the technical sheet the noise I will hear at home?
Indoor Unit – Sound power: 65 dB(A). Outdoor Unit – Sound power: 73 dB(A). Maintain the indicated speed and mode when comparing. Pressure and sound power are different magnitudes; the perceived noise also depends on the room and the installation.
When does it make sense for a restaurant or an exhibition hall?
When that open area requires about 13.4 kW of cooling according to the calculation and has three-phase power supply. In a restaurant, the capacity and the fresh air influence; in an exhibition, the spotlights and the glazed surfaces. These data help to decide whether a cassette is sufficient or if it is better to distribute several units.
Why choose the 140 YKA instead of the 125 YKA?
Due to a proven capacity requirement: the 140 delivers 13.4 kW in cooling and 15 kW in heating, compared to 12.1 and 13.5 kW of the 125. Both have an internal body of 298 × 840 × 840 mm and three-phase power supply; do not choose based on appearance, but on calculation and air distribution.
What power supply does this version require?
The PLA-SM140EA + PUZ-SM140YKA pair requires 400 V three-phase. The official sheet indicates 400/3 – 12.2 V/F – A. Before ordering it, your installer must check the line, protections, and available power supply; the single-phase VKA variant is not electrically equivalent.
Why doesn't the energy label appear on small splits?
This pair has a nominal power of 13.4 kW in cold and exceeds the 12 kW limit of that label. In the technical sheet, you can check the indices and consumption from the Spanish catalog of June 2025. This edition is identified because the previous web table presents the seasonal data in a different format; we do not convert percentages by assumption nor do we draw a class of the scale for equipment up to 12 kW.
Can it air condition several closed rooms?
This 140 has a single internal cassette. It distributes air in the area where it is installed, but it does not allow for independent temperature selection for rooms separated by doors. If your premises have offices or private rooms, check with the installer if you need more units or a zoned distribution.
What should I consider for drainage and winter use?
PLA-SM140EA includes a drainage pump, but the installation requires a well-executed and tested drain. If you want to use it in cold conditions when the outside temperature drops below −5 °C, the documentation requires an optional wind protection guide; the published range does not mean that this accessory is included.
Services for your air conditioning
Mitsubishi Electric cassette air conditioning PLA-SM140EA + PUZ-SM140YKA
