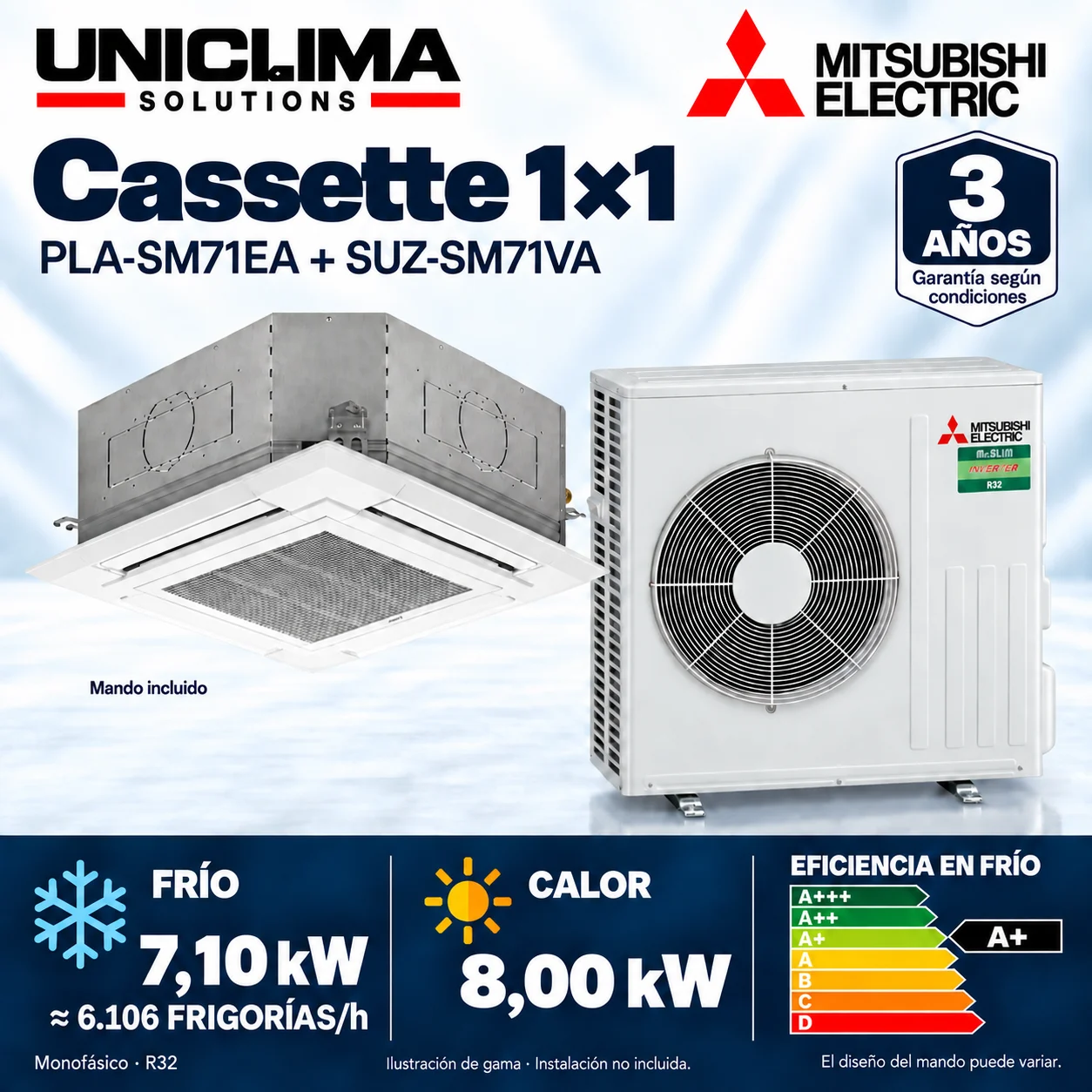

Mitsubishi Electric cassette air conditioning PLA-SM71EA + SUZ-SM71VA
To air condition an open area from the ceiling: Mitsubishi Electric cassette PLA-SM71EA + SUZ-SM71VA with 6,106 frigories/h (7.1 kW) nominal cooling capacity.
- Pipe
- 3/8″ / 5/8″
- Connectivity
- See specification
- kcal/h
- ≈ 6.106
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: Mitsubishi Electric cassette PLA-SM71EA + SUZ-SM71VA with a nominal cooling capacity of 6,106 frigories/h (7.1 kW). It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace several splits for closed rooms. Check height, installation space, and air distribution. Installation not included.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
What is included in PLA-SM71EA + SUZ-SM71VA?
The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.
| Model | Component | Supply scope |
|---|---|---|
| PLA-SM71EA | Indoor unit Four-way cassette for false ceiling. | 1 included |
| SUZ-SM71VA | Outdoor unit Outdoor unit of the indicated pair, not interchangeable with a similar reference. | 1 included |
| Model to be confirmed | Control board Remote control included. A specific remote control model is not assigned without confirmation in the supply. | 1 included |
Installation and commissioning Refrigerant pipes, wiring, drainage, supports, and false ceiling work Wi-Fi adapter, 3D i-see sensor, and EasyClean panel Wind guide for cooling below −5 °C
The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.
What to check before installing PLA-SM71EA + SUZ-SM71VA
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the references PLA-SM71EA + SUZ-SM71VA and the revision of their labels before replacing units.
- Evaluate the thermal demand, distribution, insulation, and location before selecting cassette 1×1.
- Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
- The budget must separate equipment, materials, assembly, and commissioning.
Technical sheet: PLA-SM71EA + SUZ-SM71VA
- Brand
- Mitsubishi Electric
- Model and composition
- PLA-SM71EA + SUZ-SM71VA
- Supply scope
- 1 × PLA-SM71EA (indoor unit); 1 × SUZ-SM71VA (outdoor unit); 1 × Model to be confirmed (remote control)
- Installation
- Not included
- Availability and transport
- New equipment available. VAT and shipping included to mainland Spain · delivery in 24–48 h. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 258 x 840 x 840 (40 x 950 x 950) mm height × width × depth · panel (in parentheses)
- Exterior
- 880 x 840 x 330 mm height × width × depth
- Pipe
- 3/8″ · 5/8″ liquid · gas
- Maximum range
- 30 m
- Maximum slope
- 30 m
- Precharge up to
- 7 m
- Factory charge · R32
- 1.45 kg
- Additional load
- According to length: +120 g at 10 m
Load calculation and documentation
Outdoor unit: SUZ-SM71VA. Check PCB and inspection.
Manufacturer's table: +120 g at 10 m; +320 g at 15 m; +520 g at 20 m; +920 g at 30 m. For other distances, please confirm the adjustment in the supplied maintenance manual.
L is the actual one-way distance between interior and exterior, not the sum of the liquid and gas pipes. Outer diameters, in liquid / gas order. Refrigerant piping; not cable section or inner diameter.
Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Reference of the assembly in Mitsubishi
- MGPLZ-71VEA
Identity of the combination · Reference that identifies this pair in the Mitsubishi catalog. - Exact reference of the indoor unit
- PLA-SM71EA
Identity of the combination - Exact reference of the outdoor unit
- SUZ-SM71VA
Identity of the combination - Catalog series
- PRO · Mr. Slim · Four-way cassette
Identity of the combination - Decorative casing/panel
- Included with the set
Identity of the combination · Included. The series catalog identifies the standard panel PLP-6EALM2; i-see and EasyClean are not advertised as included. - Capacity – Nominal Cooling (Min-Max)
- 7.1 (2.2-8.1) kW
Power and consumption - Capacity – Nominal Heat (Min-Max)
- 8.0 (2.0-10.2) kW
Power and consumption - Nominal Consumption – Cooling
- 1.97 kW
Power and consumption - Nominal Consumption – Heat
- 2.28 kW
Power and consumption - Energy coefficient – EER / COP
- 3,60 / 3,50
Power and consumption - Annual electricity consumption – Cooling
- 410 kWh/year
Power and consumption · Normalized reference value, not a prediction of the local consumption. - Energy efficiency ratio – SEER (Label)
- 6.0 (A+)
Power and consumption - Energy efficiency coefficient – SCOP (Label)*
- 3.9 (A)
Power and consumption · Average climate zone. - Cold design load (Pdesign)
- 7.1 kW
Power and consumption - Design load in heat at −10 °C (Pdesign)
- 5.8 kW
Power and consumption · It should not be confused with the nominal capacity in heat measured under different conditions. - Indoor Unit – Air flow (B/M2/M1/A)
- 14 / 17 / 19 / 21 m³/min
Dimensions, weight, and noise - Indoor Unit – Sound level (B/M2/M1/A)
- 28 / 30 / 32 / 34 dB(A)
Dimensions, weight, and noise - Indoor Unit – Sound power
- 56 dB(A)
Dimensions, weight, and noise - Indoor Unit – Dimensions al x an x fon (Panel)
- 258 x 840 x 840 (40 x 950 x 950) mm
Dimensions, weight, and noise · The values in parentheses correspond to the standard panel of the catalog. They are measurements of the equipment, not of the opening or the installation clearances. - Indoor Unit – Weight (Panel)
- 21 (5) kg
Dimensions, weight, and noise · The values in parentheses correspond to the standard panel of the catalog. They are measurements of the equipment, not of the opening or the installation clearances. - Outdoor Unit – Air flow
- 50.1 m³/min
Dimensions, weight, and noise - Outdoor Unit – Sound level
- 49 dB(A)
Dimensions, weight, and noise - Outdoor Unit – Sound power
- 66 dB(A)
Dimensions, weight, and noise - Outdoor Unit – Dimensions l x w x h
- 880 x 840 x 330 mm
Dimensions, weight, and noise - Outdoor Unit – Weight
- 55 kg
Dimensions, weight, and noise - Outdoor Unit – Refrigerant R32
- 1.45 / 675 / 0.98 Pre-charge kg / PCA / TCO2 eq
Installation data - Voltage/Phases – Maximum Current
- 230/1 – 15.1 V/F – A
Installation data - Diameter of liquid/gas pipes
- 9.52 / 15.88 mm
Installation data - Max. drain/total pipe length.
- 30 / 30 m
Installation data - Operating range – Outdoor temperature for cooling
- -15 ~ +46 °C
Installation data · Below −5 °C in cooling mode, Mitsubishi requires an optional wind protection guide for these outdoor units SUZ and PUZ. It is not advertised as included. - Operating range – Outdoor temperature for heating
- -10 ~ +24 °C
Installation data - Drain pump
- Incorporated in the indoor unit
Installation data · The drainage must be carried out and checked during installation. - Nominal pipe length of the test
- 5 m
Installation data · Catalog reference condition; it is not an included installation length. - Maximum number of curves
- 15
Installation data · Catalog limit. The installer must also review the manual for the exact combination. - Dehumidification
- It does not work with the room below 13 °C.
Installation data · Condition indicated in the commercial catalog. - Remote control included
- Remote control included. A specific remote control model is not assigned without confirmation in the supply.
Remote control and connectivity - Wi-Fi
- Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.
Remote control and connectivity
Before purchasing
- The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.
Documentation
Questions about PLA-SM71EA + SUZ-SM71VA
How many frigories does this cassette have?
The Mitsubishi Electric PLA-SM71EA + SUZ-SM71VA set has a nominal cooling capacity of 6,106 frigories/h (7.1 kW). The power refers to the complete set, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of PLA-SM71EA and proper air distribution. It offers 7.1 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that reason alone just because it has 6,106 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Look at the square meters of the space, the large windows, and the hours of sunlight. If the premises or living room overheats and more capacity is needed, compare the Mitsubishi Electric PLA-SM100EA + PUZ-SM100VKAIt goes from about 6,106 to 8,170 frigories/h. Before deciding, we will review the power and the available space in the false ceiling with you.
What does PLA-SM71EA + SUZ-SM71VA include?
1 × PLA-SM71EA (indoor unit); 1 × SUZ-SM71VA (outdoor unit); 1 × Model to be confirmed (remote control). The previous composition identifies the units and controls of this offer. The installation is contracted separately.
What measurements should I check before booking the equipment?
Indoor Unit – Dimensions L x W x H (Panel): 258 x 840 x 840 (40 x 950 x 950) mm. Outdoor Unit – Dimensions L x W x H: 880 x 840 x 330 mm. These are the measurements of the indicated components, not the minimum installation space. Also allow for the clearances, connections, and maintenance access required by the manual.
What efficiency does this combination have and what can I compare?
Energy efficiency coefficient – SEER (Label): 6.0 (A+). Energy efficiency coefficient – SCOP (Label)*: 3.9 (A). Compare the same magnitude, combination, and test climate. These data do not certify the consumption of your home or the performance of another combination.
Is Wi-Fi included or is an accessory required?
Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.
What command does the equipment receive?
Remote control included. A specific remote control model is not assigned without confirmation in the supply.
Are the decibels in the technical sheet the noise I will hear at home?
Indoor Unit – Sound power: 56 dB(A). Outdoor Unit – Sound power: 66 dB(A). Maintain the indicated speed and mode when comparing. Pressure and sound power are different magnitudes; the perceived noise also depends on the room and the installation.
Does it fit for an office or a small commercial area?
It can be an option if you are looking to distribute air from the ceiling in an open area and the needs calculation fits with 7.1 kW. In an office, people and computers are important; in a store, so are the display windows and door openings. Share those details with us before deciding solely based on square meters.
What do I gain by moving from size 71 to 100?
The 100 goes from 7.1 to 9.5 kW nominal in cold, but its inner body is 40 mm taller and the exterior changes from SUZ to PUZ. If the 71 meets the needs of the premises, there is no need to increase the size for precaution: first compare the available space and the actual demand.
What power supply does this version require?
This pair PLA-SM71EA + SUZ-SM71VA requires 230 V single-phase. Mitsubishi indicates a maximum current of 15.1 A. The installer must check the line and the protections; not just any socket in the premises can be considered valid.
Can it air condition several closed rooms?
This 71 has a single indoor cassette. It distributes air in the area where it is installed, but it does not allow for independent temperature settings for rooms separated by doors. If your premises have offices or private rooms, check with the installer if you need more units or a zoned distribution.
What should I consider for drainage and winter use?
PLA-SM71EA includes a drainage pump, but the installation requires a well-executed and tested drain. If you want to use it in cold conditions when the outside temperature drops below −5 °C, the documentation requires an optional wind protection guide; the published range does not mean that this accessory is included.
