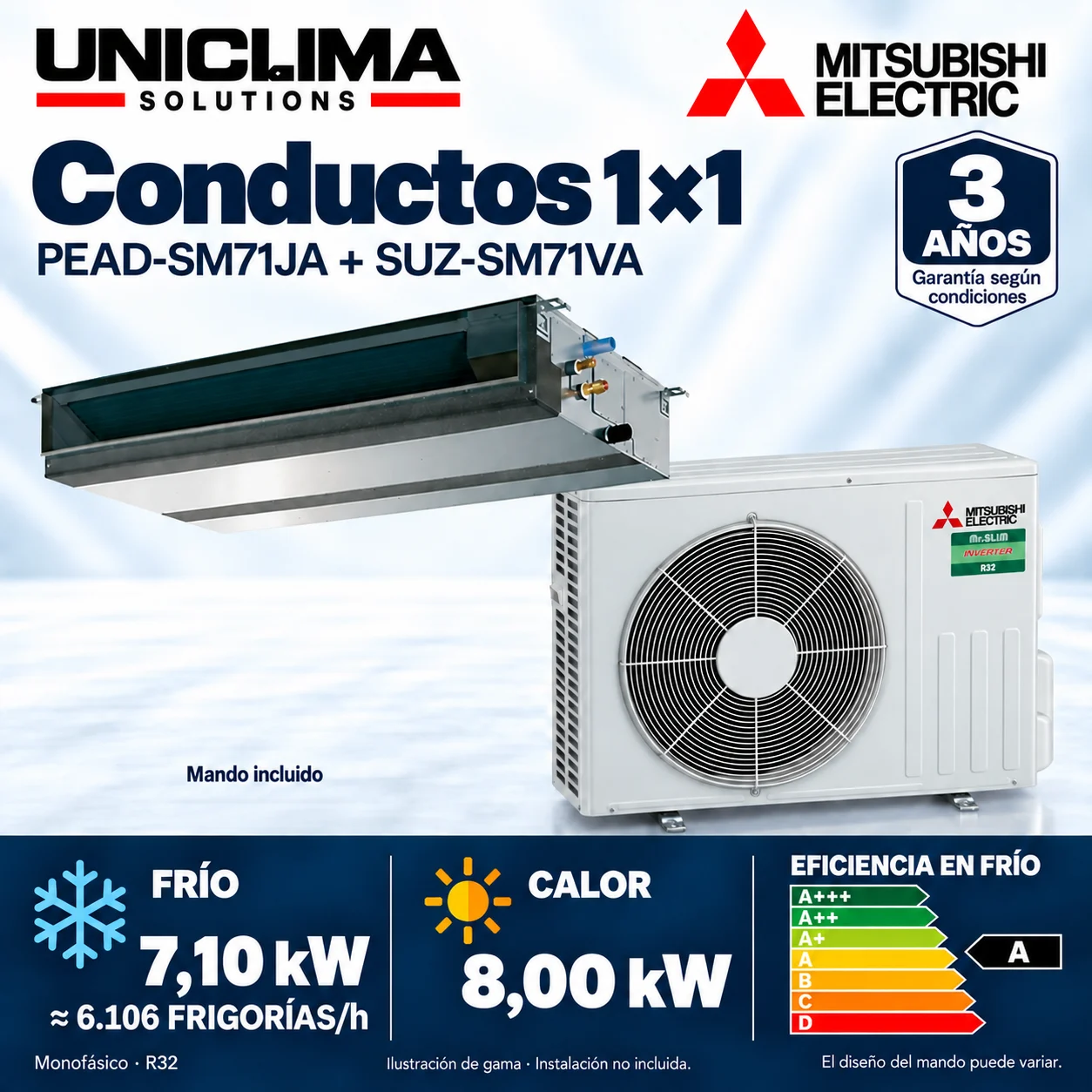

Mitsubishi Electric ducted air conditioning PEAD-SM71JA + SUZ-SM71VA

To distribute air through a duct system: 6,106 frigories/h (7.1 kW) nominal of the Mitsubishi Electric PEAD-SM71JA + SUZ-SM71VA unit.

Pipe: 3/8″ / 5/8″
Connectivity: See specification
kcal/h: ≈ 6.106
Refrigerant: R32

Description

To distribute air through a duct installation: 6,106 frigories/h (7.1 kW) nominal of the Mitsubishi Electric PEAD-SM71JA + SUZ-SM71VA unit. A concealed indoor unit feeds the grille network; the distribution between rooms depends on the duct design, not on having a split in each one. Installation and adaptation of the network aside.

The duct network and the position of the grilles must be adapted to the layout of the property. Having multiple grilles does not imply independent control by room: if you need this, a compatible zoning system must be studied.

Components and supply

What does PEAD-SM71JA + SUZ-SM71VA include?

The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.

Model	Component	Supply scope
PEAD-SM71JA	Indoor unit Ducted indoor unit	1 included
SUZ-SM71VA	Outdoor unit Outdoor unit of this 1×1 pair, single-phase power supply.	1 included
PAR-41	Control board PAR-41 remote included. The supplier's price list does not specify the suffix or finish for this reference.	1 included

Additional accessories not explicitly specified in the order Installation work and materials not explicitly budgeted

The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.

Guide

What to check before installing PEAD-SM71JA + SUZ-SM71VA

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Check the references PEAD-SM71JA + SUZ-SM71VA and review their labels before replacing units.
Evaluate the thermal demand, distribution, insulation, and location before selecting ducted air conditioning.
Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
The budget must separate equipment, materials, assembly, and commissioning.

Technical data

Technical sheet: PEAD-SM71JA + SUZ-SM71VA

Brand: Mitsubishi Electric
Model and composition: PEAD-SM71JA + SUZ-SM71VA
Supply scope: 1 × PEAD-SM71JA (indoor unit); 1 × SUZ-SM71VA (outdoor unit); 1 × PAR-41 (remote control)
Installation: Not included
Availability and transport: New equipment available. VAT and shipping included to mainland Spain · delivery in 24–48 h. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.

Installation at a glance

Pipe: 3/8″ · 5/8″ liquid · gas
Maximum range: 30 m
Maximum slope: 30 m
Precharge up to: 7 m
Factory charge · R32: 1.45 kg
Additional load: According to length: +120 g at 10 m

Load calculation and documentation

Outdoor unit: SUZ-SM71VA. Check PCB and inspection.

Manufacturer's table: +120 g at 10 m; +320 g at 15 m; +520 g at 20 m; +920 g at 30 m. For other distances, please confirm the adjustment in the supplied maintenance manual.

L is the actual one-way distance between interior and exterior, not the sum of the liquid and gas pipes. Outer diameters, in liquid / gas order. Refrigerant piping; not cable section or inner diameter.

Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.

Mitsubishi Electric · Mr Slim Quick Reference Guide 2019 · p. 2

Specifications and dimensions of the model

Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.

Nominal power in cold conditions: 7.1 kW
Couple and documented nominal ratings · Source: Mitsubishi Electric Spain · Technical specifications of PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1.
Nominal heat output: 8.0 kW
Couple and documented nominal ratings · Source: Mitsubishi Electric Spain · Technical specifications of PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1.
Power supply / phase: Single-phase
Couple and documented nominal ratings · Source: Mitsubishi Electric Spain · Technical specifications of PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1.
Refrigerant: R32
Couple and documented nominal ratings · Source: Mitsubishi Electric Spain · Technical specifications of PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1.
SEER of the set: 5,5
Seasonal performance of this pair · Source: Mitsubishi Electric Spain · Technical specifications Ducts PEAD, edition not indicated, consulted copy on September 7, 2026, PDF 1.
SCOP of the set · average climate: 3,8
Seasonal performance of this pair · Source: Mitsubishi Electric Spain · Technical specifications Ducts PEAD, edition not indicated, consulted copy on September 7, 2026, PDF 1.
Energy class in cold: A
Seasonal performance of this pair · Source: Mitsubishi Electric Spain · Technical specifications Ducts PEAD, edition not indicated, consulted copy on September 7, 2026, PDF 1.
Energy class in heating · average climate: A
Seasonal performance of this pair · Source: Mitsubishi Electric Spain · Technical specifications Ducts PEAD, edition not indicated, consulted copy on September 7, 2026, PDF 1.
Indoor unit · height × width × depth: 250 × 1,100 × 732 mm
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric Spain · Technical specifications PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1. Body dimensions, no mounting reserve; check protrusions, clearances and accessories in the plan.
Weight of the indoor unit: 33 kg
Units bodies, acoustics, and connectivity · Source: Mitsubishi Electric Spain · Technical specifications PEAD ducts, edition not indicated, document consulted on September 7, 2026, PDF 1.
Interior sound pressure in cold: 26 / 30 / 34 dB(A)
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric Spain · Technical specifications PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1. Values by fan speed; sound pressure, not sound power.
Outdoor unit · height × width × depth: 880 × 840 × 330 mm
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric Spain · Technical specifications PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1. Body dimensions, no mounting reserve; check protrusions, clearances and accessories in the plan.
Weight of the outdoor unit: 55 kg
Units bodies, acoustics, and connectivity · Source: Mitsubishi Electric Spain · Technical specifications PEAD ducts, edition not indicated, document consulted on September 7, 2026, PDF 1.
External sound pressure in cold conditions: 49 dB(A)
Units bodies, acoustics, and connectivity · Source: Mitsubishi Electric Spain · Technical specifications PEAD ducts, edition not indicated, copy consulted on September 7, 2026, PDF 1. Nominal value in cooling; not extrapolated to heating.
Nominal electrical power in cold conditions: 2.08 kW
Electric power and operation at different loads · Electricity consumed under nominal testing conditions; it is not a constant consumption nor a data in kWh/year.
Nominal electric power in heat: 2.21 kW
Electric power and operation at different loads · Electricity consumed under nominal conditions; it should not be confused with the thermal power delivered.
EER / nominal COP: 3,41 / 3,61
Electric power and operation at different loads · Efficiency ratios under nominal conditions; they are not SEER/SCOP and do not guarantee that performance at any temperature.
Cold capacity range: 2.2 to 8.1 kW
Electric power and operation at different loads · Minimum and maximum capacity published for this exact pair. It does not represent its electrical consumption.
Heating capacity range: 2 to 10.2 kW
Electric power and operation at different loads · Minimum and maximum capacity from the catalog; it is not a covered area nor a constant power under any external conditions.
Design heat load at -10 °C (Pdesign): 5.8 kW
Electric power and operation at different loads · Design load for heating at the indicated reference temperature. This is a value different from the nominal capacity in heat.
Airflow of the indoor unit: 17.5 / 21 / 25 m³/min
Airflow and available pressure · Values for low, medium, and high speed, in the order L/M/H from the manufacturer's table.
Selectable static pressure: 35 / 50 / 70 / 100 / 150 Pa
Airflow and available pressure · Settings published by Mitsubishi; they do not guarantee the same airflow with any length or duct pressure loss.
Air flow of the outdoor unit: 50.1 m³/min
Airflow and available pressure · Data from the outdoor unit, not ventilation or air renewal flow.
Supply voltage: 230 V
Electrical and refrigeration connections · This pair is single-phase. Check the actual power supply before installation.
Maximum intensity of the set: 16.8 A
Electrical and refrigeration connections · Value of the row Voltage/Phases - Maximum Current. This is not the rating of the circuit breaker: the line and protections must be sized for the installation.
Pipe diameters · liquid / gas: 9.52 / 15.88 mm
Electrical and refrigeration connections · Liquid/gas order from the catalog. Check materials, insulation, connections, and exact review in the installation manual.
Maximum pipe slope: 30 m
Electrical and refrigeration connections · Published vertical limit for the pair; also check the layout and restrictions in the manual.
Maximum total pipe length: 30 m
Electrical and refrigeration connections · Actual pipe run, not straight-line distance. These are not meters included in the purchase nor a confirmation that the pre-charge covers the entire run.
Factory refrigerant pre-charge: 1.45 kg of R32
Electrical and refrigeration connections · Factory quantity published by Mitsubishi. The additional load depends on the run and the manual of the outdoor unit; it is not calculated here by assumption.
Cold operation outdoor range: -15 to 46 °C
Installation and operating limits · For cooling with an outdoor environment below -5 °C, the catalog requires an optional wind protection guide. The range does not guarantee nominal power at all points.
Operating temperature range for heating: -10 to 24 °C
Installation and operating limits · Published outdoor operating temperatures; they do not equate to a guarantee of nominal capacity across the entire range.
Nominal pipe length of the test: 5 m
Installation and operating limits · Length used by the manufacturer to calculate capacity under nominal conditions; it is not pipe supplied with the assembly.
Maximum number of curves: 15
Installation and operating limits · Limit indicated in the catalog notes. It should be reviewed along with the length, the elevation difference, and the installation manual.
Dehumidification limit: It does not work below 13 °C in the room.
Installation and operating limits · Condition expressly stated by Mitsubishi in the notes of this series; do not confuse it with the outdoor operating range.
Drain pump: Incorporated
Installation and operating limits · Performance indicated on the page of this series. The drainage pipe, its execution, and the permissible height are reviewed during installation.
Condensate control: Incorporated
Installation and operating limits · The catalog indicates that it is incorporated in the units. It does not replace the wind protection required for certain uses in cold conditions.
Remote control included: PAR-41 remote included. The supplier's price list does not specify the suffix or finish for this reference.
Remote control and connectivity
Wi-Fi: Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.
Remote control and connectivity

Before purchasing

The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.

Documentation

Frequently asked questions

Questions about PEAD-SM71JA + SUZ-SM71VA

How many frigories does this ducted unit have?

The Mitsubishi Electric PEAD-SM71JA + SUZ-SM71VA unit declares 6,106 frigories/h (7.1 kW) nominal cooling capacity. This is the total capacity that must be distributed through the duct network; it does not correspond to each grille or room.

Can it cool the living room and the bedrooms?

It can be part of an installation that serves multiple rooms, as long as the total load and duct design match its 7.1 kW nominal capacity. It has a single indoor unit (PEAD-SM71JA), not a separate split in each room. Airflows, pressure losses, and air return for each room need to be checked.

What happens if some rooms get colder than others?

Before choosing a more powerful unit, it is advisable to check the air distribution through the grilles and ensure that the ducts reach each room properly. If the entire home requires more power, compare the Mitsubishi Electric PEAD-SM100JA + PUZ-SM100VKAIt goes from about 6,106 to 8,170 frigories/h. Tell us which rooms you want to cool; the installer will also need to check that the ducts can accommodate the chosen unit.

Can I replace my old unit with this one without making any changes?

It is not confirmed just by matching the cooling capacity. Before replacing it with Mitsubishi Electric PEAD-SM71JA + SUZ-SM71VA, check the dimensions and access of the false ceiling, power supply, refrigerant and acceptable pipes, drainage, flow rate, and available pressure. The technical sheet and a review of the installation determine what can be reused.

Are those frigories what it consumes in electricity?

No. 6.106 frigories/h (7.1 kW) describe cooling capacity, while the technical sheet states 2.08 kW of nominal electric power in cooling for this combination. Actual consumption varies with load, temperature, settings, and operating hours; that figure is not a fixed monthly bill.

What does PEAD-SM71JA + SUZ-SM71VA include?

1 × PEAD-SM71JA (indoor unit); 1 × SUZ-SM71VA (outdoor unit); 1 × PAR-41 (remote control). The previous composition identifies the units and controls of this offer. The installation is contracted separately.

What measurements should I check before booking the equipment?

Indoor unit · height × width × depth: 250 × 1,100 × 732 mm. Outdoor unit · height × width × depth: 880 × 840 × 330 mm. These are the dimensions of the indicated components, not the minimum installation space. Also allow for the clearances, connections, and maintenance access required by the manual.

What efficiency does this combination have and what can I compare?

SEER of the unit: 5.5. SCOP of the unit · average climate: 3.8. Energy class in cooling: A. Energy class in heating · average climate: A. Compare the same magnitude, combination, and test climate. This data does not certify the consumption of your home or the performance of another combination.

Is Wi-Fi included or is an accessory required?

Wi-Fi is not included in this offer. Mobile control requires a compatible accessory; its reference must be verified for the specific equipment.

What command does the equipment receive?

PAR-41 remote included. The supplier's price list does not specify the suffix or finish for this reference.

Are the decibels in the technical sheet the noise I will hear at home?

Indoor sound pressure in cold: 26 / 30 / 34 dB(A). Outdoor sound pressure in cold: 49 dB(A). Maintain the indicated speed and mode when comparing. Sound pressure and sound power are different magnitudes; the perceived noise also depends on the room and the installation.

What should I check if I want to make use of my ducts?

To install PEAD-SM71JA + SUZ-SM71VA, the technician must check the flow rate and condition of the network, the return grilles, the drainage, and the maintenance access. Just because the unit fits does not guarantee that the ducts will distribute its 7.1 kW of cooling properly. The price does not include adapting that network.

What is the difference between PEAD60 and PEAD71?

PEAD71 offers 7.1 kW nominal in cooling compared to 6.1 kW of PEAD60. In these pairs, the indoor units share dimensions of 250 × 1,100 × 732 mm; in addition to power, it is advisable to compare flow rate, noise, and planned network.

Is it a unit for seven rooms?

No: 71 is part of the reference, not the number of rooms. It is a set with an interior duct system; the areas served depend on the distribution of its 7.1 kW and the demand of the property.

Is the PEAD100 a direct substitute with higher power?

It should not be assumed. The published PEAD100 pair uses PUZ-SM100 and offers 9.5 kW in cooling, with an indoor unit 1,400 mm wide compared to 1,100 mm for this PEAD71. Capacity, exterior, and installation requirements differ.

Can I set a different temperature in each room?

The supply includes a control for the assembly, not a room zoning system. To regulate zones independently, compatible controls and distribution elements are needed, defined separately according to the duct network.
