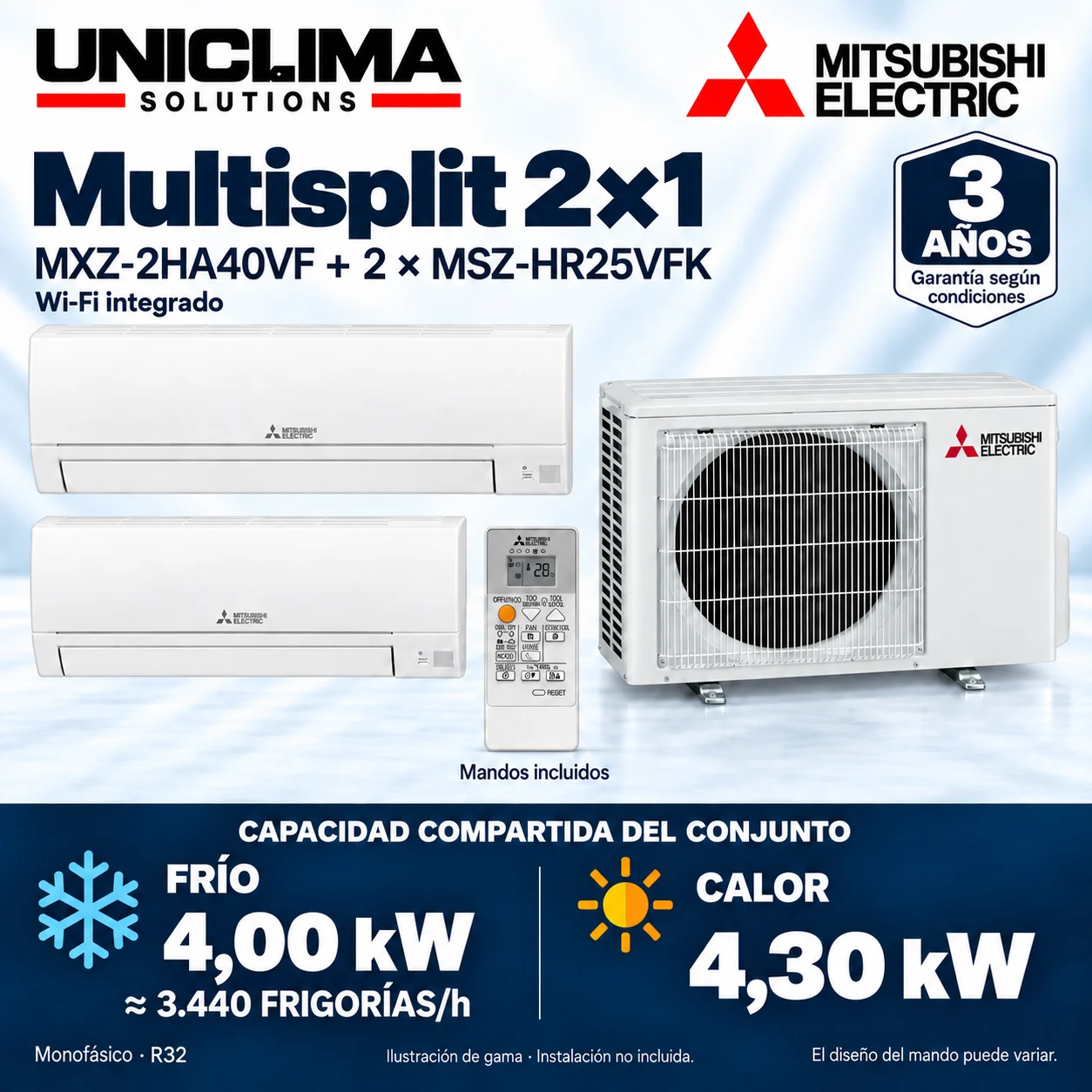

Multisplit air conditioning 2×1 Mitsubishi Electric MXZ-2HA40VF + 2 × MSZ-HR25VFK
To air condition 2 rooms with a single outdoor unit.
- Pipe
- 1/4″ / 3/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 3.440
- Refrigerant
- R32
Description
To climate control 2 rooms with a single outdoor unit. This 2x1 Mitsubishi Electric combines 2 × MSZ-HR25VFK and has a nominal cooling capacity of 3,440 frigories/h (4 kW) from the outdoor unit, shared when both are operating simultaneously. It includes indoor units of the same model: a comparable option for rooms with similar needs. Installation not included.
The capacity of the system is shared when multiple units operate simultaneously. Therefore, it is advisable to choose the combination based on the simultaneous use of the rooms, their size and orientation, as well as the layout of the pipes.
What does MXZ-2HA40VF + 2 × MSZ-HR25VFK include?
The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.
| Model | Component | Supply scope |
|---|---|---|
| MXZ-2HA40VF | Outdoor unit 2 connections · MXZ-HA range | 1 included |
| MSZ-HR25VFK | Wall-mounted indoor units 2 units included · class 25 | 2 included |
| RH18A | Control board Includes 2 remote controls, one for each indoor unit: 2 × RH18A. | 2 included |
Installation and commissioning Refrigerant piping, insulation, wiring, and drainage Supports, ducting, condensate pump, or other installation accessories
The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.
What to check before installing MXZ-2HA40VF + 2 × MSZ-HR25VFK
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the references MXZ-2HA40VF + 2 × MSZ-HR25VFK and review their labels before replacing units.
- Evaluate the thermal demand, distribution, insulation, and location before selecting a 2×1 multisplit.
- Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
- The budget must separate equipment, materials, assembly, and commissioning.
Technical sheet: MXZ-2HA40VF + 2 × MSZ-HR25VFK
- Brand
- Mitsubishi Electric
- Model and composition
- MXZ-2HA40VF + 2 × MSZ-HR25VFK
- Supply scope
- 1 × MXZ-2HA40VF (outdoor unit); 2 × MSZ-HR25VFK (wall-mounted indoor units); 2 × RH18A (remote control)
- Installation
- Not included
- Availability and transport
- New equipment available. VAT and shipping included to mainland Spain · delivery in 24–48 h. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Interior
- 838 × 280 × 228 mm width × height × depth
- External connections
- 1/4″ · 3/8″ liquid · gas
- Maximum range
- 30 m total
- Maximum slope
- 15 m
- Precharge up to
- 30 m total
- Factory charge · R32
- 0.90 kg
- Additional load
- Without extra for length within the limit
- Maximum per branch
- 20 m
Load calculation and documentation
Outdoor unit: MXZ-2HA40VF. Check PCB and inspection.
0 g additional per length up to 30 m in the sum of branches; maximum 20 m per interior.
L is the sum of the outbound runs of all branches. Do not add the liquid and gas pipes separately. Connection diameters of the exterior, in liquid / gas order. Confirm the piping and adapters of each interior.
Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Outdoor unit
- MXZ-2HA40VF
Documented composition - Indoor units
- 2 × MSZ-HR25VFK
Documented composition - Configuration
- 2×1 · 2 interiors + 1 exterior
Documented composition - Nominal cold of the outdoor unit
- 4.0 kW
Capacity and supply · Official combination table 25 + 25; do not add 2.5 + 2.5 kW as the total power of the set. - Nominal heat of the outdoor unit
- 4.3 kW
Capacity and power supply - Power supply
- 230 V · single-phase · 50 Hz
Capacity and power supply - Refrigerant
- R32
Capacity and power supply - Weight of the exterior
- 37 kg
Capacity and power supply · Model MXZ-2HA40VF, according to manufacturer documentation. - Dimensions of each interior (width × height × depth)
- 838 × 280 × 228 mm
Interiors and controls · OBH822H manual. - Weight of each interior
- 8.5 kg
Interiors and controls · Manual OBH822H, column MSZ-HR25VF / MSZ-HR25VFK. - Mitsubishi Electric commercial code
- MXZ-HR2525E40VFK
Identification of the set - External reference of this offer
- MXZ-2HA40VF
Identification of the set · Revisions with a different suffix are not automatically considered equivalent. - Internal reference of this offer
- MSZ-HR25VFK
Identification of the set · VFK version with Wi-Fi, not HR25VF. - Maximum length on the inside
- 20 m
Refrigeration circuit and slopes · Actual length of each branch, not straight-line distance. The maximum sum of all branches must also be respected. - Maximum total length
- 30 m
Refrigerant circuit and slopes · Sum of branches of the compatible configuration. - Maximum exterior–interior height difference
- 15 m
Refrigerant circuit and slopes · The diagram allows for this slope with the outdoor unit either above or below. It does not add to the allowed slope between indoor units. - Maximum difference in height between interiors
- 10 m
Refrigerant circuit and elevations · According to the system diagram; confirm project limits. - Connections of the exterior · liquid / gas
- A/B: 6.35 / 9.52 mm
Refrigerant circuit and slopes · Diameters of the outdoor connections. The piping and adapters are also chosen according to the connected indoor unit; it is not assumed that all system connections have the same diameter. - Remote control included
- Includes 2 remote controls, one for each indoor unit: 2 × RH18A.
Remote control and connectivity - Wi-Fi
- Integrated Wi-Fi in each indoor unit, with control via MELCloud. No additional adapter purchase is required. The remote control operates via infrared; the Wi-Fi is built into the unit.
Remote control and connectivity
Before purchasing
- The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.
Documentation
Questions about MXZ-2HA40VF + 2 × MSZ-HR25VFK
How many frigories does this 2x1 air conditioning unit have?
It has a nominal capacity of 3,440 frigories/h (4 kW) for the outdoor unit. This does not mean 3,440 frigories for each room or the free sum of the capacities of the splits. The figure characterizes the outdoor unit; to determine what each room will receive, it is necessary to consult the table for this combination and the working conditions.
Is it suitable for two rooms with a single outdoor unit?
Yes: the set includes 2 × MSZ-HR25VFK and one outdoor unit. There are 2 indoor air conditioning points. To determine if it covers the specific rooms, it is necessary to check the load of each one and the simultaneous demand against the 4 kW nominal of the outdoor unit; counting rooms is not enough.
How do I choose the splits for each room?
This set includes splits of the same model. If one room heats up much more than the others, it is advisable to check if it needs a different split. Tell us the square meters of each room, where the sun hits the most, and which ones you will use at the same time. This way we can check if this combination fits with the rooms you want to air condition.
Can I add the cooling capacities of the splits to choose it?
No. In Mitsubishi Electric MXZ-2HA40VF + 2 × MSZ-HR25VFK, the reference for the published shared capacity is 3,440 frigories/h (4 kW) nominal from the outdoor unit. The class figure or the indoor model number does not directly correspond to delivered frigories. Without the distribution table for the combination, an independent figure per room is not guaranteed.
What does MXZ-2HA40VF + 2 × MSZ-HR25VFK include?
1 × MXZ-2HA40VF (outdoor unit); 2 × MSZ-HR25VFK (wall-mounted indoor units); 2 × RH18A (remote controls). The previous composition identifies the units and controls of this offer. The installation is contracted separately.
What measurements should I check before booking the equipment?
Dimensions of each interior (width × height × depth): 838 × 280 × 228 mm. These are the dimensions of the indicated components, not the minimum installation space. Also allow for the clearances, connections, and maintenance access required by the manual.
Is Wi-Fi included or is an accessory required?
Integrated Wi-Fi in each indoor unit, with control via MELCloud. No additional adapter purchase is required. The remote control operates via infrared; the Wi-Fi is built into the unit.
What command does the equipment receive?
Includes 2 remote controls, one for each indoor unit: 2 × RH18A.
Can I heat just one room?
You can operate each of the 2 indoor units of this HR 25+25 with its remote control, without having to keep all of them on. They share the outdoor unit MXZ-2HA40VF: they can work in cooling or heating mode, but cannot cool one room while another is heating. The available capacity depends on which units are operating.
What is the distance from the rooms where I can place the MXZ-2HA40VF?
For the exterior MXZ-2HA40VF of this set, the manual allows for up to 20 m of run for the interior and 30 m when adding all branches. The maximum height differences are 15 m between exterior and interior and 10 m between interiors. The actual length of the piping is measured, not the straight-line distance. The installer must check the diameters, adapters, bends, load, and equipment inspection: these limits are not installation meters included in the price.
