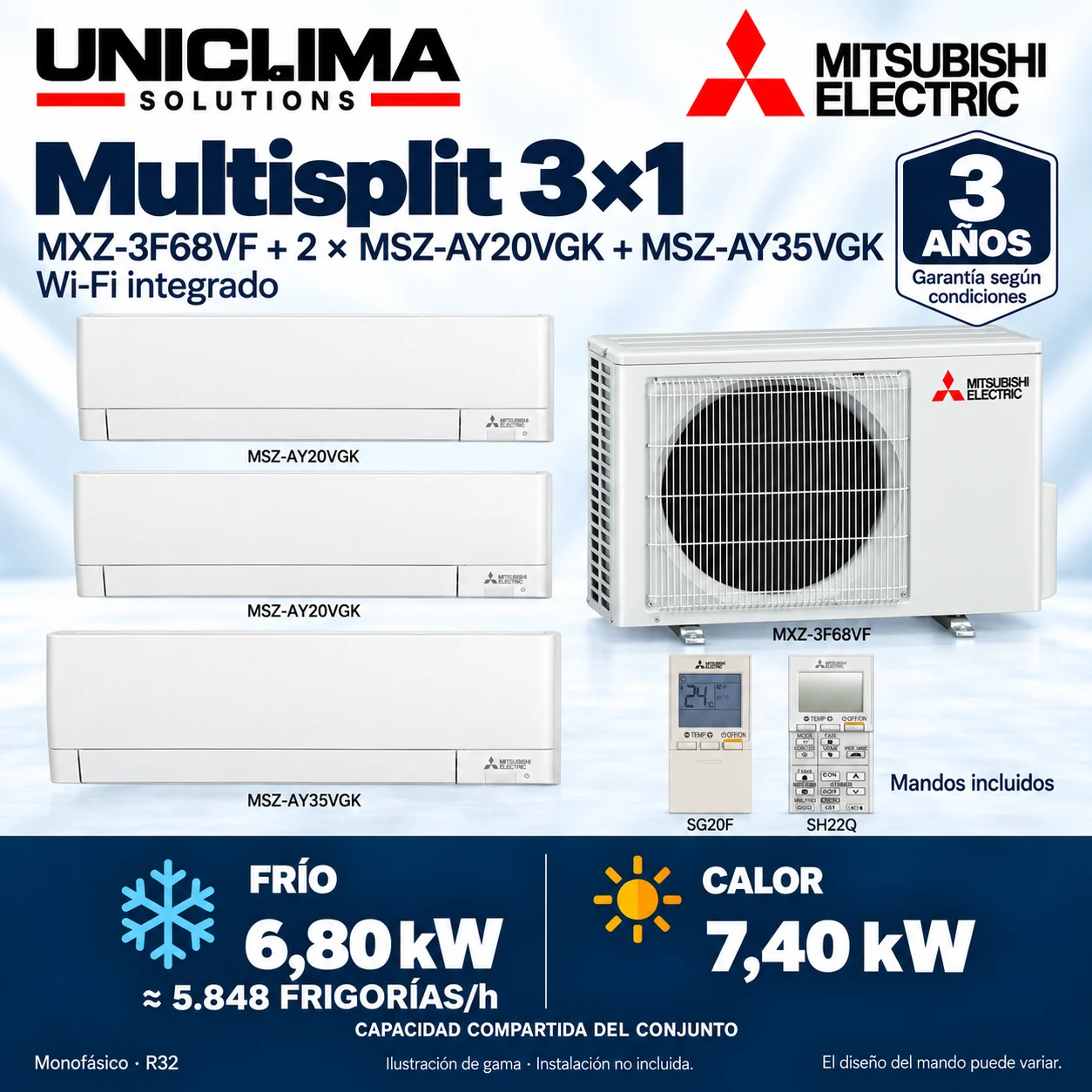

Multisplit air conditioning 3×1 Mitsubishi Electric MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK

To air condition 3 rooms with a single outdoor unit.

Pipe: 1/4″ / 3/8″
Wi-Fi: Yes, included.
kcal/h: ≈ 5.848
Refrigerant: R32

Description

To climate control 3 rooms with a single outdoor unit. This 3x1 Mitsubishi Electric combines 2 × MSZ-AY20VGK + 1 × MSZ-AY35VGK and has a nominal cooling capacity of 5,848 frigories/h (6.8 kW) for the entire system, shared when operating simultaneously. It includes different indoor units: it is advisable to assign them according to the heat that needs to be removed from each room. Installation not included.

The capacity of the system is shared when multiple units operate simultaneously. Therefore, it is advisable to choose the combination based on the simultaneous use of the rooms, their size and orientation, as well as the layout of the pipes.

Components and supply

What is included in MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK?

The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.

Model	Component	Supply scope
MXZ-3F68VF	Outdoor unit 3 connections · MXZ-F range	1 included
MSZ-AY20VGK	Wall-mounted indoor units 2 units included · class 20	2 included
MSZ-AY35VGK	Wall-mounted indoor unit 1 unit included · class 35	1 included
SH23E	Control board Include 3 remote controls, one for each indoor unit: 2 × SH23E for MSZ-AY20VGK; 1 × SH22Q for MSZ-AY35VGK.	2 included
SH22Q	Control board Include 3 remote controls, one for each indoor unit: 2 × SH23E for MSZ-AY20VGK; 1 × SH22Q for MSZ-AY35VGK.	1 included

Installation and commissioning Refrigerant piping, insulation, wiring, and drainage Supports, ducting, condensate pump, or other installation accessories

The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.

Guide

What to check before installing MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Check the references MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK and review their labels before replacing units.
Evaluate the thermal demand, distribution, insulation, and location before selecting a 3×1 multisplit.
Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
The budget must separate equipment, materials, assembly, and commissioning.

Technical data

Technical sheet: MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK

Brand: Mitsubishi Electric
Model and composition: MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK
Supply scope: 1 × MXZ-3F68VF (outdoor unit); 2 × MSZ-AY20VGK (wall-mounted indoor units); 1 × MSZ-AY35VGK (wall-mounted indoor unit); 2 × SH23E (remote control); 1 × SH22Q (remote control)
Installation: Not included
Availability and transport: New equipment available. VAT and shipping included to mainland Spain · delivery in 24–48 h. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.

Installation at a glance

External connections: 1/4″ · 3/8″ liquid · gas
Maximum range: 60 m total
Maximum slope: 15 m
Precharge up to: 60 m total
Factory charge · R32: 1.40 kg
Additional load: +500 g for connecting 3 indoor units
Maximum per branch: 25 m

Load calculation and documentation

Outdoor unit: MXZ-3F68VF. Check PCB and inspection.

For the exterior MXZ-3F68VF without suffix VF2/VF3/VF4 and these indoor units AY: 500 g additional for connecting 3 indoor units. For length: 0 g additional up to 60 m total, respecting 25 m per branch. Do not apply this rule to revisions VF2/VF3/VF4 or to other indoor units.

L is the sum of the outbound runs of all branches. Do not add the liquid and gas pipes separately. Connection diameters of the exterior, in liquid / gas order. Confirm the piping and adapters of each interior.

Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.

Specifications and dimensions of the model

Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.

Included exterior: MXZ-3F68VF
Composition of this 3×1
MSZ-AY20VGK interior: 2 units
Composition of this 3×1
MSZ-AY35VGK interior: 1 unit
Composition of this 3×1
Total of main equipment: 3 interiors + 1 exterior
Composition of this 3×1 · The offer includes 3 indoor units (2 × MSZ-AY20VGK + 1 × MSZ-AY35VGK) and one outdoor unit MXZ-3F68VF. That number describes the included units, not independent 1×1 systems.
Nominal cooling of the unit: 6.8 kW
Nominal capacity of the set · Value of the Nominal column of this combination. It is shared capacity, not the power available independently in each room.
Nominal heat of the assembly: 7.4 kW
Nominal capacity of the set · Capacity shared by the interiors, not multiplicable by the number of rooms.
Combination row: 20+20+35
Nominal capacity of the set · Spanish catalog June 2025, PDF 173 / printed 171, MXZ-3F68VF, row 20+20+35, column Nominal.
Distribution by room: It is not obtained by simple addition or division.
Nominal capacity of the system · It depends on the demand, conditions, and operation of the system.
Commercial composition: Documented in Mitsubishi Electric sources.
Scope of the documentation · The official Portuguese catalog documents the references AY20/25/35VGK with this exterior (PDF 38) and the row of this combination (PDF 39).
Commercial reference abroad: MXZ-3F68VF
Scope of documentation · Commercial reference MXZ-3F68VF. A specific physical inspection is confirmed in the order, delivery note, and PCB; it is not automatically replaced by another suffix.
Control of the interiors: Integrated Wi-Fi and infrared remote control
Scope of documentation · Each indoor unit has its own control; the system shares the cooling or heating mode.
Installation: Not included
Scope of documentation · Routes, drainage, supply, and location are checked before the installation budget.
Maximum length on the inside: 25 m
Refrigeration circuit and slopes · Actual length of each branch, not straight-line distance. The maximum sum of all branches must also be respected.
Maximum total length: 60 m
Refrigerant circuit and slopes · Sum of branches of the compatible configuration.
Maximum exterior–interior height difference: 15 m
Refrigerant circuit and slopes · The diagram allows for this slope with the outdoor unit either above or below. It does not add to the allowed slope between indoor units.
Maximum difference in height between interiors: 10 m
Refrigerant circuit and elevations · According to the system diagram; confirm project limits.
Connections of the exterior · liquid / gas: A/B/C: 6.35 / 9.52 mm
Refrigerant circuit and slopes · Diameters of the outdoor connections. The piping and adapters are also chosen according to the connected indoor unit; it is not assumed that all system connections have the same diameter.
MSZ-AY20VGK interior · height × width × depth: 250 × 760 × 199 mm
Measurements of the units in this set · 2 units included of this reference: measurements of each body separately, not summed dimensions. Only the body of the interior MSZ-AY20VGK; no mounting cavity or dimensions of the set. Official tables ES and FR match.
MSZ-AY35VGK interior · height × width × depth: 299 × 798 × 245 mm
Measurements of the units in this set · 1 unit included of this reference: measurements of each body separately, not summed dimensions. Only the body of the interior MSZ-AY35VGK; no mounting cavity or dimensions of the set. Official tables ES and FR match.
Exterior MXZ-3F68VF · height × width × depth: 710 × 840 × 330 mm
Dimensions of the units in this set · Outer body; no mounting space or protrusions to be reserved. Do not use drawing from another revision.
MXZ-3F68VF exterior · net weight: 57 kg
Dimensions of the units in this set · Exact base model; not VF2/VF5/VFH. Only outdoor unit, no total weight.
Remote control included: Include 3 remote controls, one for each indoor unit: 2 × SH23E for MSZ-AY20VGK; 1 × SH22Q for MSZ-AY35VGK.
Remote control and connectivity
Wi-Fi: Integrated Wi-Fi in each indoor unit, with control via MELCloud. No additional adapter purchase is required. The remote control operates via infrared; the Wi-Fi is built into the unit.
Remote control and connectivity

Before purchasing

The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.

Documentation

Frequently asked questions

Questions about MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK

How many frigories does this 3x1 air conditioning unit have?

It has a nominal capacity of 5,848 frigories/h (6.8 kW) for the entire unit. It is not 5,848 frigories for each room nor the free sum of the powers of the splits. The available capacity is distributed among the indoor units that are operating; it changes with demand and usage conditions.

Is it suitable for 3 rooms with a single outdoor unit?

Yes: the set includes 2 × MSZ-AY20VGK + 1 × MSZ-AY35VGK and one outdoor unit. There are 3 indoor climate control points. To determine if it covers the specific rooms, it is necessary to check the load of each one and the simultaneous demand against the 6.8 kW nominal of the set; counting rooms is not enough.

Does it fit if the living room needs to be cooler than the bedrooms?

This set combines splits of different models. We can help you see which one fits in each room according to its size and the heat it accumulates. Tell us the square meters of each room, where it gets the most sun, and which ones you will use at the same time. With that information, we can guide you on the combination, without assuming that the living room always needs more power.

Can I add the cooling capacities of the splits to choose it?

No. In Mitsubishi Electric MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK, the reference for the published shared capacity is 5,848 frigories/h (6.8 kW) nominal for the set. The class figure or the indoor model number does not directly correspond to delivered frigories. Without the distribution table for the combination, an independent figure per room is not guaranteed.

What does MXZ-3F68VF + 2 × MSZ-AY20VGK + MSZ-AY35VGK include?

1 × MXZ-3F68VF (outdoor unit); 2 × MSZ-AY20VGK (wall-mounted indoor units); 1 × MSZ-AY35VGK (wall-mounted indoor unit); 2 × SH23E (remote control); 1 × SH22Q (remote control). The above composition identifies the units and controls of this offer. The installation is contracted separately.

What measurements should I check before booking the equipment?

Interior MSZ-AY20VGK · height × width × depth: 250 × 760 × 199 mm. Interior MSZ-AY35VGK · height × width × depth: 299 × 798 × 245 mm. Exterior MXZ-3F68VF · height × width × depth: 710 × 840 × 330 mm. These are the dimensions of the indicated components, not the minimum installation space. Also allow for the clearances, connections, and maintenance access required by the manual.

Is Wi-Fi included or is an accessory required?

Integrated Wi-Fi in each indoor unit, with control via MELCloud. No additional adapter purchase is required. The remote control operates via infrared; the Wi-Fi is built into the unit.

What command does the equipment receive?

Include 3 remote controls, one for each indoor unit: 2 × SH23E for MSZ-AY20VGK; 1 × SH22Q for MSZ-AY35VGK.

What changes compared to 20+20+25?

An MSZ-AY25VGK changes to MSZ-AY35VGK; with this composition, it publishes 6.8 kW in cooling and 7.4 kW in heating. The remote control for AY25 and AY35 is SH22Q: it changes the indoor unit and the nominal value in cooling, not that remote control model.

Can I heat just one room?

You can operate each of the 3 indoor units of this AY 20+20+35 with its remote control, without having to keep all of them on. They share the outdoor unit MXZ-3F68VF: they can work in cooling or heating mode, but cannot cool one room while another is heating. The available capacity depends on which units are running.

What is the distance from the rooms where I can place the MXZ-3F68VF?

For the exterior MXZ-3F68VF of this set, the manual allows for up to 25 m of indoor piping and 60 m when summing all branches. The maximum height differences are 15 m between the exterior and interior and 10 m between interiors. The actual length of the piping is measured, not the straight-line distance. The installer must check the diameters, adapters, bends, load, and equipment inspection: these limits are not installation meters included in the price.
