Multisplit air conditioning 3×1 Mitsubishi Electric MXZ-3HA50VF + 3 × MSZ-HR25VFK

To air condition 3 rooms with a single outdoor unit.

Pipe: 1/4″ / 3/8″
Wi-Fi: Yes, included.
kcal/h: ≈ 4.300
Refrigerant: R32

Description

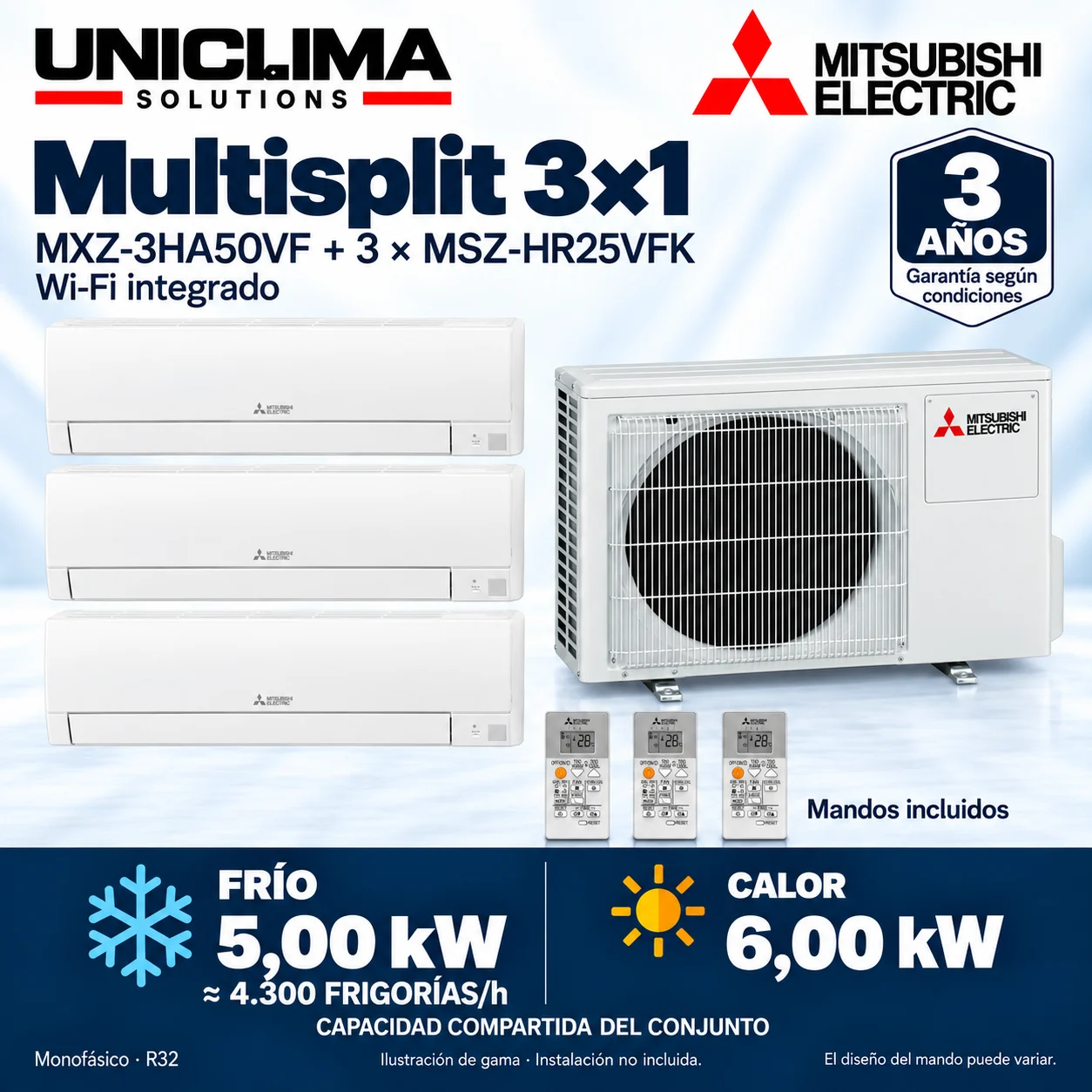

To climate control 3 rooms with a single outdoor unit. This 3x1 Mitsubishi Electric combines 3 × MSZ-HR25VFK and has a nominal cooling capacity of 4,300 frigories/h (5 kW) for the entire system, shared when operating simultaneously. It includes indoor units of the same model: an option to compare for rooms with similar needs. Installation not included.

The capacity of the system is shared when multiple units operate simultaneously. Therefore, it is advisable to choose the combination based on the simultaneous use of the rooms, their size and orientation, as well as the layout of the pipes.

Components and supply

What does MXZ-3HA50VF + 3 × MSZ-HR25VFK include?

The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.

Model	Component	Supply scope
MXZ-3HA50VF	Outdoor unit 3 connections · MXZ-HA range	1 included
MSZ-HR25VFK	Wall-mounted indoor units 3 units included · class 25	3 included
RH18A	Control board Include 3 remote controls, one for each indoor unit: 3 × RH18A.	3 included

Installation and commissioning Refrigerant piping, insulation, wiring, and drainage Supports, ducting, condensate pump, or other installation accessories

The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.

Guide

What to check before installing MXZ-3HA50VF + 3 × MSZ-HR25VFK

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Check the references MXZ-3HA50VF + 3 × MSZ-HR25VFK and review their labels before replacing units.
Evaluate the thermal demand, distribution, insulation, and location before selecting a 3×1 multisplit.
Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
The budget must separate equipment, materials, assembly, and commissioning.

Technical data

Technical sheet: MXZ-3HA50VF + 3 × MSZ-HR25VFK

Brand: Mitsubishi Electric
Model and composition: MXZ-3HA50VF + 3 × MSZ-HR25VFK
Supply scope: 1 × MXZ-3HA50VF (outdoor unit); 3 × MSZ-HR25VFK (wall-mounted indoor units); 3 × RH18A (remote control)
Installation: Not included
Availability and transport: New equipment available. VAT and shipping included to mainland Spain · delivery in 24–48 h. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.

Installation at a glance

External connections: 1/4″ · 3/8″ liquid · gas
Maximum range: 50 m total
Maximum slope: 15 m
Precharge up to: 40 m total
Factory charge · R32: 1.40 kg
Additional load: +20 g/m above 40 m total
Maximum per branch: 25 m

Load calculation and documentation

Outdoor unit: MXZ-3HA50VF. Check PCB and inspection.

Additional load: 20 × (Total length − 40) g, only if the sum of branches exceeds 40 m; do not exceed 50 m total or 25 m per interior.

L is the sum of the outbound runs of all branches. Do not add the liquid and gas pipes separately. Connection diameters of the exterior, in liquid / gas order. Confirm the piping and adapters of each interior.

Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.

Mitsubishi Electric · OBH828F · p. 32

Specifications and dimensions of the model

Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.

Included exterior: MXZ-3HA50VF
What does this 3×1 include?
MSZ-HR25VFK indoor unit: 3 units with integrated Wi-Fi
What does this 3×1 include?
Interior numbers of this offer: 3
What does this 3×1 include? The overall image and the composition correspond to this number of interiors.
Nominal cooling of the unit: 5.0 kW
Set capacity
Nominal heat of the assembly: 6.0 kW
Set capacity
Power supply: 230 V · single-phase · 50 Hz
Set capacity
Refrigerant: R32
Set capacity
Each interior (width × height × depth): 838 × 280 × 228 mm
Dimensions and weights of the equipment · Manual OBH822H, p. 5: design shared by HR25/35/42.
Weight of the interiors: MSZ-HR25VFK: 8.5 kg
Dimensions and weights of the equipment
Exterior (width × height × depth): 840 × 710 × 330 mm
Dimensions and weights of the equipment · Body dimensions; refer to the drawing for protrusions and mounting clearances.
Weight of the exterior: 57 kg
Dimensions and weights of the equipment · Base model MXZ-3HA50VF; does not automatically correspond to a VF2 revision.
Maximum length on the inside: 25 m
Refrigeration circuit and slopes · Actual length of each branch, not straight-line distance. The maximum sum of all branches must also be respected.
Maximum total length: 50 m
Refrigerant circuit and slopes · Sum of branches of the compatible configuration.
Maximum exterior–interior height difference: 15 m
Refrigerant circuit and slopes · The diagram allows for this slope with the outdoor unit either above or below. It does not add to the allowed slope between indoor units.
Maximum difference in height between interiors: 10 m
Refrigerant circuit and elevations · According to the system diagram; confirm project limits.
Connections of the exterior · liquid / gas: A/B/C: 6.35 / 9.52 mm
Refrigerant circuit and slopes · Diameters of the outdoor connections. The piping and adapters are also chosen according to the connected indoor unit; it is not assumed that all system connections have the same diameter.
Remote control included: Include 3 remote controls, one for each indoor unit: 3 × RH18A.
Remote control and connectivity
Wi-Fi: Integrated Wi-Fi in each indoor unit, with control via MELCloud. No additional adapter purchase is required. The remote control operates via infrared; the Wi-Fi is built into the unit.
Remote control and connectivity

Before purchasing

The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.

Documentation

Frequently asked questions

Questions about MXZ-3HA50VF + 3 × MSZ-HR25VFK

How many frigories does this 3x1 air conditioning unit have?

It has a nominal capacity of 4,300 frigories/h (5 kW) for the entire unit. It is not 4,300 frigories for each room nor the free sum of the powers of the splits. The available capacity is distributed among the indoor units that are operating; it changes with demand and usage conditions.

Is it suitable for 3 rooms with a single outdoor unit?

Yes: the set includes 3 × MSZ-HR25VFK and one outdoor unit. There are 3 indoor air conditioning points. To determine if it covers the specific rooms, it is necessary to check the load of each one and the simultaneous demand against the 5 kW nominal of the set; counting rooms is not enough.

Does it fit if the living room needs to be cooler than the bedrooms?

This set includes splits of the same model. If one room heats up much more than the others, it is advisable to check if it needs a different split. Tell us the square meters of each room, where the sun hits the most, and which ones you will use at the same time. With that information, we can guide you on the combination, without assuming that the living room always requires more power.

Can I add the cooling capacities of the splits to choose it?

No. In Mitsubishi Electric MXZ-3HA50VF + 3 × MSZ-HR25VFK, the reference for the published shared capacity is 4,300 frigories/h (5 kW) nominal for the set. The class figure or the indoor model number does not directly correspond to the delivered frigories. Without the distribution table for the combination, an independent figure per room is not guaranteed.

What does MXZ-3HA50VF + 3 × MSZ-HR25VFK include?

1 × MXZ-3HA50VF (outdoor unit); 3 × MSZ-HR25VFK (wall-mounted indoor units); 3 × RH18A (remote controls). The previous composition identifies the units and controls of this offer. The installation is contracted separately.

Is Wi-Fi included or is an accessory required?

Integrated Wi-Fi in each indoor unit, with control via MELCloud. No additional adapter purchase is required. The remote control operates via infrared; the Wi-Fi is built into the unit.

What command does the equipment receive?

Include 3 remote controls, one for each indoor unit: 3 × RH18A.

Can I heat just one room?

You can operate each of the 3 indoor units of this HR 25+25+25 with its remote control, without having to keep all of them on. They share the outdoor unit MXZ-3HA50VF: they can work in cooling or heating mode, but cannot cool one room while another is heating. The available capacity depends on which units are operating.

What is the distance from the rooms where I can place the MXZ-3HA50VF?

For the exterior MXZ-3HA50VF of this set, the manual allows for up to 25 m of run indoors and 50 m when adding all branches. The maximum height differences are 15 m between outdoor and indoor units and 10 m between indoor units. The actual length of the piping is measured, not the straight-line distance. The installer must check the diameters, adapters, bends, load, and equipment inspection: these limits are not installation meters included in the price.
