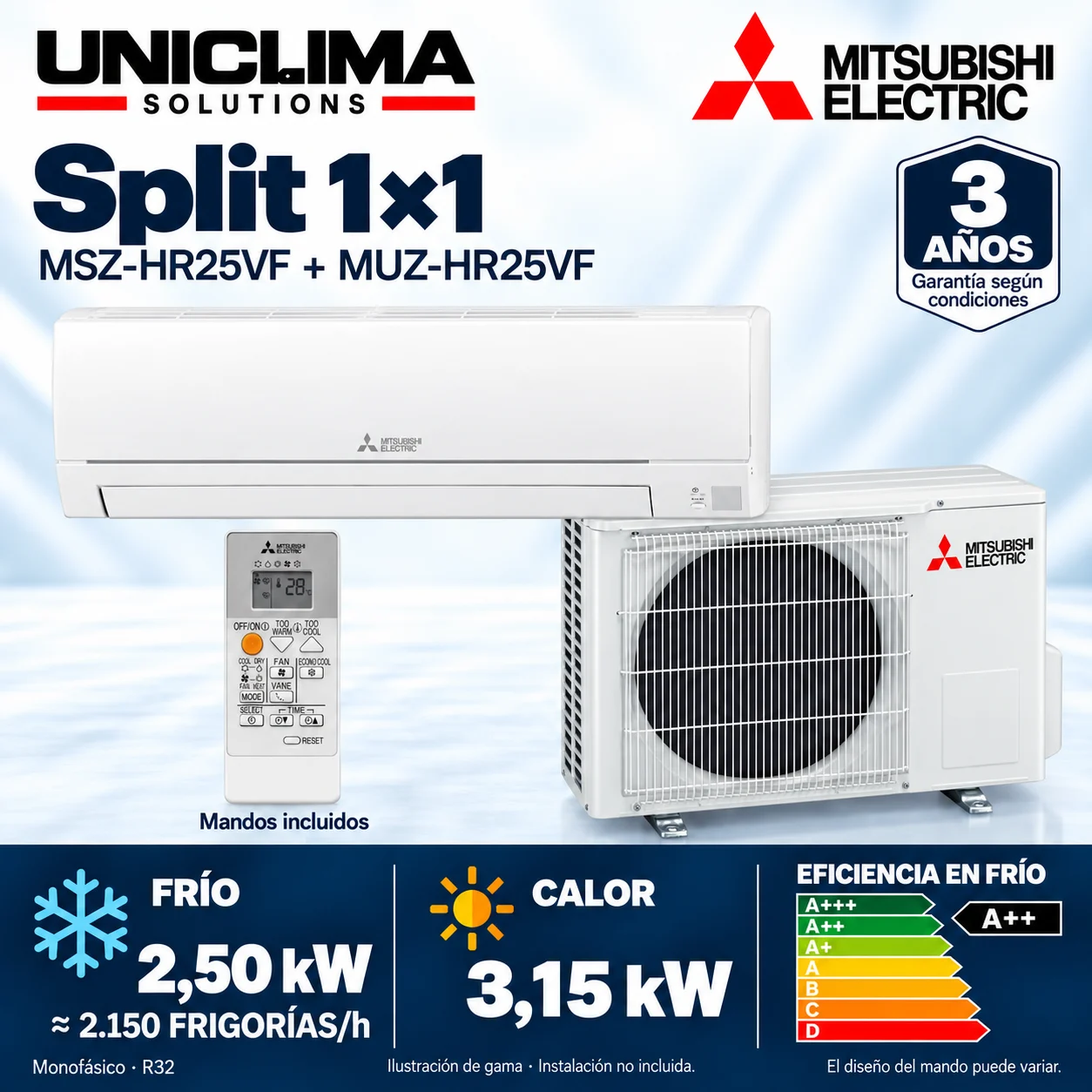

Mitsubishi Electric MSZ-HR25VF + MUZ-HR25VF split air conditioning
To air condition a room with a wall-mounted split: 2,150 frigories/h (2.5 kW) nominal in cooling.
- Pipe
- 1/4″ / 3/8″
- Connectivity
- See specification
- kcal/h
- ≈ 2.150
- Refrigerant
- R32
OUT OF STOCK
Description
To climate control a room with a wall-mounted split: 2,150 frigories/h (2.5 kW) nominal cooling capacity. Mitsubishi Electric MSZ-HR25VF + MUZ-HR25VF includes one indoor and one outdoor unit; it is not a system for distributing cold independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation sold separately.
The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.
What is included in MSZ-HR25VF + MUZ-HR25VF?
The composition identifies each reference and quantity. It does not replace the compatibility table for other combinations.
| Model | Component | Supply scope |
|---|---|---|
| MSZ-HR25VF | Indoor unit Wall-mounted indoor unit without integrated Wi-Fi | 1 included |
| MUZ-HR25VF | Outdoor unit Outdoor unit of this 1×1 pair, single-phase power supply. | 1 included |
| RH18A | Control board Includes 1 remote control: 1 × RH18A. | 1 included |
Additional accessories not explicitly specified in the order Installation work and materials not explicitly budgeted
The images maintain the reference or family scope indicated in their description; they do not certify stock availability or the serial number that will be supplied.
What to check before installing MSZ-HR25VF + MUZ-HR25VF
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the references MSZ-HR25VF + MUZ-HR25VF and review their labels before replacing units.
- Evaluate the thermal demand, distribution, insulation, and location before selecting a 1×1 wall-mounted split.
- Check dimensions, clearances, power supply, and travel with the specific documentation and a qualified installer.
- The budget must separate equipment, materials, assembly, and commissioning.
Technical sheet: MSZ-HR25VF + MUZ-HR25VF
- Brand
- Mitsubishi Electric
- Model and composition
- MSZ-HR25VF + MUZ-HR25VF
- Supply scope
- 1 × MSZ-HR25VF (indoor unit); 1 × MUZ-HR25VF (outdoor unit); 1 × RH18A (remote control)
- Installation
- Not included
- Availability and transport
- Out of stock. Reserve the notification by email to know when it will be available again. Installation not included. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Pipe
- 1/4″ · 3/8″ liquid · gas
- Maximum range
- 20 m
- Maximum slope
- 12 m
- Precharge up to
- 7 m
- Factory charge · R32
- 0.40 kg
- Additional load
- +20 g/m above 7 m
Load calculation and documentation
Outdoor unit: MUZ-HR25VF. Check PCB and service.
Additional load by length: 20 × (L − 7) g, only if L exceeds 7 m and does not exceed the maximum travel.
L is the actual one-way distance between interior and exterior, not the sum of the liquid and gas pipes. Outer diameters, in liquid / gas order. Refrigerant piping; not cable section or inner diameter.
Data to prepare the installation, not an instruction for recharging due to a fault. The charge must be verified and carried out by a qualified installer according to the PCB, the inspection, and the equipment manual; do not add refrigerant solely due to a lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal power in cold conditions
- 2.5 kW
Couple and documented nominal ratings · Source: Mitsubishi Electric · ErP Information M-172, couple HR25 VF/VFK + MUZ-HR25VF, PDF 4. - Refrigerant
- R32
Couple and documented nominal ratings · Source: Mitsubishi Electric Spain · Technical specifications MSZ-HR VFK, edition not indicated, copy consulted on September 7, 2026, PDF 1. - Nominal heat output
- 3.15 kW
Couple and documented nominal ratings · Source: Mitsubishi Electric Spain · General catalog, edition June 2025, PDF 153. - Power supply / phase
- 230 V · single-phase · 50 Hz
Couple and documented nominal ratings · Source: Mitsubishi Electric Spain · General catalog, edition June 2025, PDF 153. - SEER of the set
- 6,2
Seasonal efficiency of this pair · Source: Mitsubishi Electric · ErP Information M-172, pair HR25 VF/VFK + MUZ-HR25VF, PDF 4. - Normalized annual consumption in cold
- 141 kWh/year
Seasonal performance of this pair · Source: Mitsubishi Electric · ErP Information M-172, pair HR25 VF/VFK + MUZ-HR25VF, PDF 4. Normalized test data of the pair; does not predict the bill or the actual consumption of the home. - Normalized annual consumption in heat · average climate
- 614 kWh/year
Seasonal performance of this pair · Source: Mitsubishi Electric · ErP Information M-172, pair HR25 VF/VFK + MUZ-HR25VF, PDF 4. Normalized test data of the pair; does not predict the bill or the actual consumption of the home. - SCOP of the set · average climate
- 4,3
Seasonal performance of this pair · Source: Mitsubishi Electric Spain · General catalog, edition June 2025, PDF 153; Mitsubishi Electric · ErP Information M-172, pair HR25 VF/VFK + MUZ-HR25VF, PDF 4. - Energy class in cold
- A++
Seasonal performance of this pair · Source: Mitsubishi Electric Spain · General catalog, June 2025 edition, PDF 153. - Energy class in heating · average climate
- A+
Seasonal performance of this pair · Source: Mitsubishi Electric Spain · General catalog, June 2025 edition, PDF 153. - Indoor unit · height × width × depth
- 280 × 838 × 228 mm
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric · Service manual OBH822H, indoor units MSZ-HR VF/VFK, PDF 5. Body dimensions, no mounting reserve; check protrusions, clearances and accessories in the plan. - Weight of the indoor unit
- 8.5 kg
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric · Service manual OBH822H, indoor MSZ-HR VF/VFK, PDF 5. - Interior sound pressure in cold
- 21 / 30 / 37 / 43 dB(A)
Units bodies, acoustics, and connectivity · Source: Mitsubishi Electric · Service manual OBH822H, indoor units MSZ-HR VF/VFK, PDF 5. Values by fan speed; sound pressure, not sound power. - Outdoor unit · height × width × depth
- 538 × 699 × 249 mm
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric Spain · Technical specifications MSZ-HR VFK, edition not indicated, copy consulted on September 7, 2026, PDF 1. Body dimensions, no mounting reserve; check protrusions, clearances and accessories in the plan. - Weight of the outdoor unit
- 23 kg
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric Spain · Technical specifications MSZ-HR VFK, edition not indicated, copy consulted on September 7, 2026, PDF 1. - External sound pressure in cold conditions
- 50 dB(A)
Units bodies, acoustics and connectivity · Source: Mitsubishi Electric Spain · Technical specifications MSZ-HR VFK, edition not indicated, copy consulted on September 7, 2026, PDF 1. Nominal value in cooling; not extrapolated to heating. - Indoor air flow in cold · low / medium / high / super high
- 216 / 324 / 432 / 582 m³/h
Ventilation and acoustics of the indoor unit · Sound flow/pressure at indoor speeds, does not include acoustic sum or performance of the multisplit. OBH822H: ISO 5151; indoor cooling 27 °C BS/19 °C BH and outdoor 35 °C BS; indoor heating 20 °C BS and outdoor 7 °C BS/6 °C BH. - Indoor air flow in heating · low / medium / high / super high
- 198 / 324 / 444 / 606 m³/h
Ventilation and acoustics of the indoor unit · Sound flow/pressure at indoor speeds, does not include acoustic sum or performance of the multisplit. OBH822H: ISO 5151; indoor cooling 27 °C BS/19 °C BH and outdoor 35 °C BS; indoor heating 20 °C BS and outdoor 7 °C BS/6 °C BH. - Interior sound pressure in heating · low / medium / high / super high
- 21 / 30 / 37 / 43 dB(A)
Ventilation and acoustics of the indoor unit · Sound flow/pressure at indoor speeds, does not include acoustic sum or performance of the multisplit. OBH822H: ISO 5151; indoor cooling 27 °C BS/19 °C BH and outdoor 35 °C BS; indoor heating 20 °C BS and outdoor 7 °C BS/6 °C BH. - Remote control included
- Includes 1 remote control: 1 × RH18A.
Remote control and connectivity - Wi-Fi
- No integrated Wi-Fi. To control the unit with a mobile device, a compatible Wi-Fi interface is required, which is not included in this offer. The infrared remote control is included.
Remote control and connectivity
Before purchasing
- The unit, condition, and source of each value from the original catalog are preserved. The indicated editions and revisions define their scope; missing figures are not completed by analogy. Uniclima's commercial conditions are validated separately.
Documentation
Questions about MSZ-HR25VF + MUZ-HR25VF
How many frigories does it have and how many rooms is it suitable for?
This unit has a nominal cooling capacity of 2,150 frigories/h (2.5 kW) and a single indoor unit (MSZ-HR25VF). It is designed for a room or an open space that has been sized as such. It is not equivalent to a 2x1 for two closed rooms.
Is it an option if I am looking for an air conditioning unit of 2,000 frigories?
The exact figure for this combination is approximately 2,150 frigories/h nominal (2.5 kW), above 2,000. If the calculation for your room requires at least 2,000 frigories/h, also compare the capacity at the expected outdoor temperature and the margin indicated by the installer.
Is it suitable for a bedroom with a lot of sunlight?
It can be useful, but it's important to know how much your bedroom heats up, especially if it gets afternoon sun or is under the roof. This unit offers about 2,150 frigories/h. Tell us the square meters and if the ceiling is insulated: we can help you choose the power and check the noise level of the split for sleeping.
How do I know if it has enough power for my living room?
To choose the power, you need to consider the size of the living room, how much sunlight it receives, and the insulation. This unit has about 2,150 frigorías/h; before increasing the power, it's advisable to check if it's insufficient for your living room. Tell us the square meters and how much sunlight it receives, and we will help you choose.
What noise will I have to compare to use it at night?
The technical sheet of MSZ-HR25VF states 21 / 30 / 37 / 43 dB(A) of indoor sound pressure in cooling mode. Compare the speed and testing conditions: the lowest value does not describe the noise at full power nor guarantees that level measured at your bed. Do not confuse it with sound power.
What does MSZ-HR25VF + MUZ-HR25VF include?
1 × MSZ-HR25VF (indoor unit); 1 × MUZ-HR25VF (outdoor unit); 1 × RH18A (remote control). The previous composition identifies the units and controls of this offer. The installation is contracted separately.
What measurements should I check before booking the equipment?
Indoor unit · height × width × depth: 280 × 838 × 228 mm. Outdoor unit · height × width × depth: 538 × 699 × 249 mm. These are the dimensions of the indicated components, not the minimum installation space. Also allow for the clearances, connections, and maintenance access required by the manual.
What efficiency does this combination have and what can I compare?
SEER of the set: 6.2. SCOP of the set · average climate: 4.3. Energy class in cooling: A++. Energy class in heating · average climate: A+. Compare the same magnitude, combination, and test climate. These data do not certify the consumption of your home or the performance of another combination.
Is Wi-Fi included or is an accessory required?
No integrated Wi-Fi. To control the unit with a mobile device, a compatible Wi-Fi interface is required, which is not included in this offer. The infrared remote control is included.
What command does the equipment receive?
Includes 1 remote control: 1 × RH18A.
Are the decibels in the technical sheet the noise I will hear at home?
Indoor sound pressure in cold: 21 / 30 / 37 / 43 dB(A). Outdoor sound pressure in cold: 50 dB(A). Indoor sound pressure in heat · low / medium / high / super high: 21 / 30 / 37 / 43 dB(A). Maintain the indicated speed and mode when comparing. Sound pressure and sound power are different magnitudes; perceived noise also depends on the room and the installation.
Why choose HR25VF if HR25VFK also exists?
The HR25VF can fit if you are going to use the remote control and do not need mobile control. The HR25VFK incorporates Wi-Fi; both units have a nominal cooling capacity of 2.5 kW with the outdoor MUZ-HR25VF. Connectivity does differentiate these variants.
Do I need the Internet to use it?
Not to be controlled with the included infrared remote. The Wi-Fi is not part of the supply for this version; if you want mobile control, it requires a separate compatible interface or to choose the HR25VFK variant.
Is it a unit for one room or for two?
It includes a single indoor unit, so it is designed for one room. For two rooms with separate control, a 2×1 set is advisable; the HR25VF does not become a multisplit by placing its indoor unit in a hallway.
