The design of the remote control may vary due to catalog updates.
Panasonic KIT-125PU3Z5 cassette air conditioning
To air condition an open area from the ceiling: Panasonic cassette KIT-125PU3Z5 with a nominal cooling capacity of 10,750 frigories/h (12.5 kW).
- Pipe
- 3/8″ / 5/8″
- Wi-Fi
- Optional
- kcal/h
- ≈ 10.750
- Refrigerant
- R32
Description
For air conditioning an open area from the ceiling: Panasonic cassette KIT-125PU3Z5 with a nominal cooling capacity of 10,750 frigories/h (12.5 kW). It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace multiple splits for closed rooms. Check height, installation space, and air distribution. Installation is separate.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What does Panasonic KIT-125PU3Z5 include?
Composition of the set: S-1014PU3E + U-125PZ3E5.
| Model | Component | Supply scope |
|---|---|---|
| S-1014PU3E | Cassette indoor unit 840 × 319 × 840 mm | 1 included |
| U-125PZ3E5 | Outdoor unit 980 × 996 × 370 mm | 1 included |
| CZ-RTC5B | Wired remote control The design may vary due to catalog updates. | 1 included |
| CZ-KPU3 | Decorative panel 950 × 33.5 × 950 mm | 1 included |
Installation, pipes, supports, and construction materials not included.

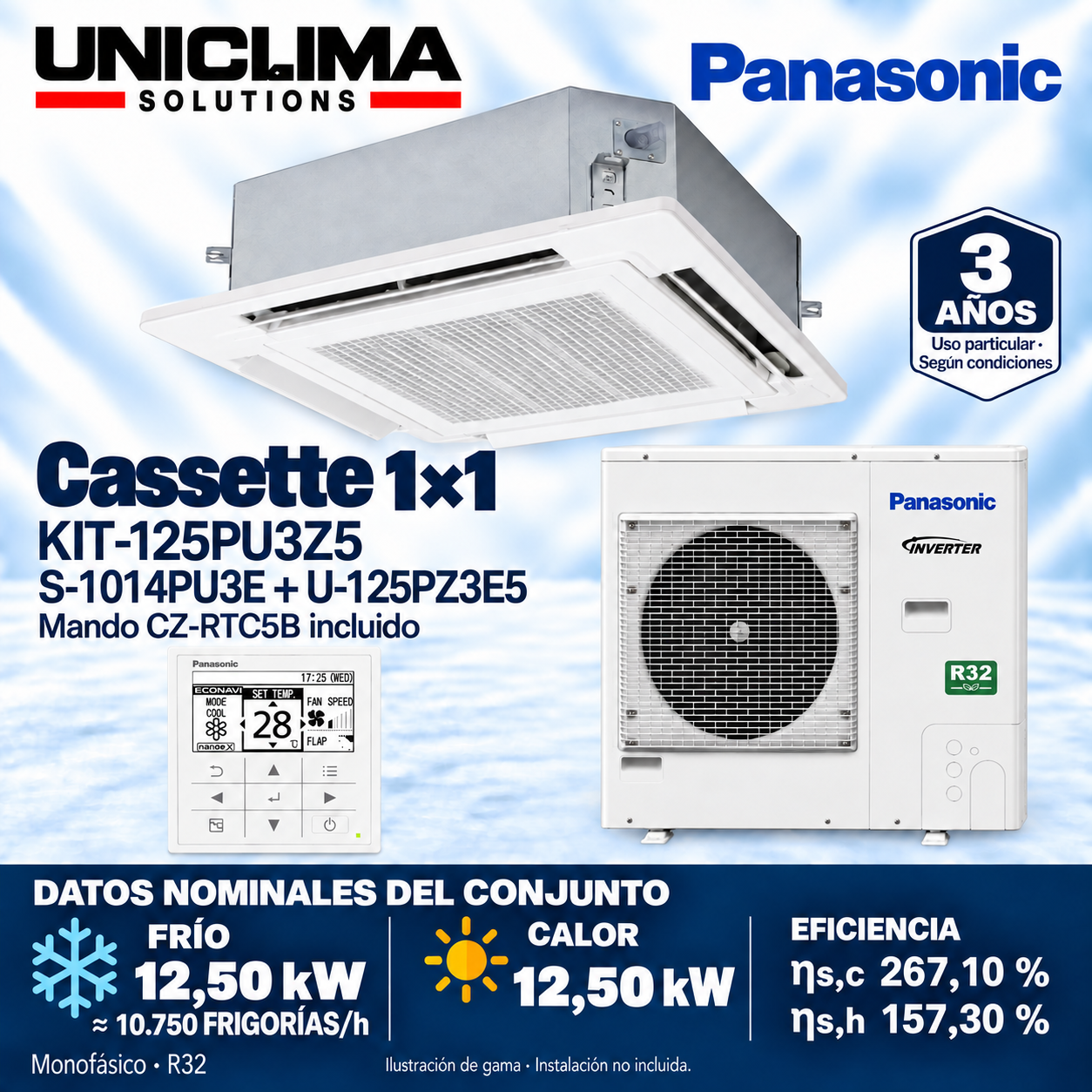

Illustration of the range based on images from the manufacturer; not to scale. The design of the control may vary due to catalog updates.
What to check before installing Panasonic KIT-125PU3Z5
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Size the power according to the thermal load of each space.
- Respect the manufacturer's maintenance, ventilation, and drainage spaces.
- Check the single-phase power supply, the 3/8″ / 5/8″ pipes, and the allowable lengths.
- Check separately the dimensions of the body and the panel and the space of the false ceiling.
Technical sheet: Panasonic KIT-125PU3Z5
- Brand
- Panasonic
- Model and composition
- Panasonic KIT-125PU3Z5
- Supply scope
- 1 × U-125PZ3E5; S-1014PU3E; 1 wired remote control CZ-RTC5B. CZ-KPU3 panel included.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Request the availability notice if it is out of stock. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Pipe · liquid / gas
- 3/8″ / 5/8″ Continue adapting the manual when appropriate.
- Length covered by precharge
- 30.0 m
- Additional load
- 45.0 g/m According to length and manual
- Maximum slope
- 15 / 30 (8) m Between interior and exterior; the separated values depend on the relative position of the units.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 12.50 kW
Power and efficiency of the system - Nominal heat of the assembly
- 12.50 kW
Power and efficiency of the system - kcal/h
- ≈ 10.750
Power and efficiency of the set · Nominal cooling of the set × 860 - Nominal power in cooling / heating
- 3.49 / 2.82 kW
Power and efficiency of the system - Seasonal efficiency ηs,c / ηs,h
- 267,10 % / 157,30 %
Power and efficiency of the system · Indicator published for equipment with power greater than 12 kW - S-1014PU3E · width × height × depth
- 840 × 319 × 840 mm
Dimensions and sound · 1 unit(s); body without panel - Exterior U-125PZ3E5
- 980 × 996 × 370 mm
Dimensions and sound · Width × height × depth - CZ-KPU3
- 950 × 33.5 × 950 mm
Dimensions and sound · Width × height × depth - Interior acoustic pressure (Med) (4)
- 39 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (Pa) (4)
- 33 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Refrigerant
- R32
Installation and refrigerant - Factory load
- 2.80 kg
Installation and refrigerant - Pipe · liquid / gas
- 3/8″ / 5/8″
Installation and refrigerant · Follow adaptations from the manual when applicable - Length covered by precharge
- 30.0 m
Installation and refrigerant - Additional load
- 45.0 g/m
Installation and refrigerant · According to length and manual - Maximum total length
- 50 m
Installation and refrigerant - Maximum slope
- 15 / 30 (8) m
Installation and refrigerant · Between interior and exterior; the separated values depend on the relative position of the units. - External power supply
- Single-phase · 220–230–240 V · 50 Hz
Installation and refrigerant - Wi-Fi
- Optional · adapter not included
Installation and refrigerant · CZ-CAPWFC1 not included - Control board
- CZ-RTC5B
Installation and refrigerant · 1 included - Panasonic Spain warranty
- 3 years
Installation and refrigerant · According to the manufacturer's warranty conditions, linked in Documentation - Condensate pump
- Included
Installation and refrigerant
Before purchasing
- The testing conditions and installation instructions are detailed in the Panasonic documentation.
Documentation
Questions about Panasonic KIT-125PU3Z5
How many frigories does this cassette have?
The Panasonic KIT-125PU3Z5 unit has a nominal cooling capacity of 10,750 frigories/h (12.5 kW). The power refers to the complete unit, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of S-1014PU3E and proper air distribution. It offers 12.5 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that reason alone just because it has 10,750 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Look at the square meters of the space, the large windows, and the hours of sunlight. If the premises or living room overheats and more capacity is needed, compare the Panasonic KIT-140PU3Z5It goes from about 10,750 to 12,040 frigories/h. Before deciding, we will review the power and the available space in the false ceiling with you.
What does the set include?
1 × U-125PZ3E5; S-1014PU3E; 1 wired remote control CZ-RTC5B. CZ-KPU3 panel included.
Does it have Wi-Fi?
Optional · adapter not included · CZ-CAPWFC1 not included
Does it include installation?
No. The installation, pipes, supports, and materials are budgeted separately.
Can you make a reservation when there is no stock?
Yes. When it shows out of stock, click Reserve to request a notification of availability. No charge will be made.
