Panasonic ducted air conditioning KIT-50PF3Z5
To distribute air through a duct installation: 4,300 frigories/h (5 kW) nominal of the Panasonic KIT-50PF3Z5 unit.
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Optional
- kcal/h
- ≈ 4.300
- Refrigerant
- R32
Description
To distribute air through a duct installation: 4,300 frigories/h (5 kW) nominal of the Panasonic KIT-50PF3Z5 unit. A concealed indoor unit feeds the grille network; the distribution between rooms depends on the duct design, not on having a split in each one. Installation and adaptation of the network aside.
The duct network and the position of the grilles must be adapted to the layout of the property. Having multiple grilles does not imply independent control by room: if you need this, a compatible zoning system must be studied.
Wi-Fi control is optional and requires an accessory that is purchased separately.
What does Panasonic KIT-50PF3Z5 include?
Composition of the set: S-3650PF3E + U-50PZ3E5.
| Model | Component | Supply scope |
|---|---|---|
| S-3650PF3E | Ducted indoor unit 800 × 250 × 730 mm | 1 included |
| U-50PZ3E5 | Outdoor unit 824 × 619 × 299 mm | 1 included |
| CZ-RTC5B | Wired remote control The design may vary due to catalog updates. | 1 included |
Installation, pipes, supports, and construction materials not included.

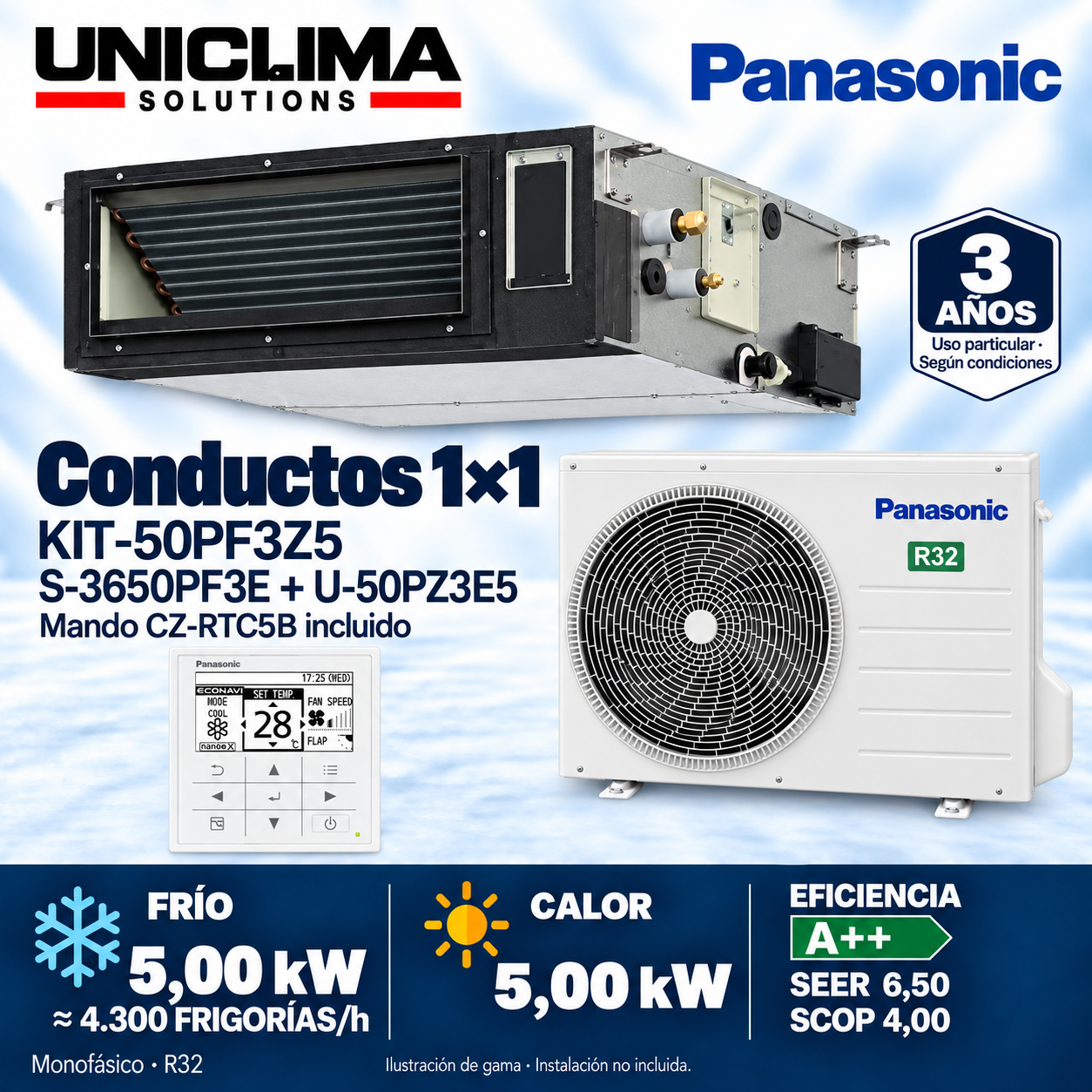

Illustration of the range based on images from the manufacturer; not to scale. The design of the control may vary due to catalog updates.
What to check before installing Panasonic KIT-50PF3Z5
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Size the power according to the thermal load of each space.
- Respect the manufacturer's maintenance, ventilation, and drainage spaces.
- Check the single-phase power supply, the 1/4″ / 1/2″ pipes, and the allowable lengths.
- The installer must calculate ducts, grilles, and the necessary static pressure.
Technical sheet: Panasonic KIT-50PF3Z5
- Brand
- Panasonic
- Model and composition
- Panasonic KIT-50PF3Z5
- Supply scope
- 1 × U-50PZ3E5; S-3650PF3E; 1 wired remote control CZ-RTC5B.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Request the availability notice if it is out of stock. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Pipe · liquid / gas
- 1/4″ / 1/2″ Continue adapting the manual when appropriate.
- Length covered by precharge
- 7.5 m
- Additional load
- 15.0 g/m According to length and manual
- Maximum slope
- 15 / 15 (9) m Between interior and exterior; the separated values depend on the relative position of the units.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 5.00 kW
Power and efficiency of the system - Nominal heat of the assembly
- 5.00 kW
Power and efficiency of the system - kcal/h
- ≈ 4.300
Power and efficiency of the set · Nominal cooling of the set × 860 - Nominal power in cooling / heating
- 1.80 / 1.38 kW
Power and efficiency of the system - SEER / SCOP
- 6,50 / 4,00
Power and efficiency of the system · SCOP in moderate climate - Energy class in cold
- A++
Power and efficiency of the system - S-3650PF3E · width × height × depth
- 800 × 250 × 730 mm
Dimensions and sound · 1 unit(s) - Exterior U-50PZ3E5
- 824 × 619 × 299 mm
Dimensions and sound · Width × height × depth - Interior acoustic pressure (Al) (5)
- 34 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (Med) (5)
- 30 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (Pa) (5)
- 25 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Refrigerant
- R32
Installation and refrigerant - Factory load
- 1.14 kg
Installation and refrigerant - Pipe · liquid / gas
- 1/4″ / 1/2″
Installation and refrigerant · Follow adaptations from the manual when applicable - Length covered by precharge
- 7.5 m
Installation and refrigerant - Additional load
- 15.0 g/m
Installation and refrigerant · According to length and manual - Maximum total length
- 20 m
Installation and refrigerant - Maximum slope
- 15 / 15 (9) m
Installation and refrigerant · Between interior and exterior; the separated values depend on the relative position of the units. - External power supply
- Single-phase · 220–230–240 V · 50 Hz
Installation and refrigerant - Wi-Fi
- Optional · adapter not included
Installation and refrigerant · CZ-CAPWFC1 not included - Control board
- CZ-RTC5B
Installation and refrigerant · 1 included - Panasonic Spain warranty
- 3 years
Installation and refrigerant · According to the manufacturer's warranty conditions, linked in Documentation - Adjustable static pressure
- 10–150 Pa
Installation and refrigerant · Size ducts according to the manual - Condensate pump
- Included
Installation and refrigerant
Before purchasing
- The testing conditions and installation instructions are detailed in the Panasonic documentation.
Documentation
Questions about Panasonic KIT-50PF3Z5
How many frigories does this ducted unit have?
The Panasonic KIT-50PF3Z5 unit declares a nominal cooling capacity of 4,300 frigories/h (5 kW). This is the total capacity that must be distributed through the duct network; it does not correspond to each grille or room.
Can it cool the living room and the bedrooms?
It can be part of an installation that serves multiple rooms, as long as the total load and duct design match its 5 kW nominal capacity. It has a single indoor unit (S-3650PF3E), not an independent split in each room. It is necessary to check flow rates, pressure losses, and air return for each room.
What happens if some rooms get colder than others?
Before choosing a more powerful unit, it is advisable to check the air distribution through the grilles and ensure that the ducts reach each room properly. If the entire home requires more power, compare the Panasonic KIT-60PF3Z5It goes from about 4,300 to 4,902 frigories/h. Tell us which rooms you want to cool; the installer will also need to check that the ducts can accommodate the chosen unit.
Can I replace my old unit with this one without making any changes?
It is not confirmed just by matching the cooling capacity. Before replacing it with Panasonic KIT-50PF3Z5, check the dimensions and access of the false ceiling, power supply, refrigerant and acceptable pipes, drainage, flow rate, and available pressure. The technical sheet and a review of the installation determine what can be reused.
What does the set include?
1 × U-50PZ3E5; S-3650PF3E; 1 wired remote control CZ-RTC5B.
Does it have Wi-Fi?
Optional · adapter not included · CZ-CAPWFC1 not included
Does it include installation?
No. The installation, pipes, supports, and materials are budgeted separately.
Can you make a reservation when there is no stock?
Yes. When it shows out of stock, click Reserve to request a notification of availability. No charge will be made.
