Multisplit air conditioning 2×1 Panasonic CU-3TZ52TBE + 2 × CS-TZ35ZKEW
To air condition 2 rooms with a single outdoor unit.
- Pipe
- 1/4″ / 3/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 4.472
- Refrigerant
- R32
Description
To climate control 2 rooms with a single outdoor unit. This 2x1 Panasonic combines 2 × CS-TZ35ZKEW and has a nominal cooling capacity of 4,472 frigories/h (5.2 kW) for the set, shared when operating simultaneously. It includes indoor units of the same model: a comparable option for rooms with similar needs. Installation not included.
The capacity of the system is shared when multiple units operate simultaneously. Therefore, it is advisable to choose the combination based on the simultaneous use of the rooms, their size and orientation, as well as the layout of the pipes.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What is included in Panasonic CU-3TZ52TBE + 2 × CS-TZ35ZKEW?
Composition of the set: 2 × CS-TZ35ZKEW + CU-3TZ52TBE.
| Model | Component | Supply scope |
|---|---|---|
| CS-TZ35ZKEW | Wall-mounted indoor unit 779 × 290 × 209 mm | 2 included |
| CU-3TZ52TBE | Multisplit outdoor unit 875 × 795 × 320 mm | 1 included |
| Panasonic TZ wireless remote control | Wireless remote control from the range The design may vary due to catalog updates. | 2 included |
Installation, pipes, supports, and construction materials not included. The power is shared between the indoor units.

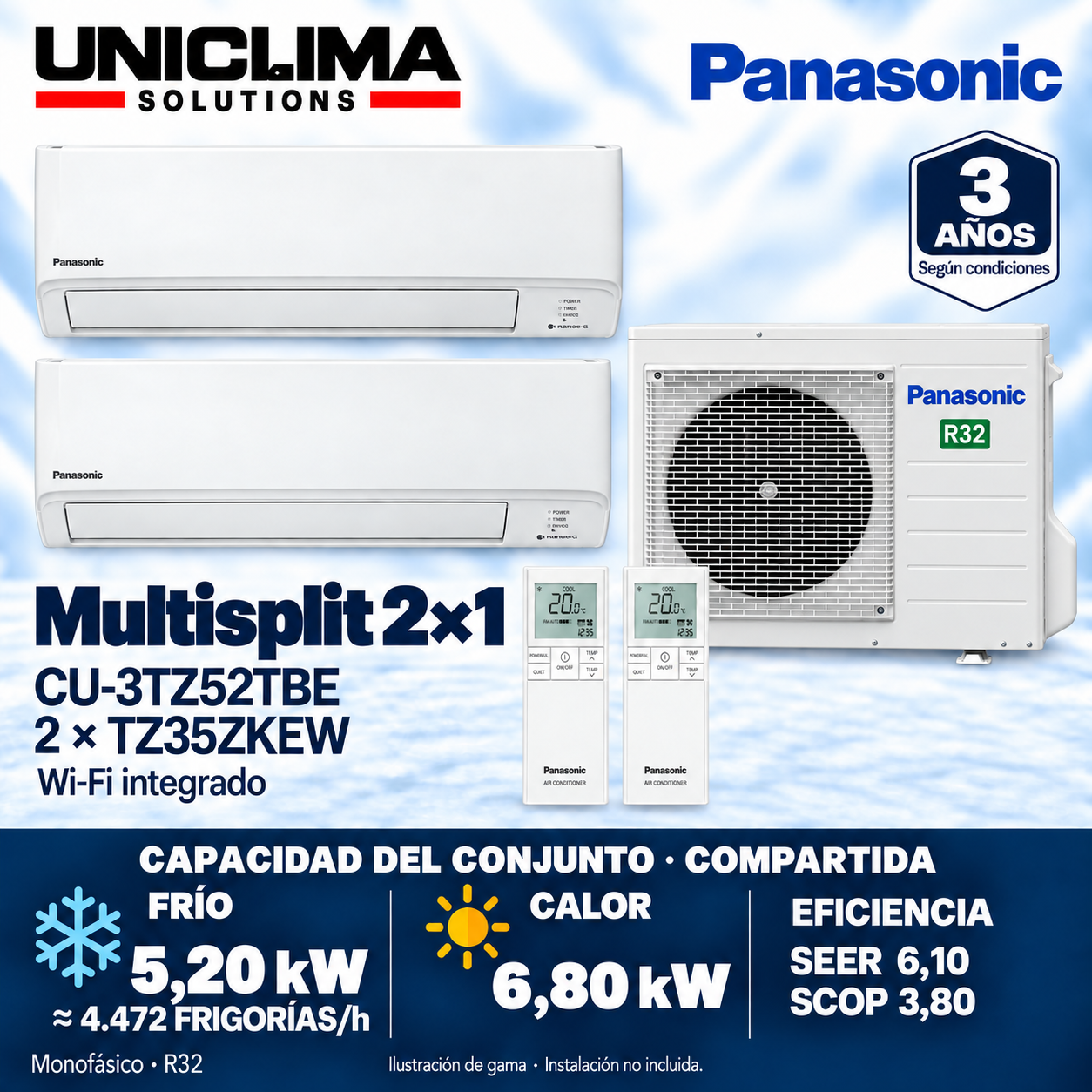

Illustration of the range based on images from the manufacturer; not to scale. The design of the control may vary due to catalog updates.
What to check before installing Panasonic CU-3TZ52TBE + 2 × CS-TZ35ZKEW
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Size the power according to the thermal load of each space.
- Respect the manufacturer's maintenance, ventilation, and drainage spaces.
- Check the single-phase power supply, the 1/4″ / 3/8″ pipes, and the allowable lengths.
- The external power is distributed among the interiors. The system operates in either heating or cooling mode; not in both modes at the same time.
Technical sheet: Panasonic CU-3TZ52TBE + 2 × CS-TZ35ZKEW
- Brand
- Panasonic
- Model and composition
- Panasonic CU-3TZ52TBE + 2 × CS-TZ35ZKEW
- Supply scope
- 1 × CU-3TZ52TBE; 2 × CS-TZ35ZKEW; 2 wireless remote(s).
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Request the availability notice if it is out of stock. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Pipe · liquid / gas
- 1/4″ / 3/8″ By interior
- Length covered by precharge
- 30 m Total
- Additional load
- 20 g/m According to length and manual
- Maximum slope
- 15 m Between interior and exterior; the separated values depend on the relative position of the units.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 5.20 kW
Power and efficiency of the system · Shared between rooms - Nominal heat of the assembly
- 6.80 kW
Power and efficiency of the system · Shared between rooms - kcal/h
- ≈ 4.472
Power and efficiency of the set · Nominal cooling of the set × 860 - Nominal power in cooling / heating
- 1.32 / 1.77 kW
Power and efficiency of the system - SEER / SCOP
- 6,10 / 3,80
Power and efficiency of the system · SCOP in moderate climate; selector values for this combination - Interior 1 · CS-TZ35ZKEW
- 2.60 kW cooling / 3.40 kW heating
Power and efficiency of the set · Nominal distribution of this combination - Interior 2 · CS-TZ35ZKEW
- 2.60 kW cooling / 3.40 kW heating
Power and efficiency of the set · Nominal distribution of this combination - CS-TZ35ZKEW · width × height × depth
- 779 × 290 × 209 mm
Dimensions and sound · 2 unit(s) - Exterior CU-3TZ52TBE
- 875 × 795 × 320 mm
Dimensions and sound · Width × height × depth - Interior sound pressure CS-TZ35ZKEW
- 42 / 30 / 20 dB(A)
Measurements and sound · Cold: high / low / quiet - Refrigerant
- R32
Installation and refrigerant - Factory load
- 2.10 kg
Installation and refrigerant - Pipe · liquid / gas
- 1/4″ / 3/8″
Installation and refrigerant · For indoor use - Length covered by precharge
- 30 m
Installation and refrigerant · Total - Additional load
- 20 g/m
Installation and refrigerant · According to length and manual - Maximum total length
- 50 m
Installation and refrigerant - Maximum slope
- 15 m
Installation and refrigerant · Between interior and exterior; the separated values depend on the relative position of the units. - External power supply
- Single-phase · 220–230–240 V · 50 Hz
Installation and refrigerant - Wi-Fi
- Included · Comfort Cloud
Installation and refrigerant - Control board
- Panasonic TZ wireless remote control
Installation and refrigerant · 2 included - Panasonic Spain warranty
- 3 years
Installation and refrigerant · According to the manufacturer's warranty conditions, linked in Documentation - Maximum length per branch
- 25 m
Installation and refrigerant - Number of rooms
- 2
Installation and refrigerant · One indoor unit per room
Before purchasing
- The testing conditions and installation instructions are detailed in the Panasonic documentation. The indicated capacity is shared among the indoor units.
Documentation
Questions about Panasonic CU-3TZ52TBE + 2 × CS-TZ35ZKEW
How many frigories does this 2x1 air conditioning unit have?
It has a nominal capacity of 4,472 frigories/h (5.2 kW) for the entire unit. It is not 4,472 frigories for each room nor the free sum of the powers of the splits. The available capacity is distributed among the indoor units that are operating; it changes with demand and usage conditions.
Is it suitable for two rooms with a single outdoor unit?
Yes: the set includes 2 × CS-TZ35ZKEW and one outdoor unit. There are 2 indoor climate control points. To determine if it covers the specific rooms, it is necessary to check the load of each one and the simultaneous demand against the 5.2 kW nominal of the set; counting rooms is not enough.
How do I choose the splits for each room?
This set includes splits of the same model. If one room heats up much more than the others, it is advisable to check if it needs a different split. Tell us the square meters of each room, where the sun hits the most, and which ones you will use at the same time. This way we can check if this combination fits with the rooms you want to air condition.
Can I add the cooling capacities of the splits to choose it?
No. In Panasonic CU-3TZ52TBE + 2 × CS-TZ35ZKEW, the reference for the published shared capacity is 4,472 frigories/h (5.2 kW) nominal for the set. The class figure or the indoor model number does not directly correspond to delivered frigories. Without the distribution table for the combination, an independent figure per room is not guaranteed.
What does the set include?
1 × CU-3TZ52TBE; 2 × CS-TZ35ZKEW; 2 wireless remote(s).
Does it have Wi-Fi?
Yes. It includes Wi-Fi for controlling it from your mobile with Panasonic Comfort Cloud.
Does it include installation?
No. The installation, pipes, supports, and materials are budgeted separately.
Can you make a reservation when there is no stock?
Yes. When it shows out of stock, click Reserve to request a notification of availability. No charge will be made.
