The design of the remote control may vary due to catalog updates.
Panasonic split air conditioning KIT-BZ25-CKE
To air condition a room with a wall-mounted split: 2,150 frigories/h (2.5 kW) nominal in cooling.
- Pipe
- 1/4″ / 3/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 2.150
- Refrigerant
- R32
Description
To climate control a room with a wall-mounted split: 2,150 frigories/h (2.5 kW) nominal cooling capacity. Panasonic KIT-BZ25-CKE includes one indoor and one outdoor unit; it is not a system for distributing cold independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation is separate.
The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does Panasonic KIT-BZ25-CKE include?

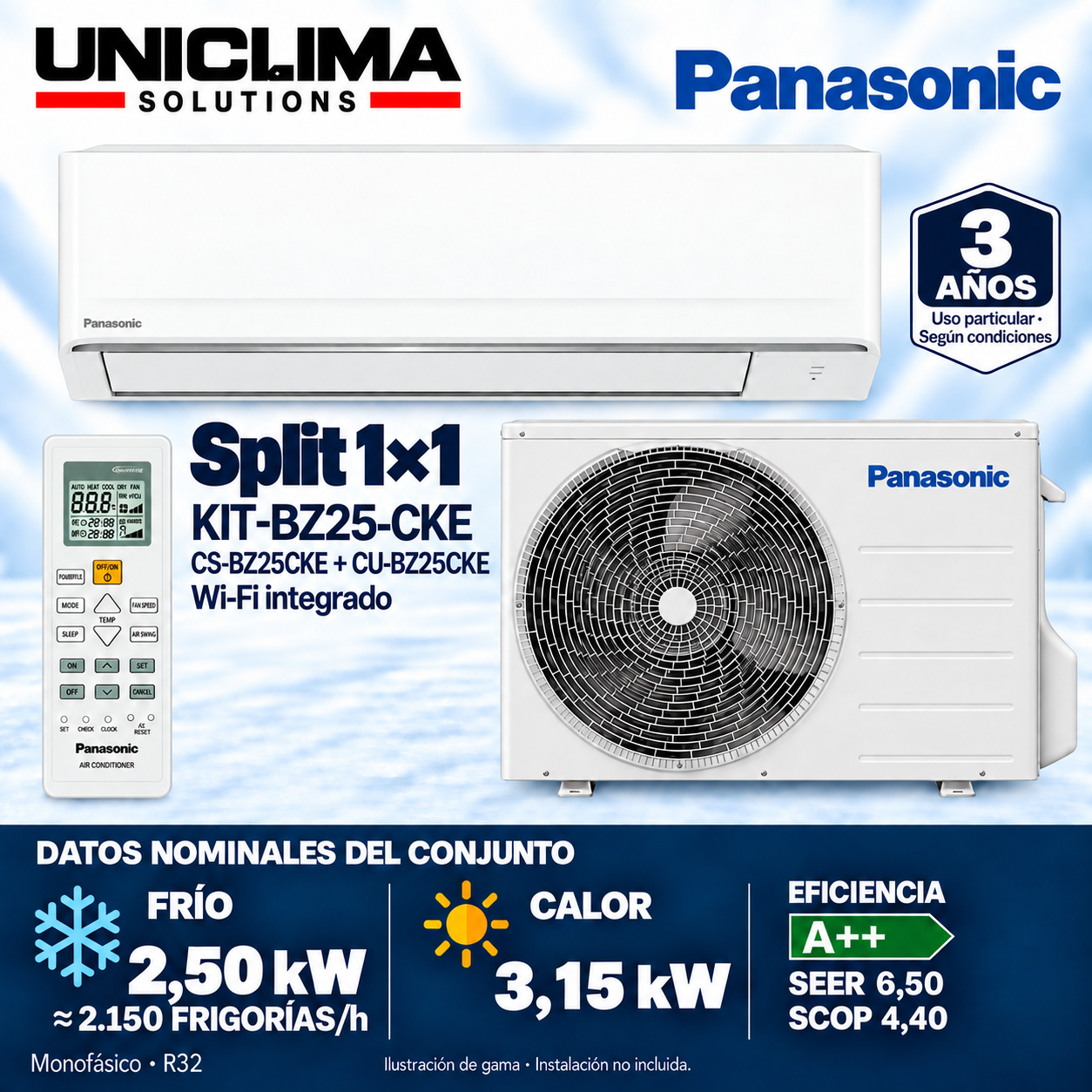

Composition of the set: CS-BZ25CKE + CU-BZ25CKE.
| Model | Component | Supply scope |
|---|---|---|
| CS-BZ25CKE | Wall-mounted indoor unit 765 × 290 × 214 mm | 1 included |
| CU-BZ25CKE | Outdoor unit 780 × 542 × 289 mm | 1 included |
| Panasonic BZ CKE wireless remote control | Wireless remote control from the range The design may vary due to catalog updates. | 1 included |
Installation, pipes, supports, and construction materials not included.
Illustration of the range based on images from the manufacturer; not to scale. The design of the control may vary due to catalog updates.
What to check before installing Panasonic KIT-BZ25-CKE
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Size the power according to the thermal load of each space.
- Respect the manufacturer's maintenance, ventilation, and drainage spaces.
- Check the single-phase power supply, the 1/4″ / 3/8″ pipes, and the allowable lengths.
Technical sheet: Panasonic KIT-BZ25-CKE
- Brand
- Panasonic
- Model and composition
- Panasonic KIT-BZ25-CKE
- Supply scope
- 1 × CU-BZ25CKE; CS-BZ25CKE; 1 wireless remote control.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Request the availability notice if it is out of stock. Not shipped to islands, Ceuta, Melilla, or abroad.
Installation at a glance
- Pipe · liquid / gas
- 1/4″ / 3/8″ Continue adapting the manual when appropriate.
- Length covered by precharge
- 7.5 m
- Additional load
- 10.0 g/m According to length and manual
- Maximum slope
- 15 m Between interior and exterior; the separated values depend on the relative position of the units.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 2.50 kW
Power and efficiency of the system - Nominal heat of the assembly
- 3.15 kW
Power and efficiency of the system - kcal/h
- ≈ 2.150
Power and efficiency of the set · Nominal cooling of the set × 860 - Nominal power in cooling / heating
- 0.68 / 0.77 kW
Power and efficiency of the system - SEER / SCOP
- 6,50 / 4,40
Power and efficiency of the system · SCOP in moderate climate - Energy class in cold
- A++
Power and efficiency of the system - CS-BZ25CKE · width × height × depth
- 765 × 290 × 214 mm
Dimensions and sound · 1 unit(s) - CU-BZ25CKE
- 780 × 542 × 289 mm
Dimensions and sound · Width × height × depth - Interior acoustic pressure (heat - Ba-Silen) (4)
- 24 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (heat - Ba) (4)
- 27 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (heat - Al) (4)
- 36 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (cold - Ba-Silen) (4)
- 20 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (cold - Ba) (4)
- 26 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Indoor acoustic pressure (cold - Al) (4)
- 37 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Refrigerant
- R32
Installation and refrigerant - Factory load
- 0.50 kg
Installation and refrigerant - Pipe · liquid / gas
- 1/4″ / 3/8″
Installation and refrigerant · Follow adaptations from the manual when applicable - Length covered by precharge
- 7.5 m
Installation and refrigerant - Additional load
- 10.0 g/m
Installation and refrigerant · According to length and manual - Maximum total length
- 15 m
Installation and refrigerant - Maximum slope
- 15 m
Installation and refrigerant · Between interior and exterior; the separated values depend on the relative position of the units. - External power supply
- Single-phase · 220–230–240 V · 50 Hz
Installation and refrigerant - Wi-Fi
- Included · Comfort Cloud
Installation and refrigerant - Control board
- Panasonic BZ CKE wireless remote control
Installation and refrigerant · 1 included - Panasonic Spain warranty
- 3 years
Installation and refrigerant · According to the manufacturer's warranty conditions, linked in Documentation
Before purchasing
- The testing conditions and installation instructions are detailed in the Panasonic documentation.
Documentation
Questions about Panasonic KIT-BZ25-CKE
How many frigories does it have and how many rooms is it suitable for?
This unit has a nominal cooling capacity of 2,150 frigories/h (2.5 kW) and a single indoor unit (CS-BZ25CKE). It is designed for a room or an open space that has been sized as such. It is not equivalent to a 2x1 for two closed rooms.
Is it an option if I am looking for an air conditioning unit of 2,000 frigories?
The exact figure for this combination is approximately 2,150 frigories/h nominal (2.5 kW), above 2,000. If the calculation for your room requires at least 2,000 frigories/h, also compare the capacity at the expected outdoor temperature and the margin indicated by the installer.
Is it suitable for a bedroom with a lot of sunlight?
It can be useful, but it's important to know how much your bedroom heats up, especially if it gets afternoon sun or is under the roof. If you need a bit more power, compare the Panasonic KIT-BZ35-CKEIt goes from about 2,150 to 2,838 frigories/h. Tell us the square meters and if the ceiling is insulated: we help you choose the power and check the noise of the split for sleeping.
How do I know if it has enough power for my living room?
To choose the power, you need to consider the size of the living room, how much sunlight it receives, and the insulation. If the living room is spacious or continues to retain a lot of heat, compare the Panasonic KIT-BZ35-CKEIt goes from about 2,150 to 2,838 kcal/h. Tell us the meters and how much sun it receives, and we will help you choose.
What does the set include?
1 × CU-BZ25CKE; CS-BZ25CKE; 1 wireless remote control.
Does it have Wi-Fi?
Yes. It includes Wi-Fi for controlling it from your mobile with Panasonic Comfort Cloud.
Does it include installation?
No. The installation, pipes, supports, and materials are budgeted separately.
Can you make a reservation when there is no stock?
Yes. When it shows out of stock, click Reserve to request a notification of availability. No charge will be made.
