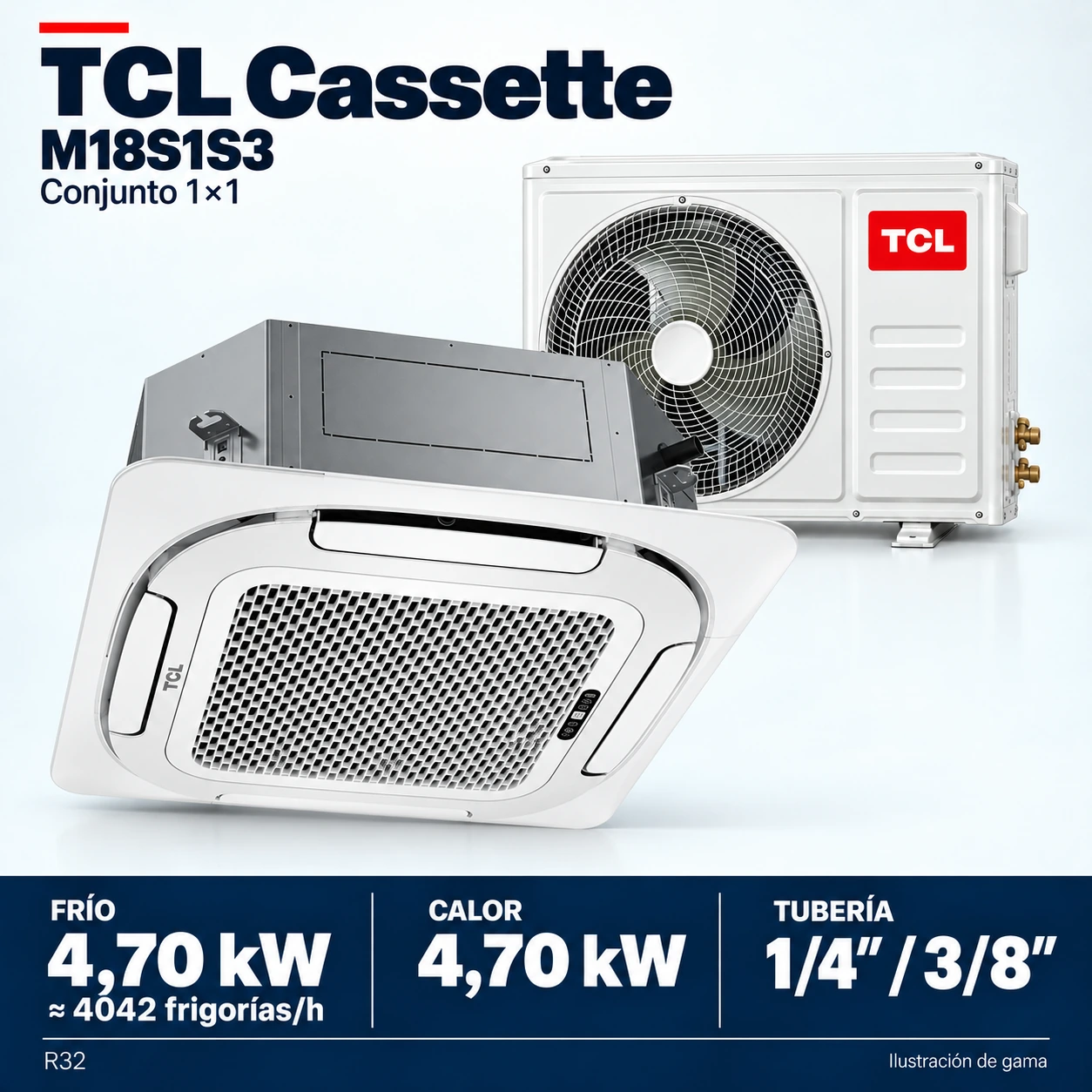

TCL M18S1S3 cassette air conditioning
To air condition an open area from the ceiling: cassette TCL M18S1S3 with 4,042 frigories/h (4.7 kW) nominal cooling capacity.
- Pipe
- 1/4″ / 3/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 4.042
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: cassette TCL M18S1S3 with 4,042 frigories/h (4.7 kW) nominal cooling capacity. It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace several splits for closed rooms. Check height, mounting space, and air distribution. Installation is separate.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does the TCL M18S1S3 include?
Cassette Set 1×1: components grouped according to the TCL table.
| Model | Component | Supply scope |
|---|---|---|
| MN18SS3 | Cassette indoor unit 570 × 245 × 570 mm · 14.5 kg | 1 included |
| MT1813 | Outdoor unit 853 × 602 × 349 mm · 30 kg | 1 included |
| NPAN60S1 | Cassette panel 650 × 57 × 650 mm | 1 included |
Wireless remote control included as per catalog; wired remote control not included. Installation, pipes, supports, wiring, and commissioning are quoted separately.
Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary depending on the supplied revision. Indicative image of the control. Its design may vary due to updates in the TCL catalog.
What to check before installing TCL M18S1S3
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the cassette body and the NPAN60S1 panel separately. The dimensions of the panel do not match the ceiling cutout; ensure access to drainage and maintenance.
- Pipe 1/4″ / 3/8″. Precharge for 5 m; maximum run 25 m and elevation 10 m. The additional load per meter must be checked in the exact manual. The installer must verify the PCB and review before intervening.
- The set is single-phase. The installer will check the voltage of the PCB, the protections, the wiring, and the ventilation distances.
- Wireless remote included as per catalog; does not include wired remote.
TCL M18S1S3
- Brand
- TCL
- Model and composition
- TCL M18S1S3
- Supply scope
- MN18SS3 + MT1813 + NPAN60S1
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 570 × 245 × 570 mm width × height × depth
- Exterior
- 853 × 602 × 349 mm width × height × depth
- Pipe
- 1/4″ · 3/8″ liquid · gas
- Maximum range
- 25 m
- Maximum slope
- 10 m
- Precharge up to
- 5 m
- Factory charge · R32
- 0.96 kg
- Additional load
- Consult the manual of the provided revision.
Load calculation and documentation
Outdoor unit: MT1813. Check PCB and maintenance.
The additional load per length is not confirmed for this reference. Please consult your manual before intervening.
L is the one-way length between interior and exterior, not the sum of both pipes. Outer diameters of refrigerant piping in liquid / gas order.
Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- M18S1S3
Set and power supply - Indoor unit
- MN18SS3
Set and power supply - Outdoor unit
- MT1813
Set and power supply - Type
- 1×1 cassette · cooling and heating
Set and power supply - Power supply
- 220 V · single-phase
Set and power supply - Nominal power in cold conditions
- 4.70 kW
Power and efficiency · Technical catalog TCL 2025–2026. Assembly and components: PDF page 34 (printed 33). - Approximate nominal cooling capacity
- 4042 frigories/h
Power and efficiency · Conversion: kW × 860. - Nominal heat output
- 4.70 kW
Power and efficiency · Technical catalog TCL 2025–2026. Assembly and components: PDF page 34 (printed 33). - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+
Power and efficiency - Interior · width × height × depth
- 570 × 245 × 570 mm
Measures to prepare the installation - Net internal weight
- 14.5 kg
Measures to prepare the installation - Net external weight
- 30 kg
Measures to prepare the installation - Panel
- NPAN60S1
Measures to prepare the installation - Panel · published dimensions
- 650 × 57 × 650 mm
Measures to prepare the installation - Exterior · width × height × depth
- 853 × 602 × 349 mm
Measures to prepare the installation · TCL, technical sheet of the current model; matches the MT1813 duct table. - Pipe · liquid / gas
- 1/4″ / 3/8″
Pipe and refrigerant · Technical catalog TCL 2025–2026. Assembly and components: PDF page 34 (printed 33). - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 0.96 kg
Pipe and refrigerant · Catalog data; check the revision plate provided. - SEER
- 6,1
Efficiency, consumption, and air circulation - SCOP · average climate
- 4
Efficiency, consumption, and air circulation - External sound power
- 65 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Interior sound power · S/H/M/L/silence
- 56/53/48/42/38 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Indoor air flow
- 750 m³/h
Efficiency, consumption, and air circulation - Pipe covered by the precharge
- 5 m
Limits for preparing the installation · TCL Catalog 2026 Portugal, PDF page 12; this is not the maximum distance. - Maximum range
- 25 m
Limits for preparing the installation · Official TCL Europe table for this reference. - Maximum slope
- 10 m
Limits for preparing the installation · Between the indoor and outdoor units. - Wi-Fi
- Wi-Fi included
Control and connectivity · Wi-Fi included and control with TCL Home according to the official TCL 2026 catalog: indoor unit MN18SS3, EAN 8720568106106. The reference and the EAN match the component in the Spanish catalog. Please refer to the linked connectivity documentation. - Application
- TCL Home
Control and connectivity · Remote control via TCL Home; requires a network and configuration compatible with the manual. - TCL warranty
- 3 years · extendable to 5 with registration
Warranty and conditions · Extension subject to eligible purchase, registration within 30 days, and TCL validation. Check the conditions in Documentation.
Before purchasing
- Data from the linked documentation for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly diagrams.
Documentation
Questions about TCL M18S1S3
How many frigories does this cassette have?
The TCL M18S1S3 unit has a nominal cooling capacity of 4,042 frigories/h (4.7 kW). The power refers to the complete unit, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of MN18SS3 and proper air distribution. It offers 4.7 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, the position of the people, and the installation cost.
Does it cool several closed rooms?
It should not be chosen for that reason alone because it has 4,042 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Take into account the square meters of the space, the windows, and the hours of sunlight. This cassette has about 4,042 frigories/h; to determine if it is sufficient, we need to know what the space is like. Before making a decision, we will review with you the power and the available space in the false ceiling.
Does the 60×60 format mean that the panel measures 60 cm?
No. The published body measures 570 × 245 × 570 mm and the NPAN60S1 panel has a contour of 650 × 650 mm. The opening, position, and separations must be taken from the installation plan, not from the brand name.
What does the set include?
Indoor unit cassette MN18SS3, outdoor unit MT1813, cassette panel NPAN60S1. Wireless remote control included as per catalog; wired remote control not included.
What pipe do you need?
Pipe 1/4″ / 3/8″. Precharge for 5 m; maximum run 25 m and elevation 10 m. The additional load per meter must be checked in the exact manual. The installer must verify the PCB and review before intervening.
Is it single-phase or three-phase?
It is single-phase. Check the voltage of the PCB and protections with the installer.
Can I buy it with installation?
The price includes VAT and shipping to mainland Spain. Installation is quoted separately based on location, route, and necessary work. The equipment can be purchased now.
Does it come with Wi-Fi included?
Wi-Fi included and control with TCL Home according to the official TCL 2026 catalog: indoor unit MN18SS3, EAN 8720568106106. The reference and the EAN match the component in the Spanish catalog. Please refer to the linked connectivity documentation.
How many years of warranty does the TCL M18S1S3 have?
TCL indicates a standard 3-year warranty, and this model is listed for a free extension up to 5 years. The extension requires an eligible purchase in Spain from April 1, 2025, domestic use, registration in the TCL account within 30 calendar days, and validation of the invoice and serial numbers of both units. It is not an automatic 5 years; check TCL's terms and exclusions. Consumer legal rights are not affected.
