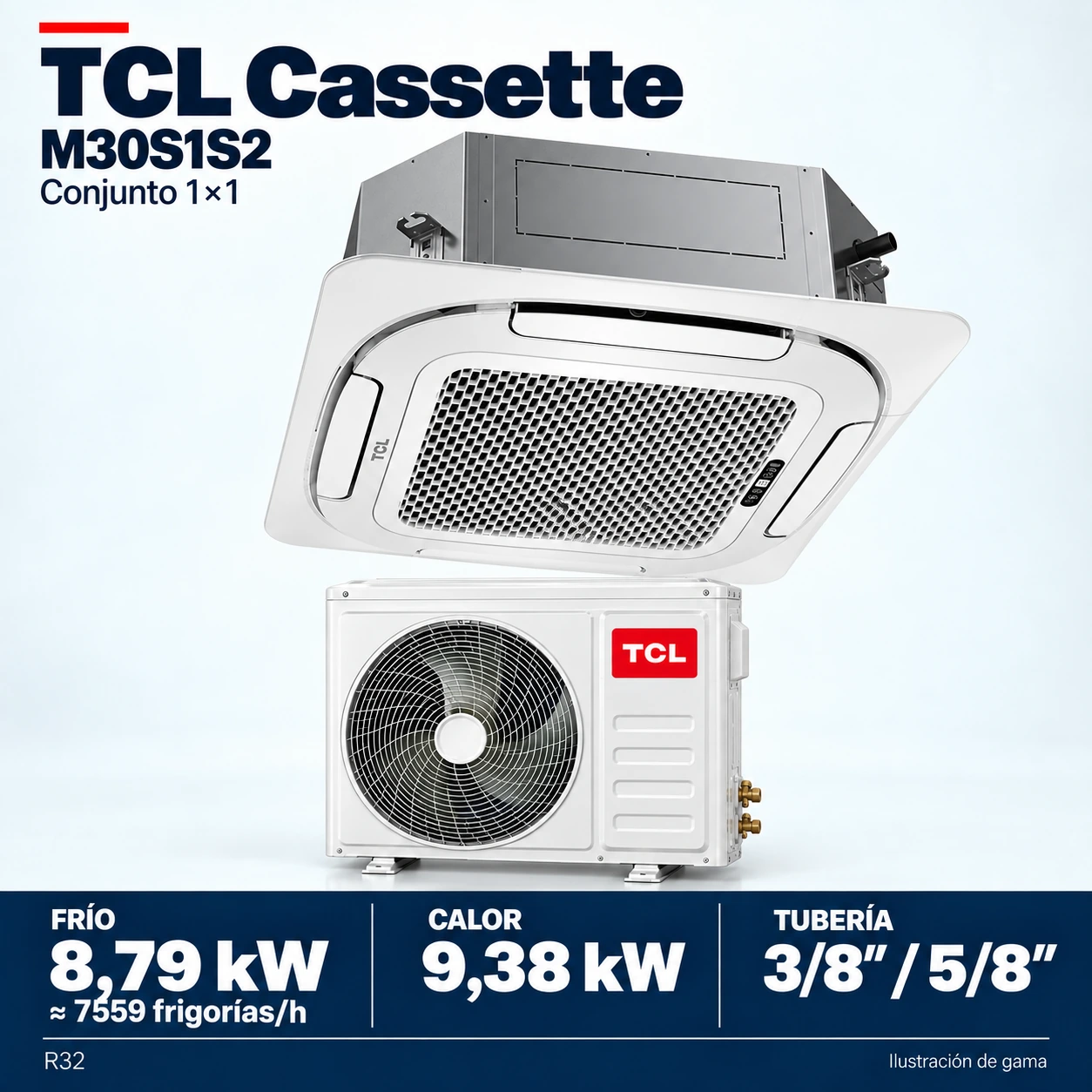

TCL M30S1S2 cassette air conditioning
To air condition an open area from the ceiling: cassette TCL M30S1S2 with 7,559 frigories/h (8.79 kW) nominal cooling capacity.
- Pipe
- 3/8″ / 5/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 7.559
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: cassette TCL M30S1S2 with 7,559 frigories/h (8.79 kW) nominal cooling capacity. It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace several splits for closed rooms. Check height, mounting space, and air distribution. Installation is separate.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does TCL M30S1S2 include?
Cassette Set 1×1: components grouped according to the TCL table.
| Model | Component | Supply scope |
|---|---|---|
| MN30SS2 | Cassette indoor unit 840 × 245 × 840 mm · 24.0 kg | 1 included |
| MT3012 | Outdoor unit 845 × 700 × 342 mm · 41 kg | 1 included |
| NPAN90S1 | Cassette panel 950 × 45 × 950 mm · width × height × depth | 1 included |
It includes a wireless remote control and wall control as per the documented supply of this set. Installation, piping, supports, wiring, and commissioning are budgeted separately.
Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary depending on the supplied revision. Indicative image of the control. Its design may vary due to updates in the TCL catalog.
What to check before installing TCL M30S1S2
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the cassette body and the NPAN90S1 panel separately. The dimensions of the panel do not match the ceiling cutout; ensure access to drainage and maintenance.
- 3/8″ / 5/8″ pipe. Precharge for 5 m; maximum equivalent length 35 m and height difference 20 m. Above 5 m: 25 g/m additional. The installer must check the PCB and review before intervening.
- The set is single-phase. The installer will check the voltage of the PCB, the protections, the wiring, and the ventilation distances.
- Wireless remote control and wall control included as per documented supply.
TCL M30S1S2
- Brand
- TCL
- Model and composition
- TCL M30S1S2
- Supply scope
- MN30SS2 + MT3012 set, with wireless and wall panel controls.
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Exterior
- 845 × 700 × 342 mm width × height × depth
- Interior
- 840 × 245 × 840 mm width × height × depth
- Pipe
- 3/8″ · 5/8″ liquid · gas
- Maximum equivalent length
- 35 m
- Maximum slope
- 20 m
- Precharge up to
- 5 m
- Factory charge · R32
- 1.40 kg
- Additional load
- 25 g/m above 5 m
Load calculation and documentation
Outdoor unit: MT3012. Check PCB and maintenance.
Additional load: 25 × (L − 5) g, only above 5 m and within the maximum travel.
L is the length of the run between the interior and exterior, not the sum of both pipes. The published limit is for equivalent length; fittings must be considered according to the manual. Outer diameters of refrigerant piping in liquid / gas order.
Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- M30S1S2
Set and power supply - Indoor unit
- MN30SS2
Set and power supply - Outdoor unit
- MT3012
Set and power supply - Type
- 1×1 cassette · cooling and heating
Set and power supply - Power supply
- 220 V · single-phase
Set and power supply - Nominal power in cold conditions
- 8.79 kW · catalog
Power and efficiency · Catalog: 8.79 kW; TCL website: 8.80 kW. The published conversion to refrigeration uses 8.79 kW. - Approximate nominal cooling capacity
- 7,559 Frigories/h · catalog
Power and efficiency · Calculated with 8.79 kW. The TCL website lists 8.80 kW, equivalent to about 7,568 frigories/h. - Nominal heat output
- 9.38 kW
Power and efficiency · Technical catalog TCL 2025–2026. Assembly and components: PDF page 34 (printed 33). - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+
Power and efficiency - Body · published dimensions
- 840 × 840 × 245 mm
Measures to prepare the installation · Body without panel; confirm dimensions and space in the installation plan. - Exterior · width × height × depth
- 845 × 700 × 342 mm
Measures to prepare the installation - Net internal weight
- 24.0 kg
Measures to prepare the installation - Net external weight
- 41 kg
Measures to prepare the installation - Panel
- NPAN90S1
Measures to prepare the installation - Panel · width × height × depth
- 950 × 45 × 950 mm
Measures to prepare the installation · This does not correspond to the cut-out dimensions. The S series technical sheet states 950 × 950 × 45 mm in width × depth × height order. - Pipe · liquid / gas
- 3/8″ / 5/8″
Pipe and refrigerant · Technical catalog TCL 2025–2026. Assembly and components: PDF page 34 (printed 33). - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 1.40 kg
Pipe and refrigerant · Catalog data; check the revision plate provided. - SEER
- 6,2
Efficiency, consumption, and air circulation - SCOP · average climate
- 4
Efficiency, consumption, and air circulation - Nominal consumption in cold
- 2790 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - Nominal heat consumption
- 2730 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - External sound power
- 66 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Interior sound power · S/H/M/L/silence
- 61/57/53/50/48 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Indoor air flow
- 1600 m³/h
Efficiency, consumption, and air circulation - Pipe covered by the precharge
- 5 m
Limits for preparing the installation · TCL Catalog 2026 Portugal, PDF page 12; this is not the maximum distance. - Maximum equivalent length
- 35 m
Limits for preparing the installation · Official catalog TCL Italy 2026, PDF page 58. Equivalent length, not just straight pipe. - Maximum slope
- 20 m
Limits for preparing the installation · Between the indoor and outdoor units. - Recommended minimum length
- 3 m
Limits for preparing the installation · Official catalog TCL Italy 2026. - Additional load above 5 m
- 25 g/m
Limits for preparing the installation · Within the permitted limits. Confirm PCB and inspection; intervention by a qualified professional. - Interior · width × height × depth
- 840 × 245 × 840 mm
Dimensions of the indoor unit · Axis order clarified by the official TCL Italy catalog 2026. - Wi-Fi
- Wi-Fi included
Control and connectivity · Wi-Fi included and control with TCL Home according to the official TCL 2026 catalog: indoor unit MN30SS2, EAN 8720568112527. The reference and the EAN match the component in the Spanish catalog. Please refer to the linked connectivity documentation. - Application
- TCL Home
Control and connectivity · Remote control via TCL Home; requires a network and configuration compatible with the manual. - TCL warranty
- 3 years for domestic use
Warranty and conditions · The extension to 5 years is not confirmed for this reference. Check the conditions in Documentation.
Before purchasing
- Data from the linked documentation for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly drawings. Some dimensions, weights, or loads differ between the 2025–2026 catalog and the current TCL sheet. Confirm the revision and its drawing before preparing the installation. Cooling: 8.79 kW in the Spanish catalog and 8.80 kW on the TCL website. The displayed COOLING capacities are calculated with 8.79 kW.
Documentation
Questions about TCL M30S1S2
How many frigories does this cassette have?
The TCL M30S1S2 unit has a nominal cooling capacity of 7,559 frigories/h (8.79 kW). The power refers to the complete unit, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of MN30SS2 and proper air distribution. It offers 8.79 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of the people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that reason alone just because it has 7,559 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Look at the square meters of the space, the large windows, and the hours of sunlight. If the premises or living room overheats and more capacity is needed, compare the TCL M36S1S2It goes from about 7,559 to 9,073 frigories/h. Before deciding, we will review the power and the available space in the false ceiling with you.
What does the set include?
Indoor unit cassette MN30SS2, outdoor unit MT3012, cassette panel NPAN90S1. Wireless remote control and wall control included as per documented supply.
What pipe do you need?
3/8″ / 5/8″ pipe. Precharge for 5 m; maximum equivalent length 35 m and height difference 20 m. Above 5 m: 25 g/m additional. The installer must check the PCB and review before intervening.
Are the dimensions of the panel the ceiling opening?
No. The NPAN90S1 panel measures 950 × 45 × 950 mm (width × height × depth), but the space and clearances are taken from the installation plan of the unit.
Is it single-phase or three-phase?
It is single-phase. Check the voltage of the PCB and protections with the installer.
Can I buy it with installation?
The price includes VAT and shipping to mainland Spain. Installation is quoted separately based on location, route, and necessary work. The equipment can be purchased now.
Does it come with Wi-Fi included?
Wi-Fi included and control with TCL Home according to the official TCL 2026 catalog: indoor unit MN30SS2, EAN 8720568112527. The reference and the EAN match the component in the Spanish catalog. Please refer to the linked connectivity documentation.
How many years of warranty does the TCL M30S1S2 have?
TCL indicates a standard 3-year warranty for domestic use. We do not advertise 5 years for this reference because it is not explicitly listed in the consulted eligible models. The extended warranty and coverage for professional use must be confirmed with TCL. Consumer legal rights are not affected.
What data is used when TCL publications differ?
Cold: 8.79 kW in the Spanish catalog and 8.80 kW on the TCL website. The displayed cooling capacity (kcal/h) is calculated with 8.79 kW. The data is identified by source; revisions are not exchanged, nor is a discrepant figure used as a recharging instruction.
