TCL M55S3S1 cassette air conditioning
To air condition an open area from the ceiling: cassette TCL M55S3S1 with a nominal cooling capacity of 13,760 frigories/h (16 kW).
- Pipe
- 3/8″ / 5/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 13.760
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: cassette TCL M55S3S1 with a nominal cooling capacity of 13,760 frigories/h (16 kW). It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace several splits for closed rooms. Check height, mounting space, and air distribution. Installation is separate.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does the TCL M55S3S1 include?
Cassette Set 1×1: components grouped according to the TCL table.
| Model | Component | Supply scope |
|---|---|---|
| MN55S3S1 | Cassette indoor unit 840 × 290 × 840 mm · 28.0 kg | 1 included |
| MT5531 | Outdoor unit 1010 × 858 × 436 mm | 1 included |
| NPAN90S1 | Cassette panel 950 × 45 × 950 mm · width × height × depth | 1 included |
The TCL series S technical sheet documents remote control and wall switch for this set. The specific reference of the controls and their photograph are verified with the supply. Installation, piping, supports, wiring, and commissioning are budgeted separately.

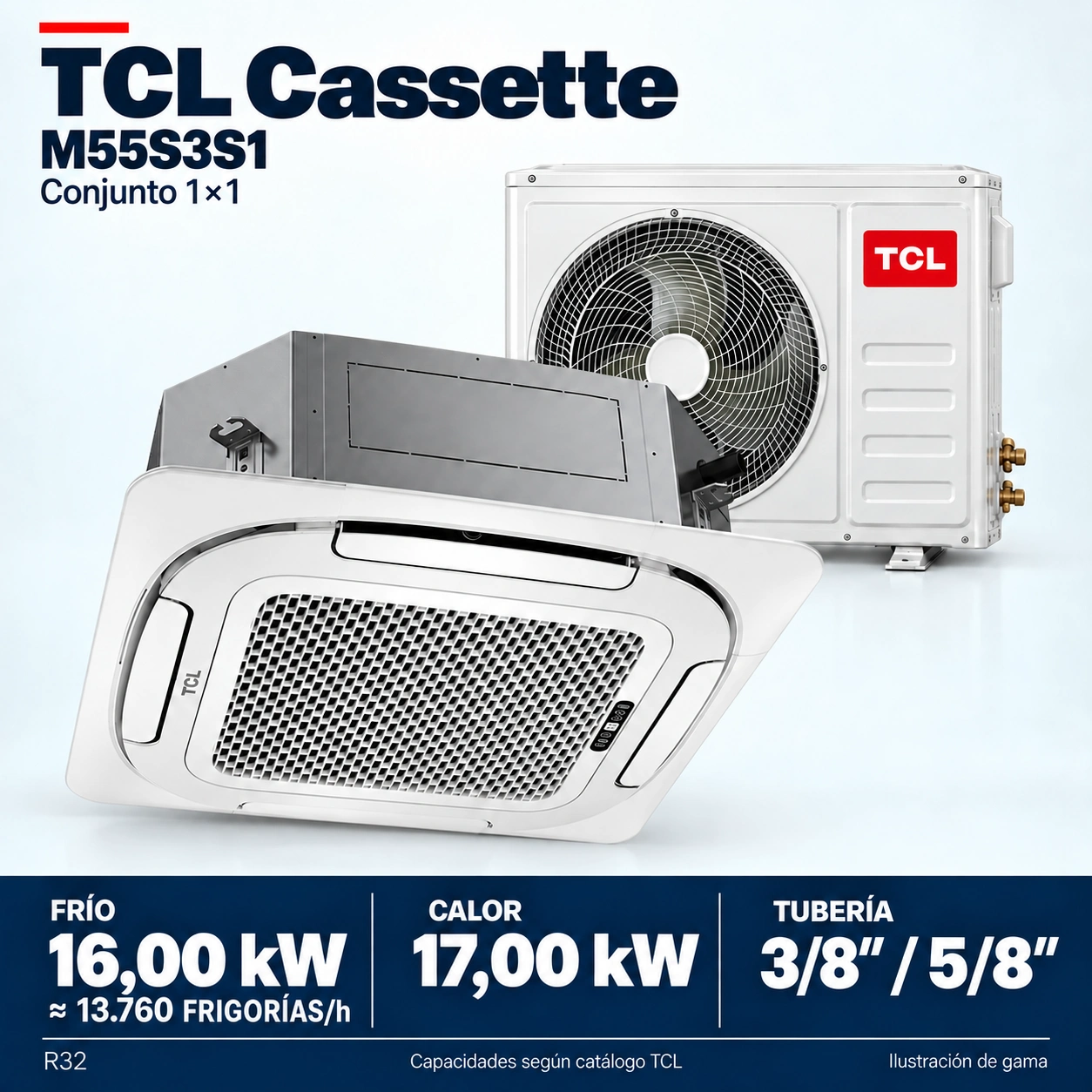

The specifications of the cover come from the Spanish TCL catalog. Check the differences with the manufacturer's website in Technical Data. Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary according to the supplied revision. Indicative image of the remote control. Its design may vary due to updates to the TCL catalog.
What to check before installing TCL M55S3S1
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the cassette body and the NPAN90S1 panel separately. The dimensions of the panel do not match the ceiling cutout; ensure access to drainage and maintenance.
- 3/8″ / 5/8″ pipe. Documented pre-charge for 5 m. The TCL series S technical sheet indicates a maximum of 60 m of travel and 30 m of elevation for M55S3S1. The additional load per meter is still pending from the supplied revision manual.
- The outdoor unit requires three-phase power supply; the catalog distinguishes between indoor power supply of 220 V and outdoor of 380 V. The installer will check the network, protections, and PCB.
- The TCL series S technical sheet documents remote control and wall switch for this set. The specific reference of the controls and their photograph are verified with the supply.
TCL M55S3S1
- Brand
- TCL
- Model and composition
- TCL M55S3S1
- Supply scope
- MN55S3S1 + MT5531 + NPAN90S1
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 840 × 290 × 840 mm width × height × depth
- Exterior
- 1010 × 858 × 436 mm width × height × depth
- Pipe
- 3/8″ · 5/8″ liquid · gas
- Maximum range
- 60 m
- Maximum slope
- 30 m
- Precharge up to
- 5 m
- Factory charge · R32
- 2.60 kg
- Additional load
- Consult the manual of the provided revision.
Load calculation and documentation
Outdoor unit: MT5531. Check PCB and maintenance.
The additional load per length is not confirmed for this reference. Please consult your manual before intervening.
L is the one-way length between interior and exterior, not the sum of both pipes. Outer diameters of refrigerant piping in liquid / gas order.
Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- M55S3S1
Set and power supply - Indoor unit
- MN55S3S1
Set and power supply - Outdoor unit
- MT5531
Set and power supply - Type
- 1×1 cassette · cooling and heating
Set and power supply - Power supply
- Exterior 380 V · three-phase / interior 220 V
Set and power supply - Nominal power in cold conditions
- 16.00 kW
Power and efficiency · Technical catalog TCL 2025–2026. Set and components: PDF page 35 (printed 34). - Approximate nominal cooling capacity
- 13,760 frigories/h
Power and efficiency · Conversion: kW × 860. - Nominal heat output
- 17.00 kW · catalog
Power and efficiency · Catalog: 17.00 kW. TCL website: 18.17 kW. Discrepant documents; the provided revision must be cross-checked with your exact documentation. - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+
Power and efficiency - Interior · width × height × depth
- 840 × 290 × 840 mm
Measures to prepare the installation · TCL series S technical sheet, page 2: 840 × 290 × 840 in width × depth × height; standardized here to width × height × depth. - Exterior · width × height × depth
- 1010 × 858 × 436 mm
Measures to prepare the installation - Net internal weight
- 28.0 kg
Measures to prepare the installation - Net external weight
- To be confirmed
Measures to prepare the installation · Catalog: 82 kg. Web TCL: 88 kg. Discrepant documents; confirm the PCB of the supplied unit before ordering. - Panel
- NPAN90S1
Measures to prepare the installation - Panel · width × height × depth
- 950 × 45 × 950 mm
Measures to prepare the installation · This does not correspond to the cut-out dimensions. The S series technical sheet states 950 × 950 × 45 mm in width × depth × height order. - Pipe · liquid / gas
- 3/8″ / 5/8″
Pipe and refrigerant · Technical catalog TCL 2025–2026. Assembly and components: PDF page 35 (printed 34). - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 2.60 kg
Pipe and refrigerant · Catalog data; check the revision plate provided. - SEER
- 6,1
Efficiency, consumption, and air circulation - SCOP · average climate
- 4
Efficiency, consumption, and air circulation - Nominal consumption in cold
- 5630 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - Nominal heat consumption
- 5610 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - External sound power
- 72 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Interior sound power · S/H/M/L/silence
- 64/61/60/58/54 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Indoor air flow
- 2000 m³/h
Efficiency, consumption, and air circulation - Pipe covered by the precharge
- 5 m
Limits for preparing the installation · TCL Catalog 2026 Portugal, PDF page 12; this is not the maximum distance. - Maximum documented range
- 60 m
Limits for preparing the installation · TCL series S technical sheet, page 2, exact column M55S3S1 / MN55S3S1 / MT5531. Confirm revision. - Maximum documented slope
- 30 m
Limits for preparing the installation · Same technical sheet TCL series S. It does not specify the additional load per meter. - Wi-Fi
- Wi-Fi included
Control and connectivity · Wi-Fi included. The Spanish table for TCL series S explicitly indicates it for M55S3S1, with interior MN55S3S1 and exterior MT5531. Control from TCL Home with a compatible network. - Application
- TCL Home
Control and connectivity · Requires network and configuration compatible with the manual. - TCL warranty
- 3 years · extendable to 5 with registration
Warranty and conditions · Extension subject to eligible purchase, registration within 30 days, and TCL validation. Check the conditions in Documentation.
Before purchasing
- Documentation data linked for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly drawings. Some dimensions, weights, or loads differ between the 2025–2026 catalog and the current TCL sheet. Confirm the revision and its drawing before preparing the installation. Heating: 17.00 kW according to the Spanish catalog; 18.17 kW on the TCL website. The published weights also differ; confirm the revision to prepare supports and assembly.
Documentation
Questions about TCL M55S3S1
How many frigories does this cassette have?
The TCL M55S3S1 unit has a nominal cooling capacity of 13,760 frigories/h (16 kW). The power refers to the complete unit, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of MN55S3S1 and proper air distribution. It offers 16 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of the people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that reason alone just because it has 13,760 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Take into account the square meters of the space, the windows, and the hours of sunlight. This cassette has about 13,760 frigories/h; to determine if it is sufficient, we need to understand the characteristics of the space. Before making a decision, we will review the power and the available space in the false ceiling with you.
Does a large cassette replace several heating points?
Not necessarily. The power of 16.00 kW does not eliminate distances, obstacles, or separated areas. In elongated or compartmentalized spaces, it may be more appropriate to distribute the supply points after calculating the loads.
What does the set include?
Indoor unit cassette MN55S3S1, outdoor unit MT5531, cassette panel NPAN90S1. The TCL series S technical sheet documents the remote control and wall-mounted control for this set. The specific reference of the controls and their photograph are verified with the supply.
What pipe do you need?
3/8″ / 5/8″ pipe. Documented pre-charge for 5 m. The TCL series S technical sheet indicates a maximum of 60 m of travel and 30 m of elevation for M55S3S1. The additional load per meter is still pending from the supplied revision manual.
Are the dimensions of the panel the ceiling opening?
No. The NPAN90S1 panel measures 950 × 45 × 950 mm (width × height × depth), but the space and clearances are taken from the installation plan of the unit.
Is it single-phase or three-phase?
The exterior is three-phase (380 V published); the table indicates 220 V for the interior. The schematic and the label of the supplied equipment must be checked.
Can I buy it with installation?
The price includes VAT and shipping to mainland Spain. Installation is quoted separately based on location, route, and necessary work. The equipment can be purchased now.
Does it come with Wi-Fi included?
Wi-Fi included. The Spanish table TCL series S explicitly indicates it for M55S3S1, with interior MN55S3S1 and exterior MT5531. Control from TCL Home with a compatible network.
How many years of warranty does the TCL M55S3S1 have?
TCL indicates a standard 3-year warranty, and this model is listed for a free extension up to 5 years. The extension requires an eligible purchase in Spain from April 1, 2025, domestic use, registration in the TCL account within 30 calendar days, and validation of the invoice and serial numbers of both units. It is not an automatic 5 years; check TCL's terms and exclusions. Consumer legal rights are not affected.
What data is used when TCL publications differ?
Heat: 17.00 kW according to the Spanish catalog; 18.17 kW on the TCL website. The published weights also differ; confirm the revision to prepare supports and installation. The data is identified by source; revisions are not exchanged, nor is a discrepant figure used as a refilling instruction.
