TCL M18D1W2 ducted air conditioning
To distribute air through a duct installation: 4,042 frigories/h (4.7 kW) nominal of the TCL M18D1W2 unit.
- Pipe
- 1/4″ / 3/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 4.042
- Refrigerant
- R32
Description
To distribute air through a duct installation: 4,042 frigories/h (4.7 kW) nominal of the TCL M18D1W2 unit. A concealed indoor unit feeds the grille network; the distribution among rooms depends on the duct design, not on having a split in each one. Installation and adaptation of the network aside.
The duct network and the position of the grilles must be adapted to the layout of the property. Having multiple grilles does not imply independent control by room: if you need this, a compatible zoning system must be studied.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does TCL M18D1W2 include?

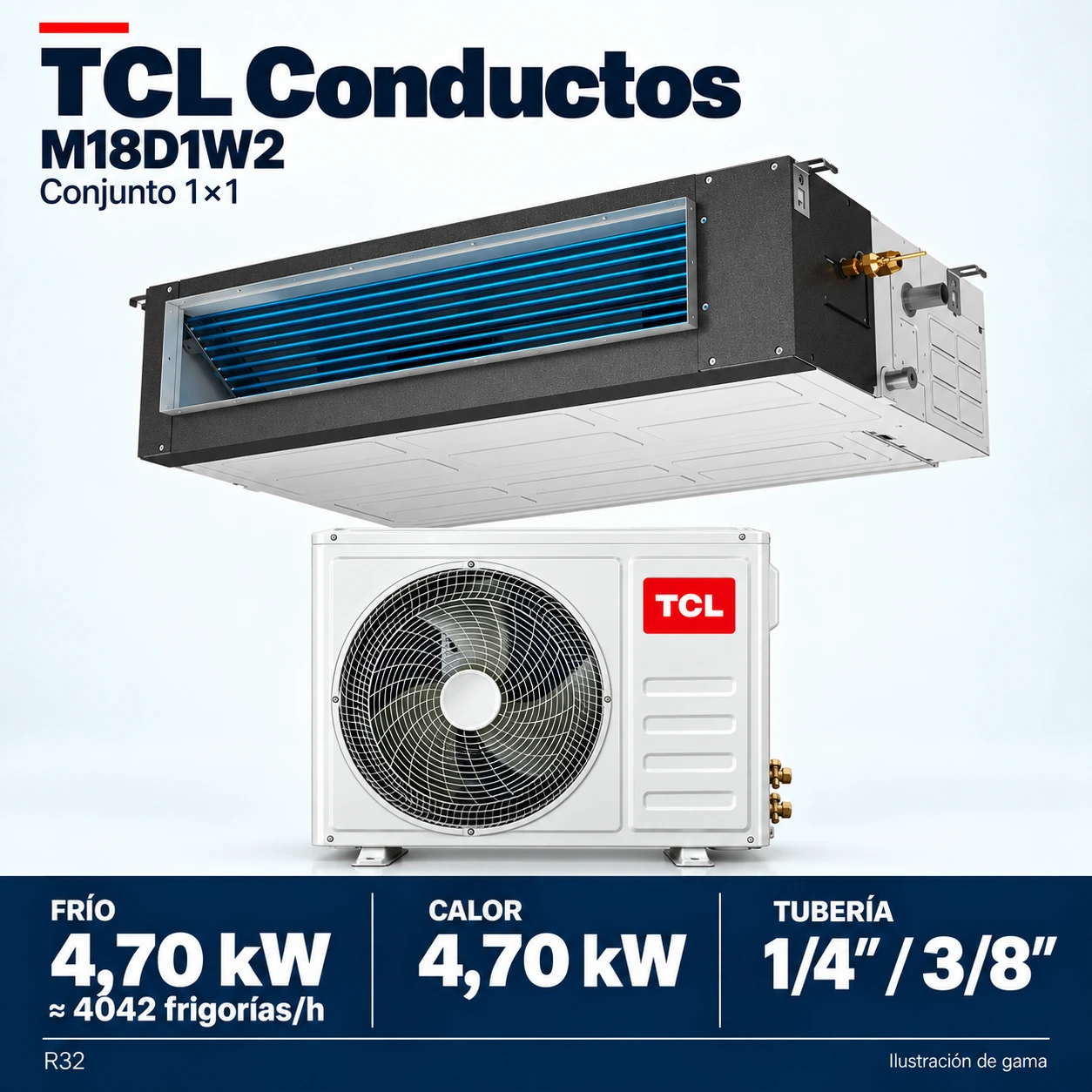

Duct set 1×1: components grouped according to the TCL table.
| Model | Component | Supply scope |
|---|---|---|
| MN18DW2 | Ducted indoor unit 920 × 200 × 490 mm · 18.0 kg | 1 included |
| MT1813 | Outdoor unit 853 × 602 × 349 mm · 30 kg | 1 included |
The image of the wired remote control is indicative of the range; the type, reference, and design of the control will be verified with the supplied review. Installation, piping, supports, wiring, ducts, and grilles, as well as commissioning, are budgeted separately.
Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary depending on the supplied revision. Indicative image of the control. Its design may vary due to updates in the TCL catalog.
What to check before installing TCL M18D1W2
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Reserve space for the interior of 200 mm in height, its connections, the drainage, and the maintenance access points. The duct network and the grilles are sized separately.
- Pipe 1/4″ / 3/8″. Precharge for 5 m; maximum run 25 m and elevation 10 m. The additional load per meter must be checked in the exact manual. The installer must verify the PCB and review before intervening.
- The set is single-phase. The installer will check the voltage of the PCB, the protections, the wiring, and the ventilation distances.
- The image of the wired remote control is indicative of the range; the type, reference, and design of the control will be verified with the supplied review.
TCL M18D1W2
- Brand
- TCL
- Model and composition
- TCL M18D1W2
- Supply scope
- MN18DW2 + MT1813
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 920 × 200 × 490 mm width × height × depth
- Exterior
- 853 × 602 × 349 mm width × height × depth
- Pipe
- 1/4″ · 3/8″ liquid · gas
- Maximum range
- 25 m
- Maximum slope
- 10 m
- Precharge up to
- 5 m
- Factory charge · R32
- 0.96 kg
- Additional load
- Consult the manual of the provided revision.
Load calculation and documentation
Outdoor unit: MT1813. Check PCB and maintenance.
The additional load per length is not confirmed for this reference. Please consult your manual before intervening.
L is the one-way length between interior and exterior, not the sum of both pipes. Outer diameters of refrigerant piping in liquid / gas order.
Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- M18D1W2
Set and power supply - Indoor unit
- MN18DW2
Set and power supply - Outdoor unit
- MT1813
Set and power supply - Type
- Ducts 1×1 · cooling and heating
Set and power supply - Power supply
- 220 V · single-phase
Set and power supply - Nominal power in cold conditions
- 4.70 kW
Power and efficiency · Technical catalog TCL 2025–2026. Assembly and components: PDF page 32 (printed 31). - Approximate nominal cooling capacity
- 4042 frigories/h
Power and efficiency · Conversion: kW × 860. - Nominal heat output
- 4.70 kW
Power and efficiency · Technical catalog TCL 2025–2026. Assembly and components: PDF page 32 (printed 31). - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+
Power and efficiency - Interior · width × height × depth
- 920 × 200 × 490 mm
Measures to prepare the installation - Net internal weight
- 18.0 kg
Measures to prepare the installation - Net external weight
- 30 kg
Measures to prepare the installation - Exterior · width × height × depth
- 853 × 602 × 349 mm
Measures to prepare the installation · TCL, technical sheet of the current model; matches the MT1813 duct table. - Pipe · liquid / gas
- 1/4″ / 3/8″
Pipe and refrigerant · Technical catalog TCL 2025–2026. Assembly and components: PDF page 32 (printed 31). - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 0.96 kg
Pipe and refrigerant · Catalog data; check the revision plate provided. - SEER
- 6,1
Efficiency, consumption, and air circulation - SCOP · average climate
- 4
Efficiency, consumption, and air circulation - Nominal consumption in cold
- 1480 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - Nominal heat consumption
- 1390 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - External sound power
- 65 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Interior sound power · S/H/M/L/silence
- 56/53/48/42/38 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Indoor air flow
- 850 m³/h
Efficiency, consumption, and air circulation - Nominal external static pressure
- 25 Pa
Efficiency, consumption, and air circulation - Adjustable external static pressure
- 0-100 Pa
Efficiency, consumption, and air circulation - Pipe covered by the precharge
- 5 m
Limits for preparing the installation · TCL Catalog 2026 Portugal, PDF page 11; it is not the maximum run. - Maximum range
- 25 m
Limits for preparing the installation · Official TCL Europe table for this reference. - Maximum slope
- 10 m
Limits for preparing the installation · Between the indoor and outdoor units. - Wi-Fi
- Wi-Fi included
Control and connectivity · Wi-Fi included and control with TCL Home according to the official TCL 2026 catalog: indoor unit MN18DW2, EAN 8720568107400. The reference and the EAN match the component in the Spanish catalog. Please refer to the linked connectivity documentation. - Application
- TCL Home
Control and connectivity · Remote control via TCL Home; requires a network and configuration compatible with the manual. - TCL warranty
- 3 years · extendable to 5 with registration
Warranty and conditions · Extension subject to eligible purchase, registration within 30 days, and TCL validation. Check the conditions in Documentation.
Before purchasing
- Data from the linked documentation for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly diagrams.
Documentation
Questions about TCL M18D1W2
How many frigories does this ducted unit have?
The TCL M18D1W2 unit declares a nominal cooling capacity of 4,042 frigories/h (4.7 kW). This is the total capacity that must be distributed through the duct network; it does not correspond to each grille or room.
Can it cool the living room and the bedrooms?
It can be part of an installation that serves multiple rooms, as long as the total load and duct design match its 4.7 kW nominal capacity. It has a single indoor unit (MN18DW2), not a separate split in each room. It is necessary to check flow rates, pressure losses, and air return for each room.
What happens if some rooms get colder than others?
Before choosing a more powerful unit, it is advisable to check the air distribution through the grilles and ensure that the ducts reach each room properly. This unit offers about 4,042 frigorías/h. Let us know which rooms you want to cool; the installer will also need to verify that the ducts can accommodate the chosen unit.
Can I replace my old unit with this one without making any changes?
It is not confirmed just by matching the cooling capacity. Before replacing it with TCL M18D1W2, check the dimensions and access of the false ceiling, power supply, refrigerant and acceptable pipes, drainage, flow rate, and available pressure. The technical sheet and a review of the installation determine what can be reused.
Does an interior of 200 mm fit in a false ceiling of 200 mm?
No: the 200 mm is the height of the body, excluding the mounting space, insulation, connections, drainage, and access to the filter. The installer must check the set of those requirements and the air return.
What does the set include?
Indoor duct unit MN18DW2, outdoor unit MT1813. The image of the wired remote control is indicative of the range; the type, reference, and design of the control will be verified with the supplied review.
What pipe do you need?
Pipe 1/4″ / 3/8″. Precharge for 5 m; maximum run 25 m and elevation 10 m. The additional load per meter must be checked in the exact manual. The installer must verify the PCB and review before intervening.
Is it single-phase or three-phase?
It is single-phase. Check the voltage of the PCB and protections with the installer.
Can I buy it with installation?
The price includes VAT and shipping to mainland Spain. Installation is quoted separately based on location, route, and necessary work. The equipment can be purchased now.
Does it come with Wi-Fi included?
Wi-Fi included and control with TCL Home according to the official TCL 2026 catalog: indoor unit MN18DW2, EAN 8720568107400. The reference and the EAN match the component in the Spanish catalog. Please refer to the linked connectivity documentation.
How many years of warranty does the TCL M18D1W2 have?
TCL indicates a standard 3-year warranty, and this model is listed for a free extension up to 5 years. The extension requires an eligible purchase in Spain from April 1, 2025, domestic use, registration in the TCL account within 30 calendar days, and validation of the invoice and serial numbers of both units. It is not an automatic 5 years; check TCL's terms and exclusions. Consumer legal rights are not affected.
