TCL M55D3W1 ducted air conditioning

To distribute air through a duct installation: 13,760 frigories/h (16 kW) nominal of the TCL M55D3W1 unit.

Pipe: 3/8″ / 5/8″
Wi-Fi: Yes, included.
kcal/h: ≈ 13.760
Refrigerant: R32

Description

To distribute air through a duct installation: 13,760 frigories/h (16 kW) nominal of the TCL M55D3W1 unit. A concealed indoor unit feeds the grille network; the distribution between rooms depends on the duct design, not on having a split in each one. Installation and adaptation of the network aside.

The duct network and the position of the grilles must be adapted to the layout of the property. Having multiple grilles does not imply independent control by room: if you need this, a compatible zoning system must be studied.

Wi-Fi is included to manage the equipment from the manufacturer's compatible application.

Components and supply

What does TCL M55D3W1 include?

Duct set 1×1: components grouped according to the TCL table.

Model	Component	Supply scope
MN55D3W1	Ducted indoor unit 1400 × 250 × 700 mm · 40.0 kg	1 included
MT5531	Outdoor unit 1010 × 858 × 436 mm · 82 kg	1 included

Wired remote control included as per catalog; does not include wireless remote control. Control reference to be confirmed when requesting the supply. Installation, pipes, supports, wiring, ducts, and grilles, as well as commissioning, are quoted separately.

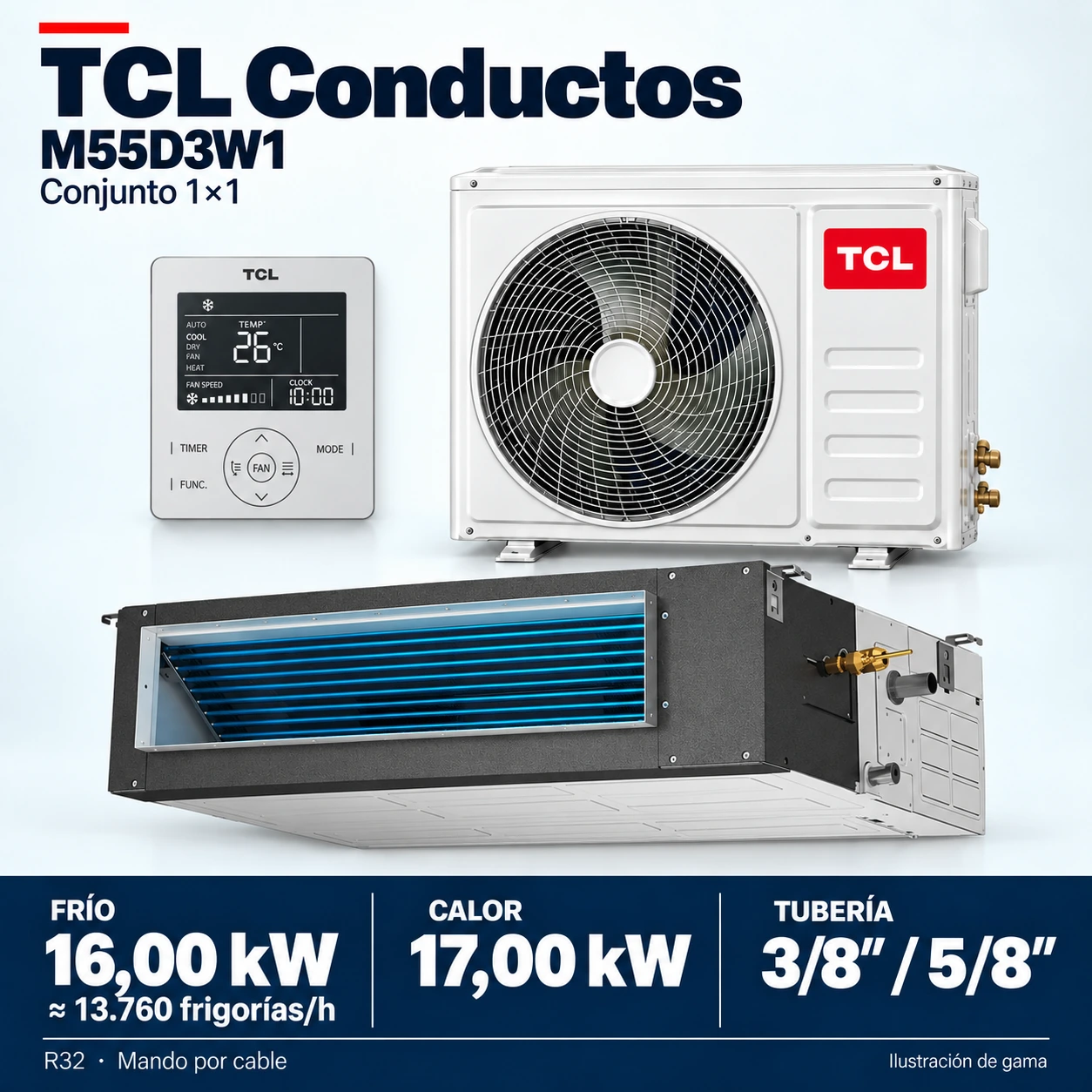

Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary depending on the supplied revision. Indicative image of the control. Its design may vary due to updates in the TCL catalog.

Guide

What to check before installing TCL M55D3W1

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Reserve space for the interior of 250 mm in height, its connections, the drainage, and the maintenance access points. The duct network and the grilles are sized separately.
Refrigerant connections 3/8″ / 5/8″. The maximum length, the height difference, and the additional load of R32 are calculated using the installation manual of the provided revision.
The outdoor unit requires three-phase power supply; the catalog distinguishes between indoor power supply of 220 V and outdoor of 380 V. The installer will check the network, protections, and PCB.
Wired remote control included as per catalog; wireless remote control not included. Control reference to be confirmed when requesting the supply.

Technical data

TCL M55D3W1

Brand: TCL
Model and composition: TCL M55D3W1
Supply scope: MN55D3W1 + MT5531
Installation: Not included
Availability and transport: In stock. VAT and shipping to mainland Spain included. Installation not included.

Installation at a glance

Interior: 1400 × 250 × 700 mm width × height × depth
Exterior: 1010 × 858 × 436 mm width × height × depth
Pipe: 3/8″ · 5/8″ liquid · gas
Maximum range: To be confirmed
Maximum slope: To be confirmed
Precharge up to: 5 m
Factory charge · R32: 2.60 kg
Additional load: Consult the manual of the provided revision.

Load calculation and documentation

Outdoor unit: MT5531. Check PCB and maintenance.

The additional load per length is not confirmed for this reference. Please consult your manual before intervening.

L is the one-way length between interior and exterior, not the sum of both pipes. Outer diameters of refrigerant piping in liquid / gas order.

Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.

Specifications and dimensions of the model

Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.

Set: M55D3W1
Set and power supply
Indoor unit: MN55D3W1
Set and power supply
Outdoor unit: MT5531
Set and power supply
Type: Ducts 1×1 · cooling and heating
Set and power supply
Power supply: Exterior 380 V · three-phase / interior 220 V
Set and power supply
Nominal power in cold conditions: 16.00 kW
Power and efficiency · Technical catalog TCL 2025–2026. Assembly and components: PDF page 32 (printed 31).
Approximate nominal cooling capacity: 13,760 frigories/h
Power and efficiency · Conversion: kW × 860.
Nominal heat output: 17.00 kW
Power and efficiency · Technical catalog TCL 2025–2026. Assembly and components: PDF page 32 (printed 31).
Energy class in cold: A++
Power and efficiency
Energy class in heating: A+
Power and efficiency
Interior · width × height × depth: 1400 × 250 × 700 mm
Measures to prepare the installation
Exterior · width × height × depth: 1010 × 858 × 436 mm
Measures to prepare the installation
Net internal weight: 40.0 kg
Measures to prepare the installation
Net external weight: 82 kg
Measures to prepare the installation
Pipe · liquid / gas: 3/8″ / 5/8″
Pipe and refrigerant · Technical catalog TCL 2025–2026. Assembly and components: PDF page 32 (printed 31).
Refrigerant: R32
Pipe and refrigerant
Factory published load: 2.60 kg
Pipe and refrigerant · Catalog data; check the revision plate provided.
Pipe covered by the precharge: 5 m
Limits for preparing the installation · TCL Catalog 2026 Portugal, PDF page 11; it is not the maximum run.
Wi-Fi: Wi-Fi included
Control and connectivity · Wi-Fi included. The Spanish technical sheet for TCL ducted systems identifies the M55D3W1 unit with indoor MN55D3W1 and outdoor MT5531, and indicates Wi-Fi in its equipment. Control from TCL Home with a compatible network.
Application: TCL Home
Control and connectivity · Requires network and configuration compatible with the manual.
TCL warranty: 3 years · extendable to 5 with registration
Warranty and conditions · Extension subject to eligible purchase, registration within 30 days, and TCL validation. Check the conditions in Documentation.

Before purchasing

Data from the linked documentation for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly diagrams.

Documentation

Frequently asked questions

Questions about TCL M55D3W1

How many frigories does this ducted unit have?

The TCL M55D3W1 unit declares a nominal cooling capacity of 13,760 frigories/h (16 kW). This is the total capacity that must be distributed through the duct network; it does not correspond to each grille or room.

Can it cool the living room and the bedrooms?

It can be part of an installation that serves multiple rooms, as long as the total load and duct design match its 16 kW nominal capacity. It has a single indoor unit (MN55D3W1), not a separate split in each room. Airflows, pressure losses, and air return for each room need to be checked.

What happens if some rooms get colder than others?

Before choosing a more powerful unit, it is advisable to check the air distribution through the grilles and ensure that the ducts reach each room properly. This unit offers about 13,760 frigorías/h. Let us know which rooms you want to cool; the installer will also need to verify that the ducts can accommodate the chosen unit.

Can I replace my old unit with this one without making any changes?

It is not confirmed just by matching the cooling capacity. Before replacing it with TCL M55D3W1, check the dimensions and access of the false ceiling, power supply, refrigerant and acceptable pipes, drainage, flow rate, and available pressure. The technical sheet and a review of the installation determine what can be reused.

What else needs to be checked besides the power?

The published interior measures 1400 mm in width and the exterior requires three-phase power supply. Access, location, and electricity conditions are as follows: also check the air return, the duct network, and maintenance before sizing the installation.

What does the set include?

Indoor duct unit MN55D3W1, outdoor unit MT5531. Wired remote control included as per catalog; does not include wireless remote control. Control reference to be confirmed when requesting supply.

What pipe do you need?

Liquid 3/8″ and gas 5/8″. The additional load and travel limits must be checked in the exact manual; they are not calculated solely by diameter.

How much false ceiling do you need?

The body is 250 mm high. The mounting space, drainage, connections, and service must be added; this figure should not be taken as the minimum false ceiling.

Is it single-phase or three-phase?

The exterior is three-phase (380 V published); the table indicates 220 V for the interior. The schematic and the label of the supplied equipment must be checked.

Can I buy it with installation?

The price includes VAT and shipping to mainland Spain. Installation is quoted separately based on location, route, and necessary work. The equipment can be purchased now.

Does it come with Wi-Fi included?

Wi-Fi included. The Spanish technical sheet for TCL ducted systems MSP identifies the M55D3W1 unit with indoor MN55D3W1 and outdoor MT5531, and indicates Wi-Fi in its equipment. Control from TCL Home with a compatible network.

How many years of warranty does the TCL M55D3W1 have?

TCL indicates a standard 3-year warranty, and this model is listed for a free extension up to 5 years. The extension requires an eligible purchase in Spain from April 1, 2025, domestic use, registration in the TCL account within 30 calendar days, and validation of the invoice and serial numbers of both units. It is not an automatic 5 years; check TCL's terms and exclusions. Consumer legal rights are not affected.
