3 years Domestic use Indicative image of the remote control. Its design may vary due to updates in the TCL catalog.

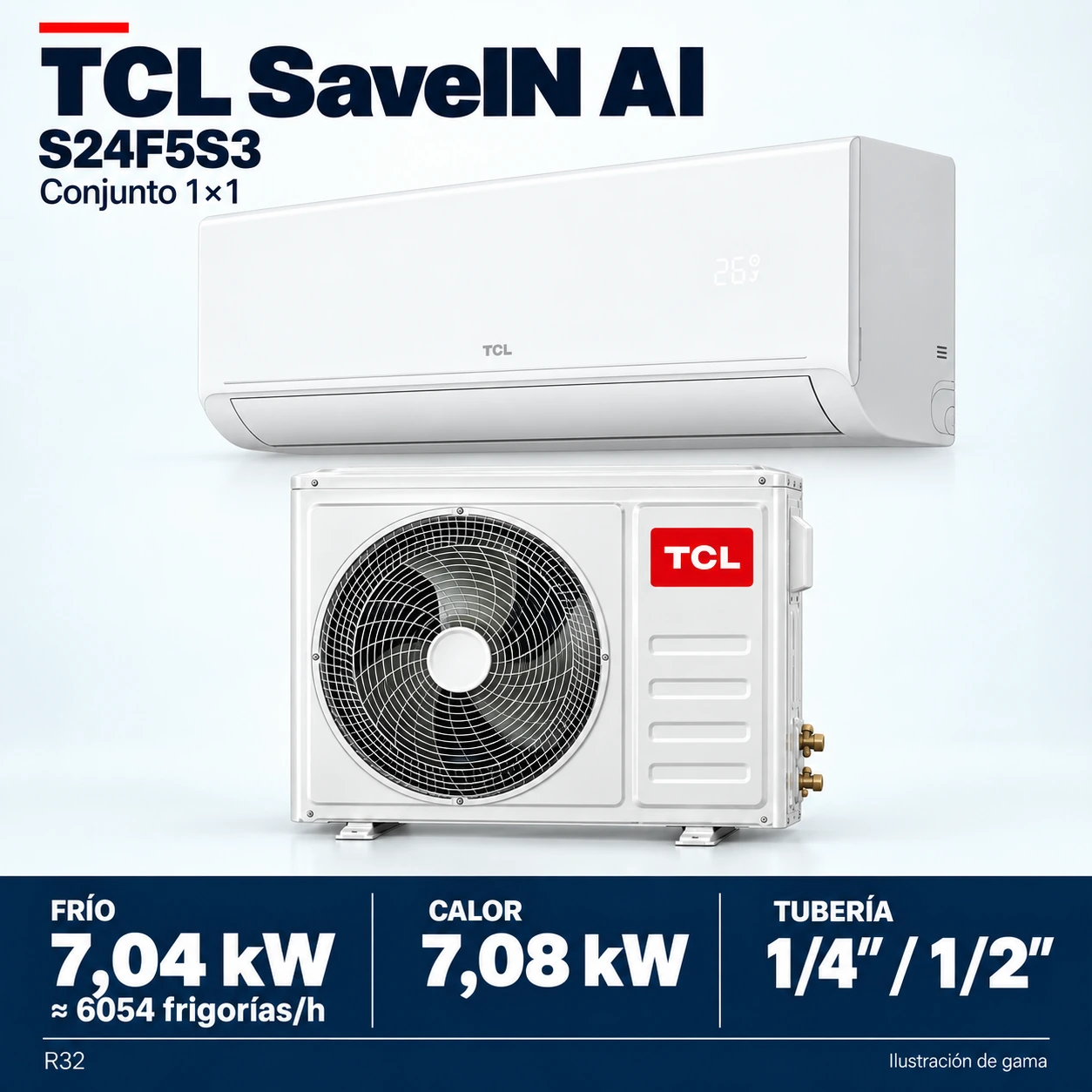

TCL SaveIN AI S24F5S3 split air conditioning
To air condition a room with a wall-mounted split: 6,054 frigories/h (7.04 kW) nominal in cooling.
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 6.054
- Refrigerant
- R32
Description
To climate control a room with a wall-mounted split: 6,054 frigories/h (7.04 kW) nominal cooling capacity. TCL S24F5S3 includes an indoor and an outdoor unit; it is not a system for distributing cold independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation is separate.
The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does TCL S24F5S3 include?
A split set 1×1: one indoor unit connected to one outdoor unit.
| Model | Component | Supply scope |
|---|---|---|
| SN24F5S3 | Wall-mounted indoor unit 1005 × 321.5 × 220 mm · 11.0 kg | 1 included |
| ST24F3 | Outdoor unit 920 × 699 × 380 mm · 38 kg | 1 included |
Includes remote control. Installation, pipes, supports, wiring, and commissioning not included.
Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary depending on the supplied revision. Indicative image of the control. Its design may vary due to updates in the TCL catalog.
What to check before installing TCL S24F5S3
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the gaps: interior 1005 × 321.5 × 220 mm; exterior 920 × 699 × 380 mm. Add the ventilation and service clearances indicated in the manual.
- 1/4″ / 1/2″ pipe. Precharge for 5 m; maximum run 25 m and maximum height difference 10 m. Add 25 g/m of R32 for each meter that exceeds 5 m, according to the technical sheet of this reference. Verification and adjustment by a qualified installer.
- Evaluate orientation, insulation, and use of the room; the cooling capacity does not replace the calculation of thermal load. Request separately installation, materials, and commissioning.
TCL S24F5S3
- Brand
- TCL
- Model and composition
- TCL S24F5S3
- Supply scope
- SN24F5S3 + ST24F3 set, with remote control.
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 1005 × 321.5 × 220 mm width × height × depth
- Exterior
- 920 × 699 × 380 mm width × height × depth
- Pipe
- 1/4″ · 1/2″ liquid · gas
- Maximum range
- 25 m
- Maximum slope
- 10 m
- Precharge up to
- 5 m
- Factory charge · R32
- 1.14 kg
- Additional load
- 25 g/m starting from 5 m
Load calculation and documentation
Outdoor unit: ST24F3. Check PCB and inspection.
Additional load: 25 × (L − 5) g, only when L exceeds 5 m and does not exceed 25 m of travel.
L is the one-way length between interior and exterior, not the sum of both pipes. Outer diameters of refrigerant piping in liquid / gas order.
Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- S24F5S3
Identification and control - Indoor unit
- SN24F5S3
Identification and control - Outdoor unit
- ST24F3
Identification and control - Type
- 1×1 split wall-mounted unit · cooling and heating
Identification and control - Published supply
- 220 V · single-phase
Identification and control - Nominal power in cold conditions
- 7.04 kW
Power and efficiency · TCL SaveIN AI technical sheet 2026. Table of assemblies, capacities, dimensions, sound, and pre-charge; printed page 7. TCL document hosted by distributor. - Variable capacity in cooling
- 1.50–7.80 kW
Power and efficiency - Approximate nominal cooling capacity
- 6054 frigories/h
Power and efficiency · Indicative conversion: kW × 860. - Nominal heat output
- 7.08 kW
Power and efficiency · TCL SaveIN AI technical sheet 2026. Table of assemblies, capacities, dimensions, sound, and pre-charge; printed page 7. TCL document hosted by distributor. - Variable capacity in heating
- 1.50–7.90 kW
Power and efficiency - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+ · average climate / A+++ · warm climate
Power and efficiency - Interior · width × height × depth
- 1005 × 321.5 × 220 mm
Dimensions and sound - Exterior · width × height × depth
- 920 × 699 × 380 mm
Dimensions and sound - Net internal weight
- 11.0 kg
Dimensions and sound - Net external weight
- 38 kg
Dimensions and sound - Minimum published interior sound pressure
- 30 dB(A)
Dimensions and sound · Minimum value of the speed table; it does not equate to sound power. - External sound pressure
- 57 dB(A)
Dimensions and sound - External sound power
- 67 dB(A)
Dimensions and sound - Pipe · liquid / gas
- 1/4″ / 1/2″
Tubería y refrigerante · TCL SaveIN AI 2026. Table of assemblies, capacities, dimensions, sound, and pre-charge; printed page 7. Document hosted by distributor. - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 1.14 kg
Pipe and refrigerant - Length covered by the precharge
- 5 m
Pipe and refrigerant · It is not the maximum allowed length. - SEER
- 6,4
Efficiency, consumption, and air circulation - SCOP · average climate
- 4
Efficiency, consumption, and air circulation - Nominal consumption in cold
- 2324 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - Nominal heat consumption
- 2178 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - Interior sound power · S/H/M/L/silence
- 58/56/51/46/40 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Air flow · cooling/heating
- 1000/1000 m³/h
Efficiency, consumption, and air circulation - Wi-Fi
- Wi-Fi included
Control and connectivity · Mobile control with TCL Home. Wi-Fi included as per the documentation of the range. - Application
- TCL Home
Control and connectivity · Wi-Fi included; requires a compatible network and setup. - Remote control
- Included
Control and connectivity · Type documented in the detailed technical sheet of this reference. - TCL warranty
- 3 years for domestic use
Warranty and conditions · The extension to 5 years is not confirmed for this reference. Check the conditions in Documentation. - Maximum documented range
- 25 m
Limits for preparing the installation · Detailed sheet SaveIN AI F5: exact reference column. Check revision and PCB before installation. - Maximum documented slope
- 10 m
Limits for preparing the installation · Detailed sheet SaveIN AI F5: exact reference column. Check revision and PCB before installation. - Additional load by length
- 25 g/m above 5 m
Limits for preparing the installation · Applicable only within the permitted range and by a qualified installer.
Before purchasing
- Verified data of SaveIN AI F5: nominal testing capacities; dimensions in width × height × depth. The preload covers 5 m, with a maximum travel of 25 m and a height difference of 10 m. The plate and the supplied revision manual take precedence before intervention.
Documentation
Questions about TCL S24F5S3
Why would you choose the most powerful TCL among these four?
I would compare it for a large room that needs a lot of cooling: it offers about 6,050 frigories. I wouldn't buy it just because it's the most powerful. If your living room doesn't overheat that much, also consider the TCL S18F5S3 with approximately 4,420 frigories..
Will this work for sure if I live in a penthouse?
Not only for choosing the large one. A small attic with good insulation and an open, very sunny one without insulation require different things. Before purchasing it, tell us the square meters and what the ceiling is like; this way we can avoid you getting one that is too large or that still falls short.
Does it work for multiple rooms if I leave the doors open?
We do not recommend it as a substitute for a 2x1 or a 3x1. It will primarily cool the area where it is installed; having more power does not ensure that the air reaches separate bedrooms equally.
And what if I only want air for a bedroom?
For a small bedroom, I wouldn't start with this model. First, compare the TCL S09F5S3 or the TCL S12F5S3Increasing to about 6,050 frigories only makes sense if the space truly requires that capacity.
Does it fit in the same space as a small split?
Not necessarily: the indoor unit measures just over one meter in width. Check the space before purchasing it and leave room around it for air circulation and cleaning.
Can I turn it on from my mobile?
Yes. It comes with built-in Wi-Fi, works with TCL Home, and also includes a remote control.
Is it ready to plug in and use?
It is not a portable air conditioning unit. You receive the indoor and outdoor units along with the remote control, but it requires professional installation. The assembly and its materials are not included in the price.
What warranty does it have?
TCL indicates 3 years for domestic use in Spain. We do not include an extension to 5 years for this reference.
