TCL S24P4S2 split air conditioning unit

To air condition a room with a wall-mounted split: 6,037 frigories/h (7.02 kW) nominal in cooling.

Pipe: 1/4″ / 1/2″
Wi-Fi: Yes, included.
kcal/h: ≈ 6.037
Refrigerant: R32

Description

To climate control a room with a wall-mounted split: 6,037 frigories/h (7.02 kW) nominal in cooling. TCL S24P4S2 includes an indoor and an outdoor unit; it is not a system for distributing cooling independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation not included.

The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.

Wi-Fi is included to manage the equipment from the manufacturer's compatible application.

Components and supply

What does TCL S24P4S2 include?

Wall-mounted split set 1×1: components grouped according to the TCL table.

Model	Component	Supply scope
SN24P4S0	Wall-mounted indoor unit 1100 × 333 × 222 mm · 14.0 kg · reference pending confirmation	1 included
ST24P2	Outdoor unit 920 × 699 × 380 mm	1 included

The internal reference will be checked according to the provided revision. The displayed control is indicative and its design may vary due to updates in the TCL catalog. Installation, piping, supports, and commissioning are separate.

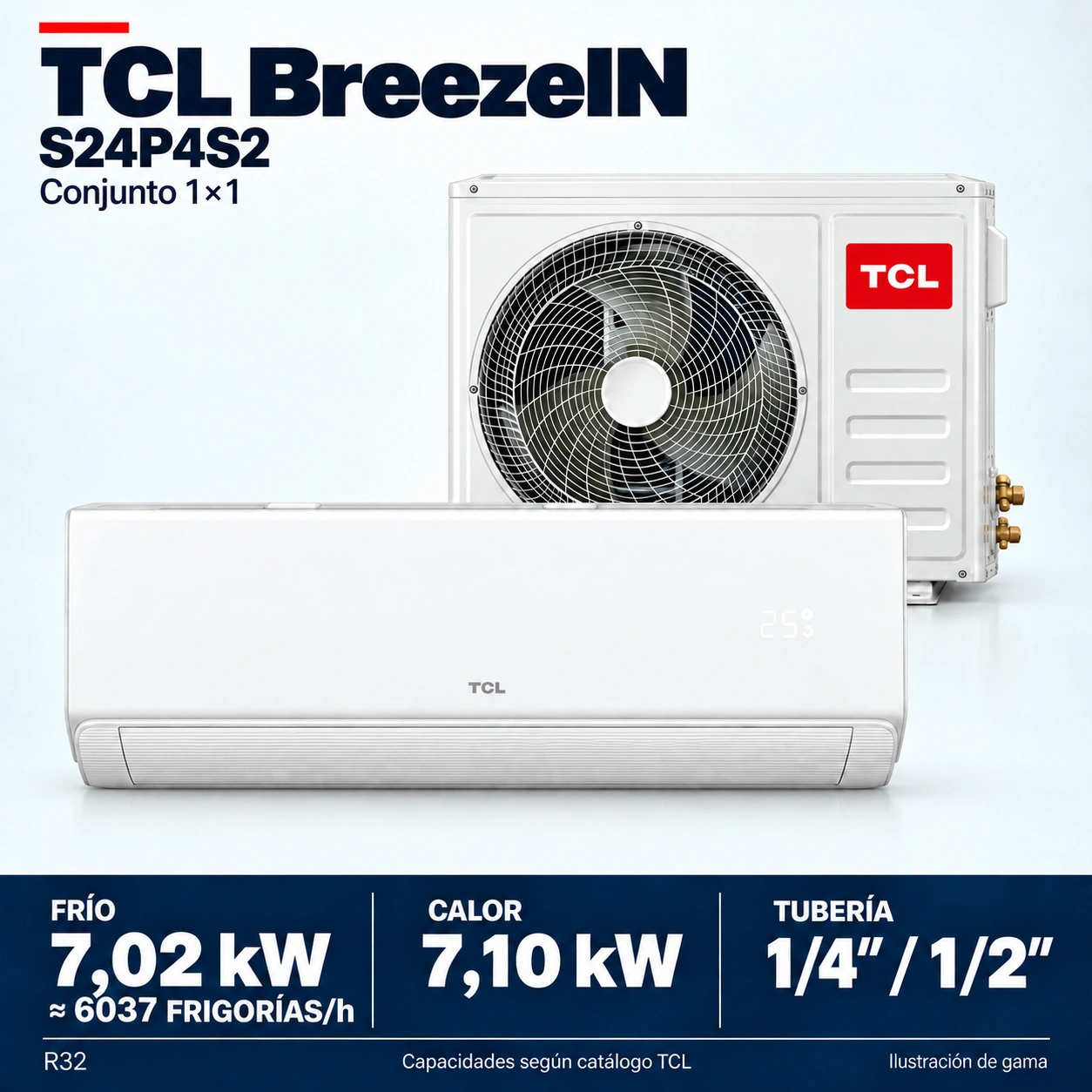

The specifications of the cover come from the Spanish TCL catalog. Check the differences with the manufacturer's website in Technical Data. Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary according to the supplied revision. Indicative image of the remote control. Its design may vary due to updates to the TCL catalog.

Guide

What to check before installing TCL S24P4S2?

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Calculate the thermal load of the room based on orientation, insulation, glazing, and occupancy; a fixed equivalence between kW and m² is not sufficient.
Refrigeration connections 1/4″ / 1/2″. The maximum length, the height difference, and the additional load of R32 are calculated using the installation manual of the supplied revision.
The set is single-phase. The installer will check the voltage of the PCB, the protections, the wiring, and the ventilation distances.
The image shows a wireless remote control from the TCL range; its design and reference may vary due to catalog updates.

Technical data

TCL S24P4S2

Brand: TCL
Model and composition: TCL S24P4S2
Supply scope: SN24P4S0 + ST24P2
Installation: Not included
Availability and transport: In stock. VAT and shipping to mainland Spain included. Installation not included.

Installation at a glance

Interior: 1100 × 333 × 222 mm width × height × depth
Exterior: 920 × 699 × 380 mm width × height × depth
Pipe: 1/4″ · 1/2″ liquid · gas
Maximum range: To be confirmed
Maximum slope: To be confirmed
Precharge up to: 5 m
Factory charge · R32: Consult PCB
Additional load: Consult the manual of the provided revision.

Load calculation and documentation

Outdoor unit: ST24P2; factory load discrepancy between documents, check the PCB. Verify the PCB and inspection.

The additional load per length is not confirmed for this reference. Please consult your manual before intervening.

L is the one-way length between interior and exterior, not the sum of both pipes. Outer diameters of refrigerant piping in liquid / gas order.

Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.

Specifications and dimensions of the model

Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.

Set: S24P4S2
Set and power supply
Indoor unit: SN24P4S0
Set and supply · The Spanish catalog indicates SN24P4S0 and the Portuguese one 2026 SN24P4S2. Please confirm the label of the supplied pair.
Outdoor unit: ST24P2
Set and power supply
Type: 1×1 split wall-mounted unit · cooling and heating
Set and power supply
Power supply: 220 V · single-phase
Set and power supply
Nominal power in cold conditions: 7.02 kW · catalog
Power and efficiency · Catalog: 7.02 kW. TCL website: 6.84 kW. Discrepant documents; the provided revision must be compared with your exact documentation.
Approximate nominal cooling capacity: 6,037 Frigories/h · catalog
Power and efficiency · Calculated with 7.02 kW. The TCL website publishes 6.84 kW, equivalent to about 5,882 frigories/h.
Nominal heat output: 7.10 kW · catalog
Power and efficiency · Catalog: 7.10 kW. TCL website: 7.05 kW. Discrepant documents; the supplied revision must be cross-checked with your exact documentation.
Energy class in cold: A++
Power and efficiency
Energy class in heating: A+
Power and efficiency
Interior · width × height × depth: 1100 × 333 × 222 mm
Measures to prepare the installation
Exterior · width × height × depth: 920 × 699 × 380 mm
Measures to prepare the installation
Net internal weight: 14.0 kg
Measures to prepare the installation
Net external weight: To be confirmed
Measures to prepare the installation · Catalog: 39 kg. TCL website: 38 kg. Discrepant documents; confirm the PCB of the supplied unit before ordering.
Pipe · liquid / gas: 1/4″ / 1/2″
Pipe and refrigerant · Technical catalog TCL 2025–2026. Assembly and components: PDF page 22 (printed 21).
Refrigerant: R32
Pipe and refrigerant
Factory published load: According to the PCB
Pipe and refrigerant · Catalog: 1.07 kg; TCL website: 1.11 kg. Do not use any of these values as a refill order without checking the exact PCB and manual.
Standard published length: 5 m
Pipe and refrigerant · Does not correspond to the maximum allowable length.
Pipe covered by the precharge: 5 m
Limits for preparing the installation · TCL Catalog 2026 Portugal, PDF page 6; it is not the maximum distance.
Wi-Fi: Wi-Fi included
Control and connectivity · Mobile control with TCL Home. Wi-Fi included as per the documentation of the range.
Application: TCL Home
Control and connectivity · Check compatible module and revision for available functions.
TCL warranty: 3 years for domestic use
Warranty and conditions · The extension to 5 years is not confirmed for this reference. Check the conditions in Documentation.

Before purchasing

Documentation data linked for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly plans. Cooling: 7.02 kW according to the catalog; 6.84 kW on the TCL website. Heating: 7.10 versus 7.05 kW. The internal reference also differs between documents; confirm the supplied pair.

Documentation

Frequently asked questions

Questions about TCL S24P4S2

How many frigories does it have and how many rooms is it suitable for?

This unit has a nominal cooling capacity of 6,037 frigories/h (7.02 kW) and a single indoor unit (SN24P4S0). It is designed for a room or an open space that has been sized as such. It is not equivalent to a 2x1 for two closed rooms.

Is it an option if I am looking for an air conditioning unit of 6,000 frigories?

The exact figure for this combination is approximately 6,037 frigories/h nominal (7.02 kW), above 6,000. If the calculation for your room requires at least 6,000 frigories/h, also compare the capacity at the expected outdoor temperature and the margin indicated by the installer.

Is it suitable for a bedroom with a lot of sunlight?

It can be useful, but it's important to know how much your bedroom heats up, especially if it gets afternoon sun or is under the roof. This unit offers about 6,037 frigories/h. Tell us the square meters and if the ceiling is insulated: we will help you choose the power and check the noise level of the split for sleeping.

How do I know if it has enough power for my living room?

To choose the power, you need to consider the size of the living room, how much sunlight it receives, and the insulation. This unit has about 6,037 frigorías/h; before increasing the power, it's advisable to check if it's insufficient for your living room. Tell us the square meters and how much sunlight it receives, and we will help you choose.

What does the set include?

Wall-mounted indoor unit SN24P4S0, outdoor unit ST24P2. The image shows a wireless remote control from the TCL range; its design and reference may vary due to catalog updates. The code for the indoor unit differs between catalogs and will be verified with the supplied revision.

What pipe do you need?

Liquid 1/4″ and gas 1/2″. The additional load and travel limits must be checked in the exact manual; they are not calculated solely by the diameter.

Is it single-phase or three-phase?

It is single-phase. Check the voltage of the PCB and protections with the installer.

Can I buy it with installation?

The price includes VAT and shipping to mainland Spain. Installation is quoted separately based on location, route, and necessary work. The equipment can be purchased now.

Does it come with Wi-Fi included?

Control from the mobile with TCL Home. Wi-Fi included according to the documentation of the range.

How many years of warranty does the TCL S24P4S2 have?

TCL indicates a standard 3-year warranty for domestic use. We do not advertise 5 years for this reference because it is not explicitly listed in the consulted eligible models. The extended warranty and coverage for professional use must be confirmed with TCL. Consumer legal rights are not affected.

What data is used when TCL publications differ?

Cooling: 7.02 kW according to the catalog; 6.84 kW on the TCL website. Heating: 7.10 versus 7.05 kW. The internal reference also differs between documents; confirm the supplied pair. The data is identified by source; revisions are not exchanged, nor is a discrepant figure used as a recharge instruction.
