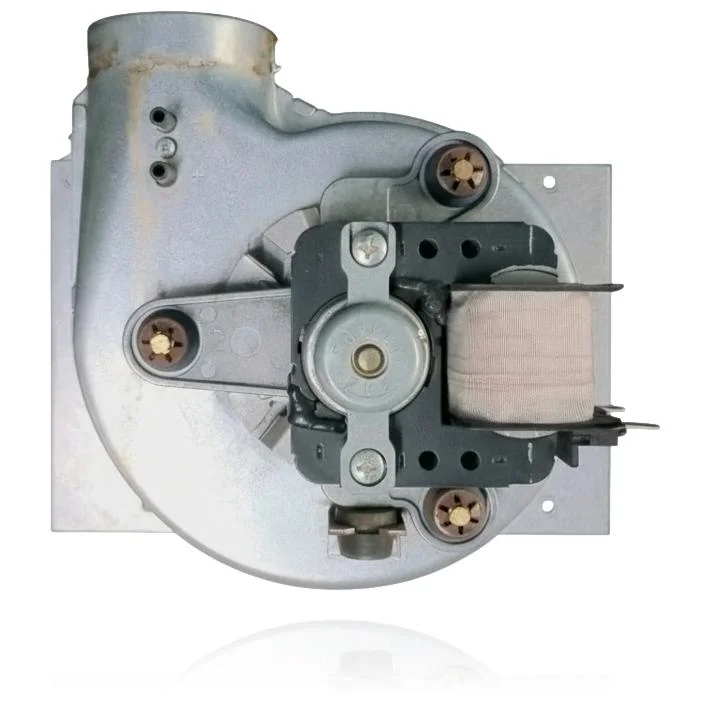

Junkers Fan Extractor Eurosmart ZWA 24 1 AM Fime C25X0G14/20 Ref. 87161432010
Smoke extractor (fan) for boiler, compatible with Junkers Eurosmart and Ceraclass ZWA 24-1 models, as well as Buderus Logamax U022 and U052. It expels combustion gases to the outside and maintains the necessary draft for ignition. It is replaced when there is a starting failure, it makes unusual noise, or the boiler locks out due to ventilation failure.
VAT included
Consult via WhatsAppJunkers boilers compatible with reference 87161432010
Extractor with reference 87161432010. 12 verified compatibilities: ZWA 24-1 A and ZWA 24-1 AM.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Junkers ZWA 24-1 A | Junkers Eurosmart ZWA 24-1 | Contrasted |
| Junkers ZWA 24-1 AM | Junkers Eurosmart ZWA 24-1 | Contrasted |
| Junkers ZWA 24-1 AI | Junkers Eurosmart ZWA 24-1 | Contrasted |
| Junkers ZWA 24-1 AB | Junkers Eurosmart ZWA 24-1 | Contrasted |
| Junkers ZWA241A | Junkers Eurosmart ZWA 24-1 | Contrasted |
| Junkers Ceraclass Smart ZWA 24-2/3 AI | Junkers Ceraclass ZWA/ZW 24 | Contrasted |
| Junkers Ceraclass Smart ZWA 24-2/3 AB | Junkers Ceraclass ZWA/ZW 24 | Contrasted |
| Junkers ZW 24 Ceraclass | Junkers Ceraclass ZWA/ZW 24 | Contrasted |
| Junkers U052-24 | Buderus Logamax U052 | Contrasted |
| Junkers U052-24K | Buderus Logamax U052 | Contrasted |
| Junkers U052-28 | Buderus Logamax U052 | Contrasted |
| Junkers U052-28K | Buderus Logamax U052 | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the ref. 87161432010 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 87161432010. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the extractor 87161432010 resolves.
The extractor evacuates the combustion gases with forced draft. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not ignite and the display shows a fault with the fan or the air pressure switch.
Cause: The fan does not reach the necessary revolutions for the pressure switch to close the contact and allow ignition.
Before changing the extractor, check that the silicone tubes of the pressure switch are properly connected and free of obstructions, and that the flue is not blocked.
- 02
The extractor starts with difficulty or spins slower than normal.
Cause: The motor or the bearing is worn out due to use or accumulated condensation.
With the boiler unplugged, manually check that the impeller turns smoothly and without resistance.
- 03
A strange noise or buzzing is heard in the extractor when the boiler starts.
Cause: The impeller may be dirty with soot and unbalanced, or the bearing is worn out.
Clean the impeller of soot and dust, and check if the noise disappears before replacing it.
- 04
The boiler locks out or resets itself during operation.
Cause: The extractor intermittently loses suction due to a loose connection or a faulty motor.
Check the connector and wiring of the extractor, and see if it stalls or vibrates irregularly.
Fault codes from Junkers that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| C1 | The airflow stopped during operation (fan speed too low). | The fan does not rotate or loses rpm and the flow rate drops, causing the boiler to detect an air stop; check the power supply voltage to the fan and that it delivers a tachometer signal, as well as verify that the pressure switch activates upon start-up. |
| C6 | Ventilation/fan problem: the unit does not detect correct flow (pressure switch does not close or fan out of range, depending on version). | If the fan does not start or rotates out of range, the air pressure switch does not close and the boiler locks out; check that the fan receives voltage and rotates freely, measure its speed/pressure, and confirm the closure of the pressure switch with the fan running. |
| C7 | No fan speed signal (fan tachometry fault or its wiring). | The fan or its internal sensor do not send speed impulses to the PCB; check the continuity of the wiring and measure the tach output of the motor (or replace the fan if it does not generate a signal). |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Junkers 87161432010 extractor.
- Catalogue reference
- 87161432010
- Brand
- Junkers
- Type of part
- Extractor fans
- Units in stock
- 4 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the extractor 87161432010
Is this Junkers ECEZWA241 extractor fan compatible with the Buderus Logamax U022-24KB boiler?
What symptoms indicate that I should replace the extractor fan of the Ceraclass Smart ZWA 24-2/3 AI boiler?
Does the Junkers ECEZWA241 extractor fan work for the Ceraclass Smart ZWA 24-2/3 AB boiler?
How many models are compatible with the Junkers ECEZWA241 extractor fan?
What fault codes are documented for the Junkers ECEZWA241 extractor fan?
