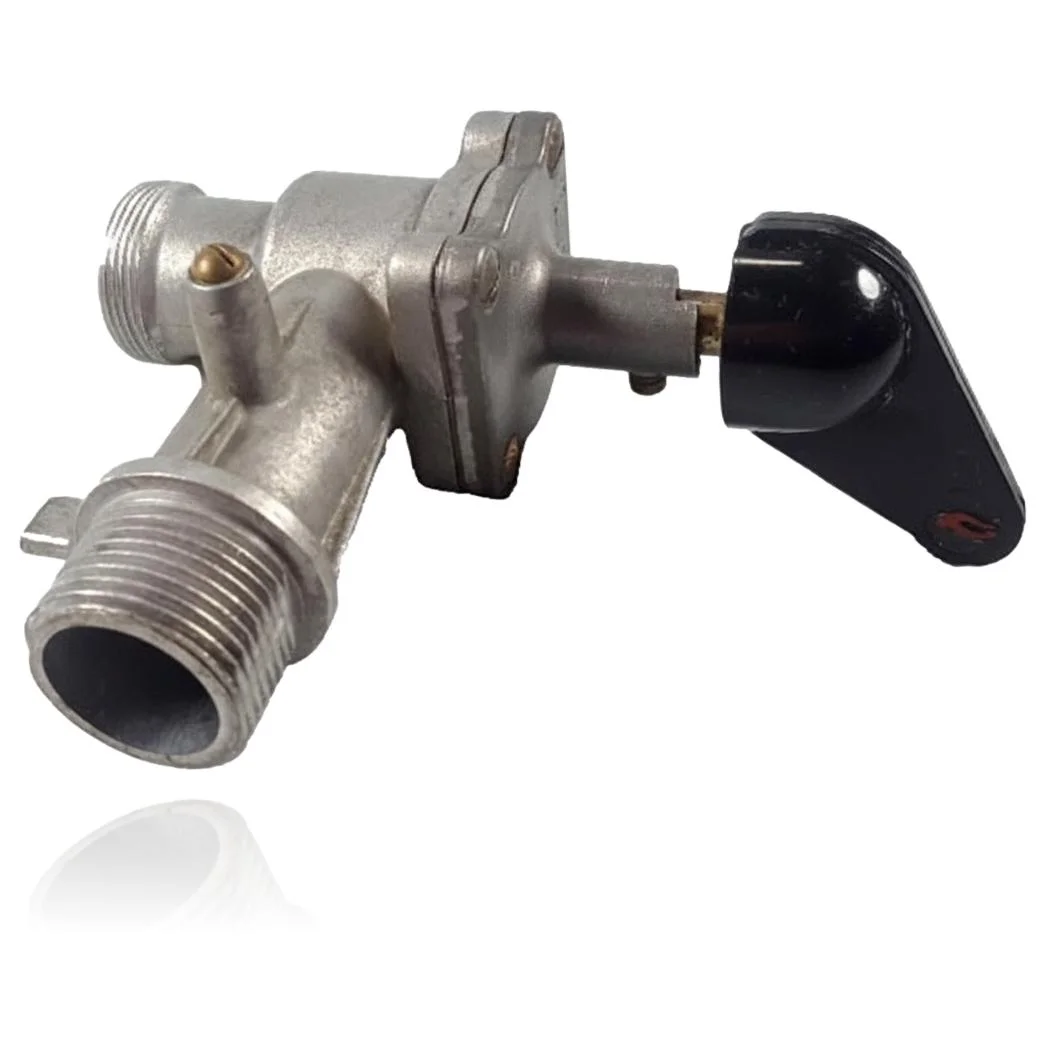

Manaut Gas Valve GLM 4 16
RefurbishedManautGas valves

Manaut Gas Valve GLM 4 16

Stock · 3 units

The Manaut GLM 4 16 boilers use the Manaut GLM 4 16 gas valve, which is responsible for regulating and allowing the flow of gas to the burner according to the commands from the control board. When this valve fails, it is possible that the boiler does not ignite, that flame lockouts occur, or that gas modulation does not function properly. This model is compatible with the GLM 4 16 range from Manaut, among others. It is recommended to replace the valve when these symptoms appear to restore the proper functioning of the boiler.

VAT included

Compatibility

Compatible Biasi boilers

Gas valve. A proven compatibility: GLM 4 16.

Proven compatibility

Boiler modelFamilyVerification
Biasi GLM 4 16ManautContrasted

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if it is the part for your boiler

What determines it is not the boiler model, but the reference printed on the part you already have installed.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms and faults that the gas valve resolves

The gas valve regulates and modulates the gas flow to the burner. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler does not ignite and there is no flame displayed.

    Cause: The valve does not allow gas to flow to the burner even though the PCB sends the opening command.

    Check that the gas valve is open and that the inlet pressure is normal before considering the valve as faulty.

  • 02

    The flame rises and falls without you having touched the water tap.

    Cause: The coils that regulate the opening fail intermittently and the gas flow varies uncontrollably.

    Check if the fault occurs only when more than one hot water point is open at the same time, before attributing it to the gas valve.

  • 03

    Do you notice a slight smell of gas near the boiler even when it is turned off?

    Cause: Over time, the internal seals of the gas valve lose tightness and allow gas to pass when at rest.

    If you smell gas, turn off the main valve and ventilate the area before taking any action: do not use the boiler until it has been checked.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Gas valve data sheet Biasi

Brand
Manaut
Type of part
Gas valves
Units in stock
3 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days
Frequently Asked Questions

Frequently asked questions about the gas valve

Is this gas valve suitable for the Biasi GLM 4 16 boiler?
Yes, it is the only compatible boiler model indicated for this part.
