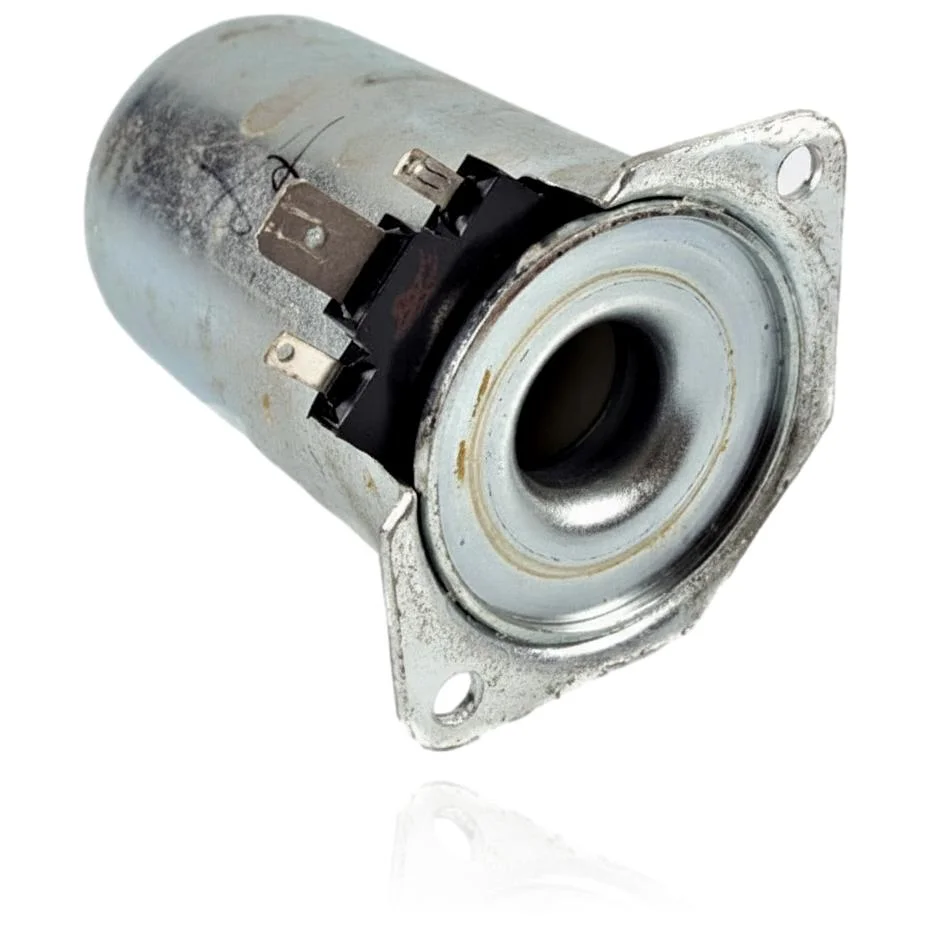

Gas Solenoid Coil ELM Leblanc Manaut GLM 5 12 20 Ref. 87167077040
The Gas Solenoid Coil ELM Leblanc Biasi GLM 5 12 20 is a component that regulates the flow of gas to the burner under the command of the boiler's PCB. When it fails, the boiler does not ignite, there may be flame lockouts, or the gas modulation is inadequate. Users may notice faults such as EA: Flame not detected or EA 234: electrical fault of the gas block/valve. This coil is compatible with boilers from the GLM series, including models such as GLM5, GLM5.20, and GLM523, among others. It should be replaced when the mentioned symptoms or fault codes occur.
VAT included
Consult via WhatsAppBiasi boilers compatible with reference 87167077040
Gas valve with reference 87167077040. Two confirmed compatibilities: (GAMME 5 series; e.g. GLM5 / GLM5.20 / GLM523) and (GAMME 5 series).
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Biasi (GAMME 5 series; e.g. GLM5 / GLM5.20 / GLM523) | GLM | Contrasted |
| Biasi (GAMME 5 series) | GVM | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference 87167077040 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 87167077040. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the gas valve 87167077040 resolves.
The gas valve regulates and modulates the gas flow to the burner. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not ignite: the fan can be heard and the ignition attempt is made, but the gas does not ignite.
Cause: The coil does not generate the magnetic field necessary to lift the valve stem, so the gas does not flow even though the rest of the ignition sequence is correct.
With the boiler trying to ignite, check if the coil receives current and heats up a bit; if you don't notice anything electrical, measure continuity before replacing it.
- 02
The flame ignites and goes out a few seconds after starting.
Cause: If the coil loses magnetic strength when heated, the valve stops staying open and the gas is cut off before the flame stabilizes.
Let the boiler cool down and repeat the cold start; if it works well when cold and fails when hot, focus on the coil before other components.
- 03
There is no gas flow to the burner even though the gas valve seems to be receiving power.
Cause: It is the coil that moves the internal core that opens the passage; if it is burnt or has a broken winding, it won't move anything no matter how much current reaches it.
Measure with a multimeter that the coil has continuity and does not show an open circuit before replacing it.
Fault codes for Biasi that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| EA | Flame not detected (absence of ionisation signal). | If the coil of the gas solenoid valve (87167077040) is open, shorted, or not energized, the valve does not open and gas does not reach the burner; check voltage at terminals during the ignition attempt and measure continuity/ohmage of the coil. |
| EA 234 | EA with additional code 234: electrical fault of the block/gas valve (coil disconnected or faulty). | An open/short-circuited coil of the solenoid valve or its wiring causes the 234 under EA; check the continuity of the coil 87167077040 and the harness, and replace if out of range. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the gas valve Biasi 87167077040
- Catalogue reference
- 87167077040
- Brand
- Manaut
- Type of part
- Gas valves
- Units in stock
- 7 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the gas valve 87167077040
Does this coil work for a GVM boiler from the Gamme 5 series?
When should the solenoid coil of a GLM523 be replaced?
Is this coil suitable for the complete GLM5 series of Gamme 5?
