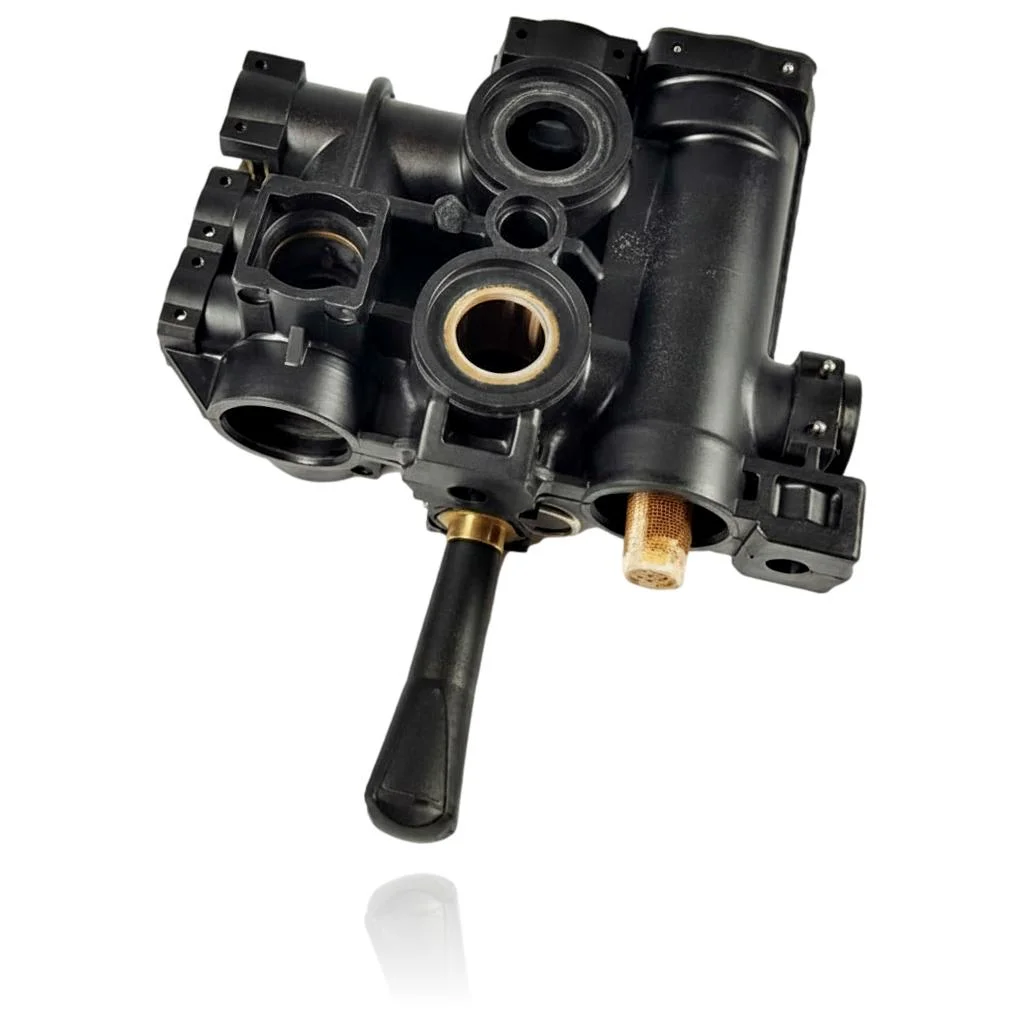

Biasi Hydraulic Group M95 24CM BD Ref. 1141503
If you notice water leaks, pressure loss, or problems with hot water production, a technical diagnosis must confirm if you need the Biasi M95 24CM BD Hydraulic Group, reference 1141503. This component is responsible for conducting and distributing water between the boiler circuits. It is installed in models such as the M95.24CM/BD and the Low NOx 24S (M95.24CM/..), among others. A technician must confirm through diagnosis if it needs to be replaced when it shows signs of malfunction to avoid further damage.
- Type of part
- Hydraulic units
- Status
- Refurbished
- internal SKU
- HBM9524
- Warranty
- 1 year
Compatible Biasi boilers
Hydraulic group. Two confirmed compatibilities: M95.24CM/BD and Low NOx 24S (M95.24CM/..).
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Biasi M95.24CM/BD | M95.24CM/BD | Contrasted |
| Biasi Low NOx 24S (M95.24CM/..) | Parva | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis in the hydraulic group
The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The hot water tap does not activate the production of domestic hot water, as if the boiler does not detect that it has been opened.
Cause: The flow switch of the hydraulic group does not detect the flow and the control board does not command the mode change.
Check that the flow rate at the tap exceeds the minimum required by the manufacturer before replacing the part.
- 02
There is moisture or dripping under the boiler, near the water inlet pipes.
Cause: The seals of the hydraulic group dry out over the years and allow water to pass through gradually.
Locate the exact point of the leak with the boiler cold and hot before confirming the replacement.
- 03
A dry noise or vibration is heard in the pipes when opening or closing the hot water.
Cause: The switching mechanism of the hydraulic group loses precision as it wears out and closes abruptly.
Check that it is not a water hammer from the general installation before intervening in the boiler.
- 04
The heating works well, but the hot water comes out at an irregular temperature, fluctuating on its own.
Cause: The hydraulic group allows the flow to pass irregularly when its interior is worn or obstructed.
Check the cold water inlet filter and the mains pressure, as they are the most common causes of this same symptom.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Hydraulic group data sheet Biasi
- Uniclima internal SKU
- HBM9524
- Brand
- Biasi
- Type of part
- Hydraulic units
- Units in stock
- 6 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the hydraulic group
Is this hydraulic group compatible with the Biasi M95.24CM/BD?
