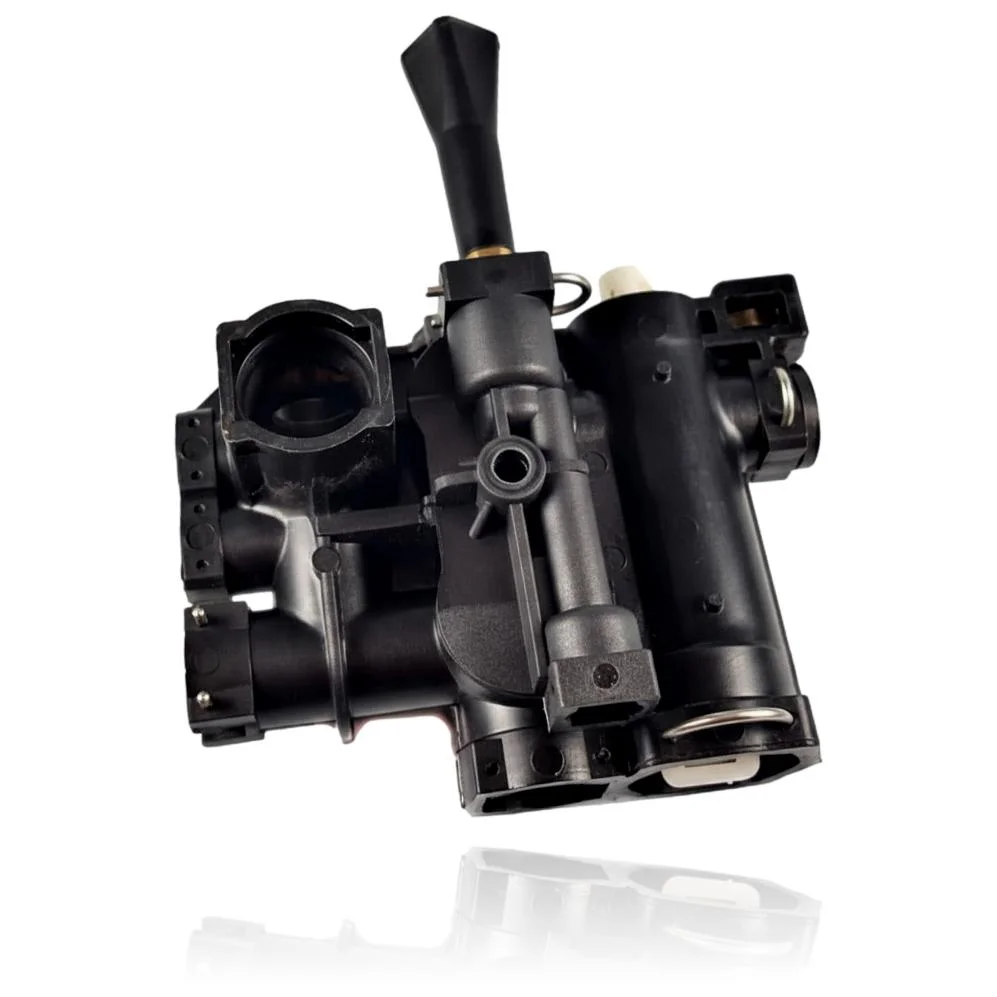

Hydraulic Body Manaut Mura 24 E Ref. 1181502
The Hydraulic Body Biasi Mura 24 E Ref. 1181502 is the component that directs and distributes water between circuits in your boiler. When it fails, you may notice leaks, loss of pressure, or issues with domestic hot water production. This hydraulic body is compatible with the Biasi Mura 24 E boiler, among others. It is recommended to replace it as soon as you detect the mentioned symptoms to avoid further damage to your system.
VAT included
Consult via WhatsAppBiasi boilers compatible with reference 1181502
Hydraulic group with reference 1181502. A proven compatibility: MURA 24 E.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Biasi MURA 24 E | Biasi | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 1181502 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 1181502. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the hydraulic group 1181502 resolves.
The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The domestic hot water takes a long time to come out or comes out intermittently, with the boiler working well in heating mode.
Cause: A hydraulic component blocked by limescale reduces the water flow to the domestic hot water circuit.
Check the water hardness in the area and if there is visible sediment in the nearby filters before replacing the part.
- 02
The water temperature rises and falls on its own while showering.
Cause: If the component does not properly regulate the water flow, the system compensates with temperature fluctuations.
Check that no other tap is open at the same time and that the inlet flow is stable before attributing it to this part.
- 03
There is a small leak, almost a drip, in this area of the hydraulic circuit.
Cause: The internal seals of this type of component lose their tightness with pressure and temperature cycles.
Dry the area thoroughly and check again when cold and hot, as some leaks only appear with expansion.
- 04
There seems to be a mix between the heating circuit and the domestic hot water circuit, as if they are contaminating each other.
Cause: A fault in this type of component can leave two circuits connected that should be kept separate.
Check the pressure of each circuit separately before confirming this cause.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Biasi hydraulic group 1181502
- Catalogue reference
- 1181502
- Brand
- Manaut
- Type of part
- Hydraulic units
- Units in stock
- 7 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the hydraulic group 1181502
Is this hydraulic component compatible with my Biasi Mura 24 E?
