Left Hydraulic Group Ariston Clas ONE 24 Ref. 65117952
Refurbished Ariston Hydraulic units

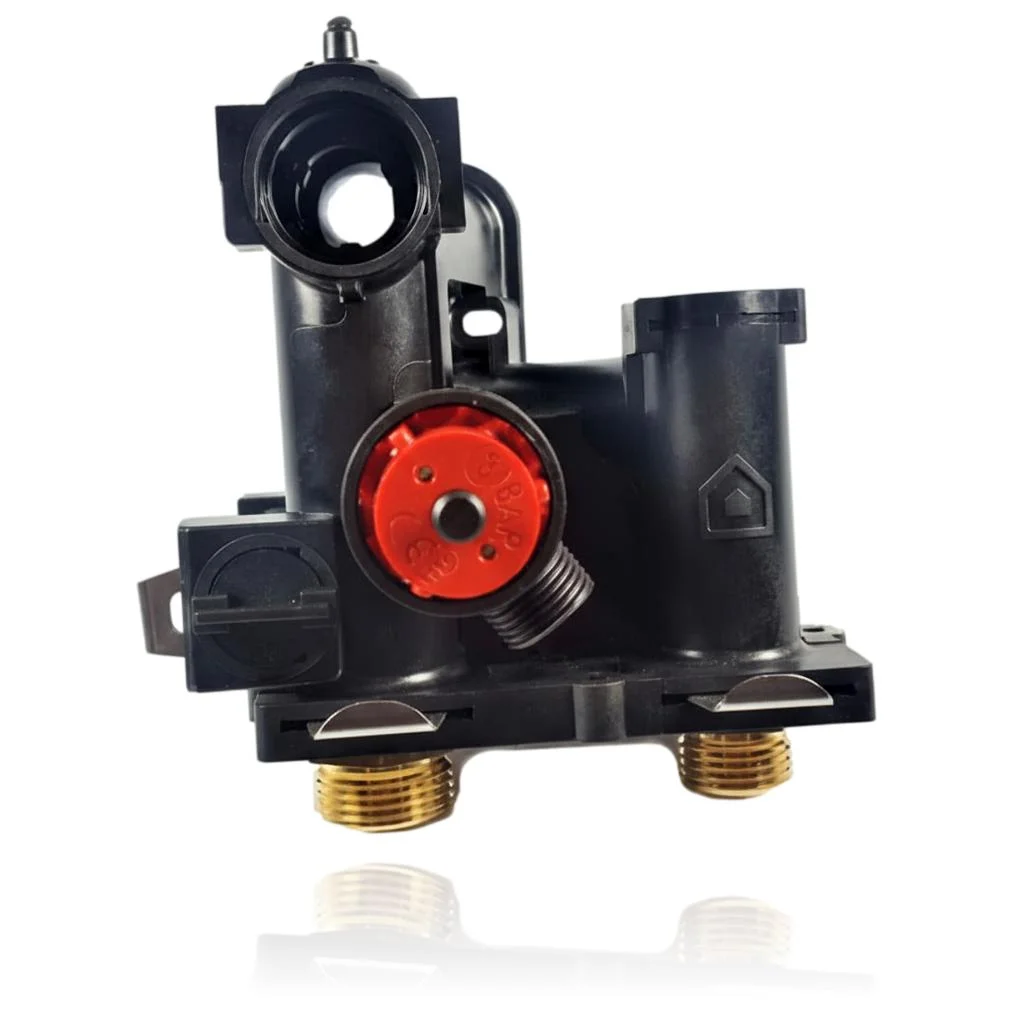

Left Hydraulic Group Ariston Clas ONE 24 Ref. 65117952

When you turn on the hot water tap or activate the heating, the Left Hydraulic Group Ariston Clas ONE 24 is responsible for directing and distributing the water between the boiler circuits. If this part fails, you may notice leaks, pressure loss, or issues with hot water production. It is compatible with several Ariston models, including the Clas ONE 24 FF and the Clas ONE System 24 FF, among others. A technician must confirm through diagnosis whether replacement is necessary when these symptoms occur to ensure the proper performance of the boiler.

Type of part
Hydraulic units
Status
Refurbished
Catalogue reference
65117952
Warranty
1 year
VAT included Stock · 7 units
Compatibility

Ariston boilers compatible with reference 65117952

Hydraulic group with reference 65117952. Four confirmed compatibilities: Clas ONE 24 FF and Clas ONE 30 FF.

Verified compatibility

Boiler modelFamilyVerification
Ariston Clas ONE 24 FFAristonVerified
Ariston Clas ONE 30 FFAristonVerified
Ariston Clas ONE System 24 FFAristonVerified
Ariston Clas ONE System 30 FFAristonVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if ref. 65117952 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference 65117952. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis in the hydraulic group 65117952

The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler needs pressure recharging more frequently than usual.

    Cause: The left hydraulic group has a gasket or fitting that leaks water gradually, sometimes without a noticeable puddle.

    Check the fittings and the body of the hydraulic group on the left side with dry paper.

  • 02

    Moisture or dripping appears on the lower left side of the boiler.

    Cause: The body of the hydraulic group is cracked or an internal seal has lost its tightness.

    Check the leak point with the boiler cold and again after a heating cycle.

  • 03

    The domestic hot water comes out with low pressure or intermittently.

    Cause: The water passage of the hydraulic group is partially blocked, usually by limescale.

    Compare the flow rate at a faucet close to the boiler with one that is farther away.

  • 04

    There is no domestic hot water, but the heating works normally.

    Cause: The domestic hot water circuit of the hydraulic group is blocked, or the flow sensor does not detect water consumption.

    Open the hot water tap slowly and check if the boiler responds.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Ariston hydraulic group 65117952

Catalogue reference
65117952
Uniclima internal SKU
GHICONE24
Brand
Ariston
Type of part
Hydraulic units
Units in stock
7 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

maximum pressure
3 BAR
Documentation

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

Frequently asked questions

Frequently asked questions about the hydraulic group 65117952

Is this left hydraulic group Ariston Clas ONE 24 (Ref. 65117952) compatible with other models?
Yes, it is compatible with the models Clas ONE 24 FF, Clas ONE 30 FF, Clas ONE System 24 FF, and Clas ONE System 30 FF.
How many models are compatible with this hydraulic group?
A total of 4 models are compatible.
What is the reference for this left hydraulic group?
GHICONE24 is Uniclima’s internal SKU for locating this listing. To confirm compatibility, check the manufacturer’s reference and the exact appliance model.
Are there documented fault codes for this product?
No, there are no documented fault codes for this product.
Can I use this hydraulic group in a boiler from a different range?
No, this hydraulic group is only compatible with the models specified in the compatibility table.
