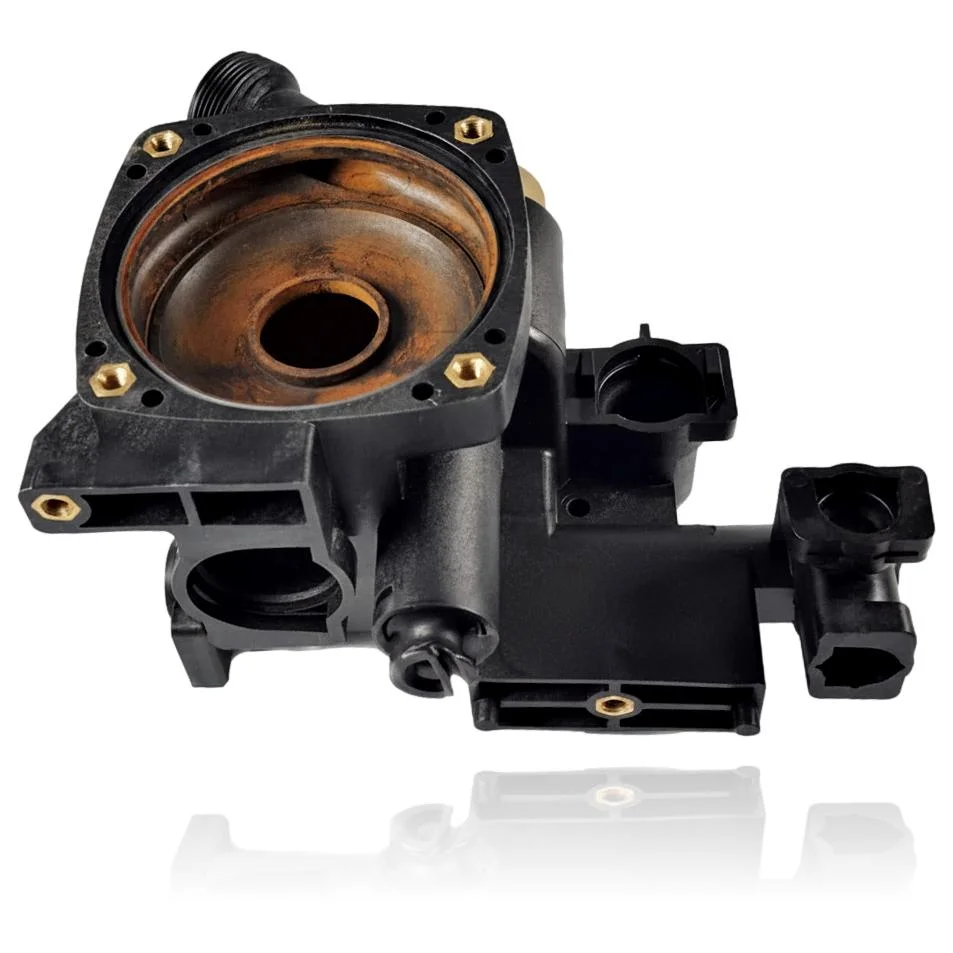

Saunier Duval Hydraulic Block Pump ThemaClassic F 24 E Ref. S1005300

Saunier Duval boilers compatible with reference S1005300

Hydraulic group with reference S1005300. Ten verified compatibilities: F24E and F25E.

Proven compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. S1005300 is the part for your boiler

What determines it is not the boiler model, but the reference printed on the part you already have installed.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference S1005300. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms and faults that the hydraulic group S1005300 resolves.

The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  After a period without heating, the pump does not start or is difficult to get going.

  Cause: The rotor gets stuck due to sediment or being inactive for months, which is common when resuming heating.

  With the boiler cold and turned off, try to unlock the shaft with a flat screwdriver through the front slot before replacing the part.

• 02

  Water or moisture appears under the boiler, near the hydraulic block.

  Cause: The gaskets of the block body lose tightness due to pressure and temperature cycles.

  Dry the area, let a heating cycle pass, and locate the exact point before replacing the part.

• 03

  The domestic hot water works well, but the radiators do not heat properly.

  Cause: The block distributes the flow between the two circuits, and a fault may only affect the heating circuit.

  Confirm that the fault is only in heating and not also in domestic hot water before deciding that it is the block.

• 04

  A vibration or humming sound can be heard in the area of the block while the boiler is operating.

  Cause: This can be caused by air in the circuit or by wear of the impeller of the integrated pump.

  Bleed the heating circuit and repeat the check before considering the part as faulty.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval hydraulic group S1005300

Catalogue reference

S1005300

Brand

Saunier Duval

Type of part

Hydraulic units

Units in stock

7 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval ThemaClassic F25E Manual (PDF)Document © Saunier Duval, provided as a technical reference.
