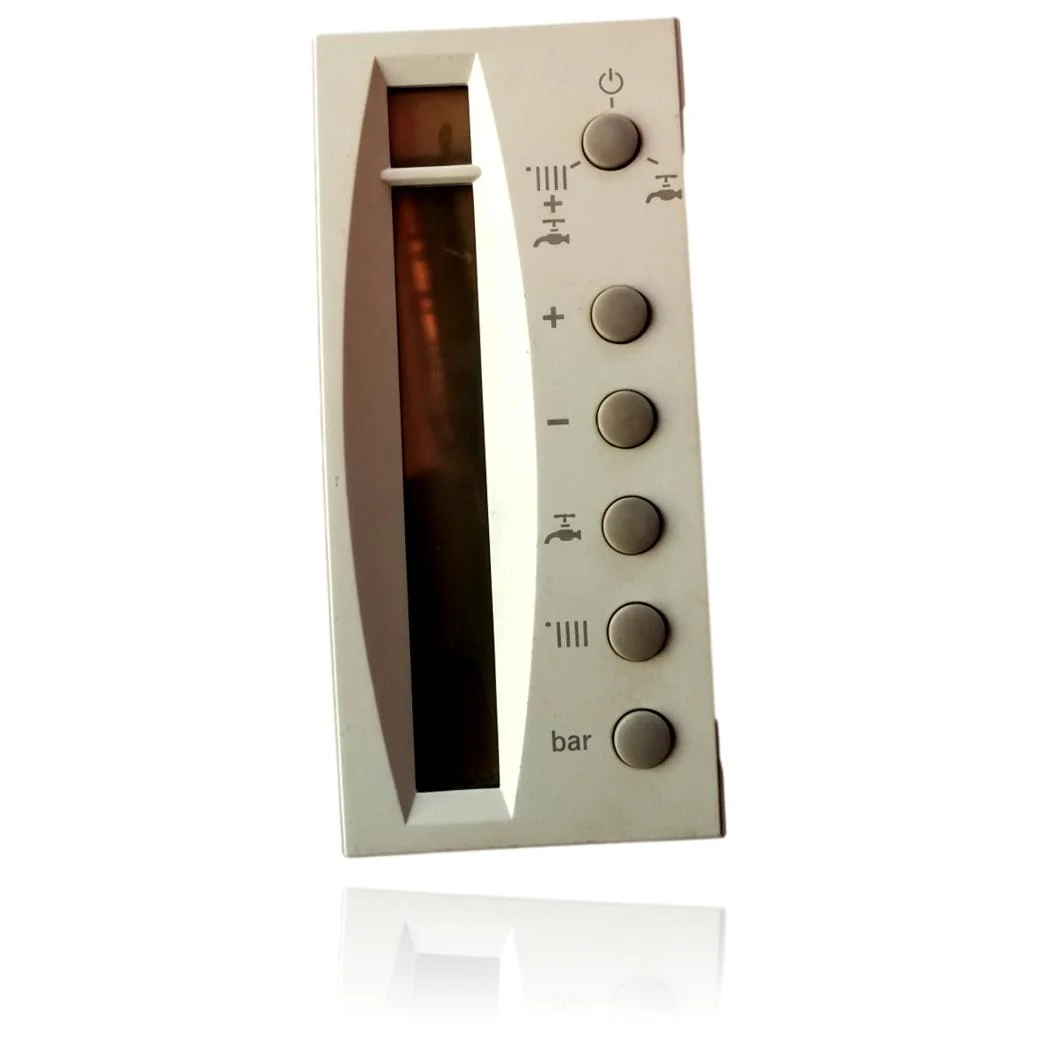

Baxi Roca Control Board PCB G100 GTA Comfort Ref. 147057273
The control PCB of the boiler manages the ignition, the modulation of the burner, the pump, and the safety features. If it fails, the boiler may not start, lock out, or behave erratically, presenting faults such as 20 or 22. This Baxi Roca Control Panel G100 GTA Comfort, with reference 147057273, is compatible with models such as Gavina 20 GTI Confort, Lidia 25 GTA Confort, and G100 GTA Comfort, among others. A technician must confirm through diagnosis whether it is necessary to replace the part when the mentioned symptoms or faults in its operation occur.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 147057273
- Warranty
- 1 year
Baxi boilers compatible with reference 147057273
PCB with reference 147057273. 18 verified compatibilities: Gavina 20 GTI Confort and Gavina 30 GTI Confort.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Baxi Gavina 20 GTI Confort | Gavina (GTI/GTA Comfort) | Verified |
| Baxi Gavina 30 GTI Confort | Gavina (GTI/GTA Comfort) | Verified |
| Baxi Gavina 20 GTIF Confort | Gavina (GTI/GTA Comfort) | Verified |
| Baxi Gavina 26 GTA Confort | Gavina (GTI/GTA Comfort) | Verified |
| Baxi Gavina 26 GTAF Confort | Gavina (GTI/GTA Comfort) | Verified |
| Baxi Lidia 20 GTA Confort | Lidia (GTA Confort) | Verified |
| Baxi Lidia 25 GTA Comfort | Lidia (GTA Confort) | Verified |
| Baxi Lidia 30 GTA | Lidia (GTA Confort) | Verified |
| Baxi Lidia 40 GTA | Lidia (GTA Confort) | Verified |
| Baxi Laia GTI Comfort | Laia (GTI/GTA Comfort) | Verified |
| Baxi Laia GTIF Comfort | Laia (GTI/GTA Comfort) | Verified |
| Baxi Laia 25 GTA Confort | Laia (GTI/GTA Comfort) | Verified |
| Baxi Laia 30 GTA Comfort | Laia (GTI/GTA Comfort) | Verified |
| Baxi Laia 45 GTA Comfort | Laia (GTI/GTA Comfort) | Verified |
| Baxi G100 GTA Comfort | G100/G200 (GTA Confort oil) | Verified |
| Baxi G100/30 IEGTA Comfort | G100/G200 (GTA Confort oil) | Verified |
| Baxi G200/30 GTA Comfort | G100/G200 (GTA Confort oil) | Verified |
| Baxi G200/50 GTA Comfort | G100/G200 (GTA Confort oil) | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference 147057273 is the part for your boiler.
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 147057273. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 147057273
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The control panel does not turn on, no icon appears.
Cause: The remote control needs to receive power to operate; if there is no signal from the boiler, it remains off.
Check that the boiler has power and that the wiring to the control is properly connected before replacing the part.
- 02
The +/- buttons do not change the temperature or respond to touch.
Cause: The push buttons are on the same PCB as the display; if there is a fault in their contacts, nothing can be adjusted.
Test each button separately and check if the boiler modulates even if the control does not respond.
- 03
The pressure ('bar'), temperature icons, and power steps are not displayed.
Cause: These icons depend on the same display circuit; if it fails, they all disappear even if the boiler is functioning.
Check if the boiler heats and maintains pressure normally even though nothing is visible on the control panel.
- 04
The hot water tap icon does not respond when pressed.
Cause: This button activates the DHW mode from the remote control; if its contact fails, hot water cannot be activated from there.
Check if hot water continues to flow when opening a tap in the house, to rule out that the fault is in another point and not in the control.
Baxi fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| 20 | Communication error between control board and boiler control (>4 minutes). | The Control Board (147057273) may lose/block communication with the CCE base; check connectors/wiring and perform the control test (detach control, press 'service', reinsert until 'tc' appears). If it does not reset or the issue persists, replace the control or the board. |
| 22 | Inconsistent or illegible parameters on the boiler control board. | The Control Board has corrupted/unreadable limit values; to verify, restore factory settings (keys 'radiator' + 'bar') and check if it returns to '00'. If it persists, replace the control board. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Baxi 147057273 PCB.
- Catalogue reference
- 147057273
- Uniclima internal SKU
- MODMANROG100
- Brand
- Baxi
- Type of part
- PCBs (control boards)
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the PCB 147057273
Does this remote control work for a Gavina 26 GTA Confort?
Does this remote also work for the Lidia 40 GTA?
Is this control for the G-200/50 GTA Confort a circuit board or just the control display?
