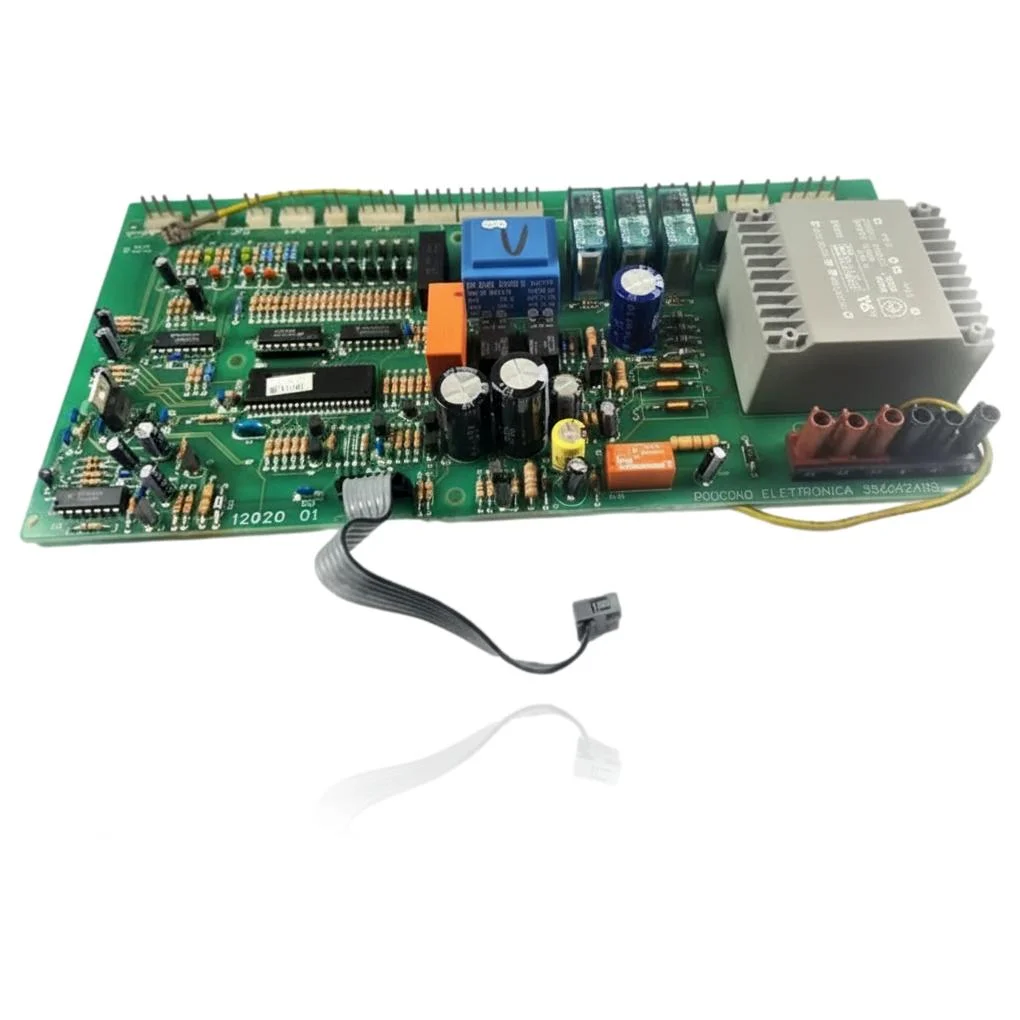

Baxi Roca PCB 15 20 Ref. 356062800
If your boiler does not start, locks out, or exhibits erratic behavior, a technical diagnosis must confirm if you need the Baxi Roca PCB 15 20. This part is responsible for controlling the ignition, burner modulation, pump, and safety features of the boiler. Its failure can result in overall malfunction of the boiler. It is compatible with models from the Baxi Roca 15 20 range, among others. A technician must confirm through diagnosis if it needs to be replaced when these fault symptoms are detected.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 356062800
- Warranty
- 1 year
Baxi Roca boilers compatible with reference 356062800
PCB with reference 356062800. A proven compatibility: 15 20.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Baxi Roca 15 20 | Roca | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 356062800 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 356062800. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 356062800
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler is not responding at all, neither the display nor the buttons on the panel.
Cause: The PCB does not power the rest of the circuits, leaving the boiler inert.
First, check the fuse on the PCB and the mains voltage in the boiler.
- 02
A fault code or indicator light turns on and does not disappear after resetting.
Cause: The PCB blocks the unit when it detects an out-of-range value in the sensors.
First, rule out low water pressure and blocked flue gas outlet, as these are common causes of lockout.
- 03
The boiler suddenly stops heating, as if it had turned off for no reason.
Cause: A fault in the PCB can interrupt the ignition command or the gas supply without external signals.
Try resetting the boiler from the main switch before changing the PCB.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Baxi Roca PCB 356062800
- Catalogue reference
- 356062800
- Uniclima internal SKU
- PECR1520
- Brand
- Roca
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Silkscreened code on PCB
- 12020 01
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Baxi Roca Manual 15 20 (PDF) Document © Baxi Roca, provided as a technical reference.
Frequently asked questions about the PCB 356062800
Is this PCB compatible with other Baxi Roca boilers besides the 15 20?
What code is engraved on the PCB of the Baxi Roca 15 20?
