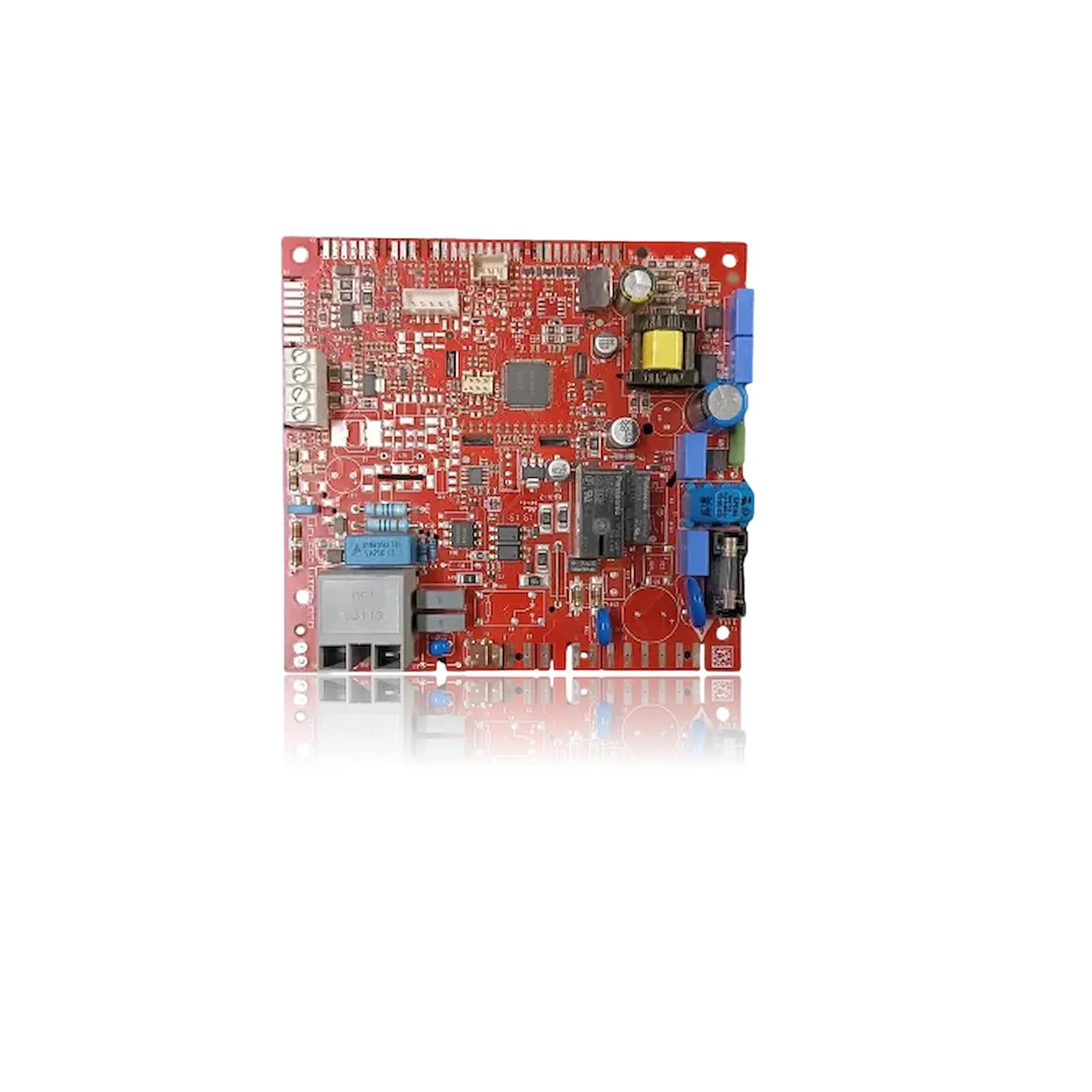

Biasi Idea M270V PCB Ref. BI2605101
Biasi/Savio Idea M270V boilers use the Biasi Idea M270V PCB Ref. BI2605101. This control board regulates the ignition, burner modulation, pump, and safety features of the boiler. If it malfunctions, the boiler may fail to start, lock out, or operate erratically, potentially displaying the fault code E03: EEPROM Error. It is compatible with models such as the Idea M270V and the Actadens 25S and 30S, among others. A technician must confirm through diagnosis whether it needs to be replaced when these operational issues are detected.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- BI2605101
- Warranty
- 1 year
compatible with reference BI2605101
PCB with reference BI2605101. Three confirmed compatibilities: Idea M270V and Actadens 25S (M270V.2025SM).
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Biasi Idea M270V | Biasi/Savio Idea M270V | Verified |
| Biasi Actadens 25S (M270V.2025SM) | Biasi/Savio Actadens | Verified |
| Biasi Actadens 30S (M270V.2530SM) | Biasi/Savio Actadens | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. BI2605101 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference BI2605101. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB BI2605101
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not turn on and there are no lights visible, neither on the display nor on the indicators.
Cause: If the control board is not working, the boiler cannot start its sequence, even if it has gas and power.
Check the differential and the fuse of the installation before assuming that the PCB is damaged.
- 02
The boiler's pilot light or LED is flashing in a pattern that doesn't match any code in the manual.
Cause: A fault in the internal electronics can cause erratic flickering that does not match the usual fault codes.
Count and note the exact blinking rhythm, number of flashes and pauses, before deciding if it's the PCB.
- 03
The boiler works when forced in manual or emergency mode, but not in automatic mode.
Cause: The automatic mode depends on the PCB processing the signals from the sensors and the thermostat correctly; in manual mode, those controls are bypassed.
Test the manual mode if the boiler has it: if it works well, the problem is likely in the electronic management and not in a power component.
- 04
The boiler stops intermittently without triggering any fault code.
Cause: A specific fault in the control board can interrupt the supply without registering a fault code, especially if it is a microcut.
Check if the cut coincides with vibrations, knocks on the boiler, or sudden temperature changes; it could be a loose solder joint.
Biasi fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| E03 | EEPROM error | The integrated EEPROM on the main PCB (BI2605101, M270V family) is damaged or has corrupted data, causing the boiler to detect a memory fault upon startup and display E03. Check power supply and grounding, attempt reset/parameterization; if E03 persists, the verification concludes with replacing the PCB. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Technical sheet: Biasi BI2605101
- Catalogue reference
- BI2605101
- Uniclima internal SKU
- PLSA089
- Brand
- Biasi
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- voltage
- 12V
Frequently asked questions about the PCB BI2605101
Does this PCB fit the Actadens 30S M270V.2530 SM?
