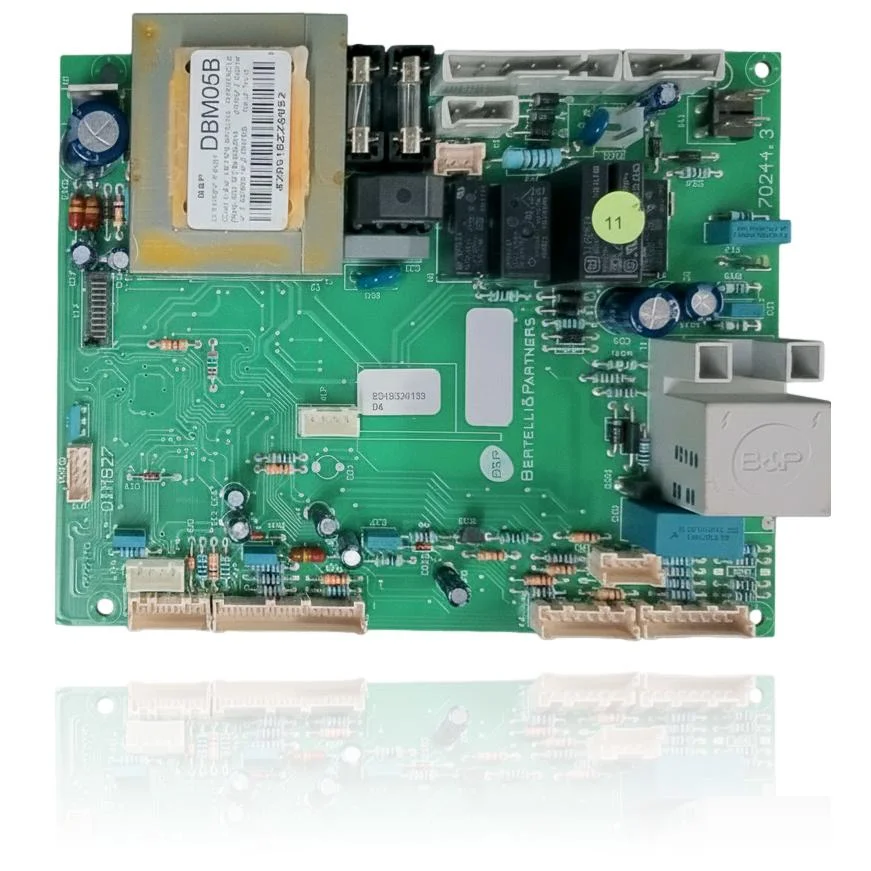

Ferroli Econcept TOP 35A Main Control PCB DBM05B Ref. 39829093

The main control PCB of the Ferroli Econcept TOP 35A DBM05B manages the ignition, burner modulation, pump, and safety features of the boiler. If it malfunctions, the user will notice that the boiler does not start, locks out, or behaves erratically, potentially displaying the fault code A02: flame signal present with burner off. This part is compatible with several models in the Econcept range, such as the Econcept Top 25A, Econcept ST 25, and Econcept Kombi ST 35, among others. A technician must confirm through diagnosis whether it needs to be replaced when these symptoms or faults in operation are detected.

Type of part
PCBs (control boards)
Status
Refurbished
Catalogue reference
39829093
Warranty
1 year
VAT included Stock · 1 unit
Compatibility

Ferroli boilers compatible with reference 39829093

PCB with reference 39829093. 19 verified compatibilities: Econcept Top 25A and Econcept Top 35A.

Verified compatibility

Boiler modelFamilyVerification
Ferroli Econcept Top 25AEconceptVerified
Ferroli Econcept Top 35AEconceptVerified
Ferroli Econcept ST 25EconceptVerified
Ferroli Econcept ST 35EconceptVerified
Ferroli Econcept In ST 25EconceptVerified
Ferroli Econcept Solar ST 18EconceptVerified
Ferroli Econcept Solar ST 25EconceptVerified
Ferroli Econcept Kombi ST 25EconceptVerified
Ferroli Econcept Kombi ST 35EconceptVerified
Ferroli Econcept Top Micro 25CEconceptVerified
Ferroli Econcept Top Micro 35CEconceptVerified
Ferroli Fersystem PW 25FersystemVerified
Ferroli Fersystem PW 35FersystemVerified
Ferroli Fersystem Box PW 25FersystemVerified
Ferroli Fersystem Solar PWFersystemVerified
Ferroli Fersystem Top 25AFersystemVerified
Ferroli Fersystem Top 35AFersystemVerified
Ferroli Fersystem Top Micro 25CFersystemVerified
Ferroli Fersystem Top Micro 35CFersystemVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if the part number 39829093 is the correct one for your boiler.

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference 39829093. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the PCB 39829093

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler shows no signs of life, neither display nor pilot light.

    Cause: The electronic control does not send current to the rest of the boiler.

    Check that there is mains voltage and inspect the visible fuse on the PCB before replacing it.

  • 02

    The display shows a fault code and the boiler does not start.

    Cause: The PCB blocks the ignition when it detects an incorrect reading from any sensor.

    Note the code and first check the element it indicates, such as a sensor or a pressure switch, before declaring the PCB faulty.

  • 03

    The remote control or the thermostat has no effect on the boiler.

    Cause: The PCB does not process the demand order it receives from the regulator.

    Check the connection of the bus or the thermostat cable before replacing the PCB.

  • 04

    The boiler turns on and off by itself for no apparent reason, repeatedly.

    Cause: A component of the PCB intermittently loses continuity.

    Check if the fault occurs more when cold or hot; this is useful information to confirm the origin on the PCB.

Ferroli fault codes that require diagnosis

CodeFaultTechnical checks
A02Flame signal present with burner offThe main PCB (DBM05B) may give a false ionisation reading or have a leak/short circuit in its detection stage, indicating a flame with the burner off; verify by measuring the ionisation signal/current on the board, checking the electrode wiring, and if the A02 persists with the electrode isolated, test/replace the PCB.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Ferroli PCB 39829093

Catalogue reference
39829093
Uniclima internal SKU
PLFE004
Brand
Ferroli
Type of part
PCBs (control boards)
Units in stock
1 unit
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days
Documentation

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

Frequently asked questions

Frequently asked questions about the PCB 39829093

Does this PCB (ref. 39829093) work for an Econcept Top 35A boiler?
Yes, the Econcept Top 35A is the main model of this reference, and it also applies to the rest of the Econcept range (In ST, Kombi ST, Solar ST, ST, Top Micro) and Fersystem (PW, Top) from 18 to 35.
When should this PCB be replaced in an Econcept Solar ST 18?
The technical diagnosis must confirm that it is necessary to replace it, even when the electronic control of the boiler fails.
Is the same PCB for the Fersystem Top 25A as for the Econcept Top Micro 35C?
Yes, both boilers are on the same compatibility list for this reference 39829093.
