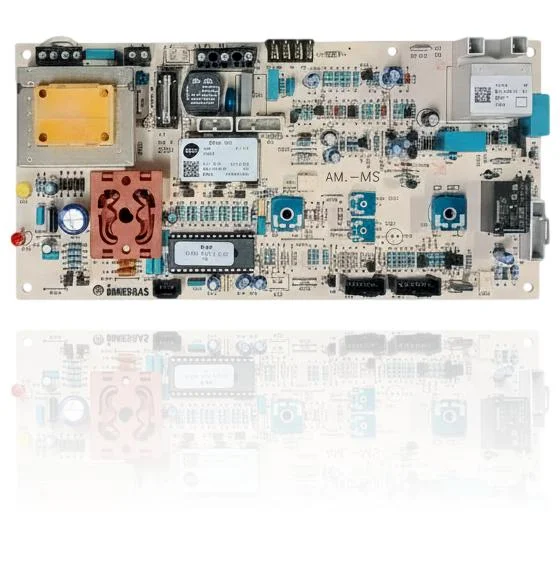

PCB Ignition Modulation Immergas Eolo Mini 1 Ref. 015792
If the boiler does not ignite properly, a technical diagnosis must confirm whether you need the Immergas Eolo Mini 1 Modulation Ignition PCB Ref. 015792. This control board manages the ignition, burner modulation, pump, and safety features of the boiler. When it fails, the boiler may not start, become locked, or operate erratically, displaying fault code 01. It is compatible with models such as Eolo Mini, S Eolo Mini, Nike Mini, and Zeus Mini, among others. A technician must confirm through diagnosis whether it needs to be replaced if you experience these ignition issues.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 015792
- Warranty
- 1 year
Immergas boilers compatible with reference 015792
PCB with reference 015792. Four confirmed compatibilities: Eolo Mini and S Eolo Mini.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Immergas Eolo Mini | Eolo Mini | Verified |
| Immergas S Eolo Mini | Eolo Mini | Verified |
| Immergas Nike Mini | Nike Mini | Verified |
| Immergas Zeus Mini | Zeus Mini | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference 015792 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 015792. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 015792
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler shows no signs of life: no lights, no display, and no noise when starting.
Cause: The PCB distributes power to all components, and if it fails at its input, no current reaches anything.
Before changing the PCB, measure with a multimeter if there is mains voltage at the input connector and check the fuse on the board.
- 02
The boiler locks out with a fault code that appears and disappears for no apparent reason, or that changes from one attempt to another.
Cause: An internal fault in the PCB can give erroneous readings from the sensor or pressure switch, even if those components are functioning properly.
Note the exact code and measure the sensor that indicates the fault before considering the PCB as the culprit.
- 03
The buttons on the boiler panel are unresponsive, or the thermostat in the house is unable to start it.
Cause: The input that receives the heating demand, whether from the control or the external thermostat, is on the PCB.
Do not bridge contacts or power components directly to test them. Request a technician to check the cause according to the model manual and its revision, without bypassing the protections. The symptom or fault code does not confirm on its own that this part is faulty.
- 04
The boiler ignites, runs for a few minutes, and then stops on its own, attempting to restart later by itself.
Cause: A output relay that opens prematurely cuts off the power supply to a key component halfway through the cycle.
Observe what turns off just before the shutdown (pump, fan, or gas valve) to identify which output of the PCB is failing.
Immergas fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| 01 | The boiler does not ignite properly. | If the boiler does not ignite, it may be due to a problem with the ignition. Check if the PCB is functioning correctly, as a fault in this component can prevent the boiler from receiving the necessary signal to ignite. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Immergas PCB 015792
- Catalogue reference
- 015792
- Uniclima internal SKU
- PECM3012
- Brand
- Immergas
- Type of part
- PCBs (control boards)
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Immergas Eolo Mini Manual (PDF) Document © Immergas, provided as a technical reference.
Frequently asked questions about the PCB 015792
Does this PCB work for the Immergas Nike Mini?
What fault does the replacement of this PCB resolve in the Eolo Mini?
