Ariston Next EVO_MB_CE 000303301000 PCB for Next EVO SFT water heater

The identification "main PCB CE" is associated with the code 65152684; its functions include ignition, flame control, and thermal safety. It is suspected if it does not ignite, the burner fails to ignite, or there are safety faults due to flame or temperature.

Type of part: PCBs (control boards)
Status: Refurbished
Catalogue reference: 000303301000
Warranty: 1 year

VAT included Stock · 1 unit

Compatibility

Compatible models

Check the listed models, version and part number before ordering the spare part.

Proven compatibility

Boiler model	Family	Verification
Ariston Next EVO SFT	Ariston	Contrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Ariston Next EVO SFT 11 and 16	Ariston	Unconfirmed
Ariston Next EVO SFT 14	Ariston	Unconfirmed
Ariston Avenir Plus SFT 11, 14 and 16	Ariston	Unconfirmed
Ariston Next Evo OFT 14 and Avenir Plus OFT 11	Ariston	Unconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

Guide

How to check if reference 000303301000 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

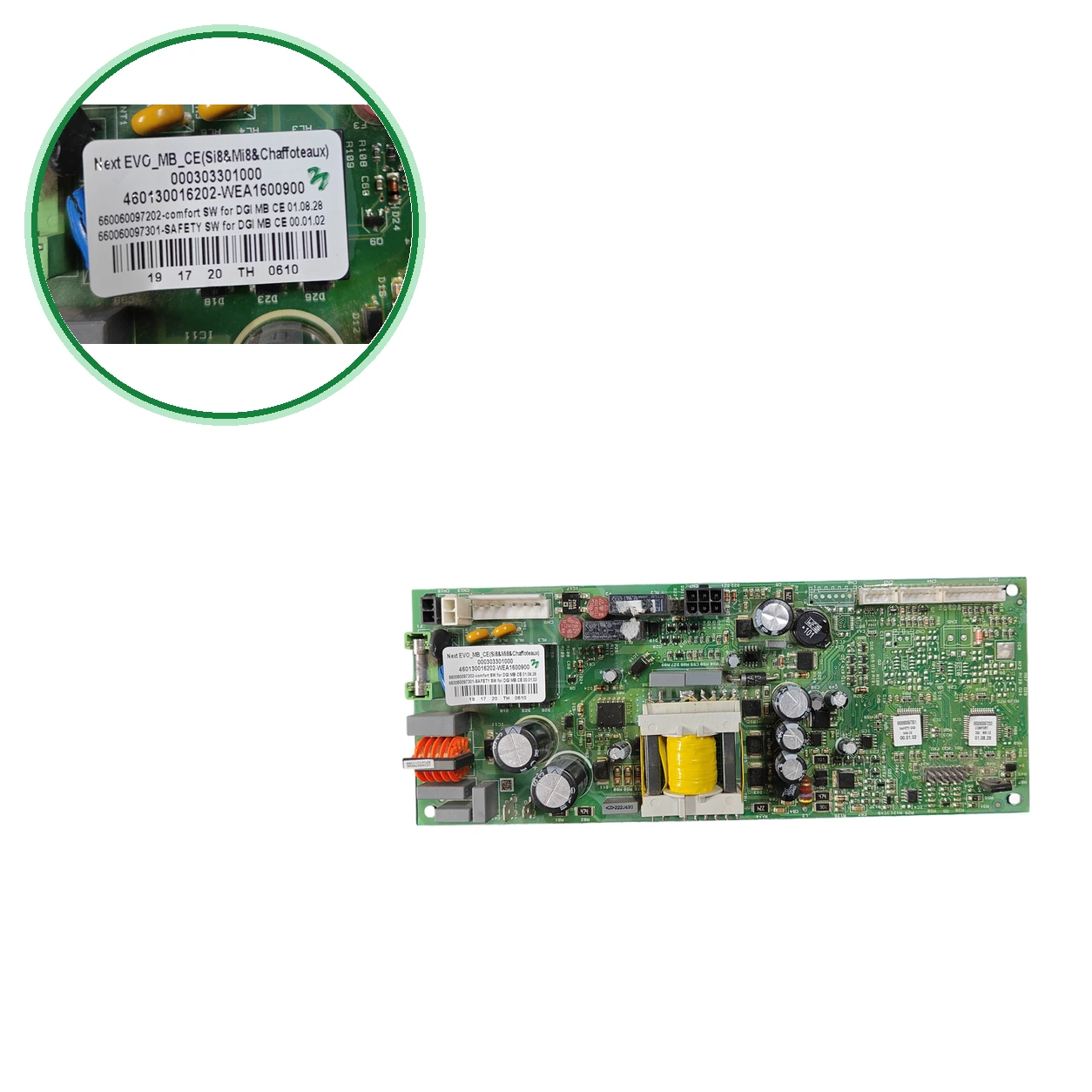

Look for the designation Next EVO_MB_CE and the code 000303301000 on the label. This unit also shows 460130016202-WEA1600900 (circuit code).
Compare also 660060097202, 01.08.28, 660060097301, 00.01.02 and 19 17 20 TH 0610.
Check the model of your water heater on the rating plate (Next EVO SFT 11 or 16, s), with the codes 3632160, 3632161, 3632164, and 3632165.
Do not confuse it with boards from other versions: note that the shape may be similar but connections and configuration can change.
If they match, call us at 911 17 77 77 with the model of your water heater.

Diagnosis and fault codes

Symptoms and checks

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

01
The water heater does not ignite or does not start.
Cause: The sheets associate with this PCB.
02
Intermittent faults in the burner ignition.
Cause: They also associate it with her.
03
Safety faults due to flame or temperature detection.
Cause: According to those technical sheets, the PCB controls the flame and thermal safety.
04
The screen shows E 9 or E F.
Cause: E 9 indicates a fault in the PCB. E F indicates that the gas valve relay control has failed.
Cut off the power and close the gas. Have a technician check the PCB before changing anything else.
05
The screen shows A 8.
Cause: There is no communication between the display board and the PCB.
Check the connection between the two PCBs. If it's fine, have a technician check the control board and the display board.
06
The screen shows E 7 (fan fault).
Cause: The fault may be in the fan or in the PCB.
Check the fan and the PCB. Do not blame the PCB without checking the fan.

Error codes requiring diagnosis

Code	Fault	Technical checks
E 9	Fault in the PCB (control board)	Ask a technician to check the PCB.
E F	The gas valve relay control has failed.	Ask a technician to check the PCB.
E 7	Fan fault	Check the PCB and the fan.
A 8	Communication error between the display board (HMI) and the PCB (control board)	Check the connection between the display board and the PCB. Then inspect both boards.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Catalogue reference: 000303301000
Uniclima internal SKU: PLC276
Type of part: PCBs (control boards)
Units in stock: 1 unit
Status: Refurbished
Warranty: 1 year
Shipping: Delivery time shown at checkout
Return: 14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Inventory — Application indicated in inventory: Ariston Next EVO SFT (application indicated on the bag)
Inventory — Marked code: 660060097202; 01.08.28; 660060097301; 00.01.02; 19 17 20 TH 0610
Manufacturer code: 65152684
External sheet data — Ariston codes for the models: 3632160 (11 GLP) · 3632161 (11 GN) · 3632164 (16 GLP) · 3632165 (16 GN)
External sheet data — Functions: Ignition, flame control and thermal safety
Identification — Marked designation: Next EVO_MB_CE
Identification — Marked code: 000303301000
Identification — Marked code: 460130016202-WEA1600900
Identification — Marked code: 660060097202
Identification — Marked code: 01.08.28
Identification — Marked code: 660060097301
Identification — Marked code: 00.01.02
Inventory data — Application indicated in inventory: Ariston Next EVO SFT (application indicated on the bag)
Inventory data — Marked code: 660060097202; 01.08.28; 660060097301; 00.01.02; 19 17 20 TH 0610
Registered model: Next EVO_MB

Before purchasing

Indicative: they come from almost identical technical sheets (one single source).
To confirm: Ariston Next EVO SFT 11 and 16 — Only: and they come with 65152684; only the first one joins 000303301000 with that code. It does not indicate model number.
To confirm: Ariston Next EVO SFT 14 — and it is listed with 65152684; others, only 11 and 16.
To confirm: Ariston Avenir Plus SFT 11, 14, and 16 — it is listed with 65152684; the models vary from one to another.
To confirm: Ariston Next Evo OFT 14 and Avenir Plus OFT 11 — (and with almost identical texts), and. They are OFT, not SFT.
Just combine 000303301000 with 65152684. Its reference is 46130016202 - WEA1600900 (11 digits); this unit, 460130016202-WEA1600900 (12).
To confirm: Open discrepancy: and (with copies) provide 65152684 for OFT models and do not mention Next EVO SFT 11 or 16. They provide 11 and 16, 11 and 14. They link 000303301000 with 65152684.

Frequently asked questions

How do I identify the PCB Next EVO_MB_CE 000303301000?

Look for the designation Next EVO_MB_CE and the code 000303301000 on the label. This unit also shows 460130016202-WEA1600900, 660060097202, and 660060097301, among others. Connect the 000303301000 with the NextEvo_MB_CE and with the spare part 65152684.

Is it compatible with my Ariston Next EVO SFT?

The source documentation records the Ariston Next EVO SFT application. Shops give code 65152684 for the SFT 11 and 16; we do not confirm the SFT 14. Check the exact model on the nameplate.

What do the codes 000303301000, 65152684, and WEA1600900 mean?

The reference 000303301000 is for this PCB, the code for the NextEvo_MB_CE. The code 65152684 is the one used to sell the "main CE PCB"; it is provided as the manufacturer's code. List WEA1600900 alongside 46130016202 and 65152684.

What is the difference between 460130016202 and 46130016202?

This PCB is marked 460130016202-WEA1600900 (12 digits). The technical sheet states 46130016202 - WEA1600900 (11 digits) and does not clarify the difference. Compare the marking on your PCB with ours or send us a photo from Contact.

Is it also suitable for the Next EVO SFT 14, the Avenir Plus SFT, or the OFT models?

With the 65152684, they list the Next EVO SFT 14, the Avenir Plus SFT 11, 14, and 16; the 11 and 16, OFT models (Next Evo OFT 14, Avenir Plus OFT 11). Connect our PCB with that code: we do not consider it verified. Compare codes or call us at 911 17 77 77.

What symptoms point to this PCB?

Technical sheet: Almost identical sheets relate the 65152684 to the water heater not igniting, with intermittent faults when starting the burner and with safety faults due to flame or temperature. Guidance: have it diagnosed by a technician.

Who should install it and what needs to be checked beforehand?

It is advisable to have it installed by a qualified technician: it is recommended for replacing internal parts. Several technical sheets request to check the exact model of the water heater and confirm the part code before purchasing.
