PCB 7530317_01A · FW 341-03 for Manaut Mitocondens Plus 24

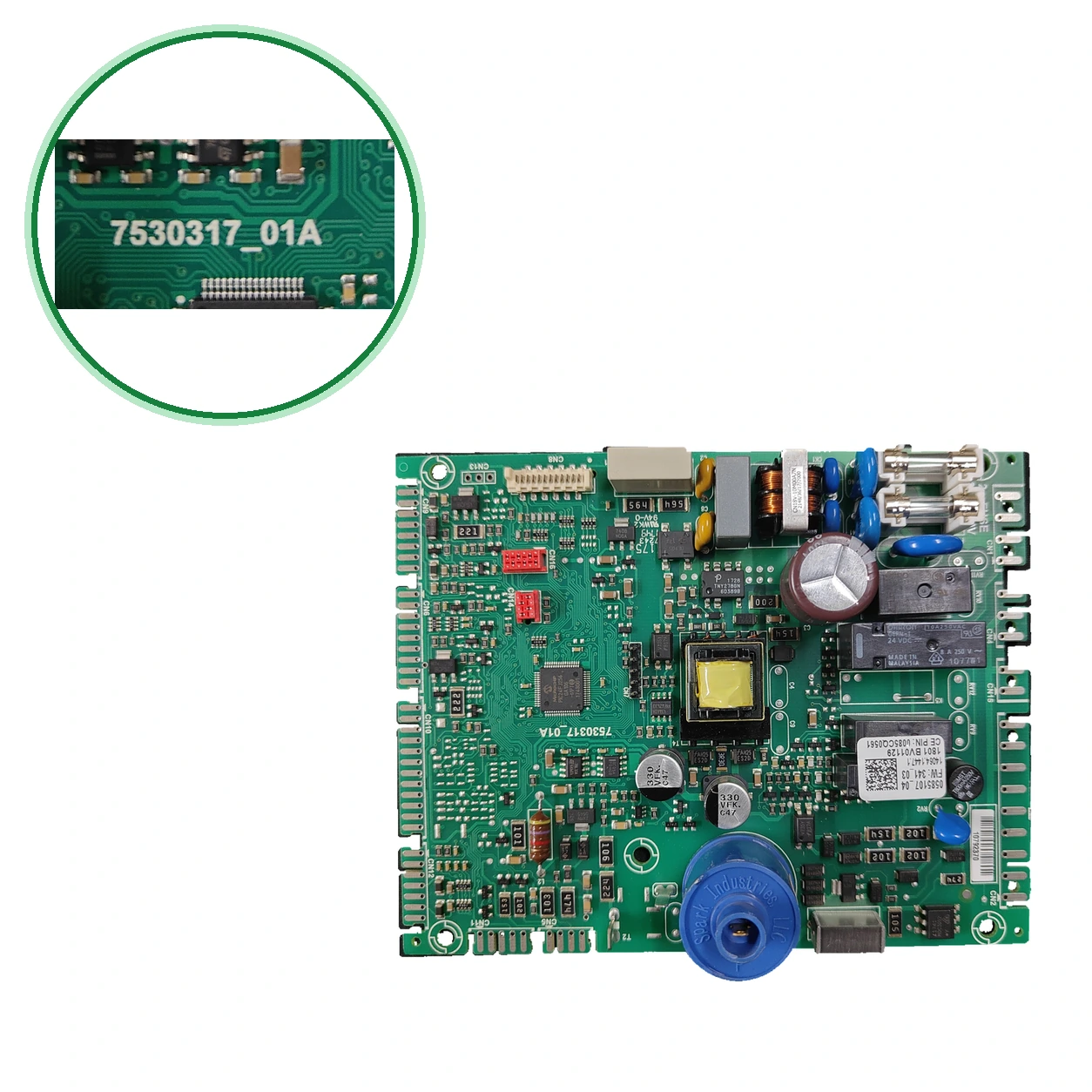

Boiler PCB with a Microchip integrated circuit and an OMRON relay. If the boiler does not respond to the controls, first check the power supply and the connectors.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- internal SKU
- PLC342
- Warranty
- 1 year
VAT included Stock · 5 units
Compatible models
Check the listed models, version and part number before ordering the spare part.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Myto Condens PLUS 24 | Manaut | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Look for the marking 7530317_01A on your PCB and the label FW 341-03.
- Check the Microchip PIC24FJ256GA106-I/PT integrated circuit and the OMRON G5RL-1 relay (coil 24 VDC).
- Compare connectors CN11, CN12, CN14, and CN16.
- If your boiler indicates BI2445100, 024.45.1000, or 288.90.1910 and your PCB does not show 7530317_01A, do not assume they are the same: without additional confirmation, do not link them with 7530317_01A.
- If they match, call us at 911 17 77 77 with the model of your boiler. Any questions? Send us a photo of the label of your spare part and the data plate of the boiler from the Contact section.
Technical data
- Uniclima internal SKU
- PLC342
- Type of part
- PCBs (control boards)
- Units in stock
- 5 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- PCB marking
- 7530317_01A; 94V-0
- Label
- FW 341-03
- Microchip integrated circuit
- PIC24FJ256GA106-I/PT
- OMRON G5RL-1 relay
- 24 VDC coil; UL marked 10 A/250 VAC; VDE marked 8 A/250 V~
- Marked on capacitors
- 330; 35 V
- Blue subcomponent marking
- Spark Industries LLC
- Connectors
- CN11, CN12, CN14, CN16
- Components of the PCB — PIC24FJ256GA106
- 16-bit microcontroller with 256 KB of flash memory · Microchip (manufacturer datasheet)
- Identification — PCB Marking
- 7530317_01A; 94V-0
- Identification — Label
- FW 341-03
- Identification — Microchip Integrated Circuit
- PIC24FJ256GA106-I/PT
- Identification — Marking of the blue subcomponent
- Spark Industries LLC
- OMRON G5RL-1 Relay
- 24 VDC coil; UL marked 10 A/250 VAC; VDE marked 8 A/250 V~
- Technical sheet: Markings on capacitors
- 330; 35 V
- Connectors
- CN11, CN12, CN14, CN16
- Registered reference
- 7530317_01A
Before purchasing
- Do not confuse: BI2445100 — Biasi Savio code for the Myto Condens PLUS 24 (M260V 2025SM) — without additional open confirmation it is mentioned alongside 7530317_01A nor FW 341: it is not given as equivalent.
- Do not confuse: 024.45.1000 · 288.90.1910 — Savio and Manaut codes that link to BI2445100 () — They also do not mention 7530317_01A: they are not confirmed equivalents.
- Do not confuse: 288.90.0206 — PCB for the Myto Condens PLUS 24, model M260.25 S — One only and without 7530317_01A: it is not provided as equivalent.
- All are marked as read on the part itself, without any additional external confirmation linking them to a catalog reference from Manaut or to a spare parts list.
- Compatibility with the Mitocondens Plus 24 confirmed. Without additional external confirmation, link the code 7530317_01A with a boiler; another code (BI2445100) for that boiler.
Frequently asked questions
What is the PCB 7530317_01A and how do I identify it?
It is a PCB with the circuit marking 7530317_01A (94V-0) and the label FW 341-03. It features a Microchip PIC24FJ256GA106-I/PT integrated circuit, an OMRON G5RL-1 relay (24 VDC coil), and connectors CN11, CN12, CN14, and CN16.
Is it compatible with my Manaut Mitocondens Plus 24 (Myto Condens PLUS 24)?
The source documentation records this board for the Manaut Mitocondens Plus 24, which the manufacturer writes as Myto Condens PLUS 24. No external source consulted mentions code 7530317_01A: neither Manaut's text manuals and catalogues nor the official Biasi spare parts list (RinNova Cond Plus M260V.2025 SM, 10/2017). Their parts diagrams are images that could not be read, so we cannot rule out its appearance or give you a catalogue reference: compare your board markings with this one's.
Is it compatible with the Myto Condens PLUS 30 or 35, or with a Biasi?
To confirm: For those boilers, we do not have confirmation from the workshop that a 7530317_01A is compatible with them, so we do not consider it valid without verification. Another code, BI2445100, is for the Myto Condens PLUS 24/30/35, the Biasi RinNova Cond Plus 25/30/35, Inovia Cond Plus 25S and 35S, and Advance 25C to 35C. It also fits the Savio 024.45.1000 for the PLUS 24 and the Inovia 25S and 35S. Please send us a photo of your PCB label and the specifications plate from the Contact section, or call us at 911 17 77 77.
Is the 7530317_01A the same as the BI2445100?
We do not know. Several shops (we consulted seven) give BI2445100, a Biasi Savio code, for the Myto Condens PLUS 24 (four call it a main board); a commercial product listing links it to 024.45.1000, and several commercial product listings link it to Manaut reference 288.90.1910. None mentions 7530317_01A or FW 341. The official PLUS catalogue says its spare part code consists of diagram plus position, and Biasi has an electrical parts diagram BI2445, but it is not confirmed that BI2445100 is that diagram with position 100. We do not consider it equivalent.
What do 7530317_01A, FW 341-03, and PIC24FJ256GA106-I/PT mean?
7530317_01A is the marking of the printed circuit board and the reference for this part. FW 341-03 is the label of the unit: No source consulted explains what it indicates or what changes with the suffix -03. PIC24FJ256GA106-I/PT is the Microchip integrated circuit on the board, not a code for the board: Microchip describes the PIC24FJ256GA106 as a 16-bit microcontroller with 256 KB of flash memory.
Do you need to configure anything when changing the PCB?
The official manual of the Myto Condens PLUS 24/30/35 indicates that when replacing the control board, it must be configured for the exact type of boiler, and it specifies the type of gas in parameter Pr 04. The manual for the Myto Condens 24/35 from Manaut (variant without PLUS, not confirmed for this PCB) states that it is essential to complete the table in figure 9.24. It is not stated that this board is that control board: the technician who installs it should verify this.
Who should install this PCB?
A qualified technician. It is a PCB of a gas boiler, connected to the electrical network and with a 24 VDC relay. Before touching anything, the power supply must be cut off and the gas closed.
PCB 7530317_01A · FW 341-03 for Manaut Mitocondens Plus 24
