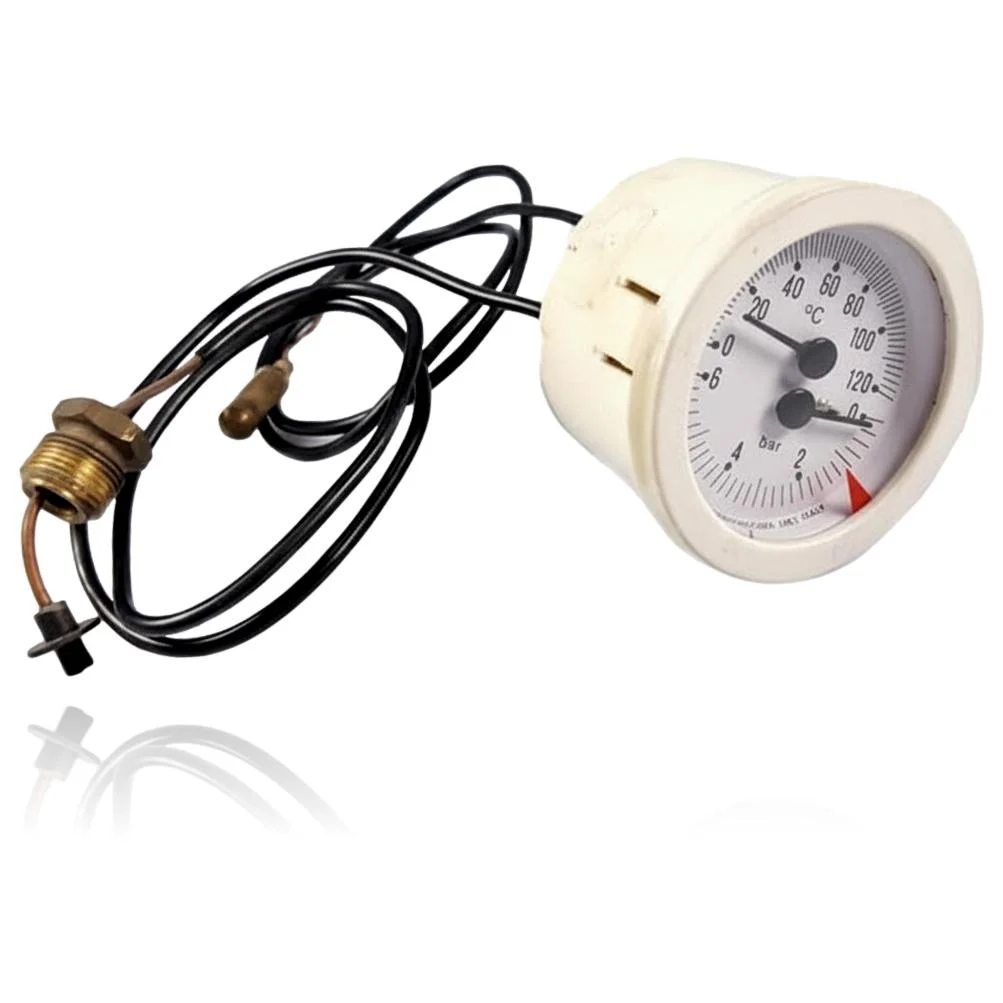

Pressure Gauge Ferroli New Elite F24E Ref. I39809750

Ferroli boilers compatible with reference I39809750

Pressure gauge with reference I39809750. 16 verified compatibilities: 60 C24 and 60 F24.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. I39809750 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference I39809750. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis on the manometer I39809750

The manometer shows the pressure of the boiler circuit. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The pressure needle always stays at zero or doesn't move even if the circuit pressure changes.

  Cause: The capillary tube of the pressure gauge is blocked or internally broken and no longer transmits the actual pressure to the needle.

  First, check the actual pressure of the circuit with the filling key or an external manometer before assuming the part is faulty.

• 02

  The temperature needle shows a value that doesn't match what you feel when touching the supply pipe.

  Cause: The bulb or the temperature sensor has lost contact with the pipe, or the corresponding capillary is damaged.

  Check that the bulb is properly inserted and secured in its housing before replacing the entire thermometer-manometer.

• 03

  The glass or the dial is broken, scratched, or fogged, and the pressure and temperature cannot be read clearly.

  Cause: A blow or moisture entering the case can damage the dial or the glass, even if the internal mechanism continues to function.

  Confirm that the damage is only cosmetic, on the glass or dial, and does not affect the two capillaries before deciding if the entire part needs to be replaced.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Ferroli I39809750 pressure gauge datasheet

Catalogue reference

I39809750

Uniclima internal SKU

MPCTFE

Brand

Ferroli

Type of part

Pressure gauges & aquastats

Units in stock

0 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Temperature range

0-120 °C approx. (dial scale)

Pressure range

0-6 bar approx. (dial scale)

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Ferroli ELITE 60 F30 Manual (PDF) Document © Ferroli, provided as a technical reference.
