Pressure gauge Saunier Duval Semia Tek F 24 Ref. 0020037114

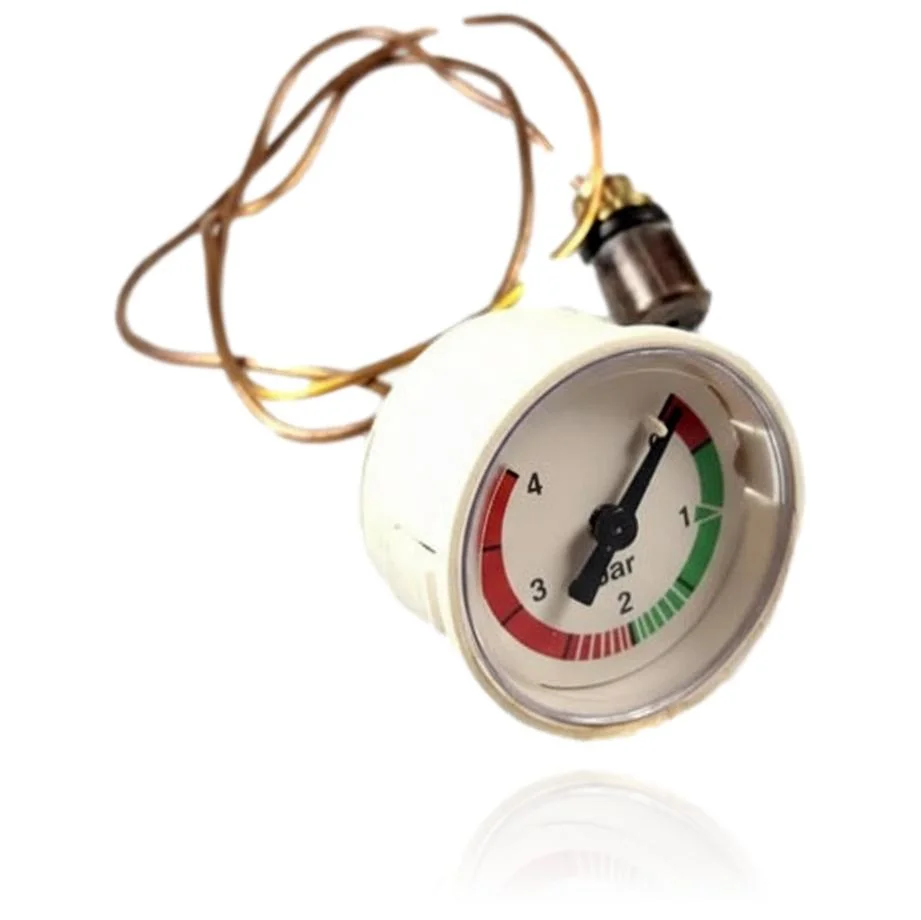

Pressure gauge for heating circuit, white body with brass/copper fitting and pin electrical connector. The dial marks from 0 to 4 bar (1, 2, 3, 4), with a green zone approximately between 1.5 and 2.5 bar and a red zone below 1 and above 3. It should be replaced if the needle does not respond, remains outside the green zone, or the glass is damaged.
- Type of part
- Pressure gauges & aquastats
- Status
- Refurbished
- Catalogue reference
- 0020037114
- Warranty
- 1 year
Saunier Duval boilers compatible with reference 0020037114
Pressure gauge with reference 0020037114. Five confirmed compatibilities: Semia C 24 and Semia F 24.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Saunier Duval Semia C 24 | Semia / Semiatek | Contrasted |
| Saunier Duval Semia F 24 | Semia / Semiatek | Contrasted |
| Saunier Duval Semiatek C 24 | Semia / Semiatek | Contrasted |
| Saunier Duval Semiatek F 24 | Semia / Semiatek | Contrasted |
| Saunier Duval Semiatek 3 24 | Semia / Semiatek | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference 0020037114 is the part for your boiler.
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 0020037114. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the pressure gauge 0020037114
The manometer shows the pressure of the boiler circuit. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The needle of the pressure gauge does not move, it stays stuck at one end or does not reflect the pressure changes when bleeding or refilling the circuit.
Cause: The internal mechanism of the manometer (bellows or spring) has seized up and does not translate the actual pressure of the circuit into needle movement.
Bleed a radiator or open the filling valve and see if the needle moves when the actual pressure of the circuit changes.
- 02
The boiler warns of low pressure or locks out even though the circuit is properly filled.
Cause: This pressure gauge has an electrical connector that alerts the PCB when the pressure drops; if the contact gets stuck, the boiler interprets it as low pressure even if it is not.
With the boiler filled between 1 and 1.5 bar, check if the warning persists; if the gauge reads correctly but the fault does not disappear, suspect the electrical contact before replacing the part.
- 03
The needle remains persistently outside the green zone even though pressure has been restored in the circuit.
Cause: It could be a real pressure fault in the circuit (bleeding, leak) or that the pressure gauge is stuck showing a fixed value.
Empty a little and refill the circuit while observing if the needle follows the change; if it doesn't move at all, the problem is with the pressure gauge.
- 04
The glass or the dial is broken, scratched, or fogged, and the pressure cannot be read.
Cause: A blow or the entry of moisture renders the sight glass unusable, even though the measuring mechanism continues to function.
If the glass is damaged but the needle moves when the pressure changes, assess whether the problem is only with the reading before replacing the entire part.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Saunier Duval pressure gauge data sheet 0020037114
- Catalogue reference
- 0020037114
- Uniclima internal SKU
- MPSTF24
- Brand
- Saunier Duval
- Type of part
- Pressure gauges & aquastats
- Units in stock
- 7 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Pressure gauge
- 0-4 bar approx. (marks 1, 2, 3, and 4; green zone approx. 1.5-2.5 bar; red zone below 1 and above 3 bar)
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Saunier Duval Semia C 24 Manual (PDF) Document © Saunier Duval, provided as a technical reference.
Frequently asked questions about the pressure gauge 0020037114
What fault indicates that the manometer of the Semia F24 needs to be replaced?
How can I check that the pressure gauge of my Semia C24 is this model and not another?
What pressure range does the dial of this manometer indicate for the Semiatek C 24?
