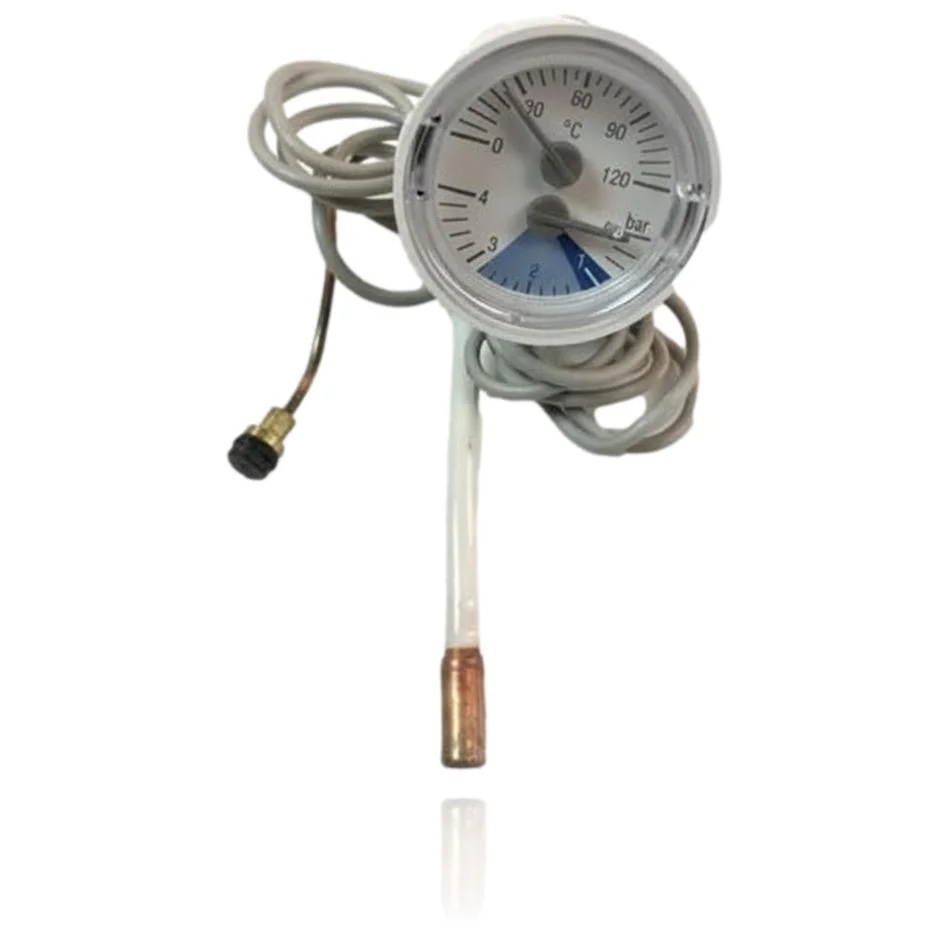

Sime Thermomanometer Pressure Gauge Metropolis H25BF Ref. 6217006

The Sime manometer of the Metropolis H25BF model measures and controls the pressure of the boiler circuit. If it fails, you will notice incorrect readings, which can cause the boiler to lock due to a false lack of pressure or not regulate the temperature properly. This manometer is compatible with several boilers, including the Metropolis 25 BF, Metropolis 30 BF, Format ZIP 25 BF, Format ZIP 30 BF, Format Dewy ZIP 25 BF, and Format Dewy ZIP 30 BF models, among others. A technician must confirm through diagnosis whether it needs to be replaced when it shows erroneous readings or regulation faults.

Type of part
Pressure gauges & aquastats
Status
Refurbished
Catalogue reference
6217006
Warranty
1 year
VAT included Stock · 3 units
Compatibility

Sime boilers compatible with reference 6217006

Pressure gauge with reference 6217006. Six confirmed compatibilities: Metropolis 25 BF and Metropolis 30 BF.

Verified compatibility

Boiler modelFamilyVerification
Sime Metropolis 25 BFMetropolisVerified
Sime Metropolis 30 BFMetropolisVerified
Sime Format ZIP 25 BFFormat ZIPVerified
Sime Format ZIP 30 BFFormat ZIPVerified
Sime Format Dewy ZIP 25 BFFormat Dewy ZIPVerified
Sime Format Dewy ZIP 30 BFFormat Dewy ZIPVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if the part number 6217006 is the one for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference 6217006. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the manometer 6217006

The manometer shows the pressure of the boiler circuit. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    Only one of the two gauges works: either the temperature gauge or the pressure gauge, not both.

    Cause: The thermomanometer has two independent mechanisms in the same housing and they can fail separately.

    Check which of the two readings is failing exactly before making a purchase; help confirm that the problem is real and not related to installation.

  • 02

    The pressure gauge does not reach the blue zone even though the boiler is filled.

    Cause: The pressure mechanism gets stuck or loses accuracy and stops reflecting the normal operating range of the circuit.

    Re-pressurize with the filling key to the usual value of your boiler and check if the needle moves, even if it doesn't enter the blue zone.

  • 03

    Neither of the two needles moves, as if the instrument were dead.

    Cause: The water inlet to the mechanism is blocked, usually by limescale, and neither of the two scales is receiving the signal from the circuit.

    Check that the boiler has real water and pressure through another method (bleed valve, display) before replacing the complete part.

  • 04

    The glass is fogged up and neither the blue band nor either of the two needles can be seen.

    Cause: The box has lost its tightness and moisture is entering, which is more noticeable in a thermomanometer due to its double mechanism.

    Check if the fogging occurs only when the boiler is hot; if so, confirm moisture entry through the glass seal.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Sime pressure gauge data sheet 6217006

Catalogue reference
6217006
Uniclima internal SKU
MPH25BF
Brand
Sime
Type of part
Pressure gauges & aquastats
Units in stock
3 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Temperature scale
0-120°C
Pressure gauge
0-4 bar (blue band marked approximately 1-2.5 bar)
Documentation

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

Frequently asked questions

Frequently asked questions about the pressure gauge 6217006

What does the thermomanometer of the Metropolis 25 BF boiler (Ref. 6217006) measure?
Temperature (0-120°C) and pressure (0-4 bar) at the same time, on the same dial.
What pressure range is the blue band of this manometer used for?
Mark the reference area, approximately between 1 and 2.5 bar.
When should the thermometer-manometer of the Format ZIP 25/30 BF boilers be replaced?
The technical diagnosis must confirm that it is necessary to replace it, even when the temperature or pressure reading fails, or the glass prevents seeing them.
Is this thermomanometer suitable for the Ecomfort Plus 30 HE?
Yes, Ecomfort Plus 30 HE is listed among the boilers compatible with Ref. 6217006.
