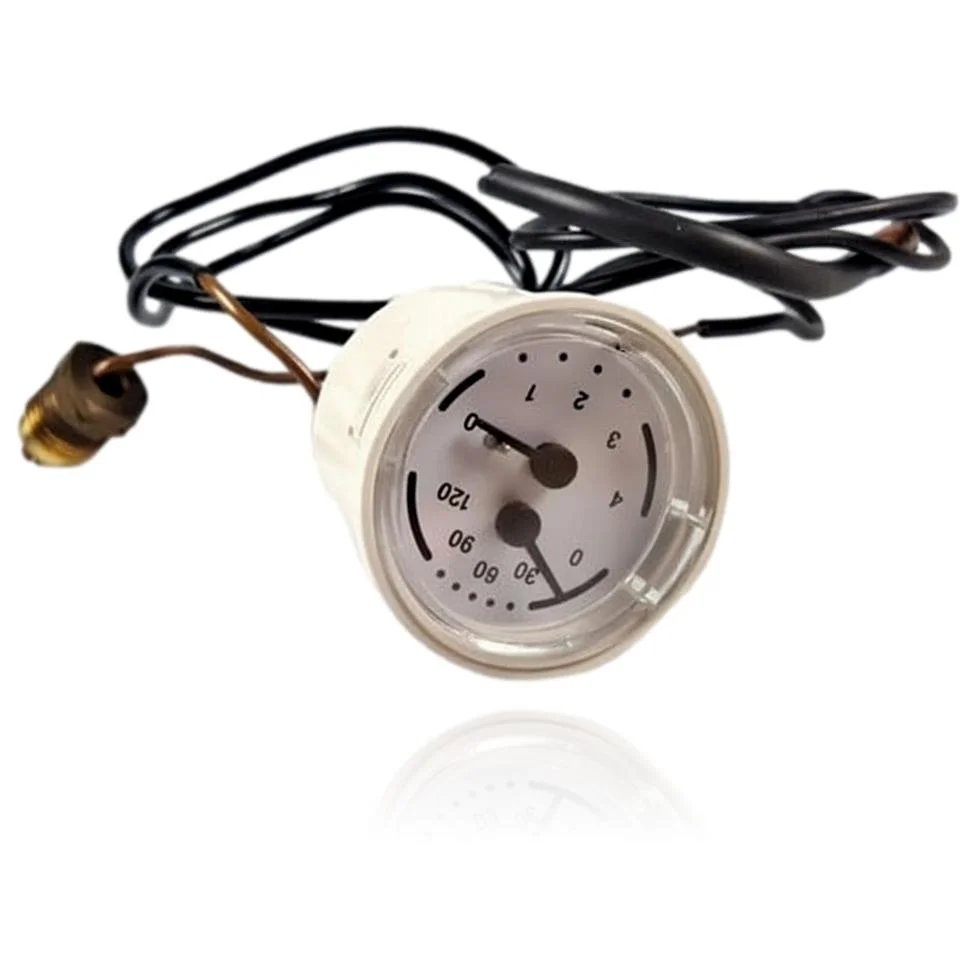

Wiesberg CTFS 24 F thermomanometer
When you open the tap or start the heating, the Wiesberg CTFS 24 F thermometer-manometer is responsible for measuring and controlling the pressure and temperature of your boiler's circuit. If this part fails, you will notice incorrect readings that may cause the boiler to lock due to a false lack of pressure or not regulate the temperature properly. This thermometer-manometer is compatible with several boiler models, such as those from the Antea and CTFS ranges, among others. A technician must confirm through diagnosis whether it needs to be replaced when it starts providing erroneous readings or instability in operation.
- Type of part
- Pressure gauges & aquastats
- Status
- Refurbished
- internal SKU
- MPTCTFS24F
- Warranty
- 1 year
Compatible Wiesberg boilers
Manometer. Three confirmed compatibilities: CTFS-CTN 24 AF and 24.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Wiesberg CTFS-CTN 24 AF | ANTEA | Verified |
| Wiesberg 24 | CTFS | Verified |
| Wiesberg 24 AF | CTFS | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the manometer
The manometer shows the pressure of the boiler circuit. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The indicator shows neither pressure nor temperature, as if it were dead.
Cause: The internal mechanism may be jammed and does not reflect the magnitudes.
Check the filling key to see if the circuit has real pressure before assuming that the instrument is faulty.
- 02
The needle is stuck at a fixed value and never changes.
Cause: The brass threaded bulb may be obstructed and not transmit the actual data.
Check if the fixed value matches the actual pressure of the circuit before deciding on the change.
- 03
There is a water leak right at the thread on the back of the unit.
Cause: The brass bulb gasket may have lost its seal over time.
Gently tighten the bulb's thread and check if the leak stops before replacing the part.
- 04
The temperature reading seems lower than what actually comes out of the tap.
Cause: The rear bulb may be improperly seated and not accurately sensing the temperature.
Check that the bulb is properly inserted and tightened in its sleeve before replacing the thermomanometer.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Wiesberg pressure gauge data sheet
- Uniclima internal SKU
- MPTCTFS24F
- Brand
- Wiesberg
- Type of part
- Pressure gauges & aquastats
- Units in stock
- 7 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Temperature scale
- 0-120 °C
- Pressure gauge
- 0-4 bar
Frequently asked questions about the pressure gauge
What does the thermomanometer of the CTFS 24 AF boiler measure?
Is this thermomanometer suitable for the Antea CTFS-CTN 24 AF?
How is the thermomanometer of the CTFS 24 AF connected to the boiler circuit?
