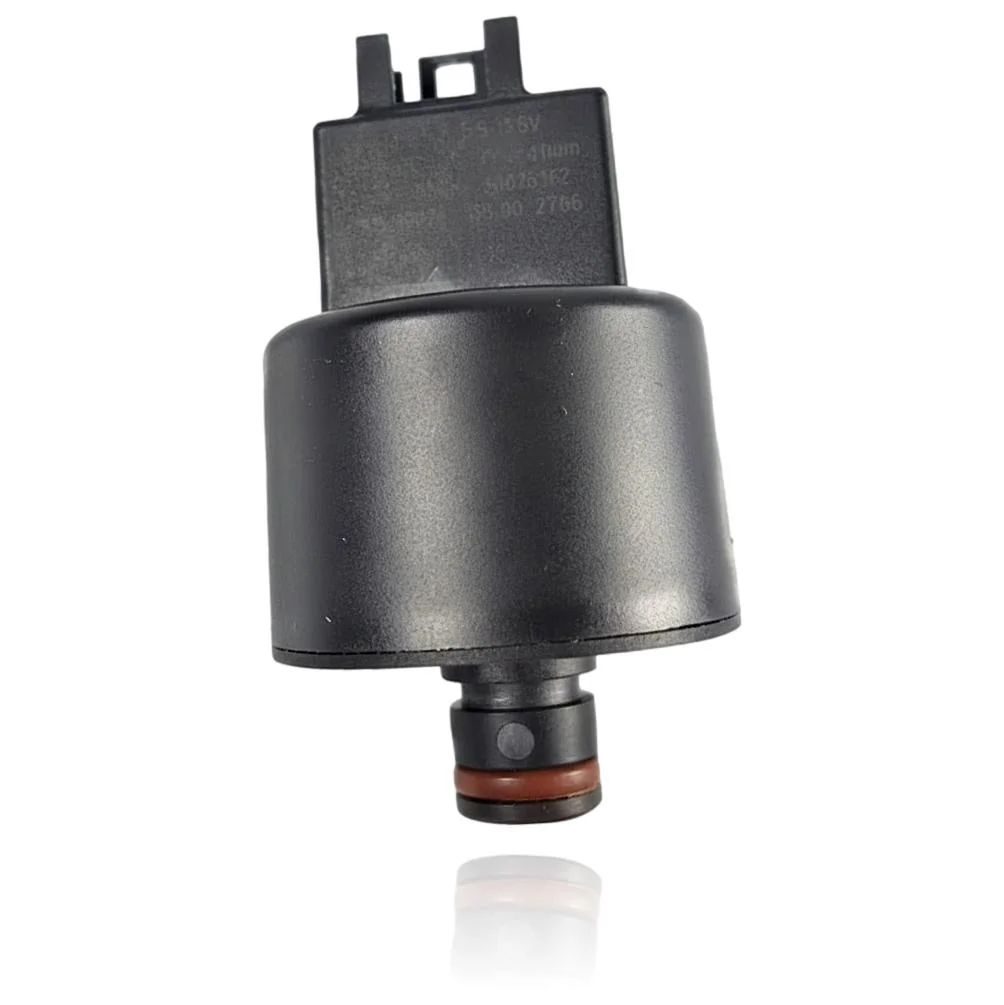

Water Pressure Sensor Beretta Exclusive MIX 26 Ref. R10028142

Beretta boilers compatible with reference R10028142

Pressure sensor with reference R10028142. 24 verified compatibilities: Exclusive 24 CAI and Exclusive 28 CAI.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if the part R10028142 is the one for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference R10028142. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis in the pressure switch R10028142

The pressure sensor measures the water pressure for the electronics. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The display always shows the same pressure, it neither rises nor falls even if you refill or bleed water.

  Cause: The pressure sensor is stuck and does not send the actual value to the control board.

  Compare the reading on the screen with an analog manometer (the one from the bleed valve or the filling key) before changing the sensor.

• 02

  The boiler locks out due to low pressure even though you see the circuit full and the physical manometer reads correctly.

  Cause: If the sensor sends a false low pressure value, the control board shuts off for safety even if the water is at the right temperature.

  Check that the tube or connection that carries the pressure to the sensor is not bent, blocked, or has an air bubble.

• 03

  The pump and flame modulation are erratic, as if the boiler doesn't know if there is enough water.

  Cause: An unstable pressure signal from the sensor confuses the control board, which adjusts the boiler with incorrect data.

  Note if the fault coincides with knocks or vibrations in the piping: it could be a loose connection in the wiring of the sensor and not the part itself.

Beretta fault codes that require diagnosis

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Pressure sensor data sheet Beretta R10028142

Catalogue reference

R10028142

Uniclima internal SKU

TPCEM26

Brand

Beretta

Type of part

Pressure sensors

Units in stock

3 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

voltage

5-15V

power

4W
