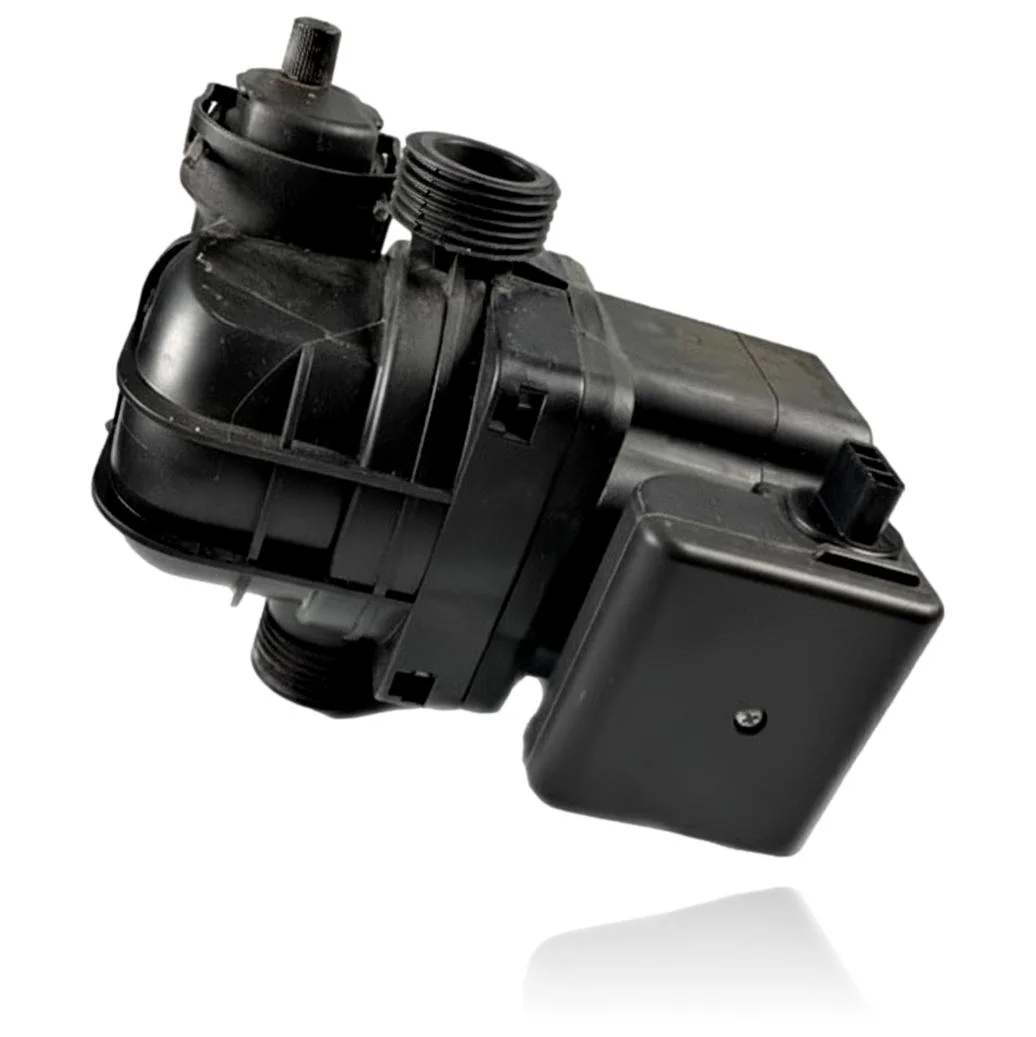

Baxi Roca Circulating Pump Group Laura Plus 28 28 F Ref. 122270090
The Baxi Roca Circulating Pump Group Laura Plus 28 28 F Ref. 122270090 is a device designed to move water through the heating circuit of your boiler. If this pump fails, you will notice that the radiators do not heat up, you will hear strange noises, or you will experience overheating due to the lack of water circulation. It is compatible with the Laura Plus 28 and Laura Plus 28 F models, among others in the Baxi Roca Laura Plus range. A technician must confirm through diagnosis whether it needs to be replaced when symptoms of blockage are present or when faults such as 34, 35, or 36 are detected.
- Type of part
- Pumps
- Status
- Refurbished
- Catalogue reference
- 122270090
- Warranty
- 1 year
Baxi Roca boilers compatible with reference 122270090
Circulating pump with reference 122270090. Two confirmed compatibilities: Laura Plus 28/28 and Laura Plus 28/28 F.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Baxi Roca Laura Plus 28/28 | Baxi Roca Laura Plus | Verified |
| Baxi Roca Laura Plus 28/28 F | Baxi Roca Laura Plus | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference 122270090 is the part for your boiler.
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 122270090. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis in the circulator pump 122270090
The circulation pump circulates the water in the heating circuit. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The pump does not start or does not rotate when the boiler is turned on.
Cause: The shaft gets stuck due to limescale or because it has been idle for a long time, which is typical when resuming heating.
Try to free the shaft with a screwdriver through the central plug before replacing it.
- 02
A buzzing or strange noise is heard in the area of the pump.
Cause: It could be trapped air in the circuit or a bearing that is starting to fail.
Bleed the radiators and the pump's air vent before declaring it faulty.
- 03
The radiators are not heating even though the boiler is working.
Cause: If the pump does not circulate water, the heat does not transfer from the boiler to the circuit.
Touch the body of the pump while it is running: if it does not vibrate or is not hot, it indicates that it is not pumping.
- 04
The boiler shows a circulation error or a lack of flow fault.
Cause: The system detects that there is not enough water flow and blocks operation for safety reasons.
Check that the circuit shut-off valves are open before replacing the pump.
Fault codes Roca that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| 34 | No signal from the circulator to the control board. | The pump does not send the operating signal to the control board (internal fault of the circulator or defective wiring/connector); check power supply and signal at the circulator connector and continuity of the harness to the PCB. |
| 35 | Possible air in the system mixed with water in the circulator. | Air trapped in the pump causes cavitation and lack of flow; check by bleeding the circulator/installation and ensuring that noises disappear and return improves. |
| 36 | Possible circulator blockage. | Circulator rotor seized by lime/dirt prevents circulation; check that the pump receives voltage but does not rotate (humming), attempt mechanical unlocking via front plug and measure consumption/ΔT flow-return. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Baxi Roca circulator pump 122270090
- Catalogue reference
- 122270090
- Uniclima internal SKU
- BCCRLP2828F
- Brand
- Roca
- Type of part
- Pumps
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Casing
- Black plastic
Frequently asked questions about the circulator pump 122270090
Does this pump work for my boiler Laura Plus 28/28 F?
What does this pump do in the Laura Plus 28/28 F circuit?
